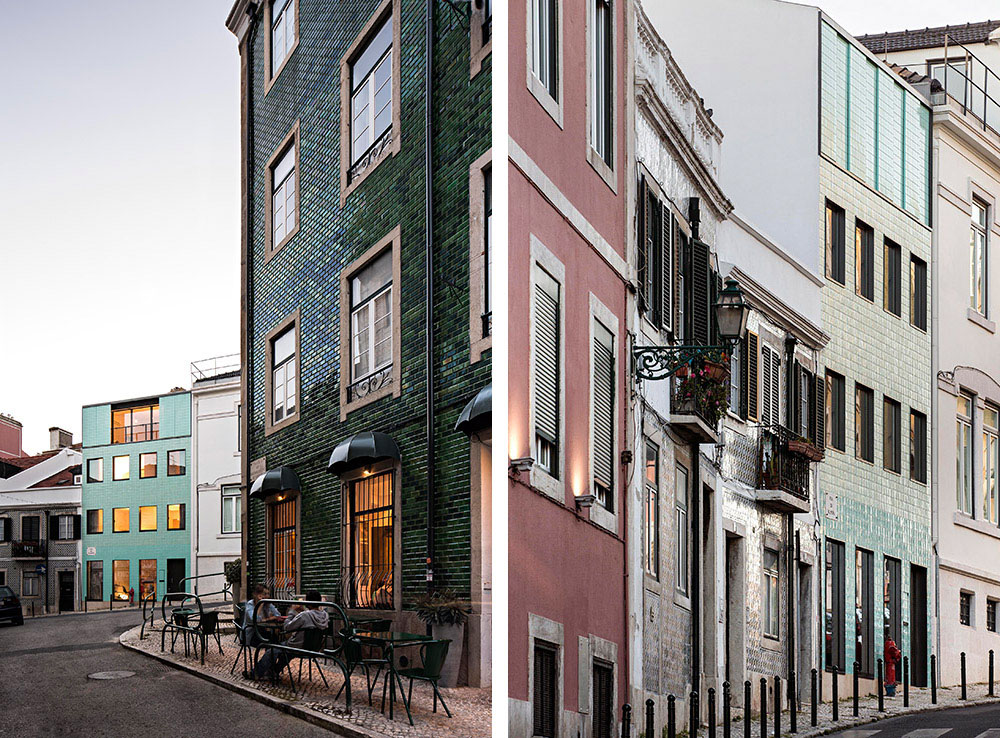

  在葡萄牙里斯本,距离普西林花园不远的城区中,这栋占地41平米的绿色小楼安静同其它五颜六色的多层楼房排列在一起,享受着地中海的灿烂阳光。
  Located a few metres from the Garden of Príncipe Real in Lisbon, this 41 m2 plot allows the construction of a small 5-storey urban house for a family.
House in Principe Real / Camarim Arquitectos第1张图片

  建筑的占地如此之小。建筑师采用了具备良好隔热性和隔音性的LSF轻钢结构建筑系统来进行建设,这是里斯本第一个采用该系统进行建设的建筑。建筑的外表皮采用了三种材料,通过将当地传统的瓷砖花纹抽象化和色彩概括化,打造出平面瓷砖(底部),浅浮雕瓷砖(中部)和穿孔钢板(顶部)。
House in Principe Real / Camarim Arquitectos第2张图片
House in Principe Real / Camarim Arquitectos第3张图片

  The building's skin is a contemporary approach to the tiles covering the former building, which was in advanced state of decay. We defined a setof abstract rules to transform the original tile's motif in an abstract pattern, embodied in 3 distinct media: a flat-tile base, a bas-relief-tile body and a perforated-steel, light-permeable, entablature.
House in Principe Real / Camarim Arquitectos第4张图片

House in Principe Real / Camarim Arquitectos第5张图片

  ↑ 顶层阳台

  建筑师在这栋包含地下室在内的共五层小楼中,设立了一个楼梯系统还有一个贯通四层楼的天井。每一层,都有不同的功能和布局,每一层,也都有充足的自然光线,和极高的空间品质。天井不光让空间灵动,更作为被动冷却的手段,在炎热季节利用烟囱效应排走热气。

House in Principe Real / Camarim Arquitectos第6张图片

  ↑ 顶层起居室

  The exiguity of the plot has led us to a scheme where each floor has a different function and layout and all floors connect through a vertical atrium of variable geometry, providing a naturally-lit cadenced, progressive route. In addition to its spatial qualities, the atrium works as a thermal chimney for passive cooling during spring and summer and allows air renewal throughout the year.
House in Principe Real / Camarim Arquitectos第7张图片

  ↑ 穿孔钢板装饰外表皮过滤进入房间的光线

House in Principe Real / Camarim Arquitectos第8张图片

  ↑ 楼梯与天井

House in Principe Real / Camarim Arquitectos第9张图片

  ↑ 起居室,楼梯,天井

House in Principe Real / Camarim Arquitectos第10张图片

  ↑ 变化的天井让交通空间灵动

House in Principe Real / Camarim Arquitectos第11张图片

  ↑ 楼梯联系各层

  House in Principe Real / Camarim Arquitectos第12张图片

 ↑ 天井

House in Principe Real / Camarim Arquitectos第13张图片

  ↑ 天井

House in Principe Real / Camarim Arquitectos第14张图片

  ↑ 地面层厨房和餐厅

House in Principe Real / Camarim Arquitectos第15张图片

  ↑ 地面层和地下层之间的地板做了一条可以透光的地板

House in Principe Real / Camarim Arquitectos第16张图片

  ↑ 自流平混凝土地面和天花的地下室--书房

House in Principe Real / Camarim Arquitectos第17张图片

  ↑ 自然光通过地面层的透明地板进入地下室

  Hard as it would be to plan a typical construction site in such a small plot, we opted for a light steel construction system - LSF - which has an excellent thermal and acoustic performance. It is the first building in Lisbon made with this system.
House in Principe Real / Camarim Arquitectos第18张图片

House in Principe Real / Camarim Arquitectos第19张图片

  MATERIALS
  Structure: basement - reinforced concrete (visible structural slab); above ground - LSF (light steel frame) system
  Exterior Finishings: main façade - plain tiles, engraved tiles and lacquered perforated aluminium with customized pattern; side walls and back façade - cold white ETICS
  Interior Finishings: basement and ground floor - self-levelling concrete; upper floors and stairs - 3-ply wood core in spruce; bathrooms - white marble from Vila Viçosa, Portugal; ground floor and bedroom openings - wild silk curtains
  PROJECT FILE
  Project Name: Casa no Príncipe Real
  Project Location: Lisbon, Portugal
  Site Area: 41 m2
  Built Area: 205 m2
  Project Completion: 2013
  Project by: Camarim
  Project Architects: Vasco Correia, Patrícia Sousa
  Collaborators: Tiago Garrido, Jonas Grinevicius
  COPYRIGHT
  Project: Camarim
  Photos: Nelson Garrido
