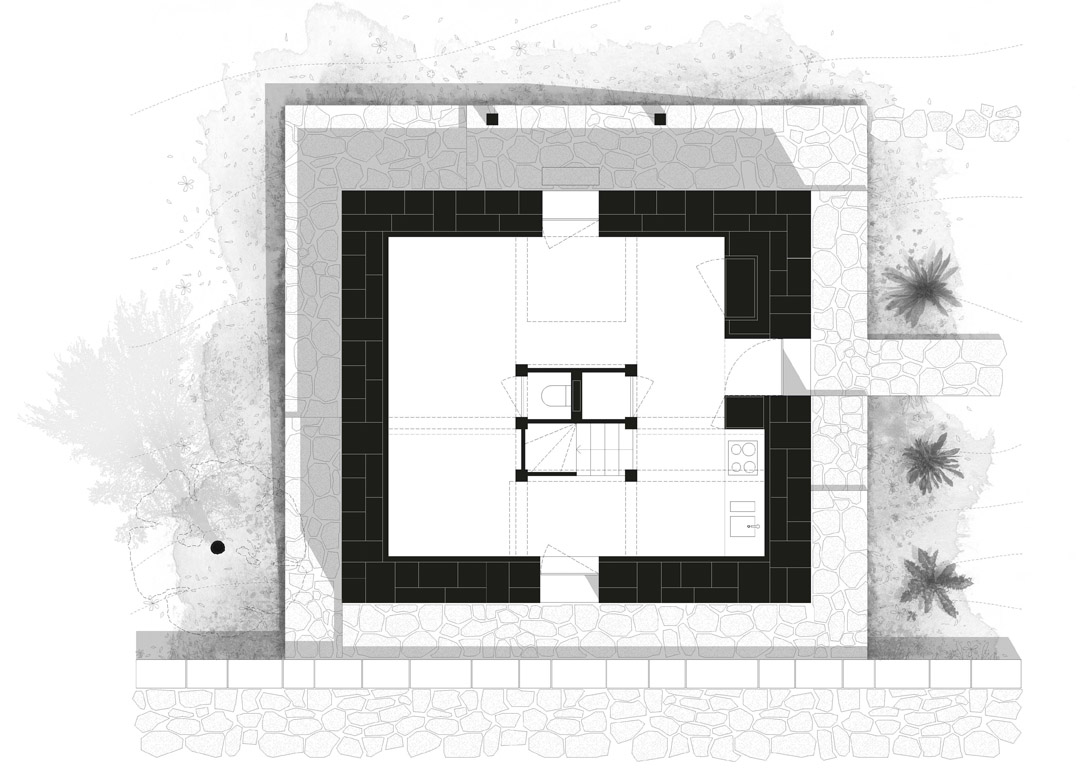

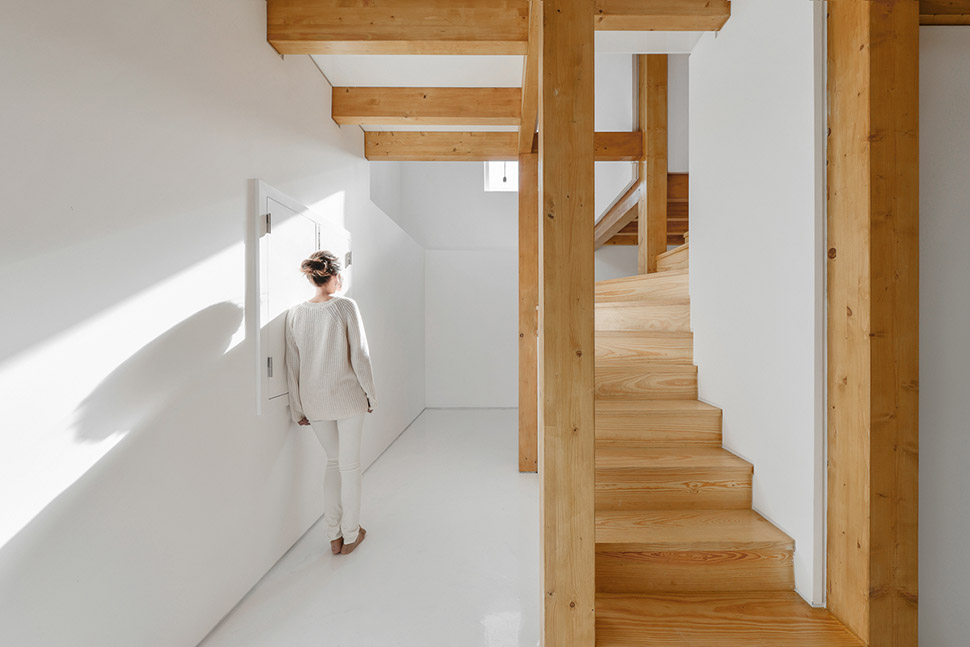

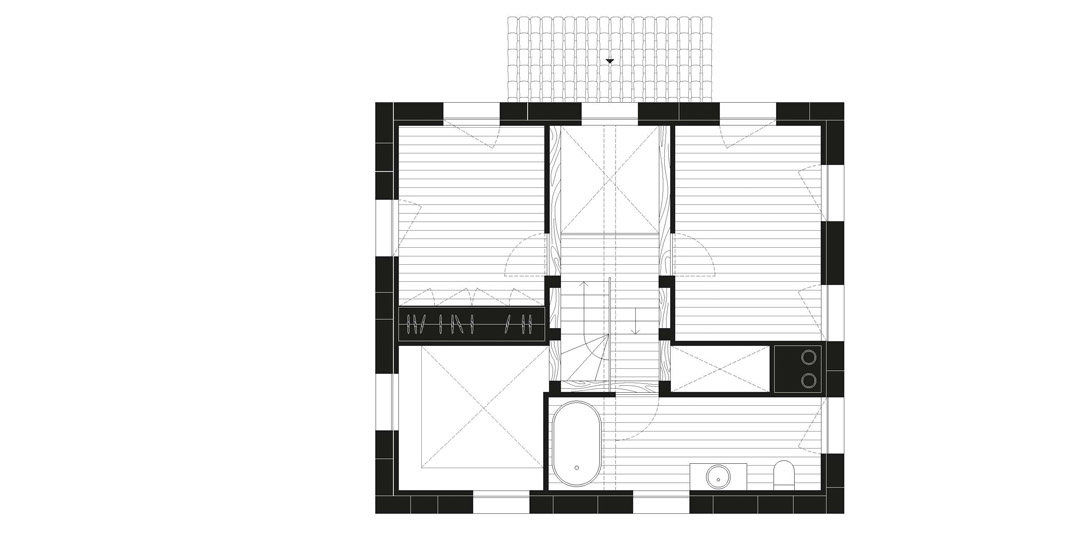

  改造前,这栋小房子屋顶已被毁坏,只剩下厚厚的石墙四壁围住一方向天的空间。建筑师给小屋加上新的屋顶,刷白石墙内壁,加上以木结构为基础划分的空间。房屋的中心是以楼梯为核心的交通空间,一层的卫生间也安放在楼梯筒中。厨房功能区沿墙布置。二层楼板开出两个洞口,形成与一层相连的两个高空间,建立起围绕木结构而展开的连续视觉氛围。
Wood Structure Inside Stone Walls / Corpo Atelier第1张图片

Wood Structure Inside Stone Walls / Corpo Atelier第2张图片

  建筑师引用了日本诗人谷川俊太郎的话:
  垂直的支柱延伸至遥远的天堂。
  水平的横梁蔓延到无尽的未知。
  人就居住在这垂直与水平之间,
  敬畏树木野兽,寻找自己坐标。
Wood Structure Inside Stone Walls / Corpo Atelier第3张图片

Wood Structure Inside Stone Walls / Corpo Atelier第4张图片

  Architects: Corpo Atelier
  Location: Sernancelhe, Portugal
  Design Team: Filipe Paixão
  Construction: Window to the Future (www.wtfc.pt) and Opus Nobel Energia
  Year: 2014
  Photographs: Ricardo Oliveira Alves
  “The vertical pillar extends to the far heavens.
  The horizontal beam extends to somewhere unknown.

Wood Structure Inside Stone Walls / Corpo Atelier第5张图片

Wood Structure Inside Stone Walls / Corpo Atelier第6张图片

  People dwell where the vertical and the horizontal intersect,awed by trees, fearing beasts and groping for their coordinates.”
  Shuntaro Tanikawa

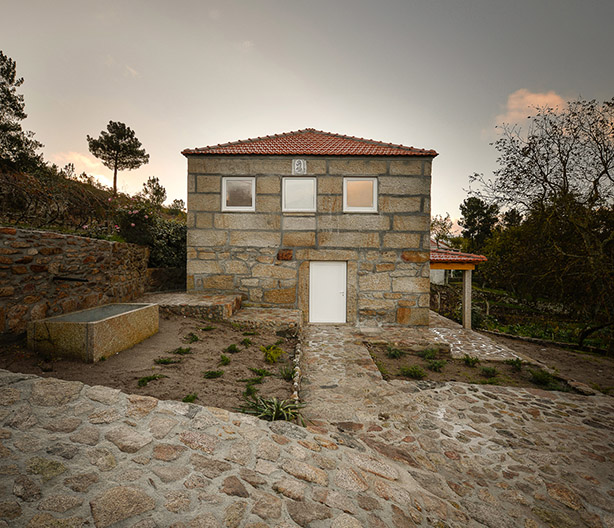

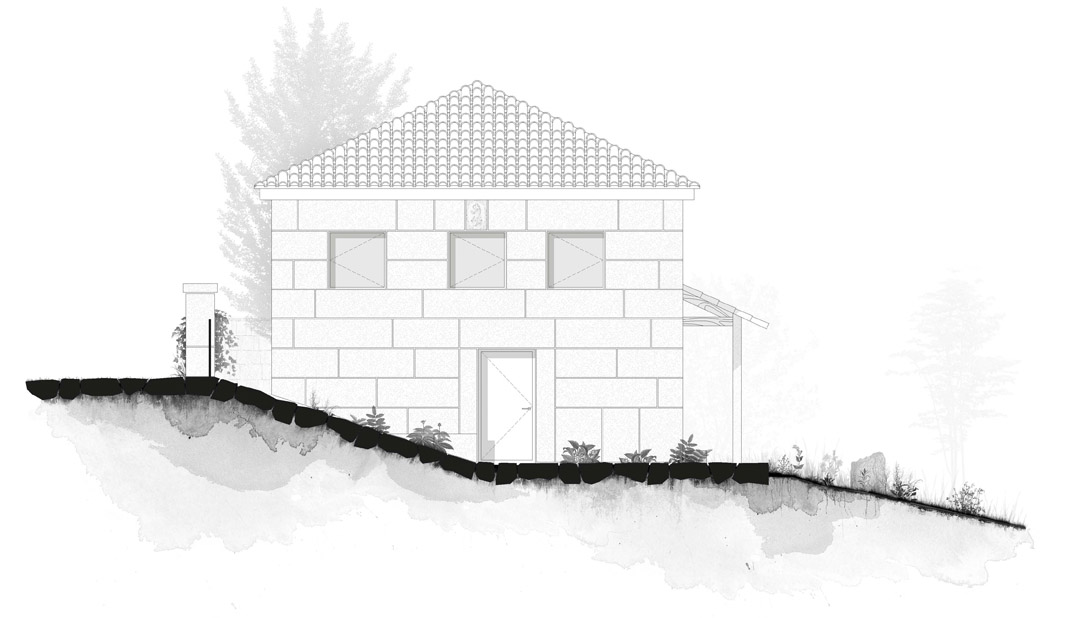

  Four thick stone walls are the remaining elements of an ancient rural house. Like a box open to the sky, these walls enclose a volume that is no longer divided in two levels, but presents its real volumetric potential.

Wood Structure Inside Stone Walls / Corpo Atelier第7张图片

Wood Structure Inside Stone Walls / Corpo Atelier第8张图片

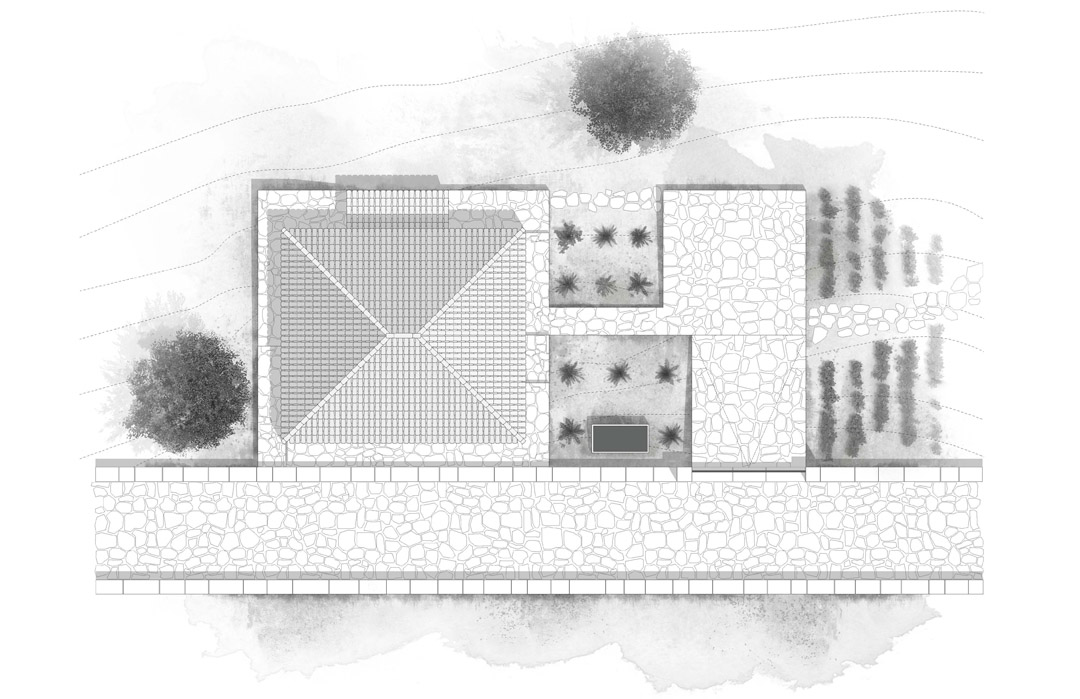

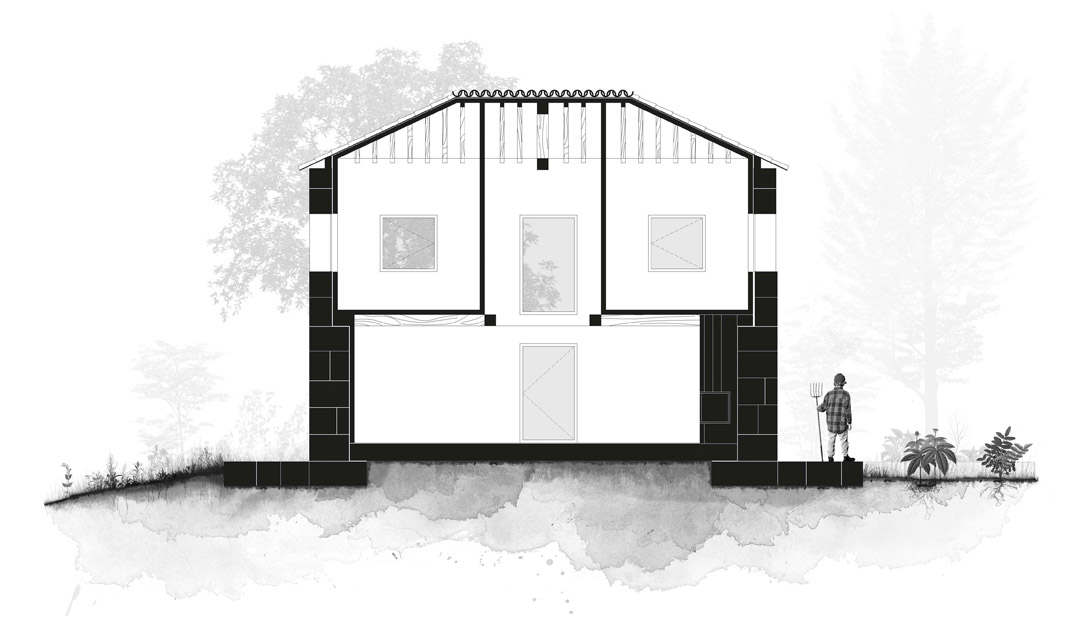

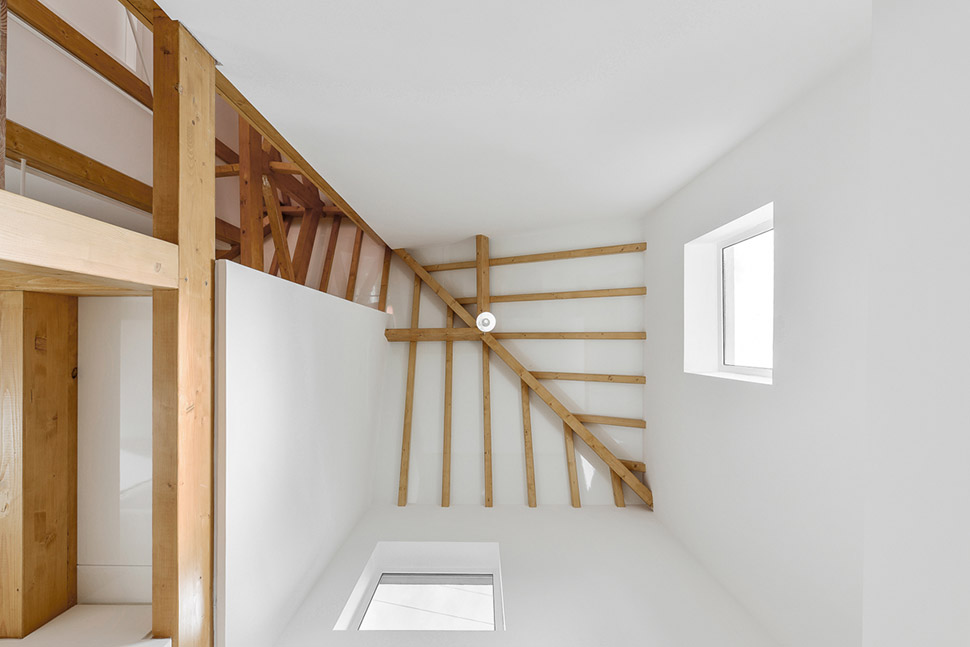

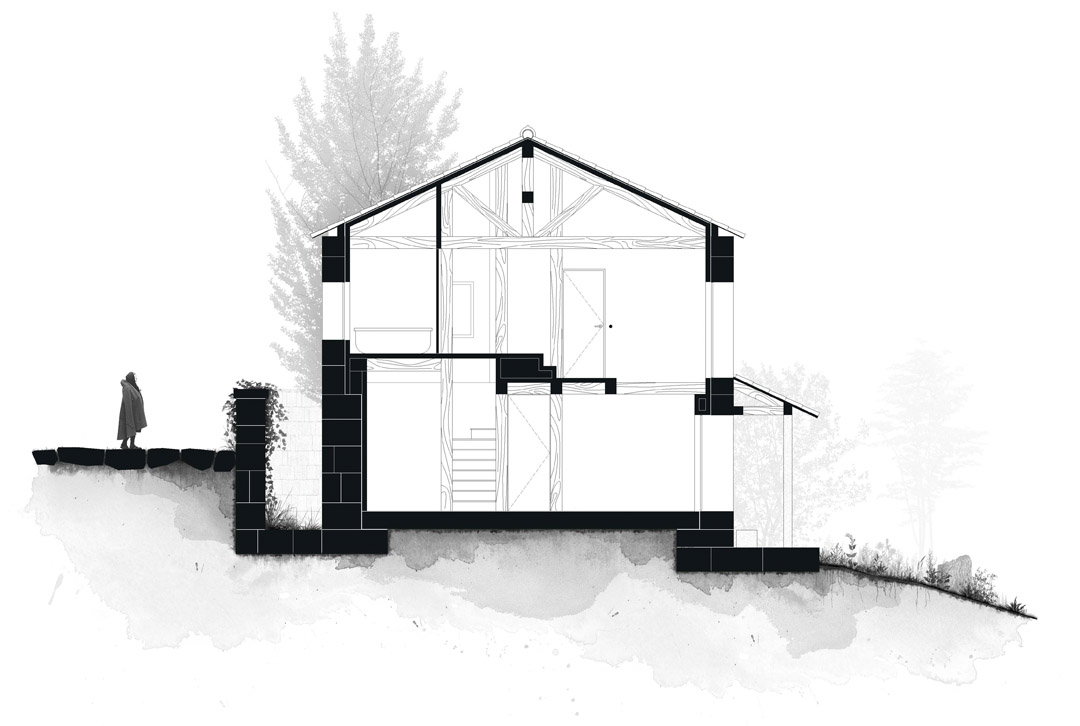

  A traditional pitched roof is placed to cover the top of the box. Inside, the wood structure that supports it is expanded vertically, trespassing the house in all its dimension, both dividing and hierarchizing the space.
Wood Structure Inside Stone Walls / Corpo Atelier第9张图片

Wood Structure Inside Stone Walls / Corpo Atelier第10张图片

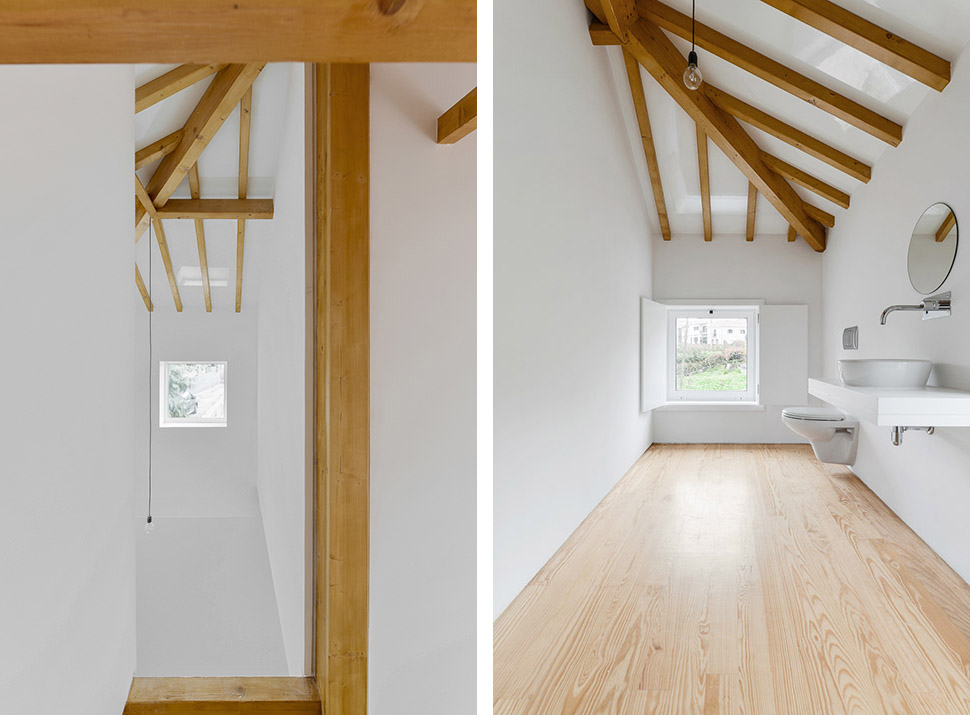

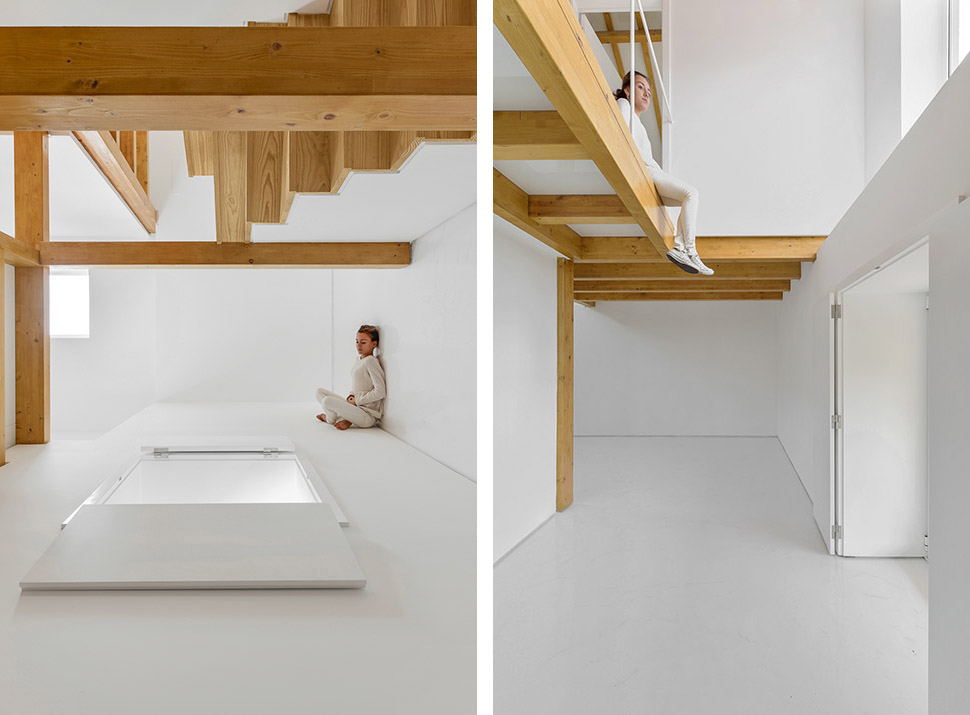

  The habitable areas then occupy the interstices of this clearly defined geometry of wood pillars and beams. Private spaces that require enclosure and intimacy - such as bedrooms and bathrooms - take place in three independent volumes embedded in the structure, hanging from the roof. The social areas occur at the groundfloor, organized around the pillars, emphasizing a sense of functional and visual continuity.
Wood Structure Inside Stone Walls / Corpo Atelier第11张图片

Wood Structure Inside Stone Walls / Corpo Atelier第12张图片

Wood Structure Inside Stone Walls / Corpo Atelier第13张图片

Wood Structure Inside Stone Walls / Corpo Atelier第14张图片

Wood Structure Inside Stone Walls / Corpo Atelier第15张图片

Wood Structure Inside Stone Walls / Corpo Atelier第16张图片
