BW7
由专筑网罗晓茜，Vigo编译
描述来自于事务所。这座建筑包含了310平方米的8套公寓，被设置在两个不同的区域，并在第六层顶部，两个区域之间设置了一个独立的空间。较低楼层的外立面是由经过雕刻的白色的石灰华石，这些用于公寓出售或出租，上面的楼层是由深灰色热灰木的外立面，专为客户设计居所。
From the architect. This structure has built in 8 residential apartments with 310 sq. meters area that are placed in two different zones and a single spatial floor in between at sixth level, five stories in the bottom and three on the top of sixth floor, the lower part made of a white carved travertine stone and these apartments are for sale or rent, the upper part is made of dark grey thermo ash wood which designed for the client’s family to live.
© Ali Daghigh

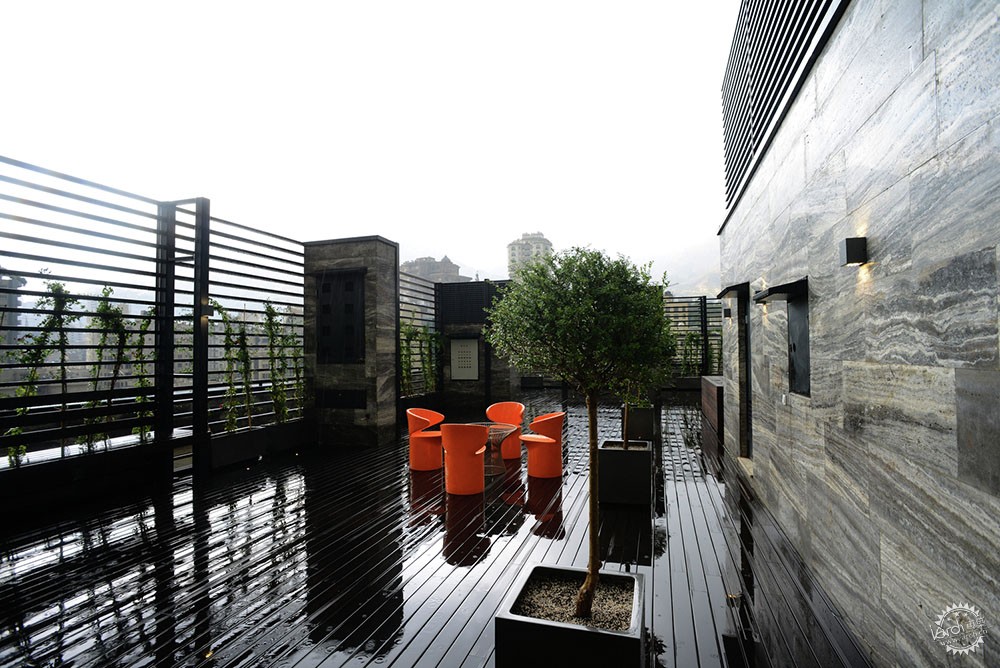

六楼有为客人设计的派对房、客房和一个50平方米的露台。向南的露台在顶部和底部强调出两种立面之间的差异。
Sixth floor has designed for guests, including party room; guest room and a 50 sq. meter terrace looking south witch emphasize the variance between two objects on the top and the bottom.
© Ali Daghigh
一楼入口大堂是一个综合性的多功能大厅，和一个设施功能齐全的家庭影院，可供公寓的家庭使用。
Ground floor is the entrance lobby that is compound with a multi-purpose hall and a home theater in full facilities in side which is ready for family ceremonies.
© Ali Daghigh
© Ali Daghigh
Floor Plan/楼层平面图
停车场位于地下室，有18个停车位，有一个应急柴油发电机的电气室，在这层还有四个存储室。游泳池、按摩浴缸、健身房、主要的器械室和一些存储室位于地下室2层。在建筑顶部有一个屋顶花园，配套有完整的供休闲和聚会活动的设施。
Car parks are located in the basement -1 for 18 park positions and there’s an electrical room for emergency diesel generator and electrical devises added to four storages in this floor. Pool, Jacuzzi, gym, main mechanical room and some storage located in basement -2 On the top there’s a roof garden with full facilities for leisure and parties.
© Ali Daghigh
© Ali Daghigh
设计构想：
此外，公寓的住户在自己的楼层有自己的居所，因此这个想法使得了建筑的外观形状可以随着住户室内的变更而改变。
Design ideas
Besides the end users of the apartments specified their positions in their own floors hence this idea has form that the exterior shape of the building can follow it’s inside alteration.
© Ali Daghigh
© Ali Daghigh
Section/剖面图

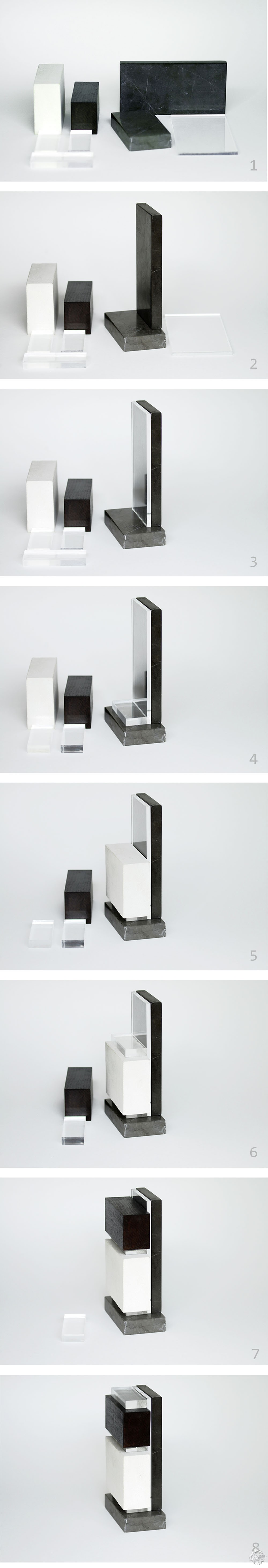

建筑的雕塑设计概念的第一步是分离其内部空间，使项目体切成三个立方体快：1——位于东部的流通领域（灰色方块）。2 ——在高层住宅公寓 (黑色方块)。3——建筑低层用于出售、出租的公寓 (白色方块)。这三个简单的方块在六楼和一楼，利用楼梯旁边的透明的连通区域相互连接。
In the first step the concept for the sculpture of building was object disjunction upon its internal alteration, thus the project body cut into three cubic objects. 1- Circulation areas which is located in the eastern part (gray cubes). 2- Residential apartments for specific end-users on the top levels (dark cube). 3- Apartments for sale or rent in the lower part (white cube). These three simple objects attached to each other with a transparent circulation area next to stair case box, in the sixth floor and in the ground floor.
© Ali Daghigh
© Ali Daghigh
在下一个步骤为了更多有特点的特性，并探索出地下楼层的新的特性，这些楼层的南面和西面的地板有一个3米宽的缺口设计，给地下室带来阳光和垂直绿化（长40米，高12米），这使地下楼层作为地面部分的设计的基础和平台。
In the next step for more special quality and inventing a new character for the levels underground, a 3 meter wide gap designed in these floors in the south and west sides that exhilarate underground floors with sunlight and an vertical greenery (in 40 meters long and 12 meters high), and it made this underground object as a base or podium for the upper parts design.
© Ali Daghigh
© Ali Daghigh
© Ali Daghigh
总的来说，这个项目的主要设计构思是在明确项目需求并经过大量的战略决策，以获得建筑质量和塑造它们客观的雕塑形象。在这个过程中，我们试图削减任何其它无关的饰品，来实现基于主要构思设计的建筑的纯净。
On the bottom line the main design idea in this project has planned in clarifying the project requirements description and large scale strategic decisions to recapture the architectural quality and shaping them to an objective sculpture, and in this process we tried to cut any irrelevant additional ornaments to achieve the purity of architecture that based on the main large idea.
© Ali Daghigh
© Ali Daghigh
© Ali Daghigh
Diagram/图解
Diagram/图解
Model/模型
Model/模型
Floor Plan/楼层平面图
建筑设计：ARAD
地点：朗德黑兰
建筑设计负责人：Bahram Kalantari, Kourosh Dabbagh
设计团队：Padideh Teimourian , Niloofar Niksar , Behzad Barzegar , Majid Pajuhi, Fereshteh Assadzadeh , Saba Soltani ,Mehrdad Karamouz , Yashar Ghasemkhani , Shabnam Abtahi , Tina Samiee
面积：924.0平方米
项目时间：2015年
照片：由Ali Daghigh提供
技术团队：Mohammad Javad Alborzi
结构顾问：Behrang Baniadam
机械顾问：Ali Fotuhi
电顾问：Mohammad Javad Alborzi
主要承包商：ARAD, Behrang Baniadam
建设团队：Borna Baniadam, Mohammad pour-rajab
Architects: ARAD
Location: Niavaran, Tehran, Tehran, Iran
Architect in Charge: Bahram Kalantari, Kourosh Dabbagh
Design Team: Padideh Teimourian , Niloofar Niksar , Behzad Barzegar , Majid Pajuhi, Fereshteh Assadzadeh , Saba Soltani ,Mehrdad Karamouz , Yashar Ghasemkhani , Shabnam Abtahi , Tina Samiee
Area: 924.0 sqm
Project Year: 2015
Photographs: Ali Daghigh
Technical Team: Mehdi Holakouie, Mona haddadi
Structural Consultant: Behrang Baniadam
Mechanical Consultant: Ali Fotuhi
Electrical Consultant: Mohammad Javad Alborzi
Main Contractor: ARAD, Behrang Baniadam
Construction Team: Borna Baniadam, Mohammad pour-rajab
