只是纯粹的混凝土,就能玩出这么多花样?!第1张图片

法国Space Guy Môquet多功能大楼
Space Guy Môquet / Oeco architectes

由专筑网李韧,杨帆编译

来自建筑事务所的描述:Espace Guy Môquet多功能大楼集休闲中心、舞池、集体宿舍为一体。项目的目的是吸引众多年轻人来到这个为他们量身打造的新空间。建筑位于城市的开放区域,独特的外形和材质的运用让它看起来极具吸引力。紧凑的建筑体量与开阔的室外空间相辅相成。这座建筑是一座多边形几何体,有着不同的混凝土表面。不规则体量、地下功能区,以及室内至中庭的通透性让建筑与场地化整为零。交错的楼层连接着各个区域,创造出空间的连续性。

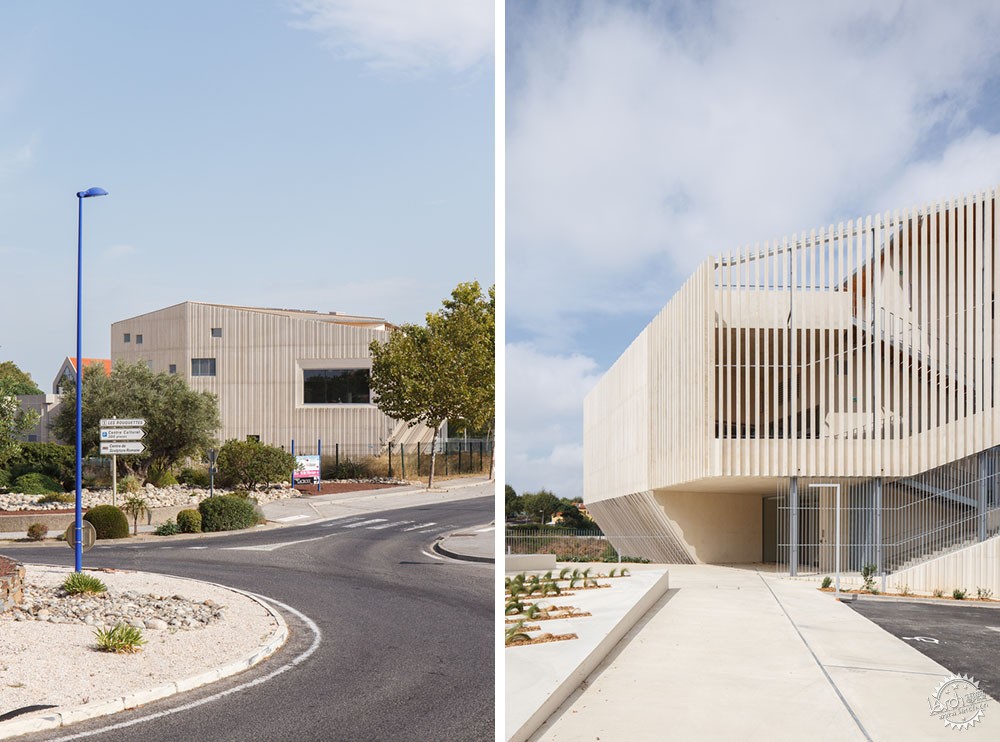

Text description provided by the architects. Espace Guy Môquet is a mixed equipment gathering a leisure centre, a dance hall and collective accommodation. The project’s ambition is to attract young people in this new space made for them. The project, located at the entrance of the city, looks massive and attractive thanks to its shape and materials. The compactness and the implantation of the volume provide large outdoor spaces. The project is a pivot of several geometries, with different concrete ‘s faces, a winded building designed to go through. Its scale is reduced thanks to the embedding of the volume in the ground and its indoor programmatic’s imbrication visible from its central atrium. Half-levels connect the spaces and create generous and continuous volumes.

只是纯粹的混凝土,就能玩出这么多花样?!第2张图片

只是纯粹的混凝土,就能玩出这么多花样?!第3张图片

只是纯粹的混凝土,就能玩出这么多花样?!第4张图片

只是纯粹的混凝土,就能玩出这么多花样?!第5张图片

只是纯粹的混凝土,就能玩出这么多花样?!第6张图片

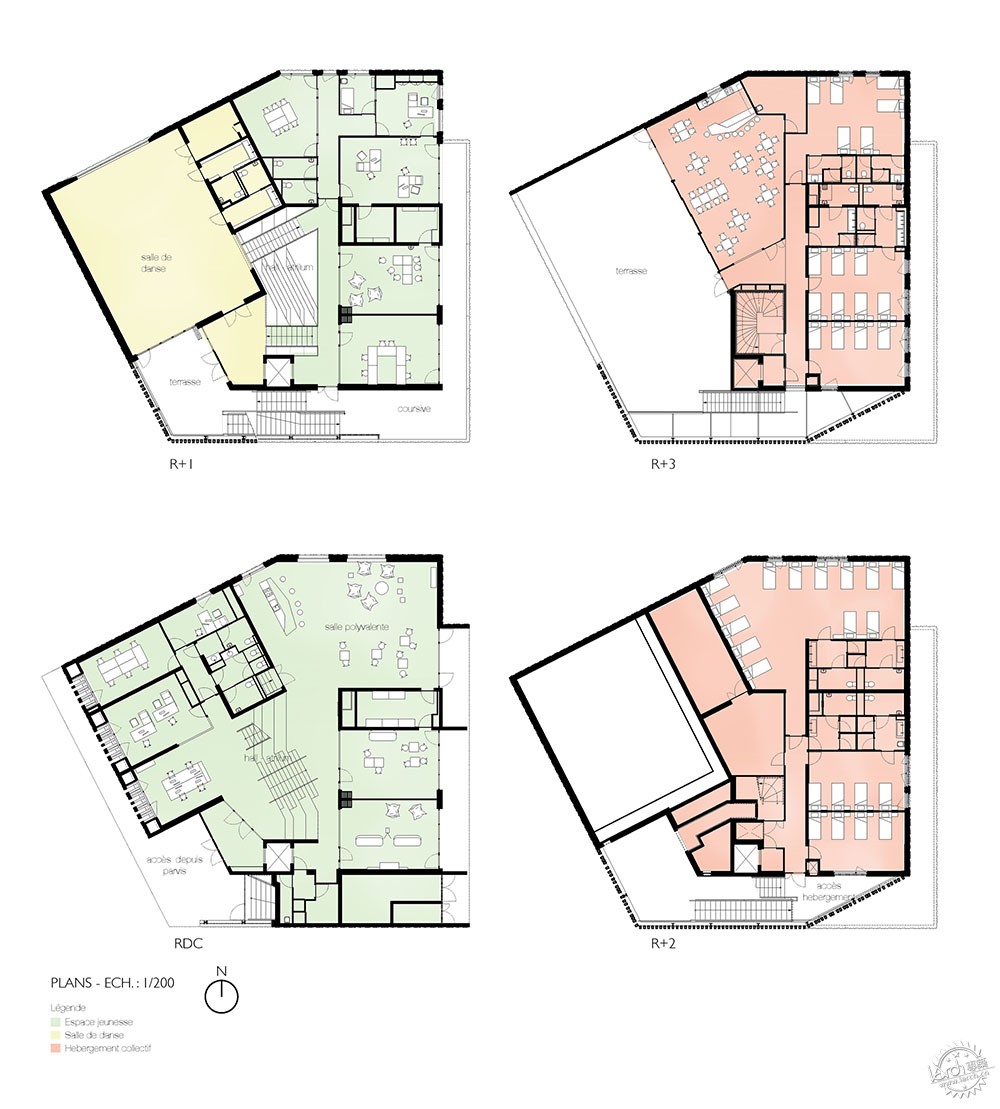

外部楼梯和露台让人们能够直接进入上部楼层,使用户享有充分的自由。在下部三个楼层中,建筑师设计了一个名为“青年聚集地”的开放空间,在这里可以按使用者的需求来进行排布。建筑空间环绕着中庭而布局,所有的区域朝向中庭开放。舞池通过中庭连接“青年聚集地”,也可以通过楼梯和露台直接进入。集体宿舍位于顶层,居住者可以在屋顶露台欣赏周围的美景。

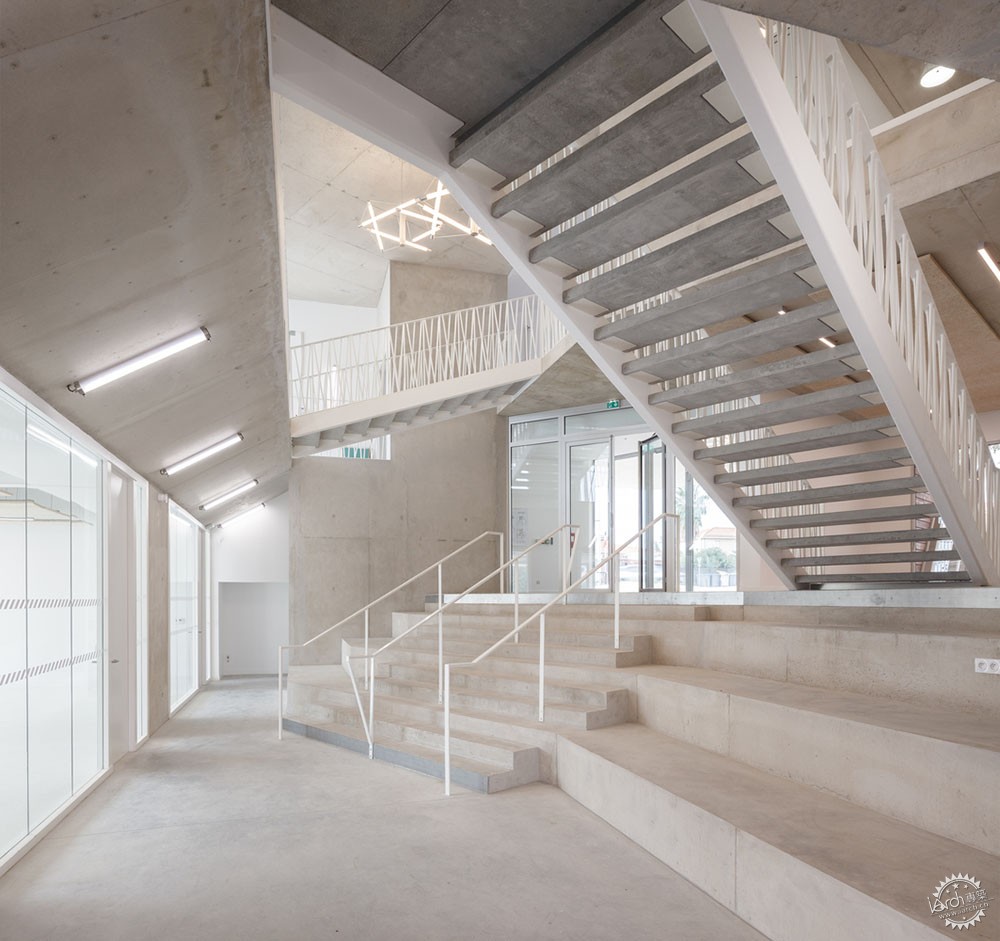

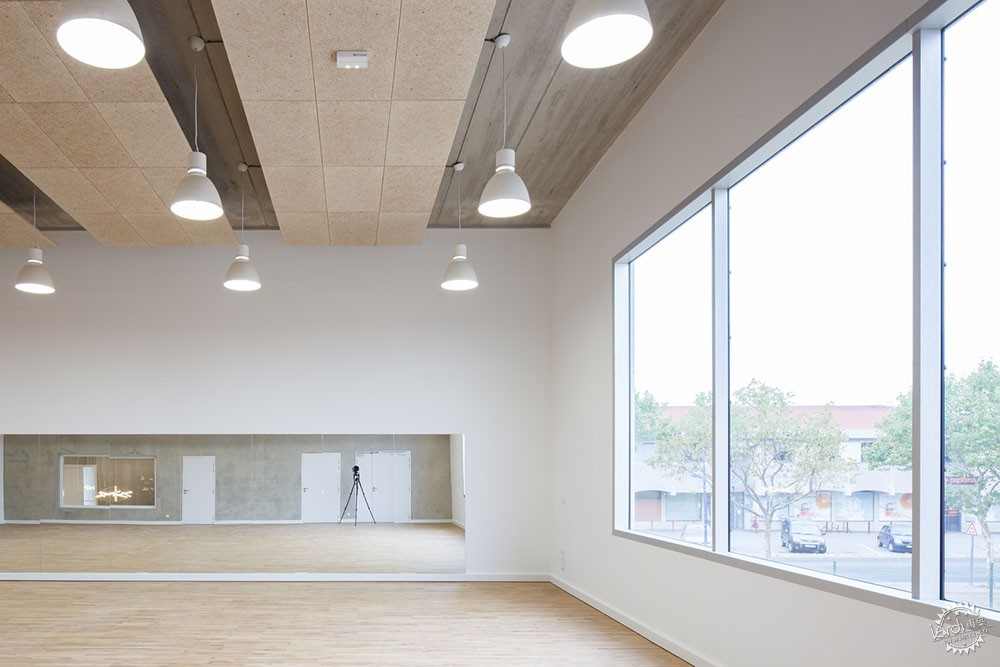

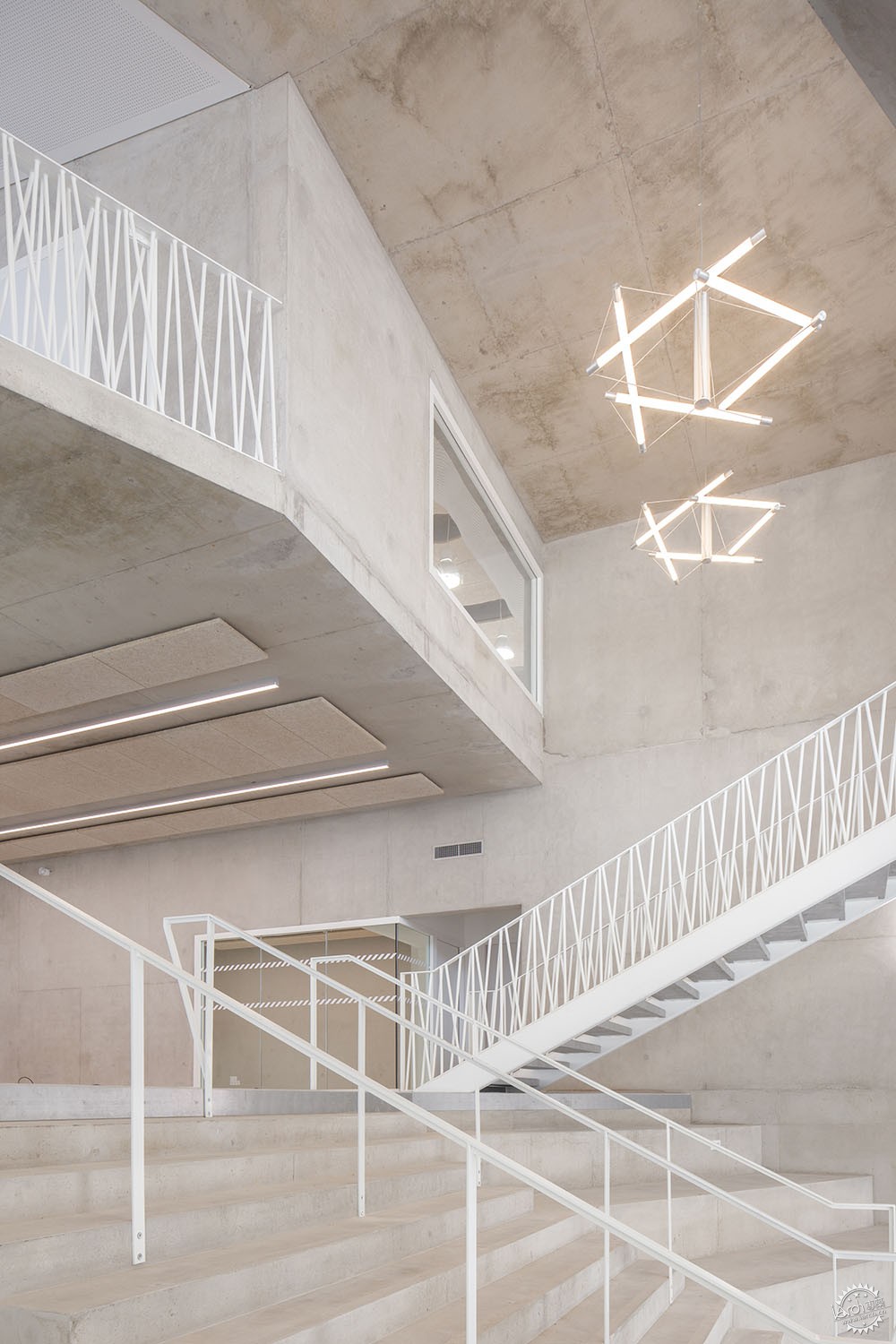

An external staircase and terraces give independent access to all the higher levels, offering users freedom of use. Deployed on the three lower semi-levels, the Youth Space is defined as an open space, which can be divided as needed. It is organised around an atrium, the heart of the equipment, on which open all the spaces. The dance hall is connected to the Youth Space by the atrium but is also accessible via the staircase and the terrace. The Collective Accommodation is located at the upper and last level and benefits from the roof terrace with the view of the surrounding landscape and the sunset.

只是纯粹的混凝土,就能玩出这么多花样?!第7张图片

只是纯粹的混凝土,就能玩出这么多花样?!第8张图片

只是纯粹的混凝土,就能玩出这么多花样?!第9张图片

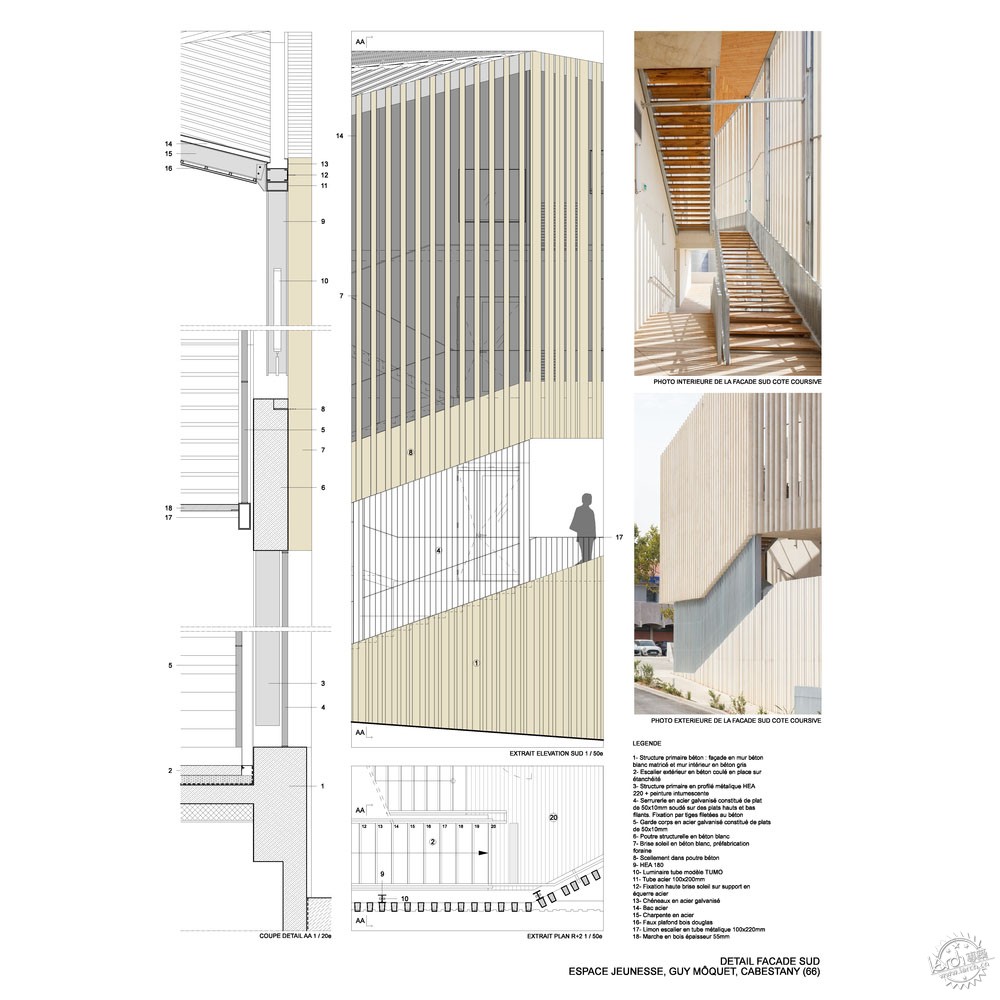

建筑的立面完全由混凝土建造而成。根据项目的需求,材料经过了特殊的双重处理,例如内部用的是光滑的混凝土,正立面采用的是纵向混凝土条,这样使立面看上去拥有统一的方向感。部分立面微微出挑,这样可遮挡阳光的照射,而其他部分均是不透明的,整个工程形成了一个均匀的整体。

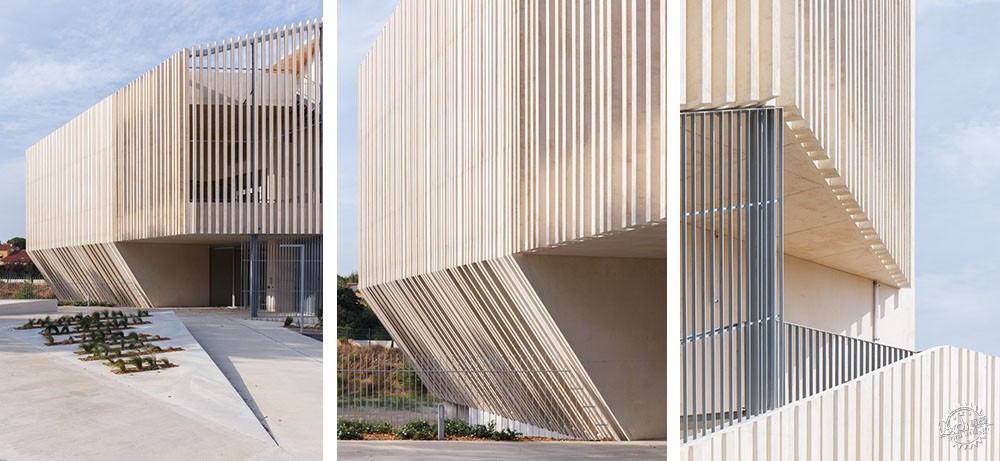

The facades of the building are built with only one single material, concrete. The sophistication of the material is provided by a double treatment, according to the faces of the project: the digs are made of smooth concrete, and the facade in the foreground is made of concrete moulded in a vertical matrix. The treatment of the facades is adapted to each orientation. Some facades are thus permeable and possibly protected by sun breezes or overhangs, and others are more opaque, depending on the orientations and winds. The project forms a homogeneous whole, thanks to the treatment of the surface in moulded concrete following the rhythm of vertical sun breakers.

只是纯粹的混凝土,就能玩出这么多花样?!第10张图片

只是纯粹的混凝土,就能玩出这么多花样?!第11张图片

只是纯粹的混凝土,就能玩出这么多花样?!第12张图片

只是纯粹的混凝土,就能玩出这么多花样?!第13张图片

只是纯粹的混凝土,就能玩出这么多花样?!第14张图片

只是纯粹的混凝土,就能玩出这么多花样?!第15张图片

只是纯粹的混凝土,就能玩出这么多花样?!第16张图片

只是纯粹的混凝土,就能玩出这么多花样?!第17张图片

只是纯粹的混凝土,就能玩出这么多花样?!第18张图片

只是纯粹的混凝土,就能玩出这么多花样?!第19张图片

只是纯粹的混凝土,就能玩出这么多花样?!第20张图片

建筑设计:Oeco architectes
地点:法国
面积:1776.0 m2
项目时间:2017年
摄影:Kévin Dolmaire
制造商:LafargeHolcim, Technal, Knauf
工程设计:TPFI


Architects: Oeco architectes
Location: Cabestany, France
Area: 1776.0 m2
Project Year: 2017
Photographs: Kévin Dolmaire
Manufacturers: LafargeHolcim, Technal, Knauf
Engineering: TPFI
