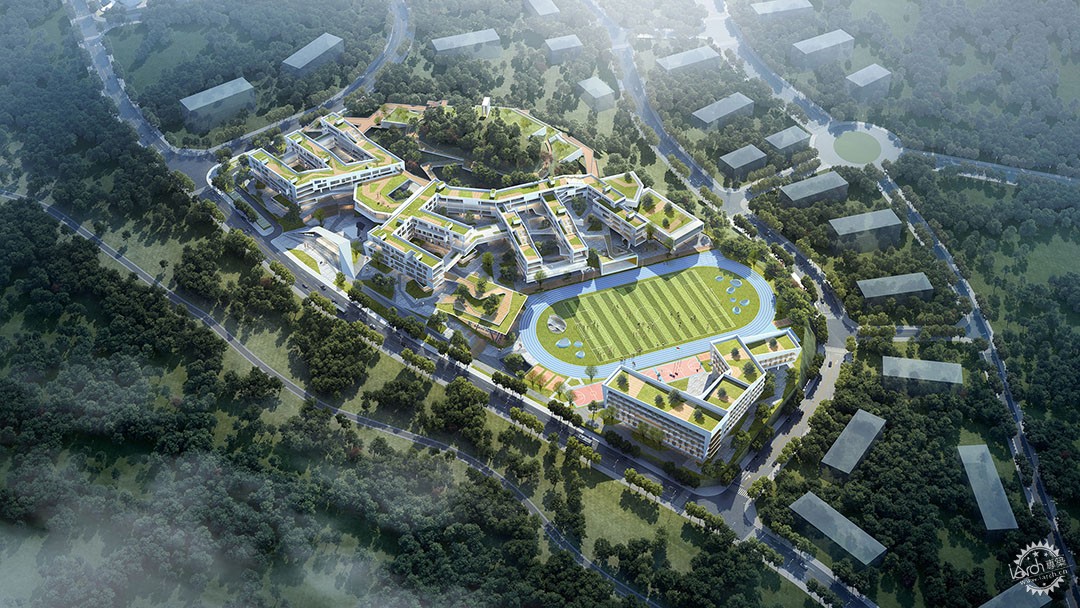

▲ 鸟瞰全景 Bird's Eye View Panorama ©XZD I 西筑设计

01 项目分析

三峡巴蜀中学位于重庆市三峡地区巫溪县，占地面积92995.12平方米，总建筑面积80876.11平方米，设有84个班级，其中高中48个班，初中36个班。项目功能齐全，涵盖教学楼、礼堂、体育馆、食堂、宿舍、户外活动场地和连廊等，可同时容纳4,200名学生。

01 Project Analysis
Sanxia Bashu Middle School is located in Wuxi County, Three Gorges District, Chongqing, covering an area of 92,995.12 square meters, with a total construction area of 80,083.25 square meters. It has 84 classes, including 48 classes in senior high schools and 36 classes in junior high schools. The project is fully functional, covering teaching buildings, auditoriums, gymnasiums, canteens, dormitories, outdoor activity venues and corridors, etc., which can accommodate 4,200 students at the same time.

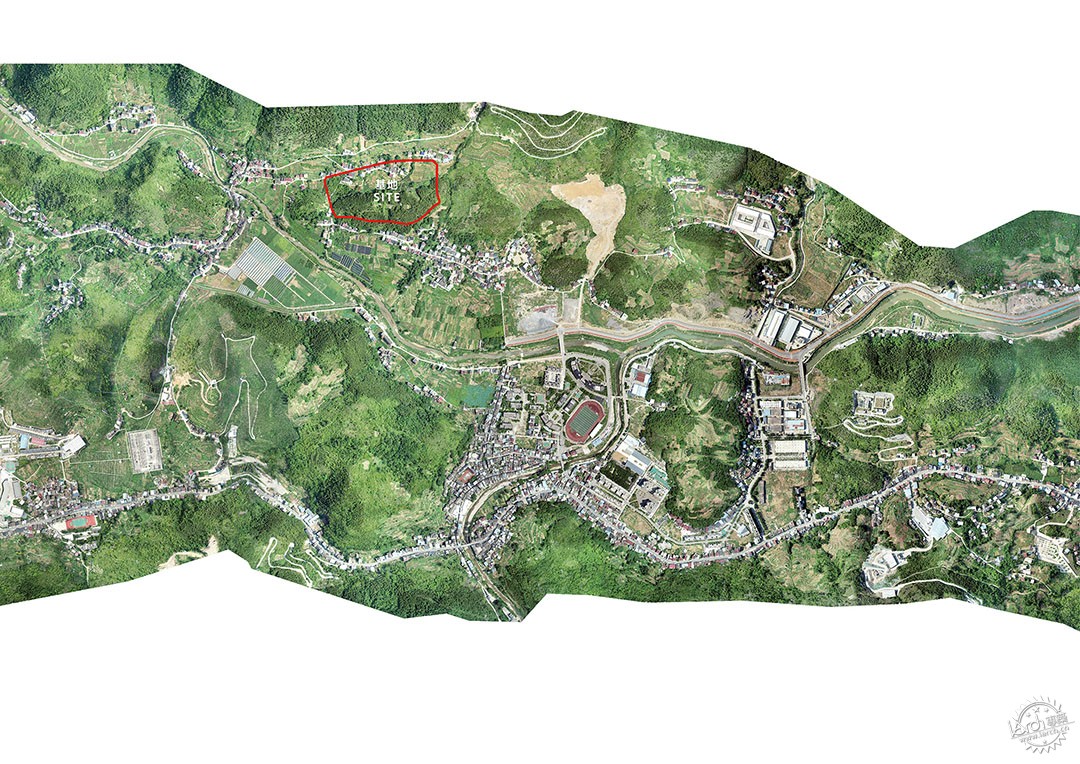

▲ 场地区位 Site Location ©XZD I 西筑设计

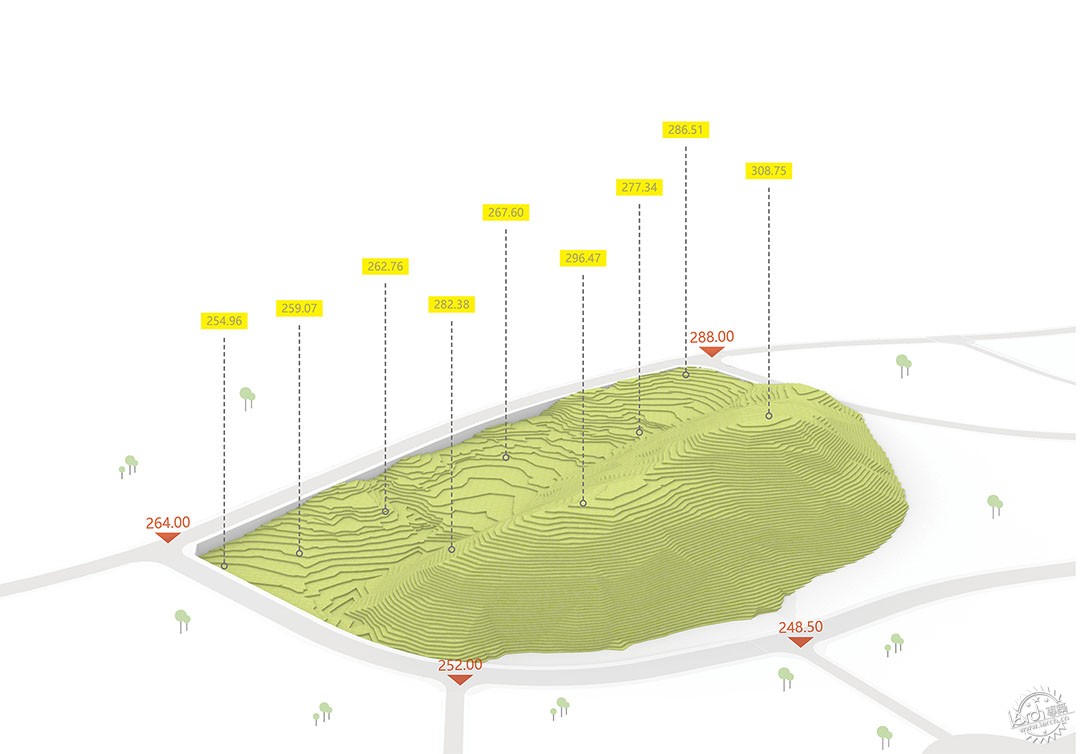

▲ 场地高差 Site Height difference ©XZD I 西筑设计

基地整体呈东西向横向延展，东高西低。场地最高点位于南侧山头，标高308.75米，最低点位于基地西侧谷地，标高254.75米，最大高差达54米。

The whole base extends horizontally from east to west, with high in the east and low in the west. The highest point of the site is located on the southern hill, having an elevation of 308.75 meters, while the lowest point is located in the valley on the west side of the base, with an elevation of 254.75 meters and a maximum altitude difference of 54 meters.


02 设计理念

02 Design Concept

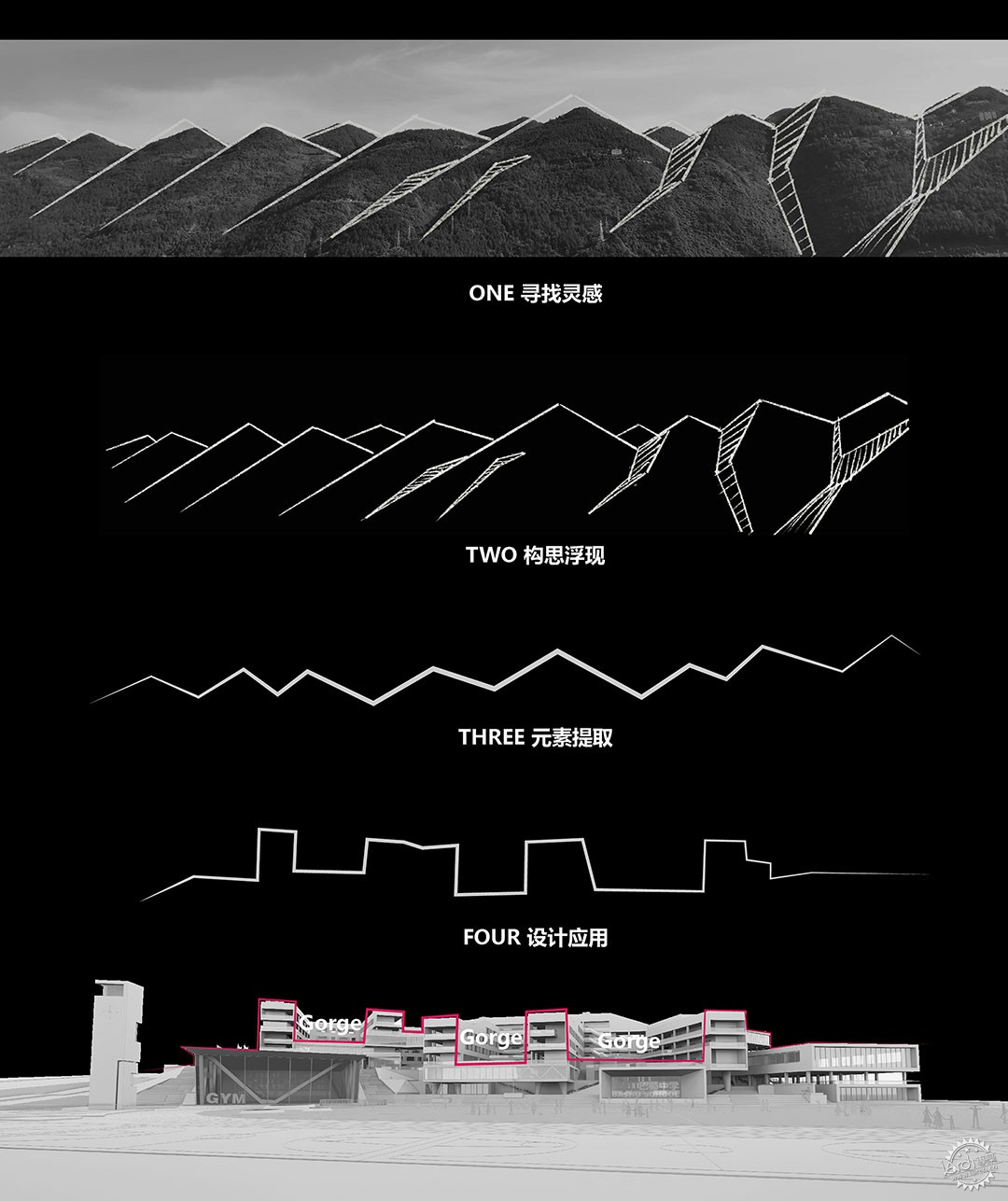

▲ 灵感来源 Source of Inspiration ©XZD I 西筑设计

① 自然旋律：建筑与大地的共鸣之曲

设计灵感源自三峡地区壮丽的自然景观，捕捉其群山连绵的灵动与韵律。建筑巧妙融入地形，与山水共生，宛若自然的一部分。通过将三峡山川的壮美与力量转化为建筑艺术，创造出与自然共鸣的和谐空间，展现出自然与建筑交织的美学理念，书写一篇篇建筑与自然共舞的诗篇。

① Natural melody: the resonance song between architecture and the earth
The design draws inspiration from the spectacular natural scenery of the Three Gorges area, encapsulating the liveliness and rhythm of its undulating mountain ranges. The architecture is felicitously integrated into the terrain and coexists with the mountains and rivers, just like a part of nature. By transforming the grandeur and strength of the beautiful mountains and waters of the Three Gorges into architectural art, we craft a space that resonates harmoniously with the natural environment. This interplay between nature and architecture showcases an aesthetic philosophy of entwinement, writing a series of poetic narratives where architecture and nature dance together in unison.

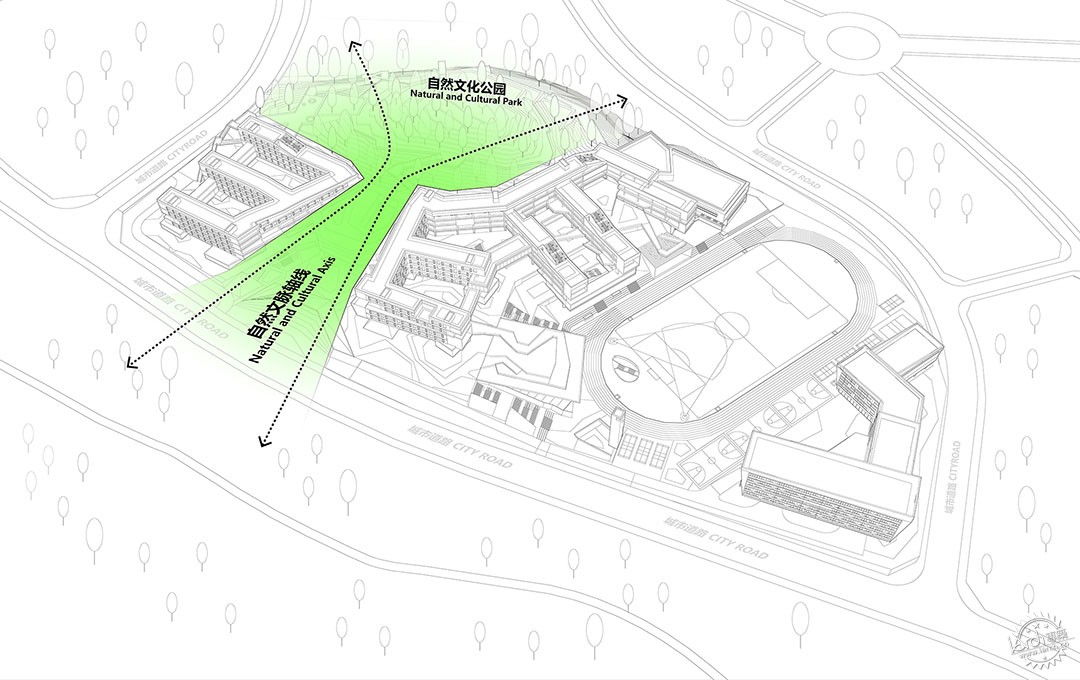

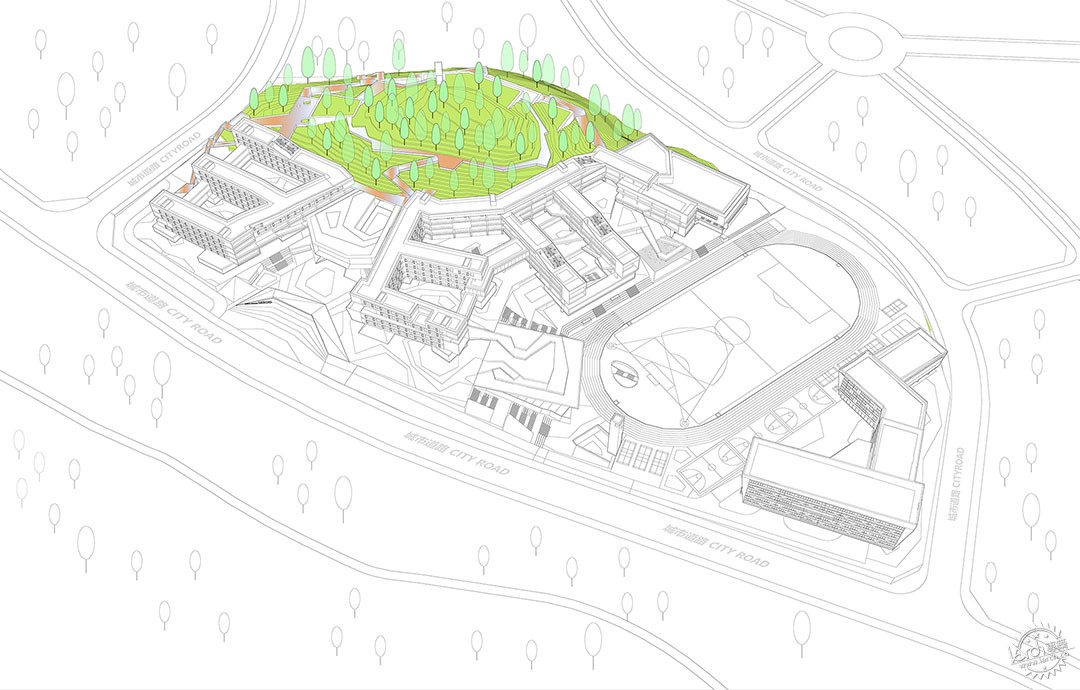

▲ 规划结构 Planning Structure ©XZD I 西筑设计

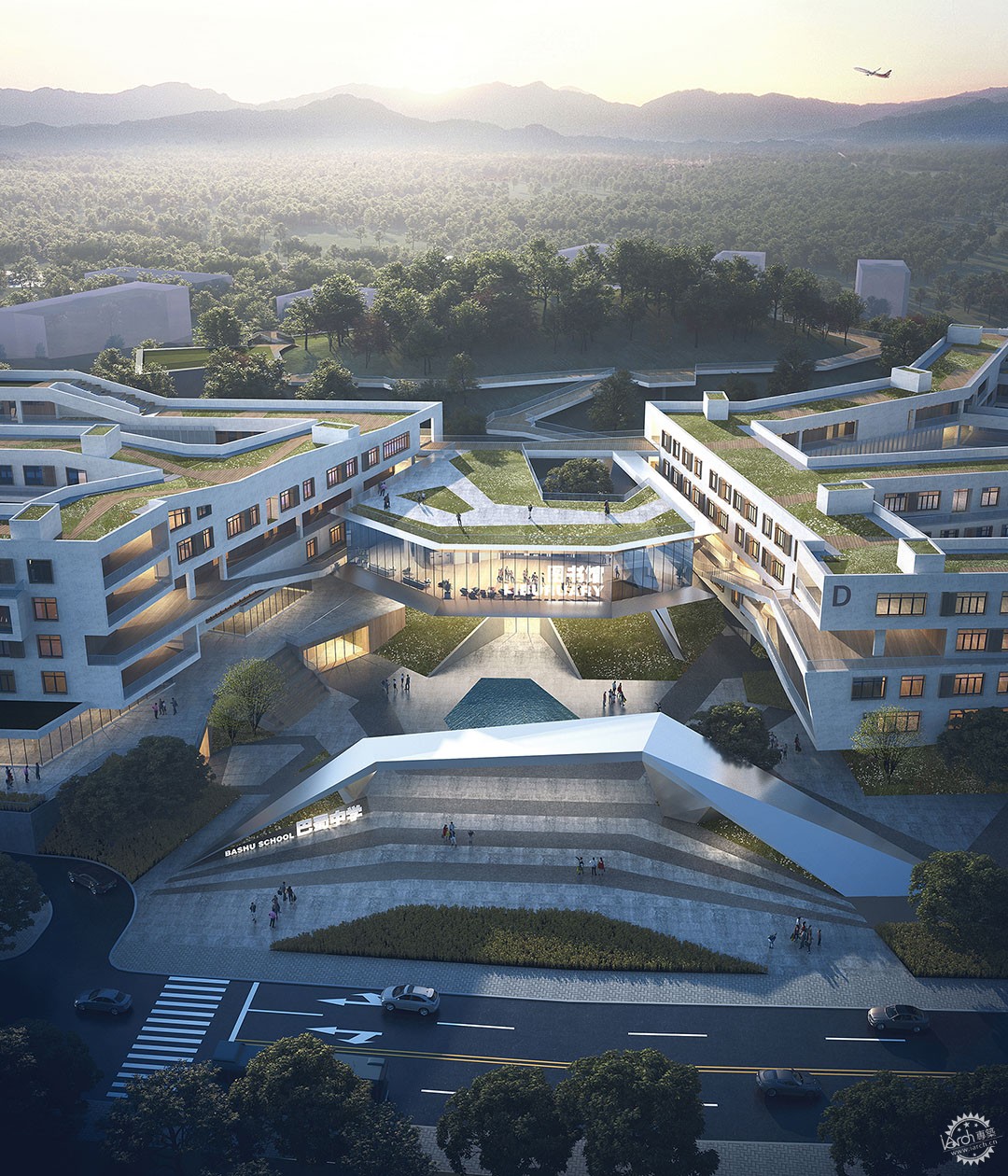

▲ 入口轴线鸟瞰 Bird's Eye View of The Entrance Axis ©XZD I 西筑设计\

② 高差之韵：层次空间的艺术演绎

项目通过顺应地形设计，巧妙利用54米的自然高差，实现人与自然的和谐共生。层层退台设计增加了建筑层次感，使师生能够随时享受自然美景，同时提供了丰富的教学和活动空间，满足现代教学需求。悬挑和架空设计提升了建筑的现代感和美观性，提供了额外的活动空间，融合了功能性与审美性。

② The rhyme of Altitude: artistic interpretation of hierarchical space
By adapting to the terrain design, the project skillfully utilizes the natural height difference of 54 meters to achieve harmonious coexistence between man and nature. The tiered terrace design increases the sense of architectural hierarchy, allowing teachers and students to continually revel in the natural vistas, while also providing a wealth of educational and activity spaces that cater to contemporary teaching requirements. Cantilevered and overhead designs enhance the modernity and aesthetics of the building, and provide additional activity space, seamlessly integrating functionality and aesthetics.

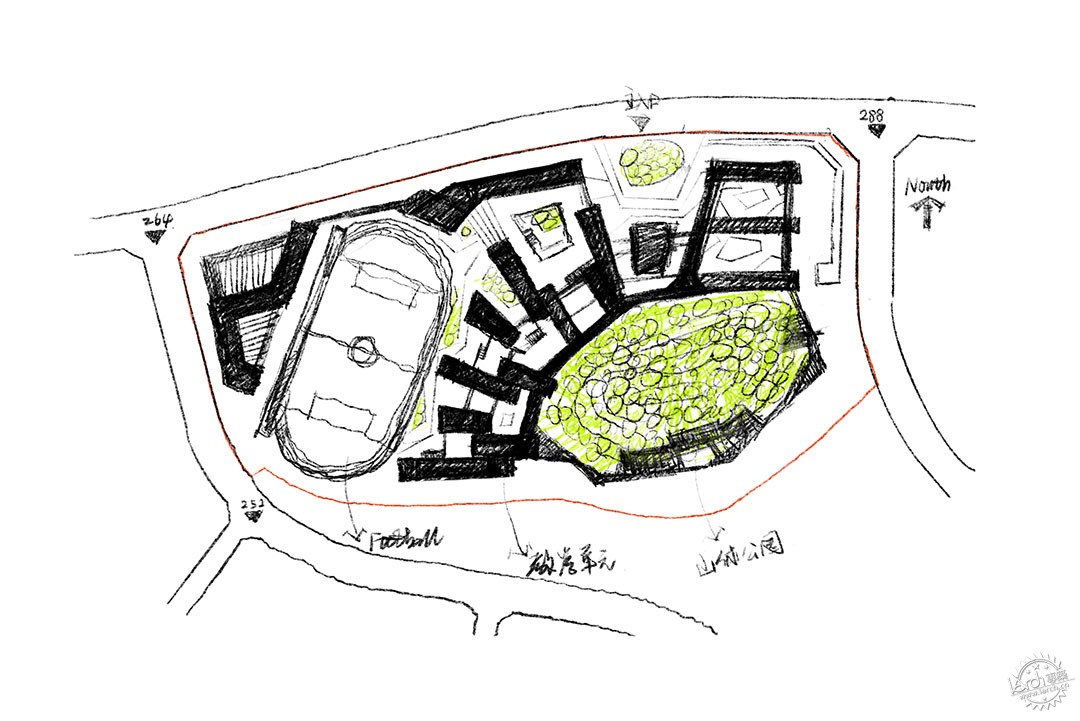

▲ 草图构思 Sketch idea ©XZD I 西筑设计


▲ 方案生成 Solution Generation ©XZD I 西筑设计

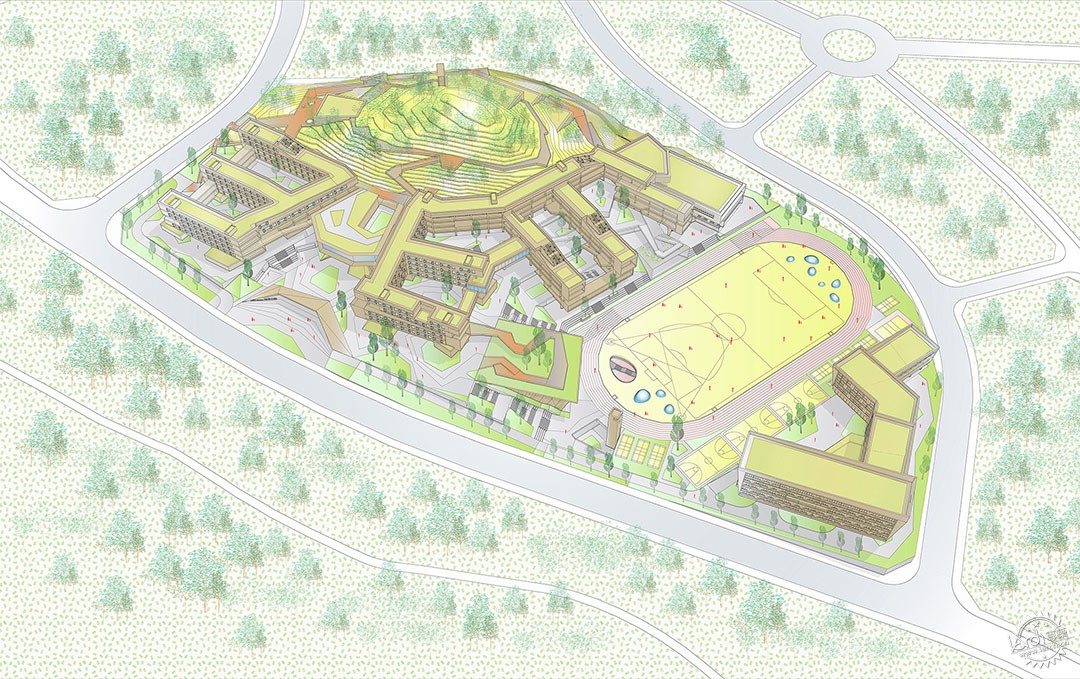

▲ 鸟瞰  Bird's Eye View ©XZD I 西筑设计


03 设计呈现

① 生态诗章-校园中的自然与梦想

本项目以“自然共融、梦想启航”为核心理念，致力于打造一个融合科技教育、人文关怀与艺术创新的未来教育空间。校园设计巧妙地融入三峡地区的自然景观与文化底蕴，独具匠心，兼顾功能与美学。每一处建筑如同自然生长的一部分，为师生提供了一个激发创造力、实现梦想的理想场所。这里不仅是知识的殿堂，更将成为三峡地区又一独具魅力的标志性高中校园，象征着人与自然和谐共生的美学理念。

03 Design Presentation
① Ecological Poems-Nature and Dreams on Campus
With the core concept of " embrace nature, launch dreams ", this project is committed to creating a future educational space that integrates science and technology education, humanistic care and artistic innovation. The campus design skillfully integrates the natural landscape and cultural heritage of the Three Gorges area, and is unique, taking into account both function and aesthetics. Each structure appears as if naturally grown, offering an ideal environment for teachers and students to spark creativity and realize their dreams. It is not only a palace of knowledge, but also an emblematic high school in the Three Gorges area, embodying the aesthetic principle of harmonious coexistence between humanity and nature.

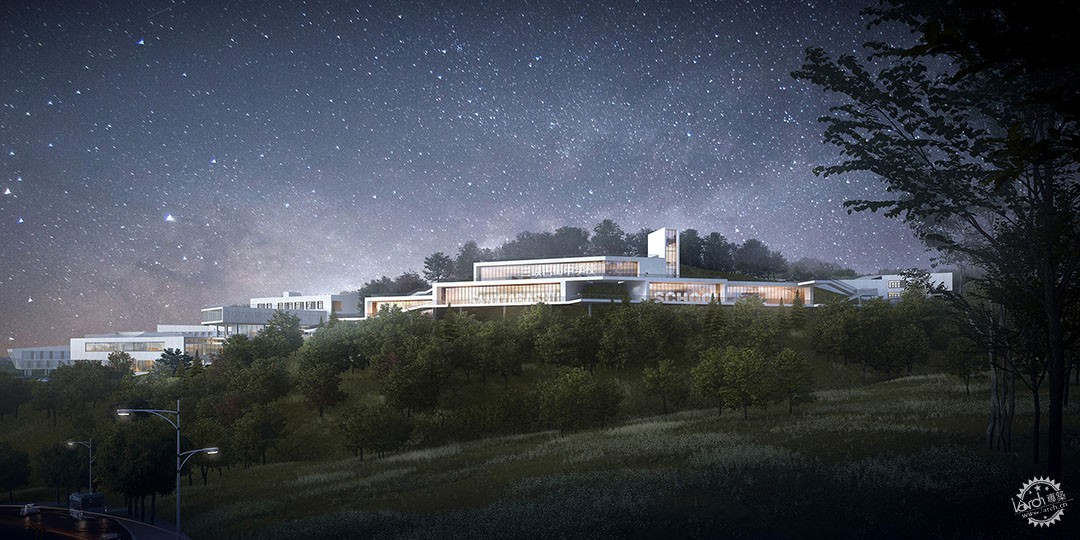

▲ 建筑群落效果图 Architectural Community Renderings ©XZD I 西筑设计

② 立体视界-多维空间的美学演绎

在山地校园建筑设计中，我们注重与自然的融合，将建筑与地形的起伏巧妙结合，形成独特的多维空间体验。每一层建筑、每一个视角，都是风景的一部分。通过精心规划的布局，校园不仅是知识的殿堂，更是探索自然和激发灵感的场所，为师生提供一个与自然共生、实现梦想的理想环境。

② Stereoscopic horizon-aesthetic deduction of multi-dimensional space
In the architectural design of the mountainous campus, we emphasize integration with the natural environment, artfully blending the architecture with the undulating terrain to create a unique multi-dimensional spatial experience. Every level of the building, every viewpoint, contributes to the panoramic beauty. Through carefully planned layout, the campus is not only a palace of knowledge but also a place to explore nature and inspire inspiration, providing teachers and students with an ideal environment to coexist with nature and realize their dreams pursue their dreams.


▲ 食堂组团透视图 Canteen Group Perspective View ©XZD I 西筑设计

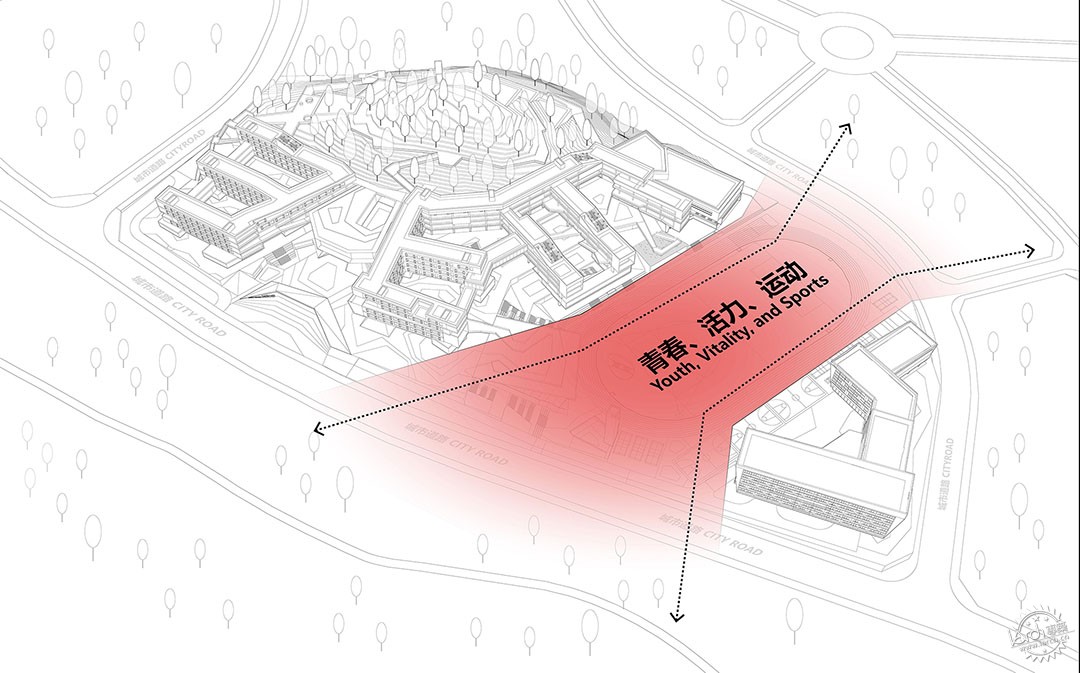

▲ 校园活力轴 Campus Vitality Axis ©XZD I 西筑设计

活力轴将校园划分为东西两大功能区，东区为学习区，西区为生活区，两区功能互不干扰。活力轴本身也兼具运动场地功能，汇集了各种球场、跑道和风雨操场等活动空间。

The vitality axis divides the campus into two functional areas: the east for academic pursuits and the west for living accommodations, ensuring the two areas operate independently without interference.  The vitality axis itself serves a dual purpose as a sports ground, providing a variety of activity spaces including courts, tracks, and stormproof playgrounds.

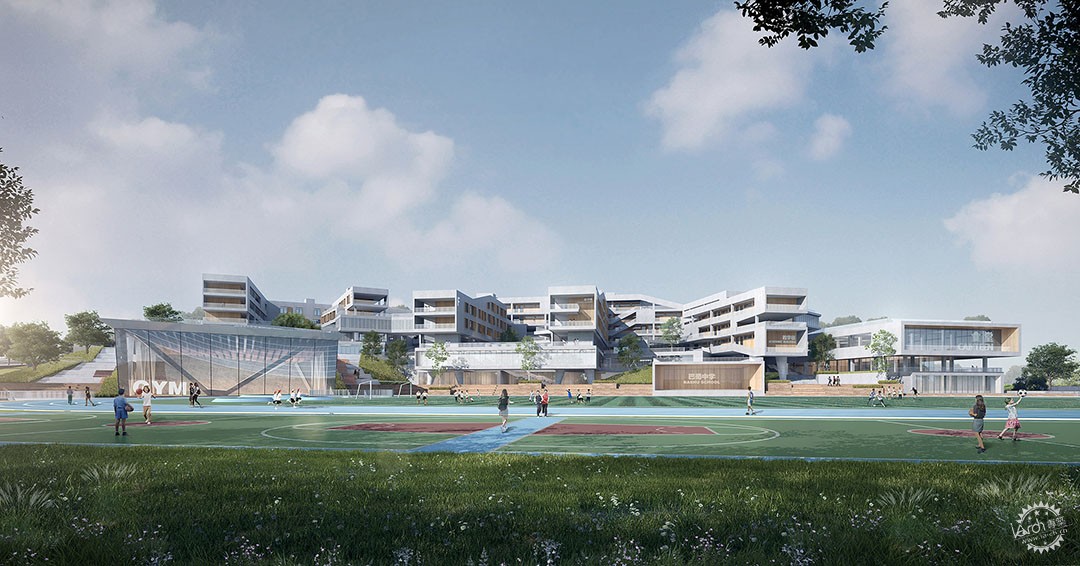

▲ 风雨操场组团透视图 Perspective View of Wind And Rain Playground Group ©XZD I 西筑设计

风雨操场作为北侧临城市道路的主形象建筑，具有典型的山地建筑特征。该建筑结合场地高差设计为覆土结构，屋顶与地面平接。全玻璃幕墙使其宛如山体中长出的璀璨宝石，光彩夺目。

As the main image building facing the city road on the north side, the wind and rain playground has typical mountain architectural characteristics. The project is designed as an earth-covered structure combined with the height difference of the site, with its roof seamlessly merging with the terrain. The all-glass curtain wall makes it like a brilliant jewel emerging from the mountainside, radiating splendor.

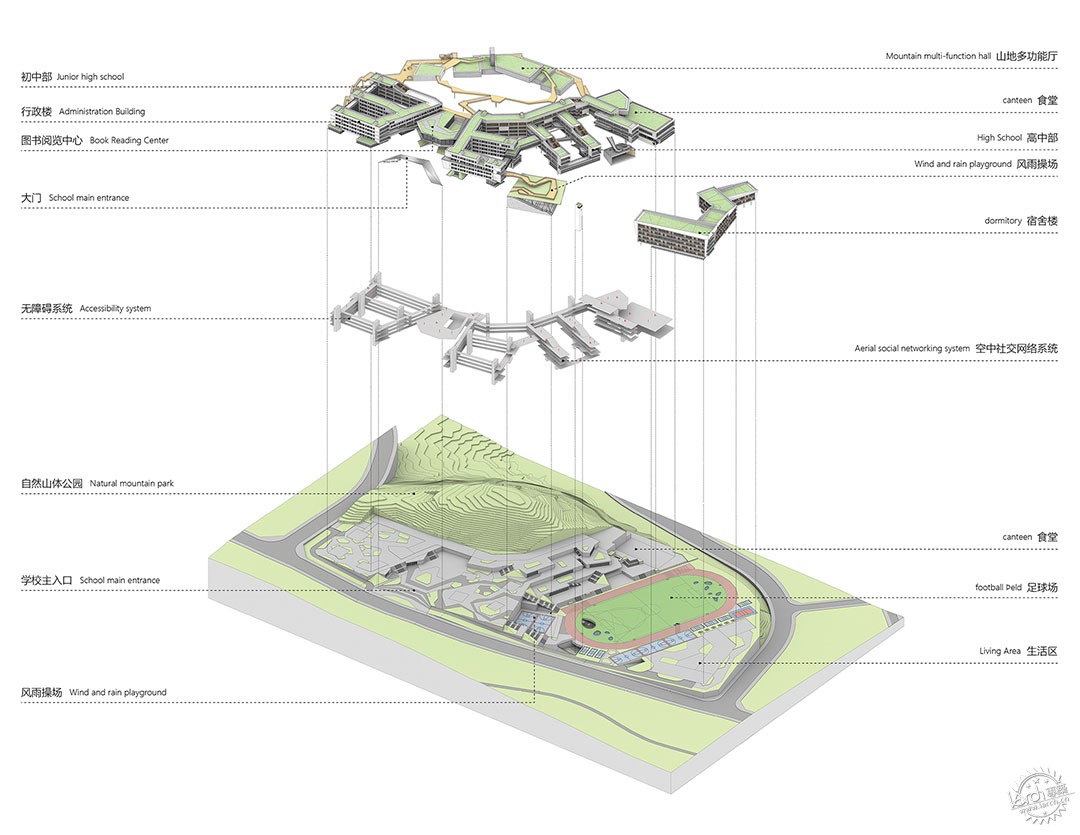

▲ 爆炸图 Exploded View ©XZD I 西筑设计

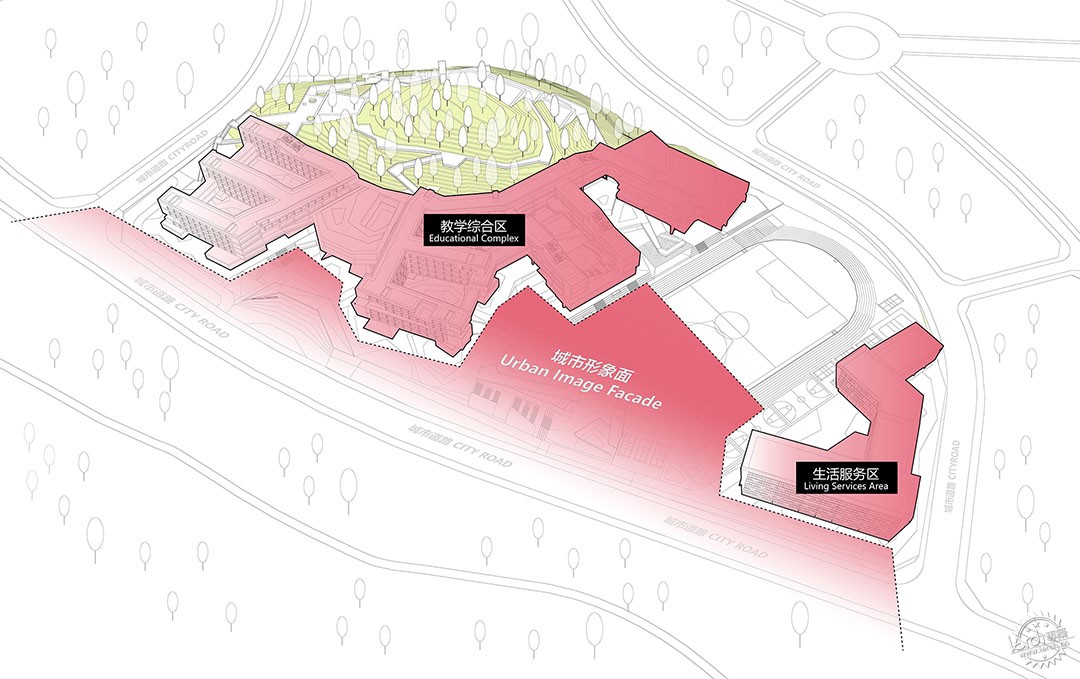

▲ 城市界面分析图 City Interface Analysis Diagram ©XZD I 西筑设计

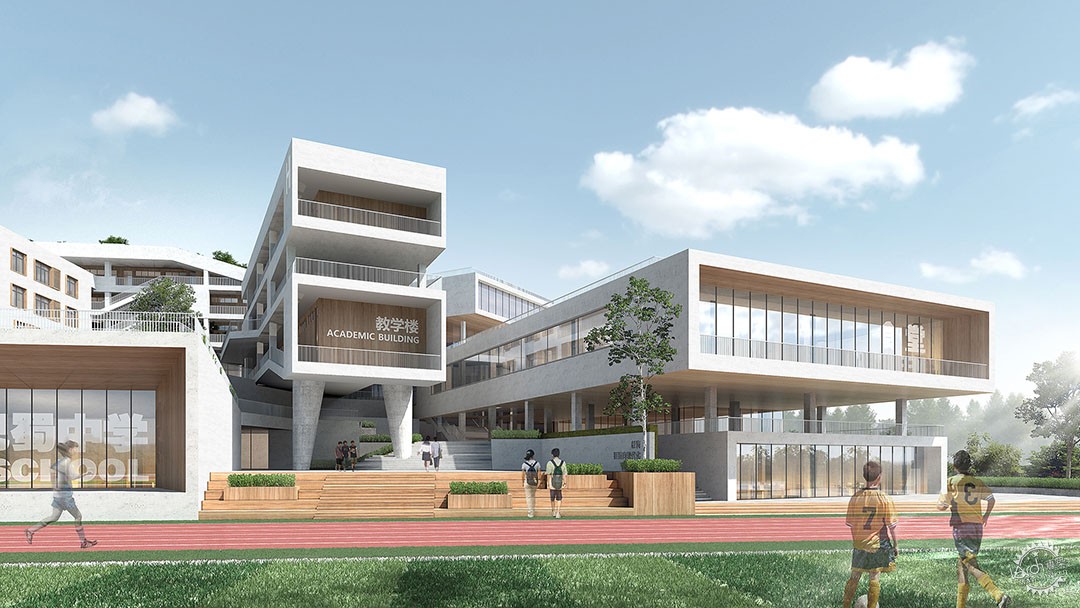

▲ 东区教学组团透视图 Perspective View of The Eastern District Teaching Group ©XZD I 西筑设计

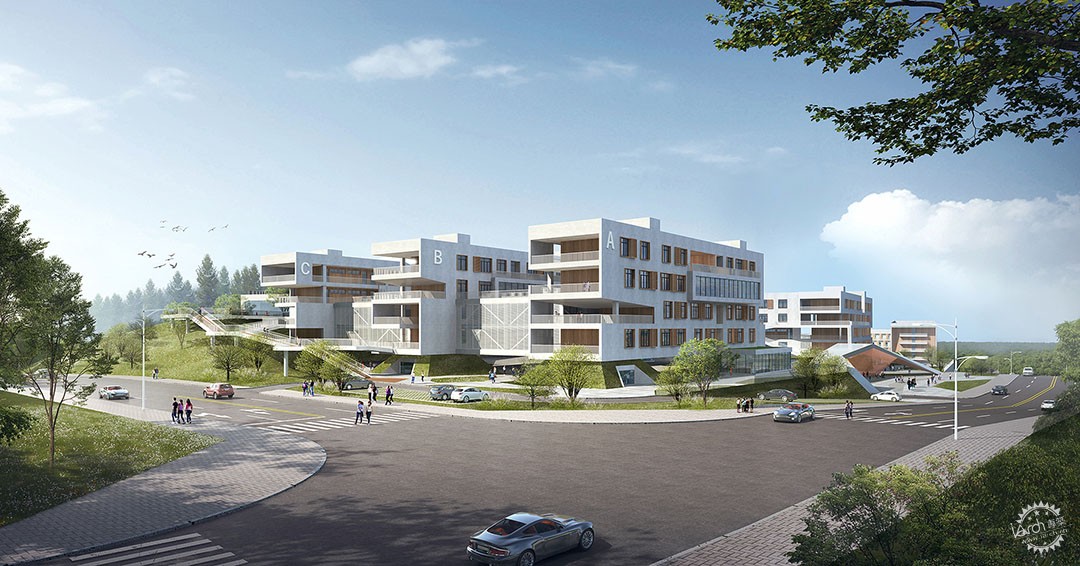

▲ 大门方向效果图 Door Direction Renderings ©XZD I 西筑设计


▲ 入口庭院透视图 Entrance Courtyard Perspective View ©XZD I 西筑设计


04 特色空间

结合现场地形，我们提出了空中社交网络系统与自然山体景观公园的设计概念，旨在创造出多层次的互动空间。建筑依山而建，与景观公园无缝相连，通过步行天桥和悬空平台连接各区域，提供交流与观景场所。此设计不仅增强了社交互动性，还利用山体高差形成独特景观视角。景观公园作为生态保护区和校园的一部分，为师生提供休闲与灵感空间，打造科技、自然与社交完美融合的学习环境。

04 Featured Space
As the main image building facing the city road on the north side, the wind and rain playground has typical mountain architectural characteristics. The project is designed as an earth-covered structure combined with the height difference of the site, with its roof seamlessly merging with the terrain. The all-glass curtain wall makes it like a brilliant jewel emerging from the mountainside, radiating splendor.


①空中社交网络系统

①Aerial social networking system

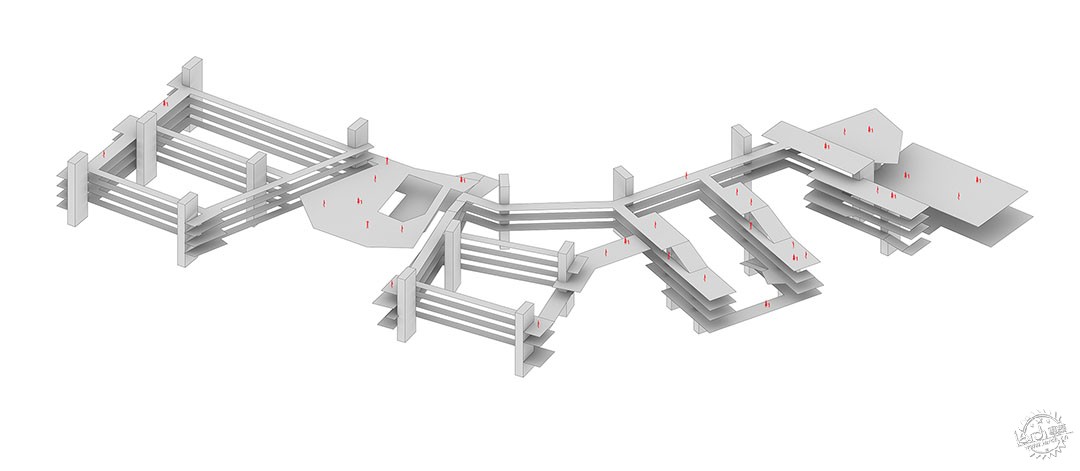

▲ 空中社交网络系统 Aerial Social Networking System ©XZD I 西筑设计


▲ 顺应地势的场地策略 Site Strategy Adapting to the Terrain ©XZD I 西筑设计

为解决高密度校园中活动和社交空间不足的问题，我们设计了空中社交网络系统。面对4200名学生在7层教学楼内的瞬时人流压力，仅靠楼梯和电梯无法解决。该系统由串联教学与实验单元的架空层组成，形成多个不同标高的空中平台，既是便捷通道，也是观景场所。这一系统不仅提供了全新的交通方式，还通过架空层分割教学楼，构建了高效便捷的立体社交通网络，缓解了社交空间不足的问题。

To solve the problem of insufficient activity and social space in high-density campus, we designed an aerial social network system. Faced with the instantaneous flow pressure of 4,200 students in the 7-story teaching building, the traditional stairs and elevators are insufficient. This innovative system comprises a series of elevated layers interlinking teaching and laboratory units, creating a multitude of aerial platforms at varying heights. These platforms serve not only as convenient thoroughfares but also as vantage points for scenic viewing. Beyond offering a novel transportation solution, the system effectively segments the teaching building through these overhead floors, establishing a highly efficient and accessible three-dimensional social network that mitigates the shortage of social spaces.


② 自然山体景观公园

② Natural Mountain Landscape Park


▲ 建筑融于自然 Architecture Blends Into Nature ©XZD I 西筑设计


▲ 山体公园效果图 Mountain Park Renderings ©XZD I 西筑设计

我们对保留的山体进行了科学梳理和景观设计，使其有机融入校园布局。自然山体景观不仅提供丰富的视觉体验，还通过步行天桥和悬空平台连接各建筑区域，形成多层次互动空间。此设计在保持场地自然特征的基础上，创造了多样化互动空间，同时提升了校园功能性和使用效率。

We have scientifically combed and landscape designed the reserved mountains so that they can be organically integrated into the campus layout. The natural mountain landscape not only provides a rich visual experience, but also connects various building areas through pedestrian flyovers and suspended platforms, forming a multi-level interactive space. Based on maintaining the natural characteristics of the site, this design creates diversified interactive spaces, thereby enhancing the campus's functionality and utility.


③建筑生态呼吸系统

③ Building ecological respiratory system

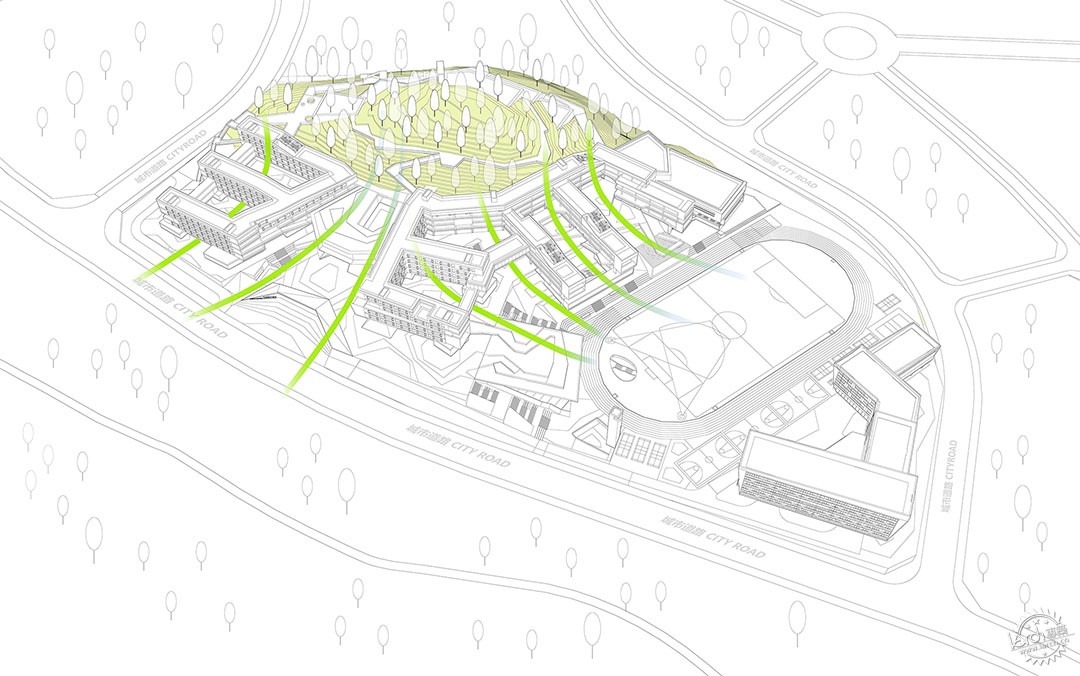

▲ 生态呼吸系统 Ecological Respiratory System ©XZD I 西筑设计

设计结合场地的退台、庭院和底层架空特点，有序组织串联这些空间，促进空气流通，减少空调使用，从而降低能耗和碳排放

The design combines the characteristics of the platform, courtyard and ground floor overhead, and orderly organizes these spaces in series to promote air circulation and reduce the use of air conditioners, thus reducing energy consumption and carbon emissions.

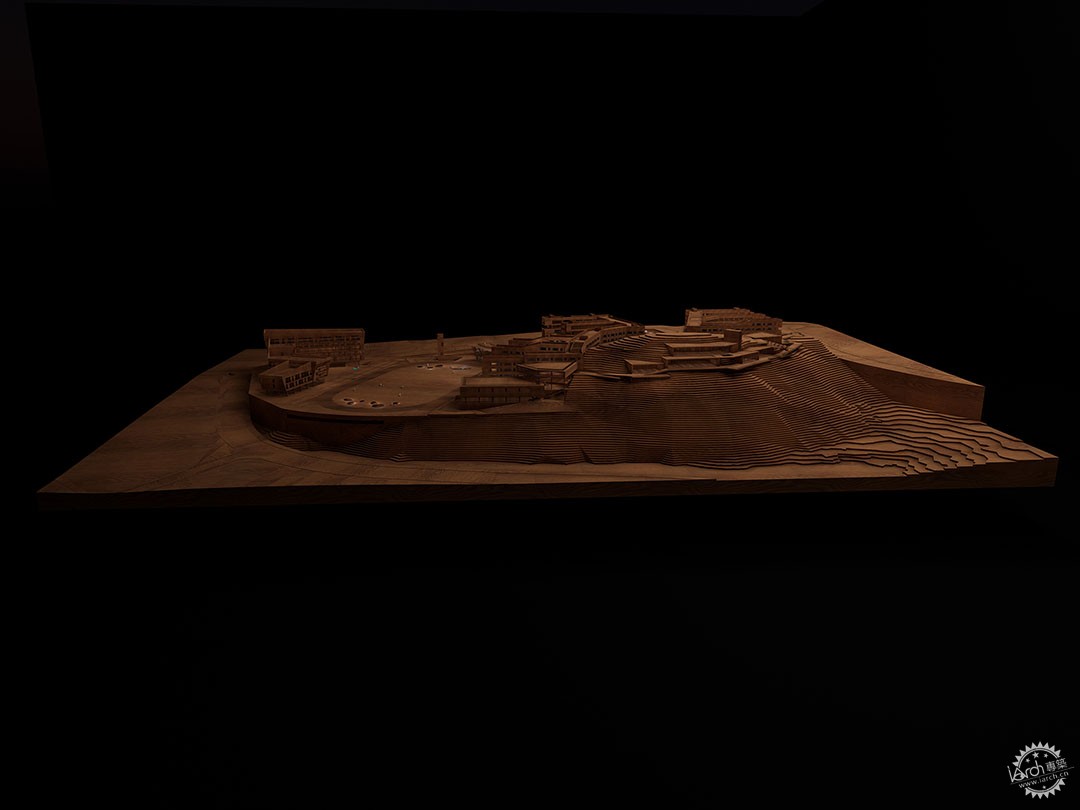

▲ 工作模型 Working Model ©XZD I 西筑设计


▲ 工作模型 Working Model ©XZD I 西筑设计


▲ 工作模型 Working Model ©XZD I 西筑设计


▲ 工作模型 Working Model ©XZD I 西筑设计


05 技术图纸

05 Technical drawings

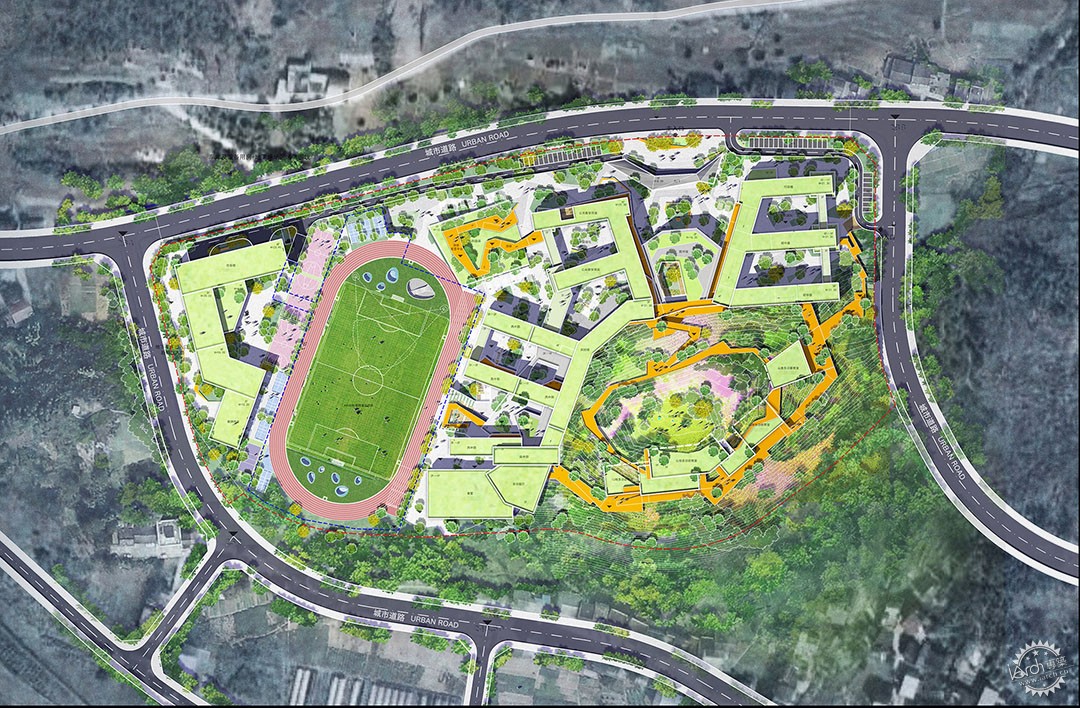

▲ 彩色总平面图 Color Master Plan ©XZD I 西筑设计

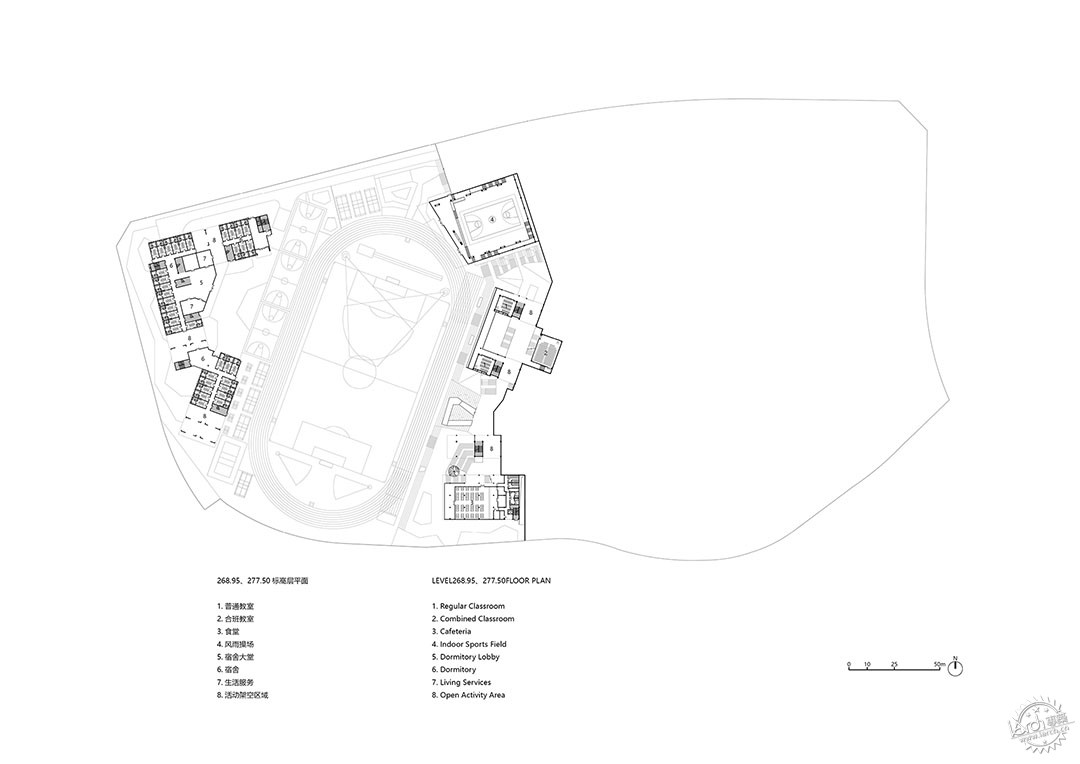

▲ 268.95标高层平面 268.95 Bid For High-Rise Floor Plan ©XZD I 西筑设计

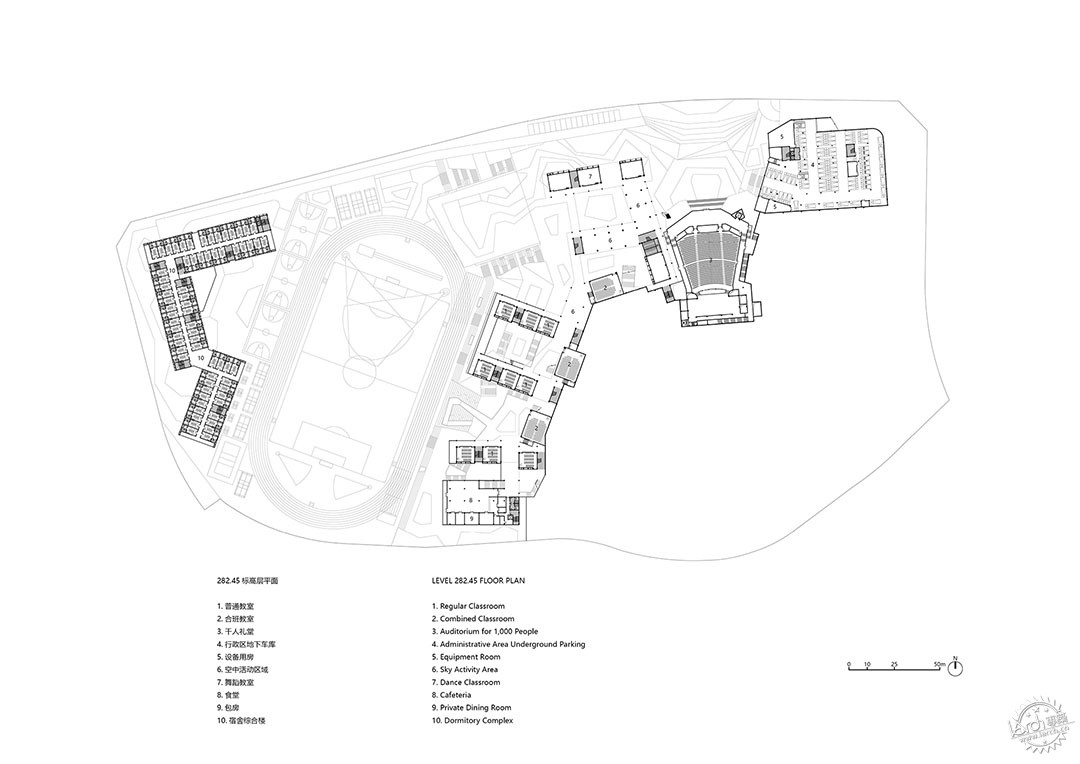

▲ 282.45标高层平面 282.45 Bid For High-Rise Floor Plan ©XZD I 西筑设计

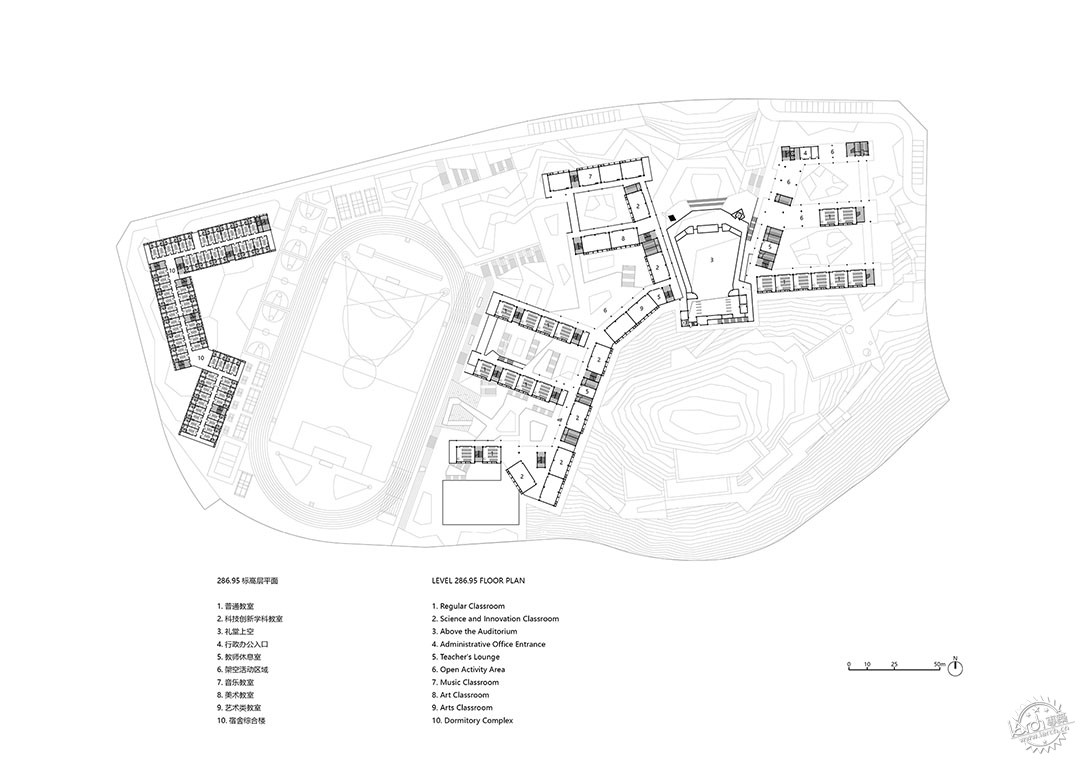

▲ 286.95标高层平面 286.95 Bid For High-Rise Floor Plan ©XZD I 西筑设计

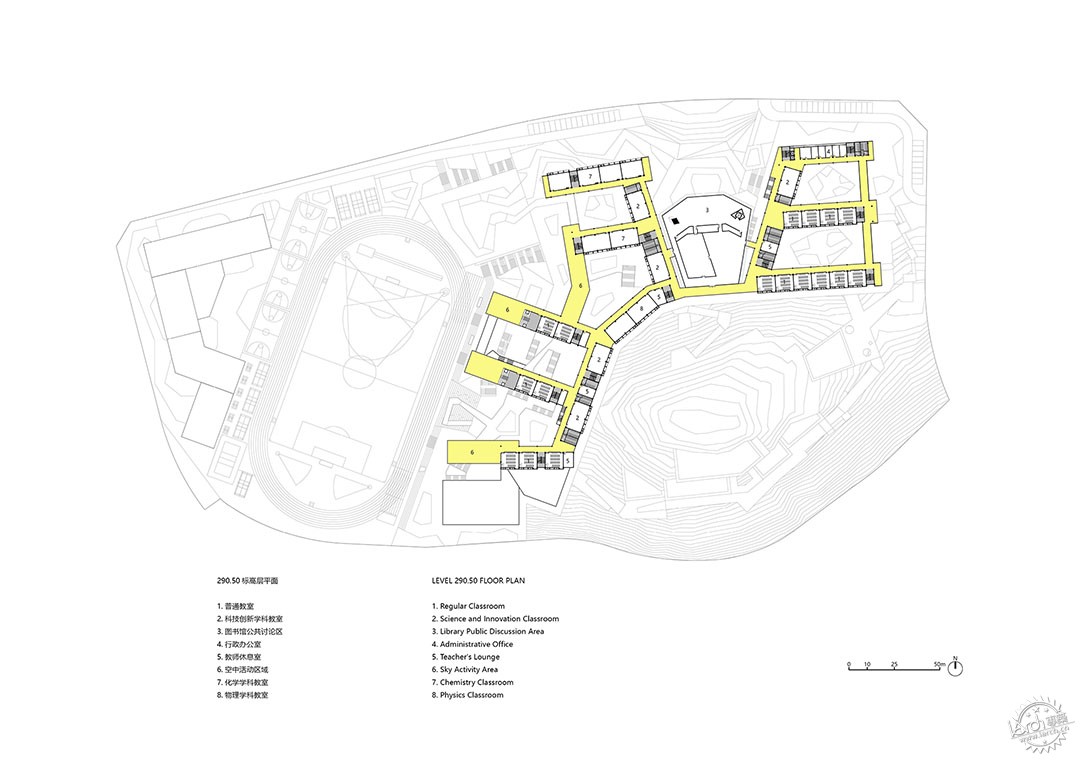

▲ 290.50标高层平面 290.50 Bid For High-Rise Floor Plan ©XZD I 西筑设计


▲ 剖面图 Sectional View ©XZD I 西筑设计


▲ 剖面图 Sectional View ©XZD I 西筑设计

项目信息

项目名称：三峡巴蜀中学
设计单位：西筑建筑设计事务所+中机中联工程有限公司
设计时间：2023年1月—至今
主持设计：何光乾  王宜廉
建筑专业：邹娟  任泓州  陈梦鸽  黄启川  高洋  曾晓  李黔渝  张瑞鹏  陈俊杰  邹洋  江恋  马聪  易茂  杨光明  曾非
结构专业：李杰  朱宇峰  刘啸  董伟  杨波  刘遥  卿展波
给排水专业：刘雨佳  冯学健  傅健  颜海波
电气专业：廖丹  辛永祥  赵建兴
暖通专业：王策策  周一芳  李霜玲  沈虎  陈晓乐
总图专业：管伟康  朱凌霄  白波  薛飞

项目地点：重庆·巫溪
建筑面积：80876.11㎡

Proiectinformation
Project name：Sanxia Bashu Middle School
Design：Xizhu Architectural Design Firm+CMCuEngineering Co.. Ltd.
Design year：From January 2013 to present
Leader designer：Guangqian He、Yilian wang
Architecture：Juan Zou、Hongzhou Ren、Mengge Chen、Qichuan Huang、Yang Gao、Xiao Zeng、Qianyu Li、Ruipeng Zhang、Junjie Chen、Yang Zou、Lian Jiang、Cong Ma、Mao Yi、Guangming Yang、Fei Zeng
Structural Engineering：Jie Li、Yufeng Zhu、Xiao Liu、Wei Dong、Bo Yang、Yao Liu、Zhanbo Qing
Plumbing and Drainage：Yujia Liu、Xuejian Feng、Jian Fu、Haibo Yan
Electrical Engineering：Dan Liao、Yongxiang Xin、Jianxing Zhao
HVAC：Cece Wang、Yifang Zhou、Shuangling Li、Hu Shen、Xiaole Chen
Planning：Weikang Guan、Lingxiao Zhu、Bo Bai、Fei Xue

project's venue：Wuxi County, Chongqing City
Construction Area：80876.11㎡
