波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第1张图片

Dream Inn Guest House

由专筑网刘政和,韩平编译

来自建筑事务所的描述:一个长期居住在海洋公园的家庭负责开发这个13个房间的宾馆,该宾馆专门针对家庭和团体旅游市场。

From the architect. A family of long-time Ocean Park residents took on the task of constructing a thirteen(13)room guesthouse, oriented to the family and group traveling market.

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第2张图片
© Carlos Esteva

旅馆位于McLeary街(该街道是城市沿海经济发展的主要商业街),同时旅馆还处在El Condado旅游区和Isla Verde(国际机场)之间,因此餐馆众多,而且公共交通也十分便利。此外它还有一个很大的优势:到达邻近的海滩,只需要 3分钟步行路程穿过圣胡安住宅社区。

Located on McLeary Street, the principal artery bordering this coastal / capital sector, the Inn is conveniently located between the tourist zones of El Condado and Isla Verde (with it’s international airport) – where eateries abound and public transportation is close by.  It is also privileged with proximity to a superb beach, only a three (3) minute walk thru the San Juan’s premier residential community.

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第3张图片
© José Fernando Vazquez

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第4张图片
Diagram/分析图

这种热带极简建筑设计强调表面纹理和工匠技艺。正对东面的外墙由红色混凝土和细丝加工而成,可作为过滤空气和阳光的渗透膜,亦可阻挡外部噪音。这种精细的几何造型,通过计算精简到简单的预制混凝土构件,同时创造了有趣的光影效果。

The tropical modern-minimalist architectural design, emphasizes surface textures and artisan craftsmanship.  The frontal and East facing facades – with its red -tinted concrete referencing traditional architectural filigrees - act as permeable membranes that filter air and sunlight and at the same time buffers outside sound.  This delicate geometry - reduced to simple pre-cast concrete members following a calculated pattern - creates an interesting light and shadow interchange.

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第5张图片
© José Fernando Vazquez

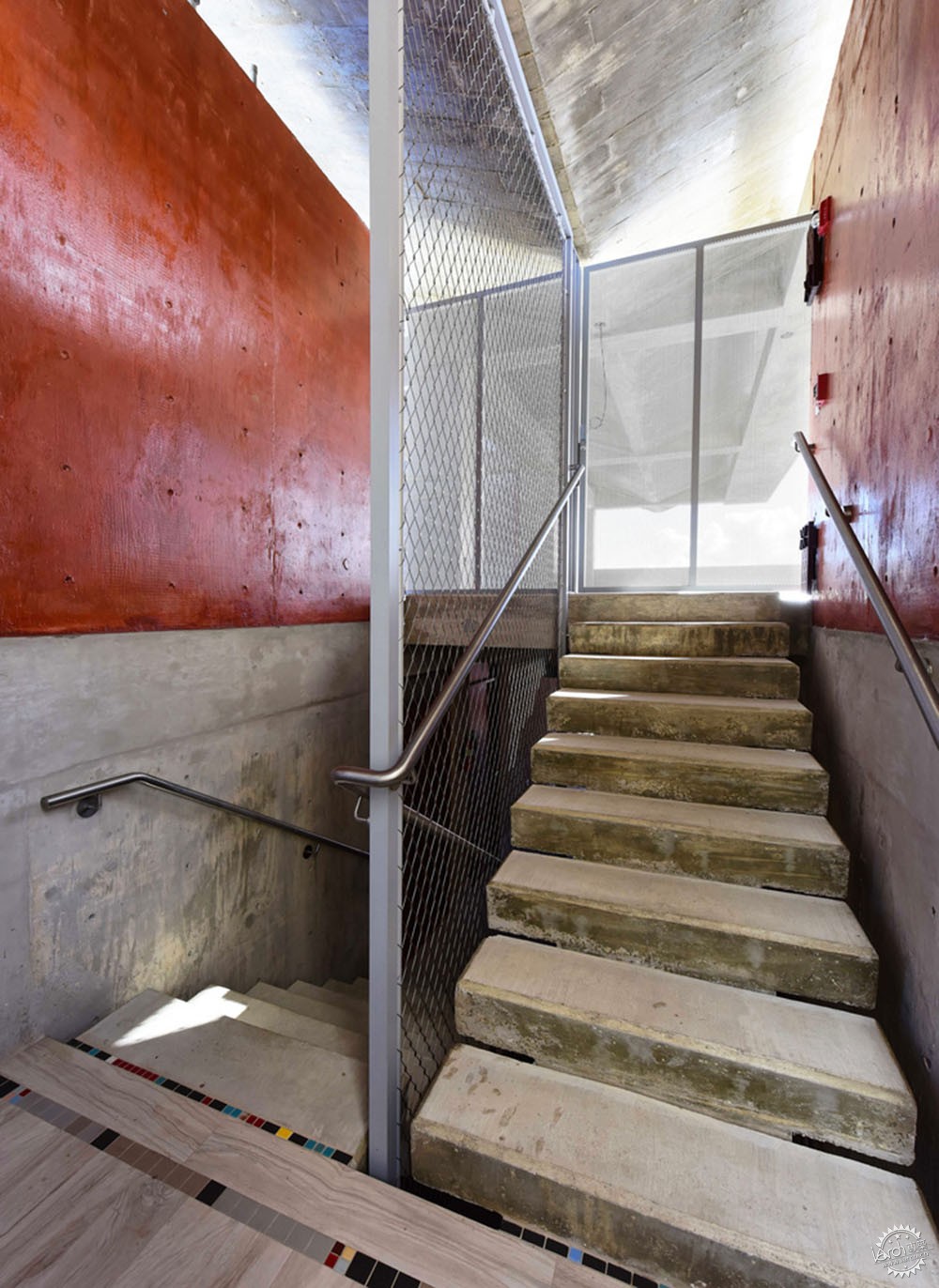

房间都布置在中间两层的南北两侧。它们由一个可以引入自然光和通风的中央走廊等分开来。各水平楼层都可以通过楼梯和电梯到达。

The rooms are efficiently accommodated on two (2) main levels oriented to the north and south sides.  They are equally separated by a central corridor that allow natural lighting and ventilation to enter the structure.  All levels are reachable by way of a carefully articulated stair and accessible by elevator.

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第6张图片
Section/剖面图

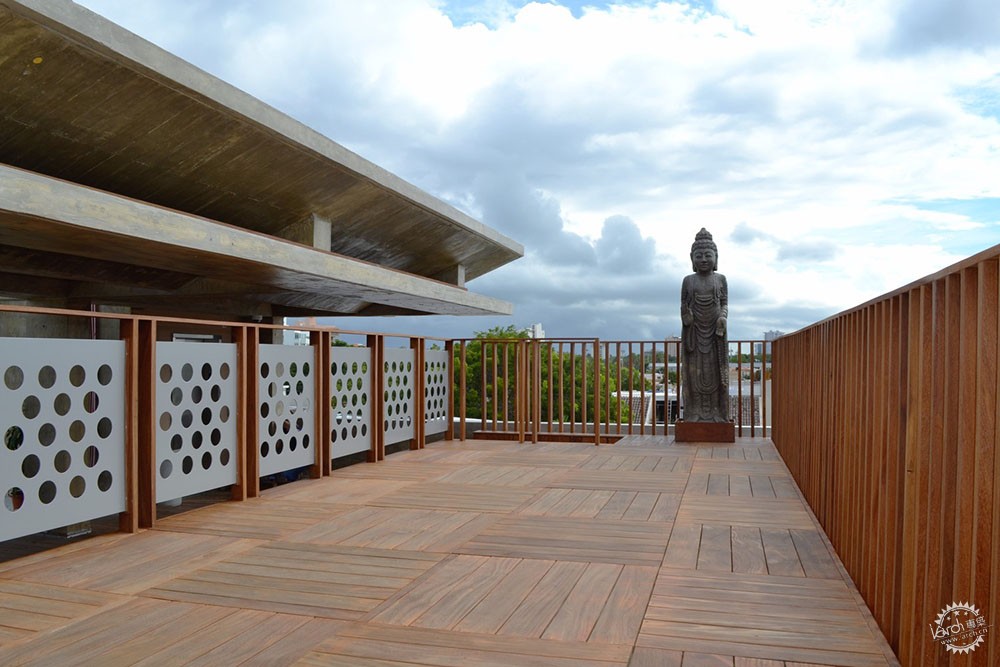

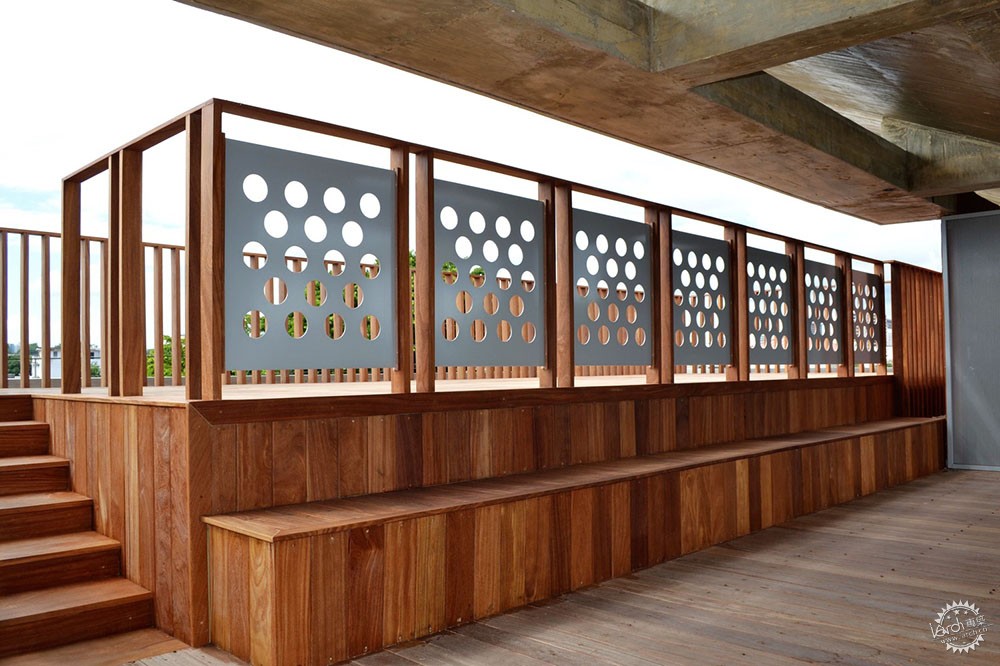

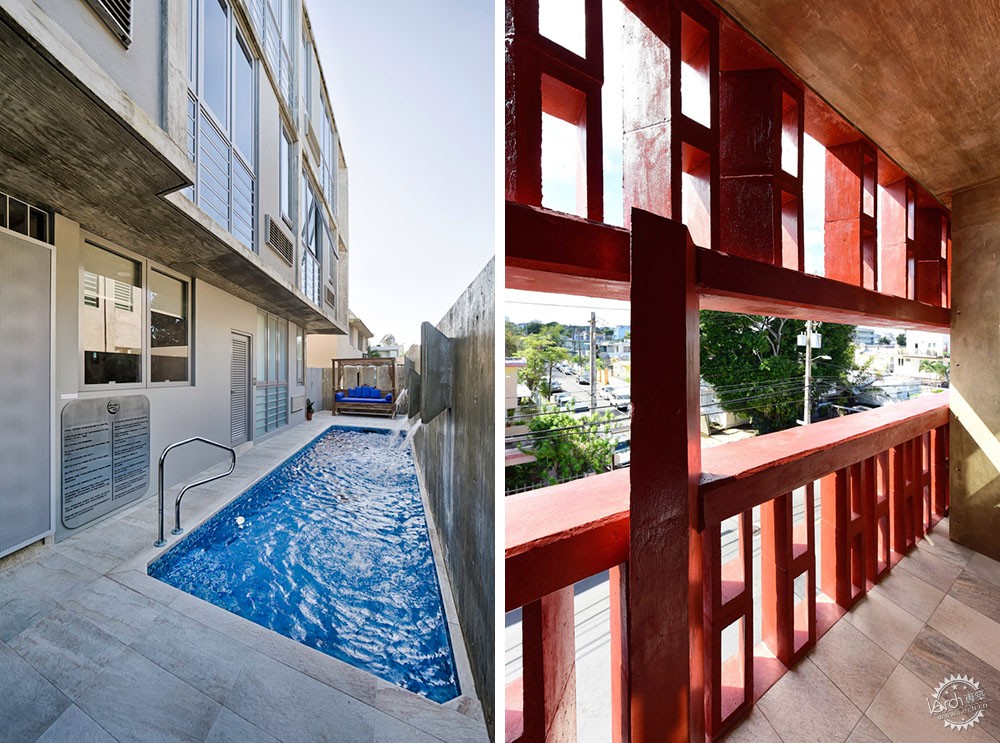

表面带纹理的混凝土墙壁定义出了天井空间。天井成为室内空间视觉上的延伸,此外线性的水池也突出了后方的露台空间。屋顶露台可以作为眺望山脉(向东南方向)、海滩(向北)以及俯瞰周边低密度社区风景的阳台或半户外的瞭望台。

The key perimeter patios are defined by exposed-textured concrete walls and become sensible extensions of the interior areas, a linear pool enhances the rear terrace. The roof terrace serves as a sundeck and a semi-covered observatory for attractive views of the mountains (to the southeast), the beach (to the north) and the rest of the low-density neighborhood.

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第7张图片
© Carlos Esteva & © José Fernando Vazquez

建筑设计加入了一些环保技术,如雨水收集/分销系统、真空管太阳能热水器和LED照明。

Environmentally responsible building technologies have been implemented, such as rainwater collection/distribution system, vacuum-tube solar water heater and LED lighting.

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第8张图片
© Carlos Esteva

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第9张图片
© Shellar Garcia

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第10张图片
© José Fernando Vazquez

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第11张图片
© José Fernando Vazquez

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第12张图片
© José Fernando Vazquez

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第13张图片
Site Plan/场地平面图

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第14张图片

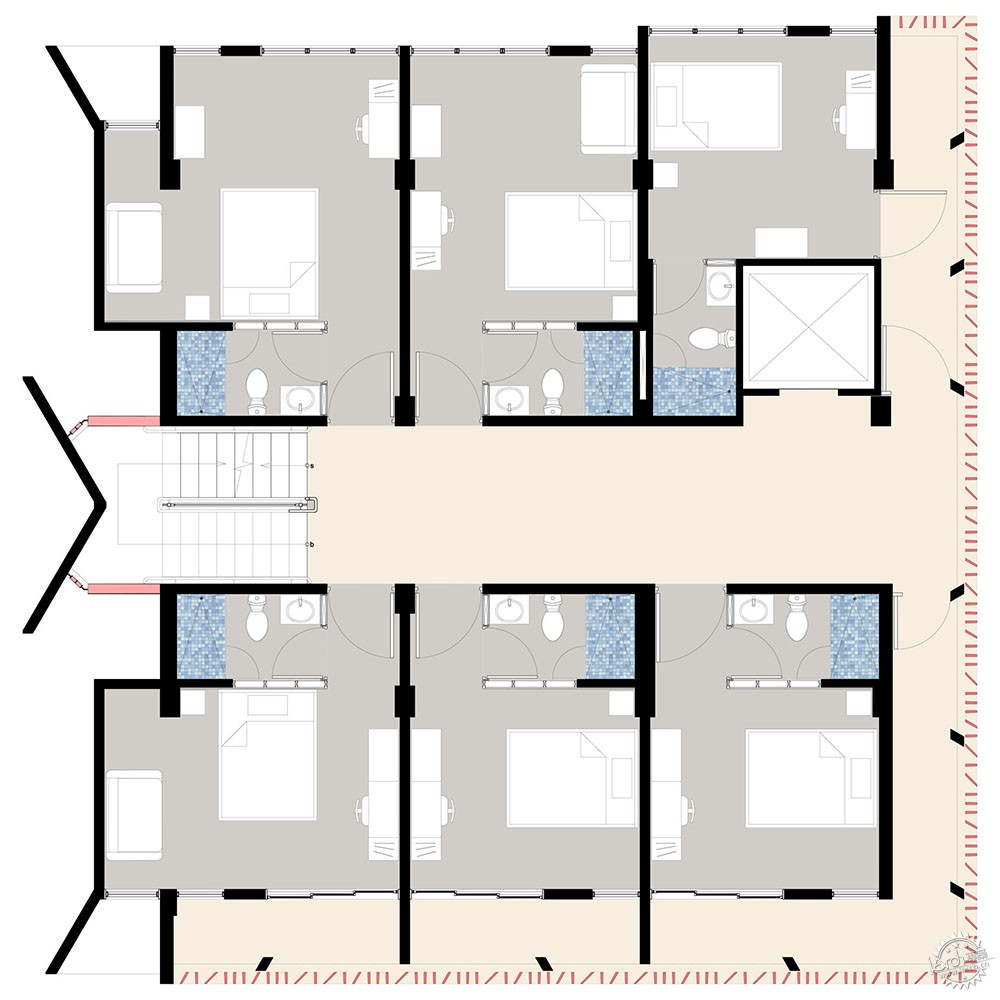

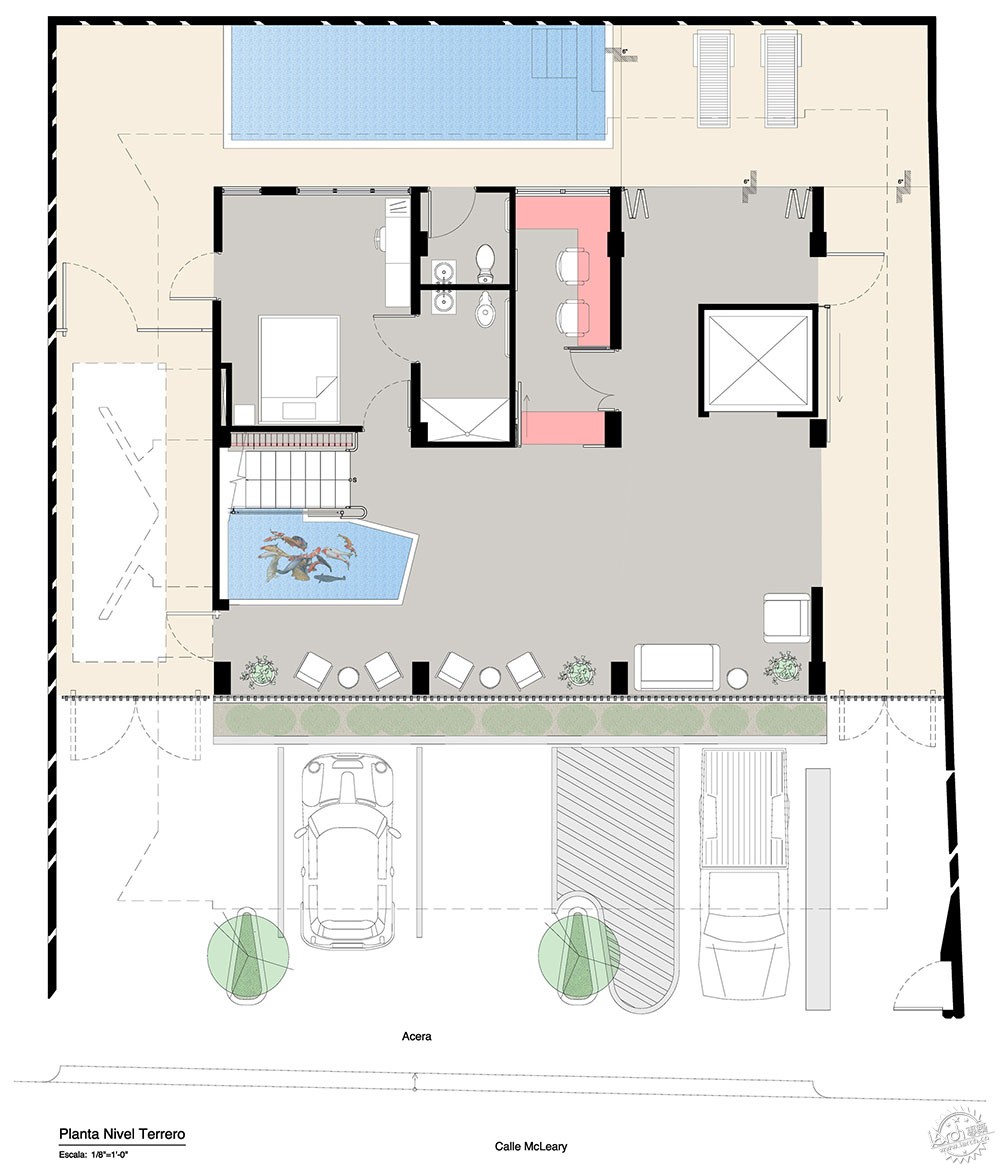

Plan/平面图

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第15张图片
Plan/平面图

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第16张图片
Roof_plan/楼顶平面图

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第17张图片

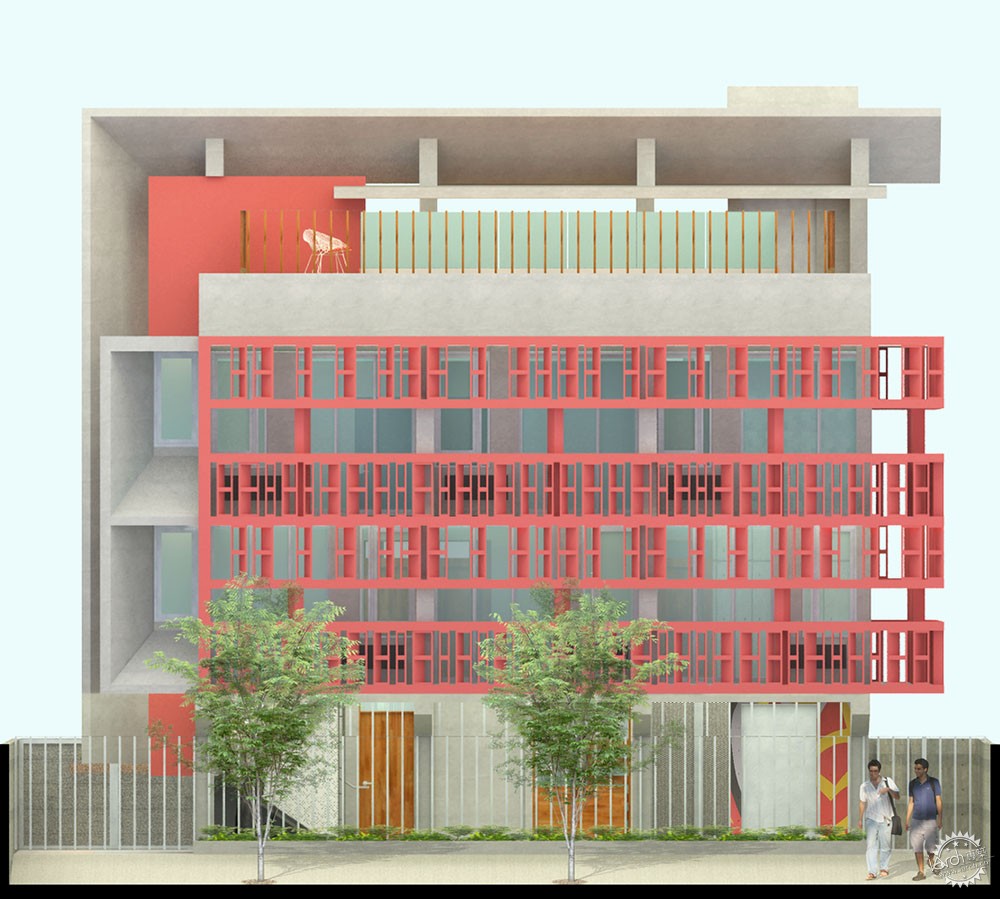

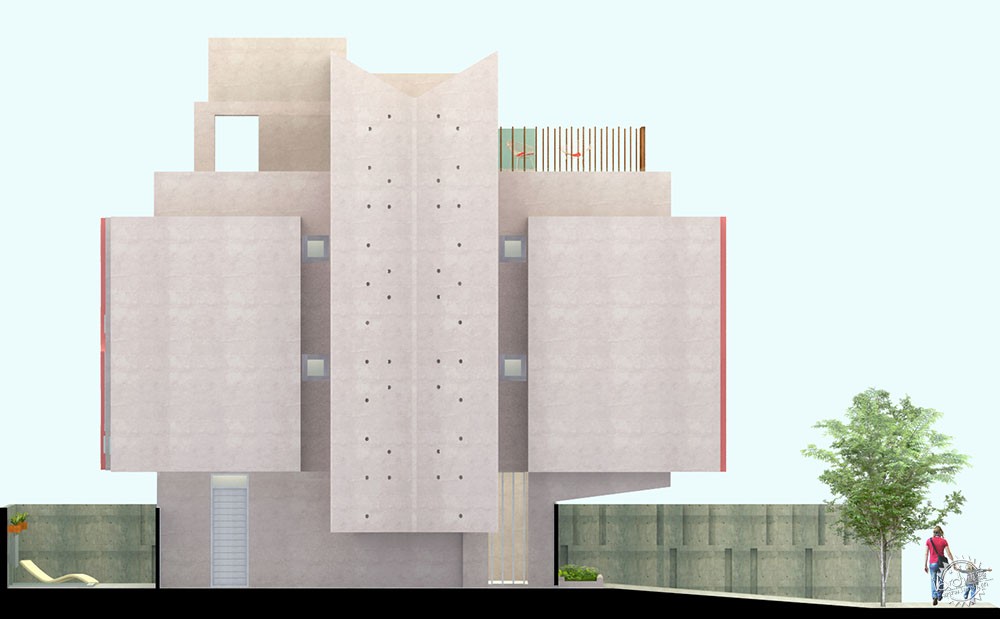

East_Elevation/东立面

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第18张图片
North_Elevation/北立面

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第19张图片
South_Elevation/南立面

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第20张图片
west_Elevation/西立面

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第21张图片

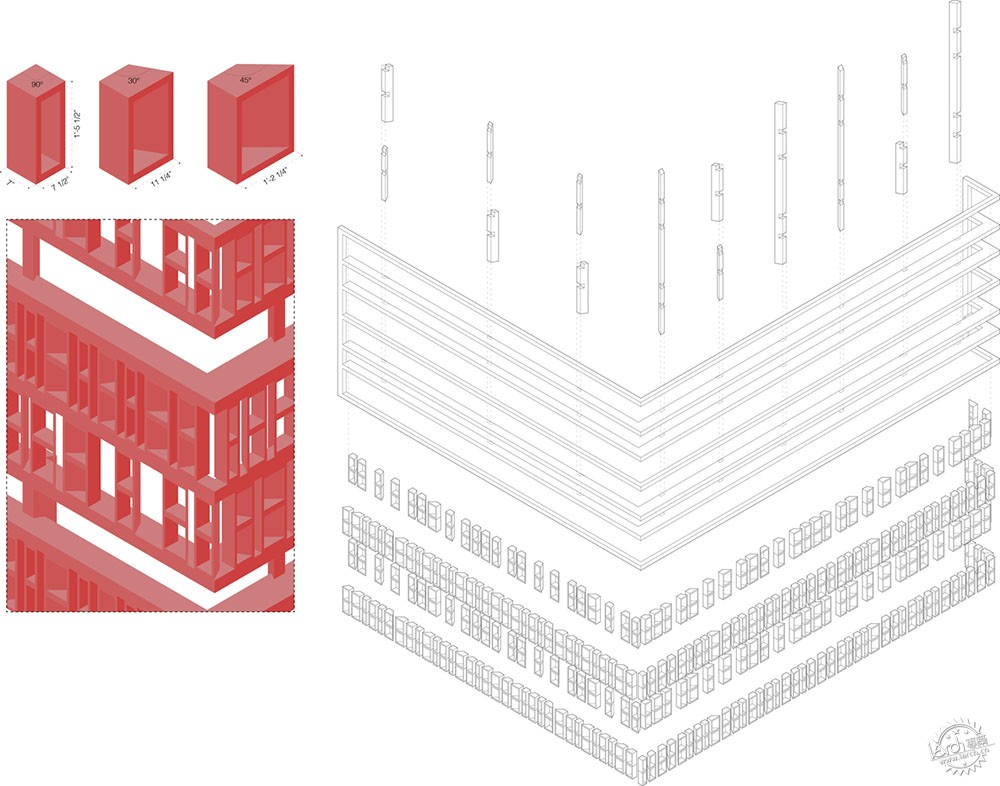

Diagram/图解

波多黎各梦幻酒店/ Coleman-Davis Pagán建筑事务所第22张图片
© Shellar Garcia

•        建筑事务所:Coleman-Davis Pagán建筑事务所
•        地点:波多黎各,圣胡安,2009 Calle McLeary
•        项目年份:2014年
•        摄影:José Fernando Vazquez, Carlos Esteva, Shellar Garcia
•        设计团队:José R. Coleman-Davis Pagán, Yadira Adorno Pomales, Shellar M. García Córdova, Edgardo D. Ocasio Roig, Yanitza Maldonado González, Víctor Nieto Villalón, Wilfredo Pérez Espino, Valorie Alicea Chinea, John Santos Ríos, Tamaris Alvarez Custodio, Edward Ramírez Saez
•        业主:Dream Inn Puerto Rico, Inc.
•        设备顾问:Francisco Maté
•        电气顾问:Raymond Amaral
•        结构:Daza Struct. Eng. Services / Luís Daza (structural)
•        承包商:Julio Vega Figueroa

•        Architects:Coleman-Davis Pagán Arquitectos
•        Location:2009 Calle McLeary, San Juan, San Juan 00911, Puerto Rico
•        Area:300.0 sqm
•        Project Year:2014
•        Photographs:José Fernando Vazquez, Carlos Esteva, Shellar Garcia
•        Design Team:José R. Coleman-Davis Pagán, Yadira Adorno Pomales, Shellar M. García Córdova, Edgardo D. Ocasio Roig, Yanitza Maldonado González, Víctor Nieto Villalón, Wilfredo Pérez Espino, Valorie Alicea Chinea, John Santos Ríos, Tamaris Alvarez Custodio, Edward Ramírez Saez
•        Client:Dream Inn Puerto Rico, Inc.
•        Mechanical Consultant:Francisco Maté
•        Electrical Consultant:Raymond Amaral
•        Structure:Daza Struct. Eng. Services / Luís Daza (structural)
•        Contractor:Julio Vega Figueroa
