SA lab proposes modular trekking lodge for use in harsh icelandic landscapes

由专筑网韩平，Vigo编译

SA lab设计了一种适用于冰岛寒冷风景区的模块化登山小屋，设计灵感源自北欧神话传说宇宙树——一棵象征生命的神秘树木。作为一个可供游客旅途短暂休整的避难所，满足了游客的各种需求，“宇宙树之下”的设计基于传统的冰岛建筑形式和文化象征。

SA lab has designed a modular trekking lodge for use in harsh icelandic landscapes, influenced by the norse legend of yggdrasil — a mythical tree and symbol of life. conceived as a sanctuary where travellers can find everything they need for respite from their journey, the design of ‘under yggdrasil’ is based on traditional icelandic architectural forms and cultural symbols.


小屋也提供了一个公共区域可供多个游客集会和交流/the lodge also includes a communal space where multiple travelers can congregate and connect

由SA lab提议的设计既保证庇护所远离一切不利的外界因素，但又与周围的自然环境保持着共生的关系。小屋由四个独立的预制单人房组成，建造在桩基础上，以保证对环境的最低的影响。中心区域是中央技术区域涵盖了锅炉舱、医疗设备、储藏间以及雨水和可以实现水循环、水净化的污水过滤系统。为了符合环保设计，外部隔间采用了回收钢材和木材制作的框架结构。

the suggested design by SA lab provides shelter from the elements while maintaining a symbiotic relationship with the natural environment surrounding it. composed of four separate prefabricated chambers, the lodge rests on a platform constructed atop a pile foundation, providing minimal environmental interference. a central technical zone in the center houses the boiler tank, medical equipment, and storage spaces, as well as the rainwater and sewage filtration systems, which provide reusable, purified, water supplies. in keeping with the environmentally conscious design, the external compartments are constructed of a framework of recycled steel and wood.


设计灵感源自北欧神话传说宇宙树——一棵象征着生命的神秘树木/the design is influenced by the norse legend of yggdrasil, a mythical tree and symbol of life

小屋屋顶安装了太阳能板提供了供暖和照明的电力。小屋的墙壁采用了半透明的ETEE薄膜，这便于崎岖地形上的运输和组装。墙壁通过拉伸形成了空气动力学的类树状，以抵御高强的风速和严寒的气候环境。设计旨在保护游客远离外界不利环境也能融入周围的美景，因此小屋也提供了一个公共区域可供多个游客集会和交流。

solar panels, located on the roof, provide electricity for heat and light. the walls of the lodge themselves are made of a translucent ETFE membrane, allowing for ease of transportation and assembly on often rough terrain. being tensile, the walls provide an aerodynamic tree-like shape, necessary in withstanding high wind speeds and harsh weather conditions. designed to both protect travellers from and immerse them in their natural surroundings, the lodge also includes a communal space where multiple travellers can congregate and connect.


屋顶太阳能板——提供热力和照明的电力/solar panels, located on the roof, provide electricity for heat and light


概念图显示灵感和环境的影响/concept diagram indicates phases such as inspiration and environmental influence


形式案例中可发现不同的建筑几何图形/examples of form finding of the various architectural geometries


模块化徒步旅行住宿屋的平面图/floorplan of the modular trekking lodge


1-1剖面图展现了材质的位置及隐藏元素/section 1-1 showing the location of materials and other hidden elements

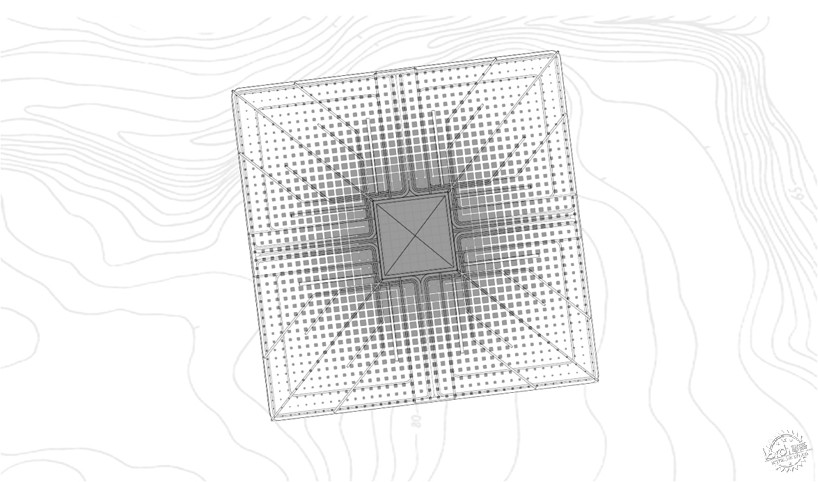

总平面图表明了基地和地形的全局情况/masterplan indicating the overview of the site and its topography


项目建筑元素图/drawing of the project’s architectural elements
