江苏无锡河岸制果/南筑设计事务所
Riverside Cake Lab in Wuxi, jiangsu/Nanzhu Space Atelier

河岸制果位于无锡市一处老居住社区的临街处,以制作烘焙为主,项目以简洁明了的设计手法使其跳脱于原本街区的平凡印象,带来别样感受。

Located at the street front of an old residential community in Wuxi, Riverside Cake Lab focuses on baking food. The project has brought about a distinctive feeling by means of minimal design, breaking away from the unimpressive image of the existing street block.

简洁明了……也许这是形容它最合适的词了第3张图片

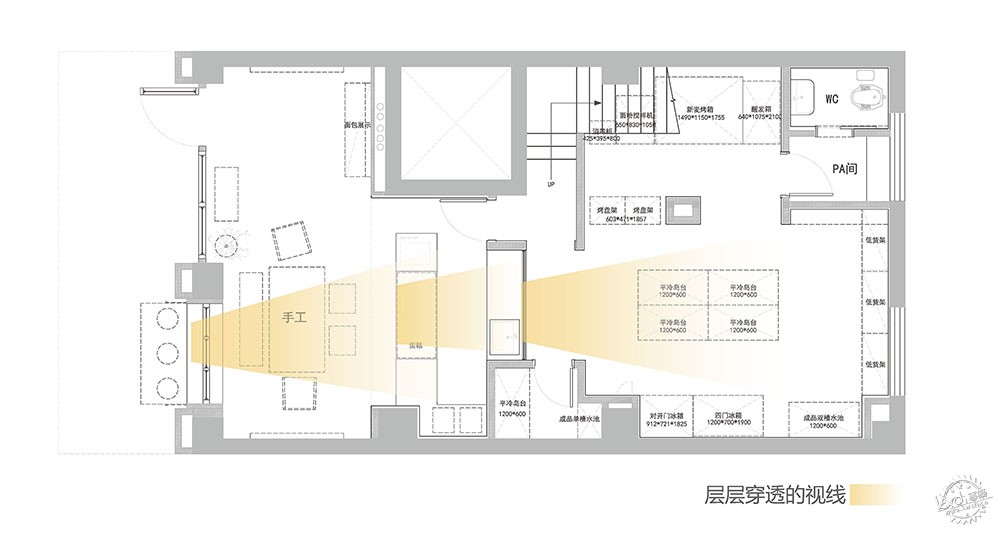

分析图

平面为长方形,中段被电梯井借用了空间,布局以收银区划分接待间与操作间,明确了功能。

概念/画布

设计以白色和木色作为基调,与周边的环境剥离开来,大部分的留白像一张动态的画布,记录经过的人物和树丛的光影。

The rectangle plan is interrupted by the elevator shaft in the middle part. The cashier desk is applied to divide the reception and operation room, so as to confirm the respective functions.

Concept/Canvas
Base on the tones of white and wooden color, the design has broken away from the surrounding environment. A large proportion of void, just like a dynamic canvas, has recorded the passers-by, as well as the light and shadow of groves.

简洁明了……也许这是形容它最合适的词了第4张图片

简洁明了……也许这是形容它最合适的词了第5张图片

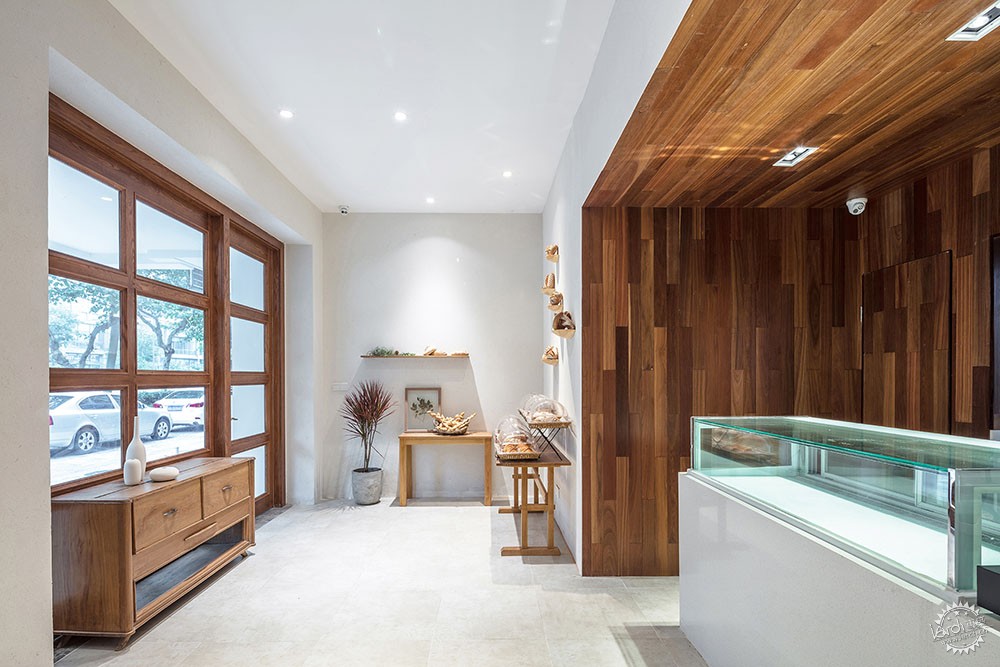

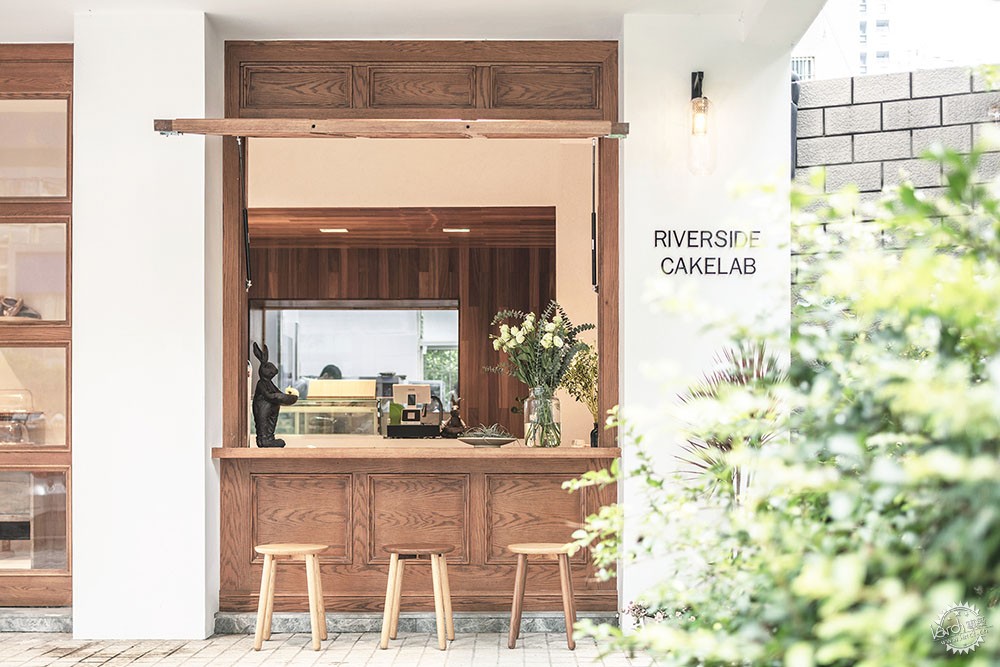

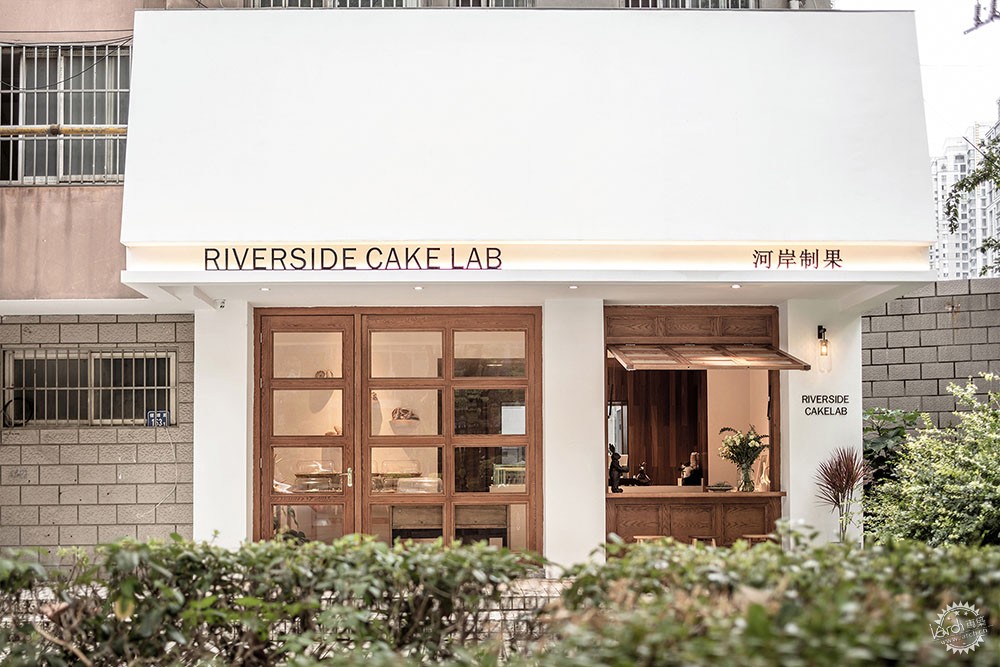

临街的入口与窗台的材料以木头为主,以“街角的生活”作为理念。通透的设计让走廊也具备了日常休憩的功能,实现了内外空间的交融。

The entrance of street front and sills are mainly made of timber, base on the concept of “life of street corner”. The penetrating design has provided the corridor with the function of taking a rest in the daily life, to realize the integration of interior and exterior.

简洁明了……也许这是形容它最合适的词了第6张图片

简洁明了……也许这是形容它最合适的词了第7张图片

简洁明了……也许这是形容它最合适的词了第8张图片

简洁明了……也许这是形容它最合适的词了第9张图片

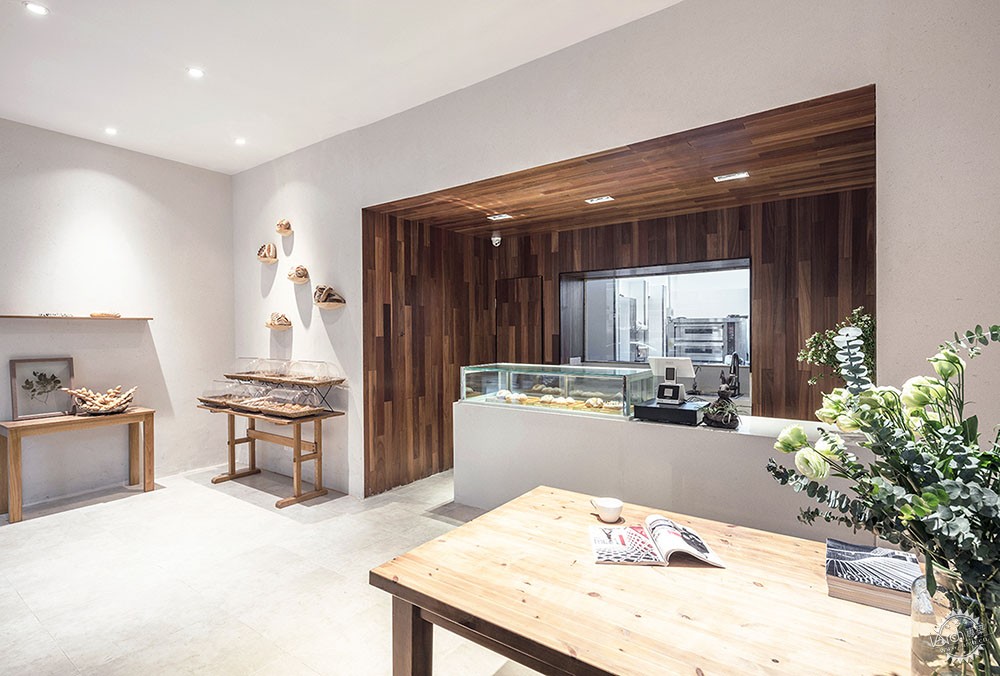

室内以嵌套的不同材质的界面划分了功能区域,接待区具备社交的属性,收银吧台以一个明确的方式区隔开来,而内部的操作间则以半开放的方式与前端结合,材质与颜色的对比使空间具备了多维度的延伸感。

The interior functional areas are divided by the embedded interfaces made of various materials. The reception has the attribute of social communication, and the cashier desk is separated from the other space by means of a definite design. And the internal operation room is combined with the front area as a semi-open space. The contrast of materials and colors has generated a sense of extension with multiple dimensions in the space.

简洁明了……也许这是形容它最合适的词了第10张图片

简洁明了……也许这是形容它最合适的词了第11张图片

穿透性不仅体现在内外空间上,收银区背面打通了实墙,室外走廊与最里面的操作间也具备了视线交流的可能性。

The penetration is not only reflected on the interior and exterior space. The solid wall is removed from the back side of cashier desk, so that it enables an unobstructed view from the exterior corridor to the innermost operation room.

简洁明了……也许这是形容它最合适的词了第12张图片

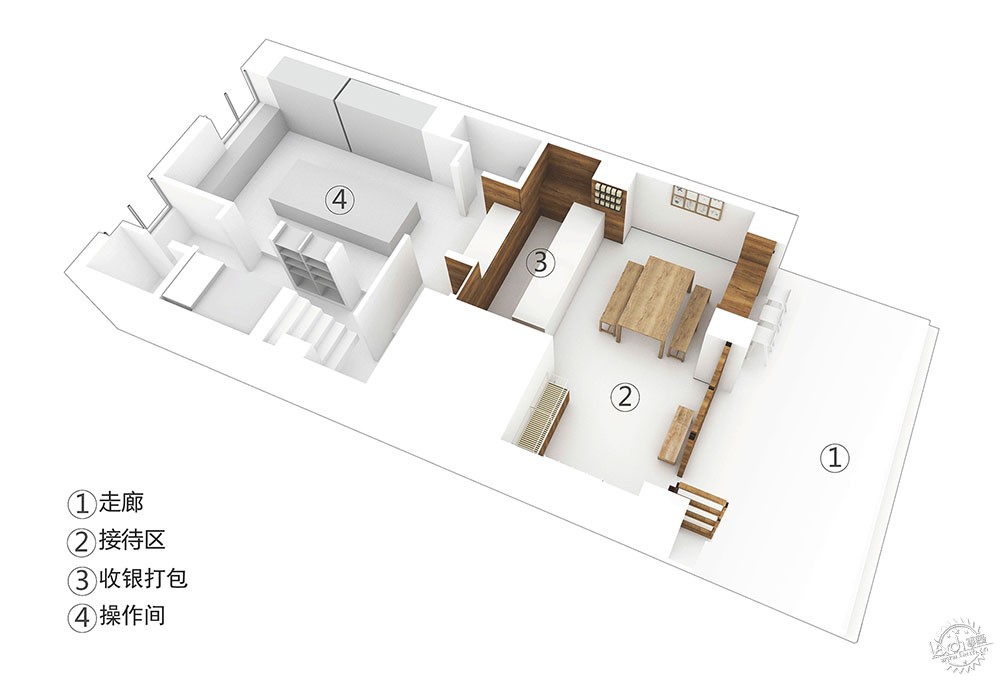

分析图

简洁明了……也许这是形容它最合适的词了第13张图片

简洁明了……也许这是形容它最合适的词了第14张图片

简洁明了……也许这是形容它最合适的词了第15张图片
平面

简洁明了……也许这是形容它最合适的词了第16张图片

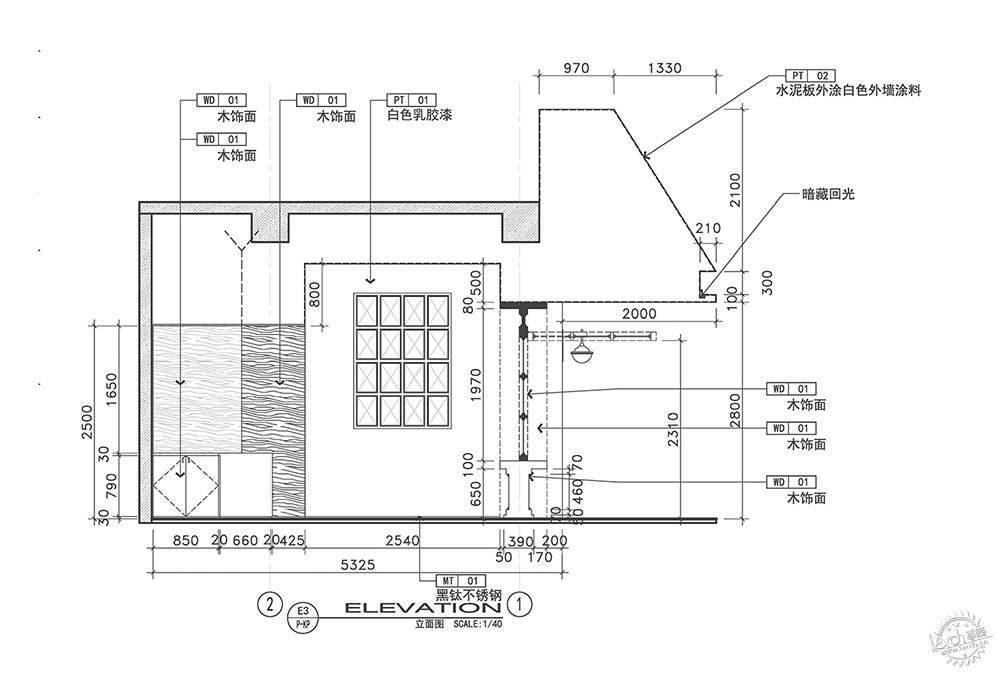

立面图

简洁明了……也许这是形容它最合适的词了第17张图片

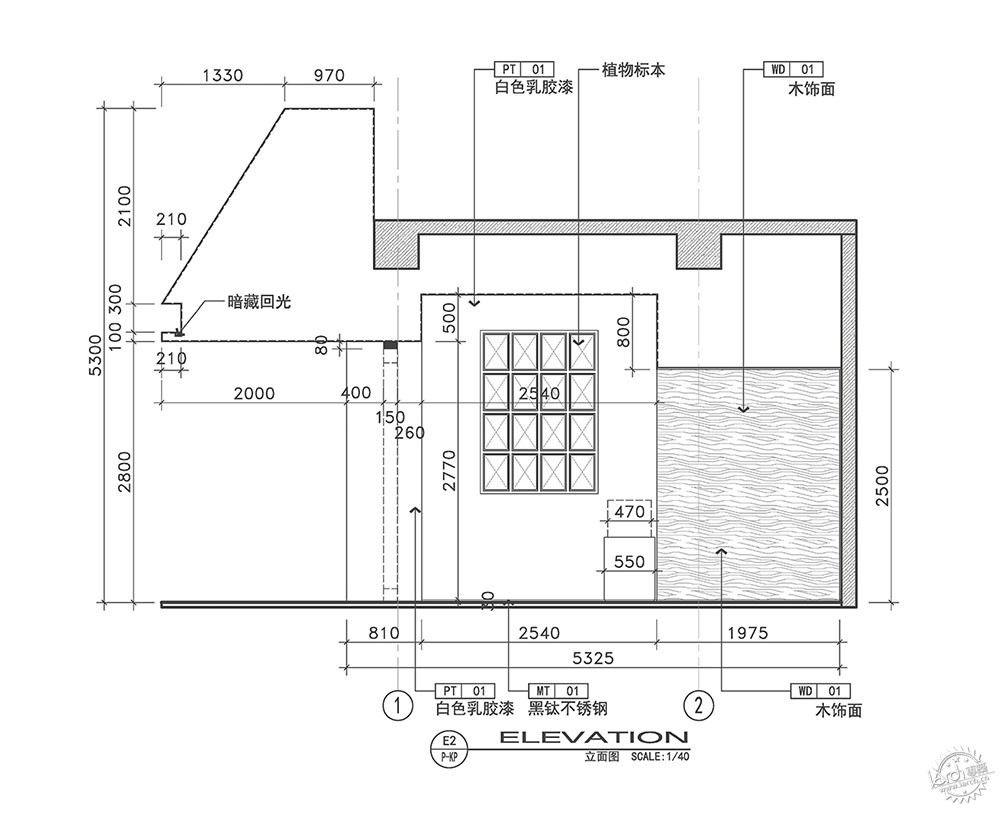

立面图

项目地址: 江苏无锡
项目面积: 70平方米
设计公司: 无锡南筑空间设计事务所
设计主创: 姚伟国、王海、苏阳(室内设计)、陈莹(艺术陈设)
灯光设计: 优为视界
摄影: 陈铭
主要材料: 老木板、白瓷砖、硅藻泥、钢板喷塑
设计时间: 2017.05
建成时间: 2017.07

Project Address: Wuxi Jiangsu
Project Area: 70㎡
Architects: NONEZONE Space Atelier
Architects in charge: Wanghai Yaoweiguo Suyang(Interior)Chenying(Art Furnishings)
Lighting design: lvsunny
Photographs:  Chenming
Main Material: old wooden floor  white ceramic tile  Diatom mud  Plastic Spraying with Iron
Project Year: May 2017
Complete Year: July 2017


关于我们: 无锡南筑设计事务所在2016年成立于无锡,成员分别来自建筑、室内、陈设软装等不同专业领域,作品及研究涵盖了商业、居住、公共空间等方面,致力于结合不同文脉语境下设计的精确表达与创新。

About us:Nanzhu Space Atelier was set up in Wuxi,2016. The group members come from different majors such as Architecture、Interior、Soft Decor. The works and research including commercial、residential and public architectures, and we work every effort to accurately and creatively express our works with diverse context.
