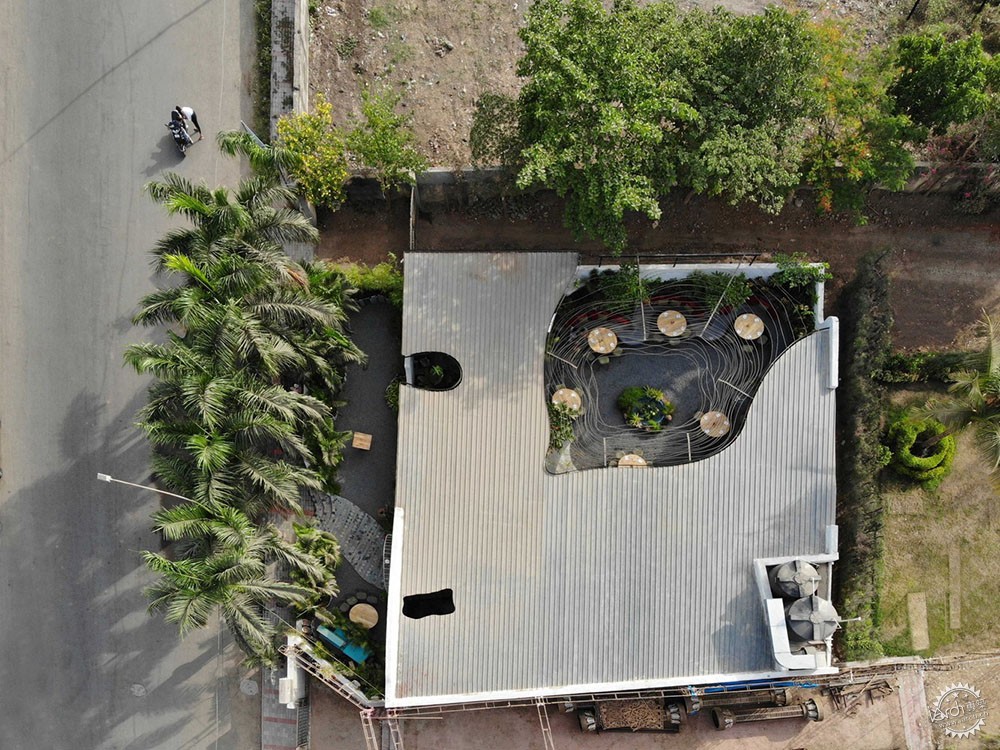

如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第1张图片


印度“Think of it!”餐厅
Think of it! Restaurant / Studio Lagom

由专筑网李韧,王帅编译

来自建筑事务所的描述:位于印度西部古吉拉特邦港口的苏拉特市与孟买、德里那样的大城市并不相同,这里的空间较为充裕,但是就餐厅类型而言,许多建筑师都将其设置在封闭的空间环境之中,这并不是说开敞清新的空间就不存在,只是它们都有一定的局限性,而这些局限使得餐厅经营着并不会去过多考量空间构成。

Text description provided by the architects. Surat may not be as space-starved as Indian metropolises of Mumbai and Delhi, but the restaurant typology sees a predominance of eateries operating within enclosed, air-conditioned environments. That’s not to say that restaurants with a considerable al fresco section do not exist, but these are limited to largely utilitarian establishments that pay scant heed to ‘place-making’.

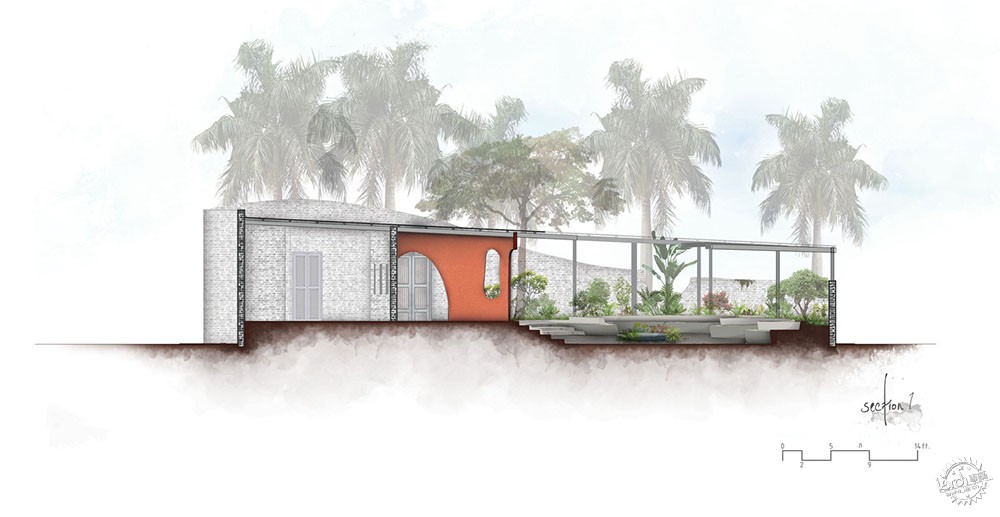

如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第2张图片


因此,当客户和建筑师进行沟通时,他们希望餐厅能够表达出城市所缺乏的内容,即用心经营、设计精致的花园空间。但是项目土地的租金昂贵,这也说明了,建筑的形式应该尽量简约,同时运用价格实惠的建筑材料。

So when the clients approached the architect to design a cafe/restaurant, the design thoughts immediately veered to creating something that the city lacked: a well-designed garden restaurant in the true sense of the word. Given that the land was leased, further clarified this vision: a design that kept the built-form to the minimum and used economic materials to rationalise project costs.

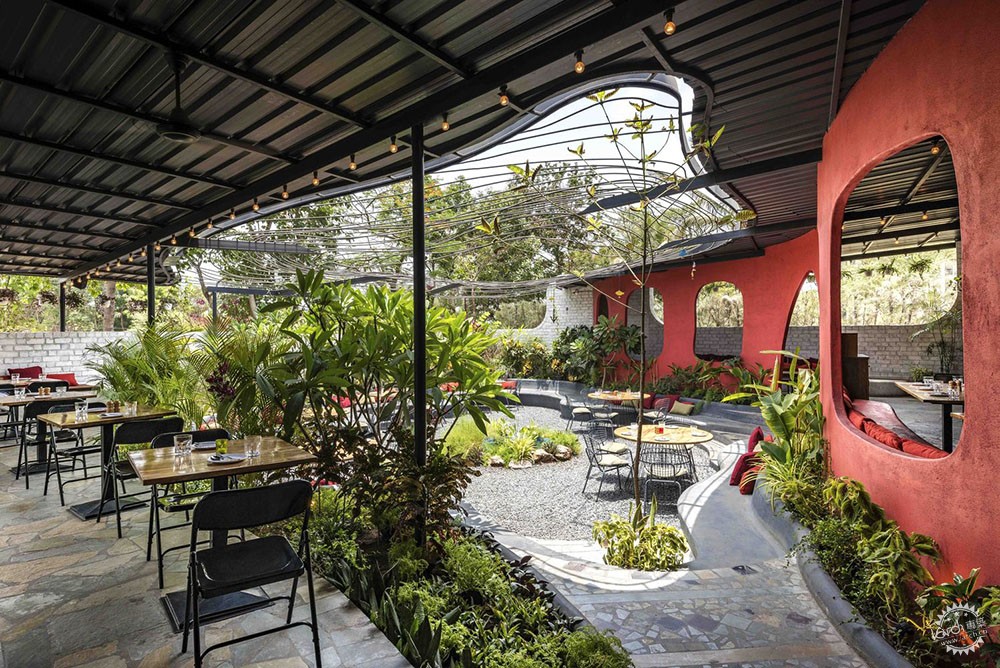

如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第3张图片

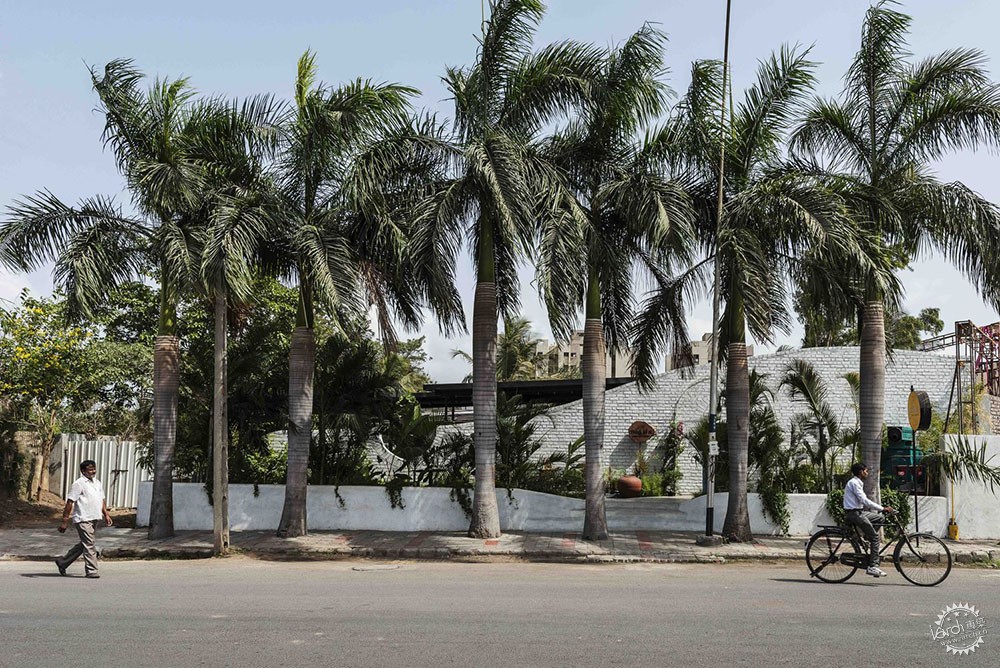

该项目位于安静的小巷之中,这里充斥着悠闲的生活气息,而这些空间氛围对于餐厅来说非常重要。虽然有的人喜欢隐蔽的就餐环境,但结合项目地点,建筑师认为建筑还是应该对街道有一些关联。因此,面向街道的一面建筑师运用了粉煤灰砖墙体,这形成了建筑的边界,同时还结合了退台式的景观区域,形成建筑的绿色空间,而这里便成为了沿街咖啡区,也与街道形成了一定联系。

The location in a quiet by-lane was opportune: the relative serenity would further the requisite laid-back air that was crucial to this type of development. While the restaurant had to have a certain privacy, given it’s location, the architect also wanted to ‘respond’ to the street. Ergo, a wide landscaped elevated set-back was created as a transition from the street level to the fly-ash brick masonry wall that marked the ‘boundary’ of the restaurant. This green band would serve as a street-side cafe, handy for a quick bite or cuppa.

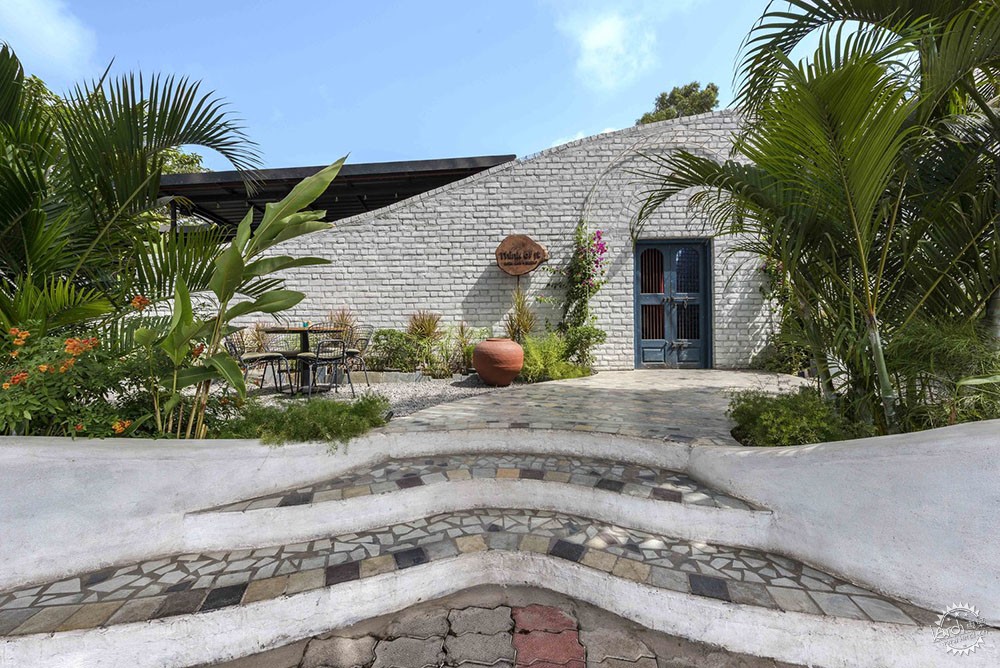

如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第4张图片

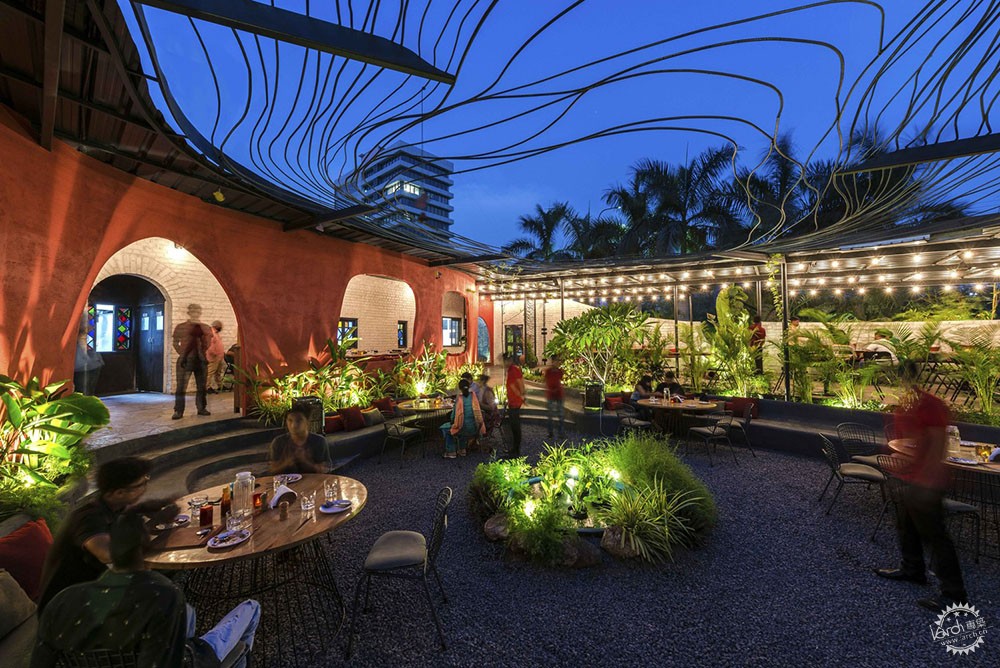

如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第5张图片


如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第6张图片

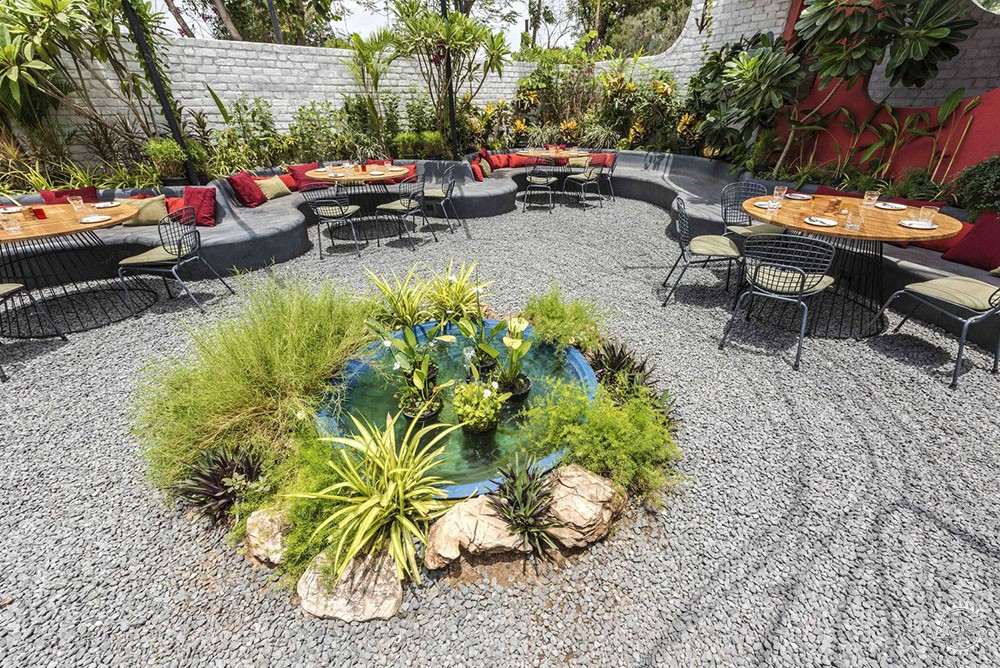

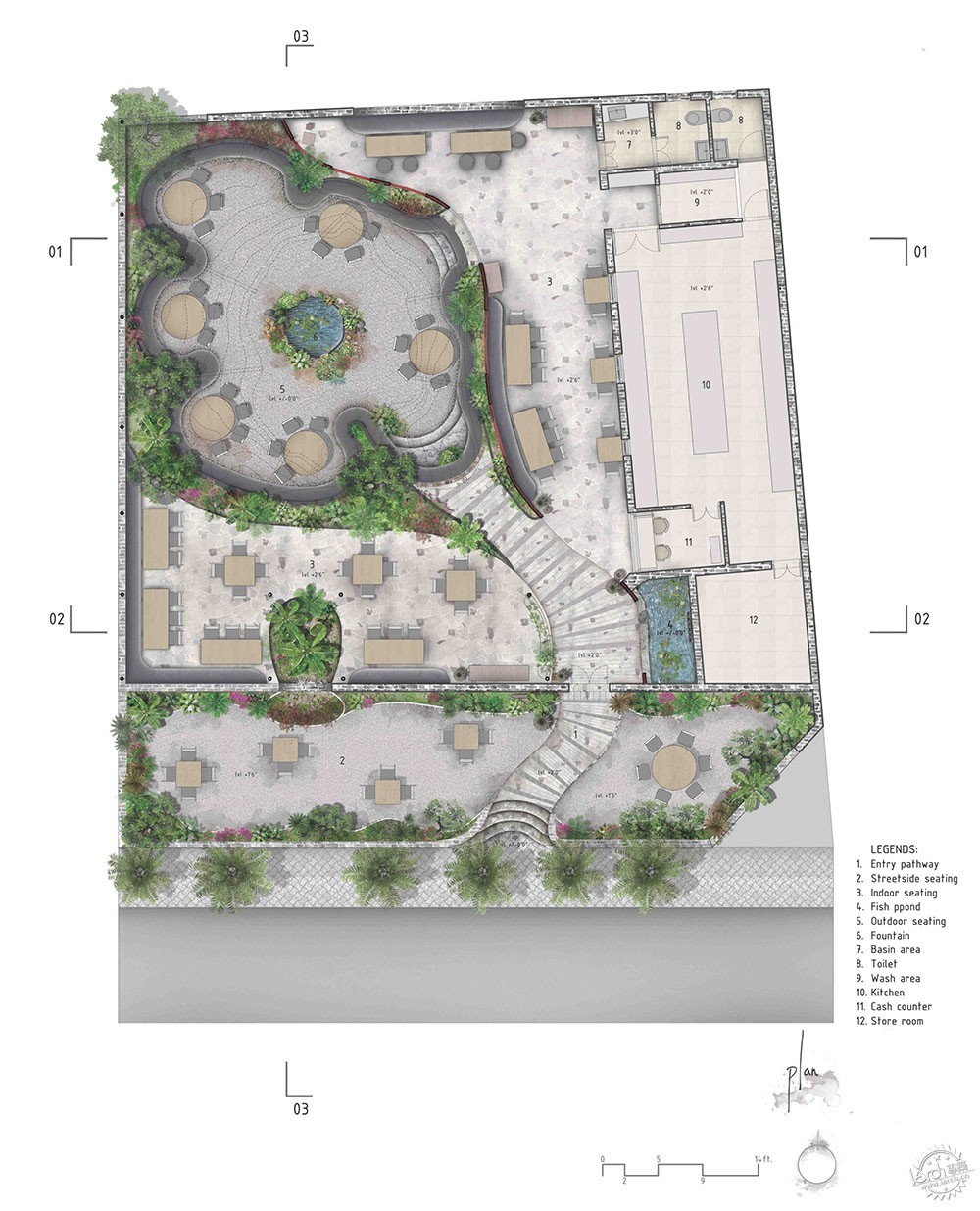

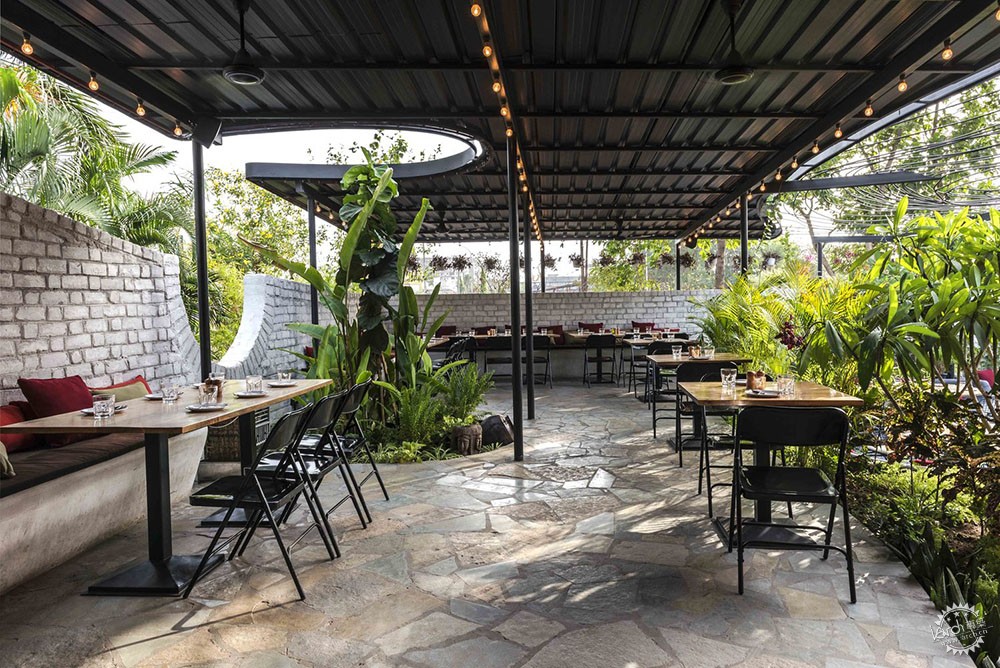

除了墙体之外,顾客会通过一个如门厅般的封闭空间进入餐厅,然后映入眼帘的边上L形半封闭的开放式庭院。在这里的视觉审美效果有机流动,其材质、色彩、形式都十分接地气。座位区域都有着不同的开放程度,靠近庭院的部分设置有光滑的混凝土长凳。而入口大厅的一侧环绕着细长的钢丝混凝土网格,比起直接运用墙体,这种方式更加通透一些,大厅的另一侧则完全开敞,建筑屋面覆盖着瓦楞面板,让建筑整体形成统一的有机外观形态。

Beyond the wall, the entry was orchestrated through a lobby-like enclosed space (abutted by a waterbody) that ‘releases’ you into the restaurant proper, with an open courtyard nestling within an L-shaped semi-enclosed area. The visual aesthetic within is organic and free-flowing, with materials, colours and forms that are grounded to the earth. The seating options range from the al fresco to ones with varying degrees of semi-openness. Immediately bordering the courtyard void are smooth cement ‘benches’ created in situ. While to one side of the entrance lobby is a section shielded by a slim undulating ferrocement wall with cut-outs — more screen than wall — to the other is an open section, both are roofed by corrugated GI sheets whose edges are cut such that they, collectively, reinforce the organic look and feel.

如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第7张图片


如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第8张图片


如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第9张图片


如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第10张图片

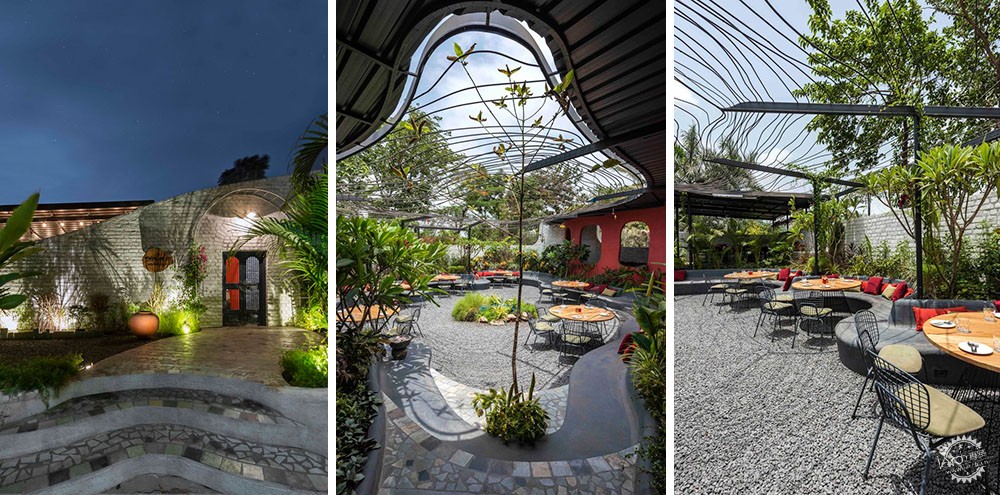

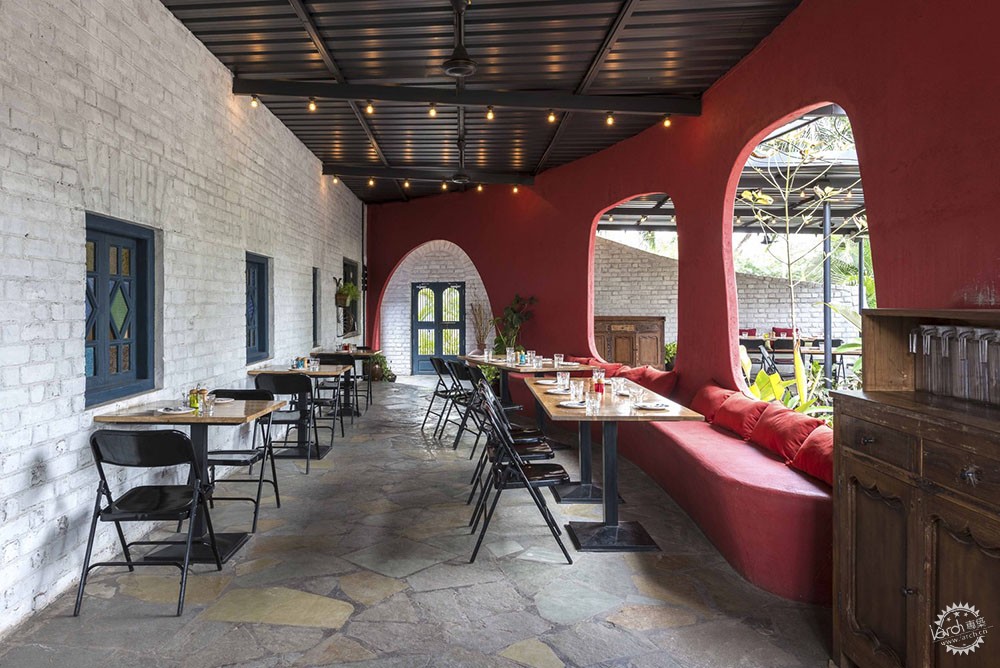

建筑的主要色调为生土红色,其入口处则添加了一些蓝调,对于材质,建筑师运用了简约的马赛克和混凝土波纹面板,其中还镶嵌着一些石块,建筑的色彩与材质配合形成质朴的外观形态。建筑的顶部通过铁丝的环绕,形成上下起伏的空间效果,这看上去如同线条感十足的施工现场,其在地面上的投影形成扭曲的涟漪,为整个景观体系增添活力。

The colour scheme — a predominance of an earthy red, with a dash of blue at the entrance — and materials — leftover stone arranged in a homely mosaic, smooth swells of cement and MS — are aligned to a rustic look. Overhead salvaged construction iron rods form an undulating installation, almost like a heavily contoured site manifested as a wire-frame drawing. Its shadows create a rippled effect on the floor, distorting views and adding more dynamism to the vistas.

如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第11张图片


如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第12张图片


当然,花园餐厅必不可少的要素便是绿色植物。在其中,设计师精心搭配了多种热带植物,其中有鸡蛋花、螺旋藻、龙舌兰、竹子、芭蕉、茴香等等,这些植物有的放置在建筑边缘,有的放置在庭院中央,形成郁郁葱葱的大自然形态。

And of course, where would a garden restaurant be without plants. Curated tropical greenery — frangipani, heliconia, dracaena, bamboo, banana, bougainvillea, and many more — imbue the restaurant with natural freshness. Strategic plantings — as borders, in the centre of the courtyard, a small bed in the paving of an open section, create a lush natural look.

如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第13张图片


如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第14张图片


如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第15张图片


如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第16张图片


如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第17张图片


如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第18张图片


如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第19张图片


如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第20张图片


如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第21张图片


如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第22张图片


如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第23张图片


如施工现场般的开放式自然景观餐厅,你想来体验一下吗?第24张图片


建筑设计:Studio Lagom
地点:印度,古吉拉特邦
主创建筑师:Hardik Shah
设计团队:Krishna Kapadia, Kruti Sheta-Patel
面积:3500.0平方英尺(325平方米)
项目时间:2018年
摄影:Photographix | Sebastian + Ira
景观设计:Hasnain Sabuwala
艺术设计:Kruti Sheta-Patel
结构设计:Hitesh Rathi(Rathi consortium)
金属结构:Sai Shyam Engineering
承包商:Kalpesh Patel
管道工程:Burhanali Shaikh (Bhai Bhai Contractor)
电力设计:Sandeep Patel
木材工艺:Magraj Suthar
品牌与标识系统:SatyadipVadnere (Satyarth) and Hemant Saho
地面设计:Jyoti Marble Art
色彩:Rajpat Prajapati

Architects: Studio Lagom
Location: Surat, Gujarat, India
Principal Architect: Hardik Shah
Design team: Krishna Kapadia, Kruti Sheta-Patel
Area: 3500.0 ft2
Project Year: 2018
Photographs: Photographix | Sebastian + Ira
Landscaping: Hasnain Sabuwala
Artists: Kruti Sheta-Patel
Structure: Hitesh Rathi(Rathi consortium)
Metal Structure: Sai Shyam Engineering
Contractor: Kalpesh Patel
Plumbing: Burhanali Shaikh (Bhai Bhai Contractor)
Electrical: Sandeep Patel
Carpenter: Magraj Suthar
Branding and Signage: SatyadipVadnere (Satyarth) and Hemant Saho
Flooring: Jyoti Marble Art
Color: Rajpat Prajapati
