澳大利亚House D 住宅/ Caramel Architekten + Günther Litzlbauer第1张图片

House D

由专筑网朱王倩,刘庆新编译

在邻居的花园里

密集化模式也可以建立在单个家庭的住宅区域内。House D 住宅位于许多建筑中间,周围是当地的街道,而且街区核心的每栋建筑都是美丽花园的一部分。慷慨的建筑规则使我们能够在地块内建造至少四分之一的区域,因此为划分地产和更丰富的绿色空间创造了可能性。

In the neighbour's garden
Densification can also be possible in built up settlement areas of one family houses. The property of House D is located in the middle of a block of buildings, which are surrounded by the local streets, and each building is part of the formation of a big wonderful garden right in the heart of the block. The generous building regulation allows us to build on all properties up to at least a quarter of the whole property area and thereby creates possibilities to divide properties and the densification of the green spaces.

澳大利亚House D 住宅/ Caramel Architekten + Günther Litzlbauer第2张图片
© Christian Sperr

澳大利亚House D 住宅/ Caramel Architekten + Günther Litzlbauer第3张图片
© Christian Sperr

这就是现存的许多433平方米规模绿色空间的中部开放部分,从街道看不到。由于来自多瑙河的地表水和土地的轻微沉降至街道水平,很明显建筑物应该建得尽可能高。

That’s how in the middle of an existing green space a lot the size of 433 m2 was developed which cannot be seen from the streets. Due to the ground water situation coming from the Donau and the slight subsidence of the property to the street level, it was clear that the goal would be to build as high as possible.

澳大利亚House D 住宅/ Caramel Architekten + Günther Litzlbauer第4张图片
© Christian Sperr

澳大利亚House D 住宅/ Caramel Architekten + Günther Litzlbauer第5张图片
Ground Floor Plan /一层平面图

澳大利亚House D 住宅/ Caramel Architekten + Günther Litzlbauer第6张图片
© Christian Sperr

澳大利亚House D 住宅/ Caramel Architekten + Günther Litzlbauer第7张图片
© Christian Sperr

家庭生活发生在一层的客厅和厨房间,在二层休憩和放松。阁楼上的额外的多功能室随着周围建筑的视觉延伸。三个不同形状和叠层的体块,一个挨着一个,反映着至今仍是三口之家生活的不同区域。为了尽可能的建立与室外的联系,一层透明体块的客厅大多是玻璃,天花板也是玻璃的。必要的侧室与透明表面联系,一定程度上通过缝隙裸露显示。它似乎是二楼和阳台上比较内向的房间,是漂浮在生活区上。因为阁楼的多功能室建得较靠后,似乎像一个封闭的房间,从花园几乎看不到。这就是它如何创造私密性和凹进感的。

Family life is happening in the middle of living and cooking on the ground floor and sleeping and relaxing on the first floor. An additional multifunctional room in the attic is extending with an all around view over the neighbour’s buildings. Three differently shaped and stacked volumes, which were arranged next to each other, are reflecting the various areas of use of the yet still 3 member family. To create as much connection as possible to the outdoor space, the transparent volume of the living room on the ground floor is mostly all over and up to the ceiling made of glass. Connecting with the transparent surface, the needed side rooms are partly only exposed through slits. It seems as though the more introverted appearing box with bed rooms on the first floor and balconies, is floating above the living area. Because the multifunctional room in the attic, which was built a bit further back and also appears to be a closed box, can hardly be seen from the garden. That’s how it creates intimacy and a retreat.

澳大利亚House D 住宅/ Caramel Architekten + Günther Litzlbauer第8张图片
© Christian Sperr

一层平面的设计包含混凝土或者暴露的混凝土,以及轻型木结构。立面垂直的板条是先前浸渍的灰色冷杉木。一方面,为了防止分解,并使它更同质。另一方面,它使三个体块看起来像是一个整体。木条一定程度上创造了自然遮光屏,透明化的隐私空间。

The design on the ground floor consists of concrete or exposed concrete and a light wood construction on the first floor. The vertically arranged battens of the facade are made of grey fir wood which was formerly impregnated. On the one hand to prevent decomposition and to frame it more homogenous. On the other hand it is supposed to let the three volumes appear as one. The battens are partly creating a natural sunscreen and privacy shield on the vitrification.

澳大利亚House D 住宅/ Caramel Architekten + Günther Litzlbauer第9张图片
© Christian Sperr

澳大利亚House D 住宅/ Caramel Architekten + Günther Litzlbauer第10张图片
© Christian Sperr

澳大利亚House D 住宅/ Caramel Architekten + Günther Litzlbauer第11张图片
© Christian Sperr

澳大利亚House D 住宅/ Caramel Architekten + Günther Litzlbauer第12张图片
© Christian Sperr

澳大利亚House D 住宅/ Caramel Architekten + Günther Litzlbauer第13张图片

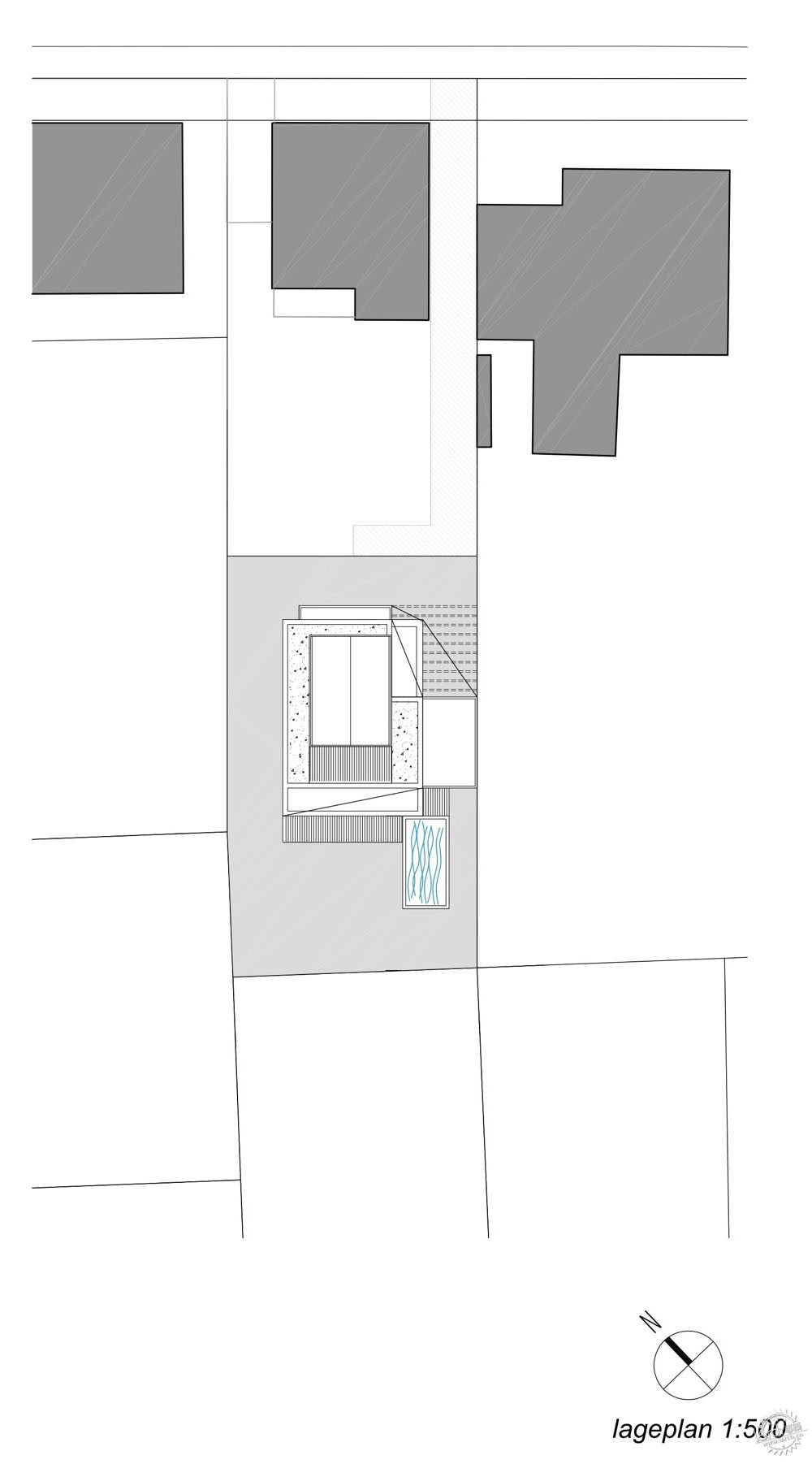

Site Plan/场地平面图

澳大利亚House D 住宅/ Caramel Architekten + Günther Litzlbauer第14张图片
First Floor Plan/二层平面图

澳大利亚House D 住宅/ Caramel Architekten + Günther Litzlbauer第15张图片
Second Floor Plan/三层平面图

建筑设计:Caramel Architekten , Günther Litzlbauer
地址:澳大利亚,维也纳
面积:189.0平方米
项目时间:2016年
建筑摄影:Christian Sperr

Architects: Caramel Architekten , Günther Litzlbauer
Location: Vienna, Austria
Area: 189.0 sqm
Project Year: 2016
Photographs: Christian Sperr
