Hancher礼堂/ Pelli Clarke Pelli Architects第1张图片

Hancher Auditorium

由专筑网圈圈,韩平编译

汉彻礼堂

由于舞蹈和音乐作品的出名,汉彻礼堂的观众已经不仅仅只有爱荷华大学的学生,越来越多的居民也来此观看。广泛地意识到委任新的舞蹈音乐工作室,Hancher 越过Iowa大学抓住了观众。为此该著名公共机构建立的新馆在爱荷华城市也占据了突出的位置。

Hancher
Widely recognized for commissioning new works of dance and music, Hancher reaches audiences well beyond the University of Iowa. The new home for this renowned institution occupies a prominent location in Iowa City.

Hancher礼堂/ Pelli Clarke Pelli Architects第2张图片
© Goldberg/Esto

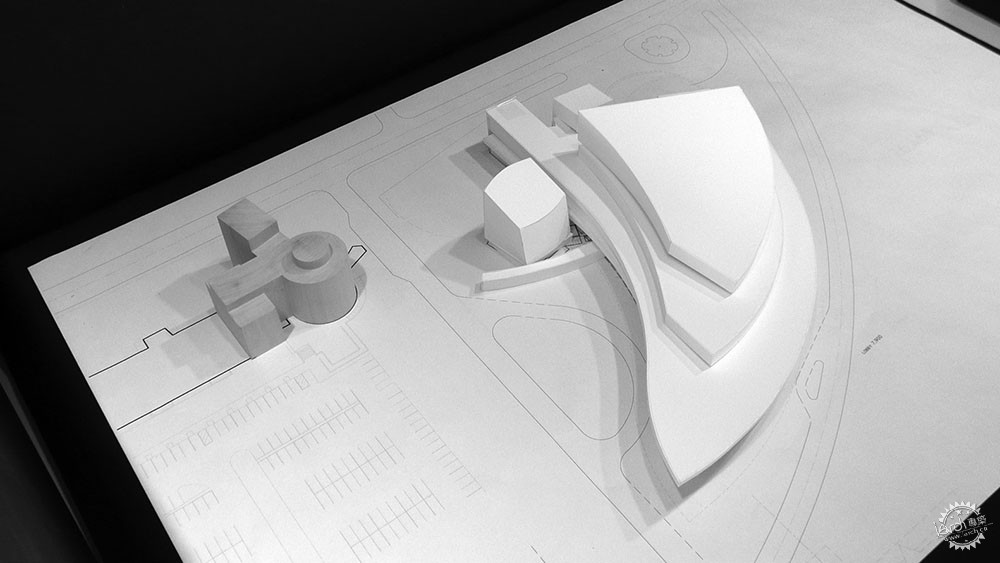

整体规划/ Massing

设计在外部与其位置和环境相呼应,内部与项目本身和邻近规划相呼应。外部建筑设计主要受周围的影响,其东部为爱荷华河,北部为公园路和城市公园,西部是莱维特中心,南部是艺术学校。建筑长的连续曲线与弯曲流动的爱荷华河及周围的地势相呼应。它逐渐减少的和悬臂式的形式考虑到公众大堂最大化的透明度。沿着公园路的小范围的元素延续了相邻的莱维特中心的形式。莱维特中心的圆形建筑,和Hancher彩排室共同形成了通往艺术学校的具有隐喻性的通道。

Overall Planning/Massing
The design responds to its site and context on the exterior, and to its program and planning adjacencies on the interior. The exterior building design is specifically influenced by the Iowa River to its east, Park Road and City Park to its north, the Levitt Center to its west, and the Arts Campus to its south. The long sweeping curves of the building respond to the bend and flow of the Iowa River and its surrounding topography. Its tapered and cantilevered forms allow for the maximum amount of transparency at all levels of the public lobbies. Smaller scaled elements along Park Road echo the forms of the adjacent Levitt Center.  The Levitt Center’s rotunda, along with the Hancher Rehearsal Room volume, forms a metaphorical gateway to the Arts campus.

Hancher礼堂/ Pelli Clarke Pelli Architects第3张图片
© Goldberg/Esto

Hancher礼堂/ Pelli Clarke Pelli Architects第4张图片
场地平面图/Site Plan

在建筑的东南角和西南角有两个ADA作为公共入口。设计将装载码头和装载庭院远离公园路是为了适应二轮半拖车大的转弯半径。三个泊位/载货客车码头转变为布景存放处/换乘区,直接与主舞台相连接。更衣室、生产车间、船员房之间都被设计成效率最大化和最方便的关系。

here are two ADA accessible, pubic entrances at the south east and south-west corners of the building. The loading dock and loading court off of Park road was designed to accommodate large turning radii required by semi-trucks. Three berths/truck-docks load into the scene dock/transfer area, which is directly adjacent to the main stage. The dressing rooms, the production offices, crew rooms are all designed for maximum efficiency and convenient stage relationships.

Hancher礼堂/ Pelli Clarke Pelli Architects第5张图片
© Goldberg/Esto

Hancher礼堂/ Pelli Clarke Pelli Architects第6张图片
© Goldberg/Esto

外部材料

外表皮由不锈钢和玻璃带组成。柏树木材底端给建筑提供了受欢迎的、诱人的质量,随着从外部到内部的转变,增强了空间本来的温度。

Exterior Materials
The exterior skin is comprised of stainless steel and glass ribbons. The cypress wood soffits lend a welcoming and inviting quality to the building, enhancing the natural warmth of the spaces as it transitions from exterior to the interior.

Hancher礼堂/ Pelli Clarke Pelli Architects第7张图片
© Goldberg/Esto

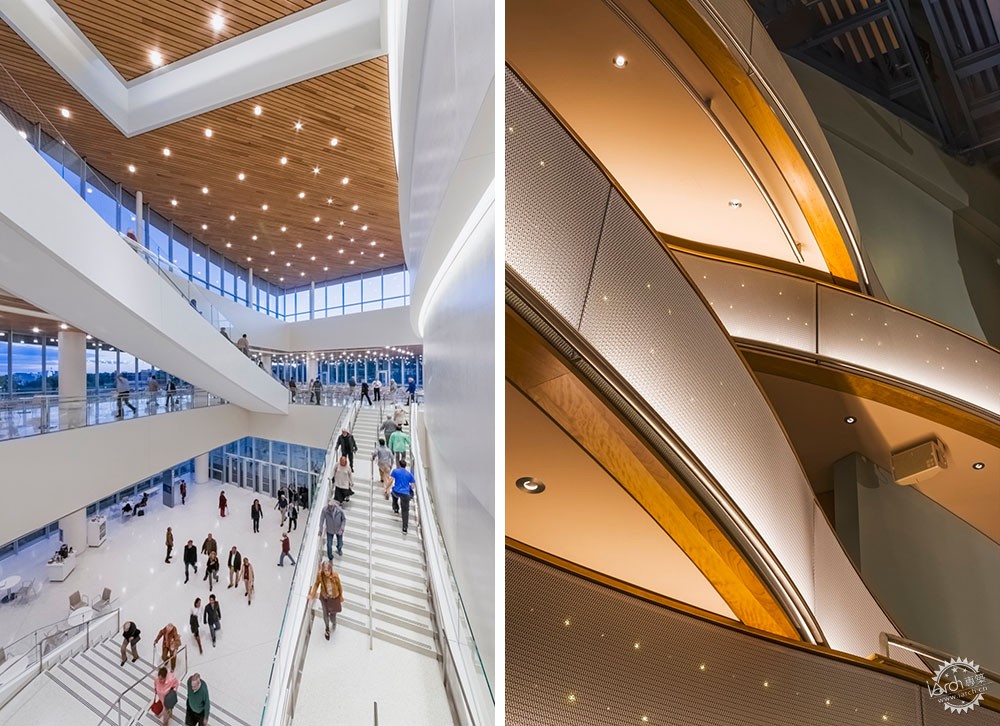

休息厅

所有的公开空间给人们提供了河流和校园的全景。休息厅的中庭是明亮的公共空间,有着带状的水磨石豪华台阶穿过,在上升过程中与四个休息室水平连接。休息室的西墙表达了形状和建筑的运动,用特别的光芒四射的石膏完成。出现在不同高度的天窗加强了建筑的形状,考虑到戏剧的二次的照明设备和透明度。

Lobby
All public spaces offer panoramic views of the river and the campus. The lobby atrium is a light filled space with a ribbon like terrazzo grand stair threading and connecting the four lobby levels on its ascent. The west wall of the lobby expresses the shaping and movement of the building and is finished in a special pearlescent plaster. The skylights that appear on different levels reinforce the shape of the building and allows for dramatic secondary lighting and transparency.

Hancher礼堂/ Pelli Clarke Pelli Architects第8张图片
© Goldberg/Esto

Hancher礼堂/ Pelli Clarke Pelli Architects第9张图片
© Goldberg/Esto

门厅

舞台上,新的礼堂在观众和表演者之间创造了亲密的体验。弯曲的、宽广的阳台和露台贯穿门厅的内部,延续了外部带状的形态。单独可调节的LED灯固定架增强了建筑物和门厅的形状和几何学特征,创造了戏剧化的体验。可折叠的音响反射板、可调节的音响效果、AV系统和生产照明设备使得门厅适应从管弦乐队、歌舞剧到百老汇展览会、舞会的各种表演。

Hall
The new auditorium creates an intimate experience between the patrons and the performers on stage. The curved, sweeping balconies and terraces continue the idea of the exterior ribbons throughout the interior of the hall. The individually adjustable arced LED lighting fixtures reinforce the shape and geometry of both the building and the hall and creates a dramatic theatrical experience. A collapsible orchestra shell, adjustable acoustics, AV systems and production lighting allow the hall to be tailored specifically for performances ranging from orchestra and opera to Broadway presentations and dance.

Hancher礼堂/ Pelli Clarke Pelli Architects第10张图片
剖面图/Section

Hancher礼堂/ Pelli Clarke Pelli Architects第11张图片
© Goldberg/Esto

排演房

尽管排演房有其自己的外部入口,高大的画廊还是将排演房连接到主要门厅。声学上戏剧化的灵活的房间能够举办从招待会到实验性表演等各种事物,包括利用北部釉面墙和外部半圆形露天剧场举办临时事件。

Rehearsal Room
Although the rehearsal room has its own exterior entrance, a grand gallery connects it to the main lobby. This acoustically and theatrically flexible room can host events ranging from receptions to experimental theater, including potential events utilizing the acoustically glazed north wall and intimate outdoor amphitheater.

Hancher礼堂/ Pelli Clarke Pelli Architects第12张图片
© Goldberg/Esto

Hancher礼堂/ Pelli Clarke Pelli Architects第13张图片
© Goldberg/Esto

材料表达

室外的不锈钢板系统由爱荷华州的建筑墙系统公司AWS 定做加工而成。雨幕板系统由2毫米厚的不锈钢板制作而成。这些板利用无方向性的刷面处理,扩散了光的反射。它们以交错排列的方式被安置,是非序列性的,允许独特的面板在任何时候被改变。从建筑上说,这种方式创造了一种具有特殊结构的表皮,反映了千变万化的天空、阳光和风景。

Product Description. The exterior stainless steel panel system was custom manufactured by AWS, Architectural Wall Systems, of Iowa. This rain screen panel system is made of 18”x60” 2mm thick stainless steel panels. The panels utilize a non-directional brushed finish that diffuses the light and reflection. They are installed in a staggered pattern and are non-sequential, allowing individual panels to be changed at any time. Architecturally, this results in a taught and subtly textured skin that sublimely reflects the ever-changing sky, sunlight, and landscape.

Hancher礼堂/ Pelli Clarke Pelli Architects第14张图片
© Goldberg/Esto

Hancher礼堂/ Pelli Clarke Pelli Architects第15张图片
© Goldberg/Esto

Hancher礼堂/ Pelli Clarke Pelli Architects第16张图片
© Goldberg/Esto

Hancher礼堂/ Pelli Clarke Pelli Architects第17张图片
© Goldberg/Esto

Hancher礼堂/ Pelli Clarke Pelli Architects第18张图片
© Goldberg/Esto

Hancher礼堂/ Pelli Clarke Pelli Architects第19张图片
© Pelli Clarke Pelli Architects

Hancher礼堂/ Pelli Clarke Pelli Architects第20张图片
© Pelli Clarke Pelli Architects

Hancher礼堂/ Pelli Clarke Pelli Architects第21张图片
© Pelli Clarke Pelli Architects

Hancher礼堂/ Pelli Clarke Pelli Architects第22张图片
© Goldberg/Esto

Hancher礼堂/ Pelli Clarke Pelli Architects第23张图片
© Pelli Clarke Pelli Architects

Hancher礼堂/ Pelli Clarke Pelli Architects第24张图片
场地平面图/Site Plan

Hancher礼堂/ Pelli Clarke Pelli Architects第25张图片
平面图/Plan 0

Hancher礼堂/ Pelli Clarke Pelli Architects第26张图片
平面图/Plan 1

Hancher礼堂/ Pelli Clarke Pelli Architects第27张图片
平面图/Plan 2

Hancher礼堂/ Pelli Clarke Pelli Architects第28张图片
平面图/Plan 3

Hancher礼堂/ Pelli Clarke Pelli Architects第29张图片
剖面图/Section

Hancher礼堂/ Pelli Clarke Pelli Architects第30张图片
细节/Detail

Hancher礼堂/ Pelli Clarke Pelli Architects第31张图片
细节/Detail

Hancher礼堂/ Pelli Clarke Pelli Architects第32张图片
细节/Detail

Hancher礼堂/ Pelli Clarke Pelli Architects第33张图片
草图/Sketch

Hancher礼堂/ Pelli Clarke Pelli Architects第34张图片
© Goldberg/Esto

建筑师:Pelli Clarke Pelli Architects
建筑位置:美国爱荷华州、爱荷华市
建筑面积:190000平方英尺
摄影:Goldberg/Esto , Pelli Clarke Pelli Architects
高级工程师:Cesar Pelli, FAIA, JIA, RIBA Fred Clarke, FAIA, JIA, RIBA,
主设计师Mitchell A. Hirsch, AIA, LEED AP:
设计团队带头人:Gina Narracci, AIA, Associate Principal
高级设计师:Amrit Pilo, Leed AP, Senior Associate
设计师:Katie Harp Dinnen, Associate, Dylan Hames, Tiffany Fu, Carl Cornilsen
委托人:爱荷华大学
合伙建筑师:OPN Architects
结构工程师:Thornton Tomasetti
MEP工程师:Alvine Engineering
景观设计师:Balmori Associates/Confluence
剧院规划师:剧院项目顾问
声学设计:Kirkegaad Associates
土木工程师:Shive-Hattery, Inc.
幕墙顾问:Thornton Tomasetti
电信:Threshold Acoustics
环境顾问:Atelier Ten
垂直交通顾问:Lerch Bates, Inc.
代码顾问:Code Consultants, Inc.
灯光设计师:Cline Betteridge Bernstein Lighting Design Inc.
室内设计师:Pelli Clarke Pelli Architects
制图顾问:Pentagram
成本咨询工程师: Vermeulens Cost Consultant

•        Architects: Pelli Clarke Pelli Architects
•        Location: Iowa City, IA, USA
•        Area: 190000.0 ft2
•        Project Year: 2016
•        Photographs: Goldberg/Esto , Pelli Clarke Pelli Architects
•        Senior Design Principals: Cesar Pelli, FAIA, JIA, RIBA Fred Clarke, FAIA, JIA, RIBA,
•        Design Principal in Charge: Mitchell A. Hirsch, AIA, LEED AP
•        Design Team Leader: Gina Narracci, AIA, Associate Principal
•        Senior Designer: Amrit Pilo, Leed AP, Senior Associate
•        Designers: Katie Harp Dinnen, Associate, Dylan Hames, Tiffany Fu, Carl Cornilsen
•        Client: University of Iowa
•        Architect of Record/Associate Architect: OPN Architects
•        Structural Engineer: Thornton Tomasetti
•        MEP Engineer: Alvine Engineering
•        Landscape Designer: Balmori Associates/Confluence
•        Theatre Planning: Theatre Projects Consultants
•        Acoustics: Kirkegaad Associates
•        Civil Engineer: Shive-Hattery, Inc.
•        Curtainwall Consultant: Thornton Tomasetti
•        AV/Telecommunications: Threshold Acoustics
•        LEED/Environmental Consultant: Atelier Ten
•        Vertical Transportation Consultant: Lerch Bates, Inc.
•        Code Consultant: Code Consultants, Inc.
•        Lighting Designer: Cline Betteridge Bernstein Lighting Design Inc.
•        Interior Designer: Pelli Clarke Pelli Architects
•        Graphics and Wayfinding Consultant: Pentagram
•        Cost Consultant: Vermeulens Cost Consultants
