兰加拉科学技术大楼
Langara Science & Technology Building / Teeple Architects Inc.
由专筑网芮万里，韩平编译
来自建筑事务所的描述：这个项目是兰加拉大学总体规划第三阶段的一个项目。（由Teeple Architects建筑事务所施行）
在前两个阶段（同样也是由我们团队执行），可持续性的创造，充满活力的室内室外环境是设计的关注点。

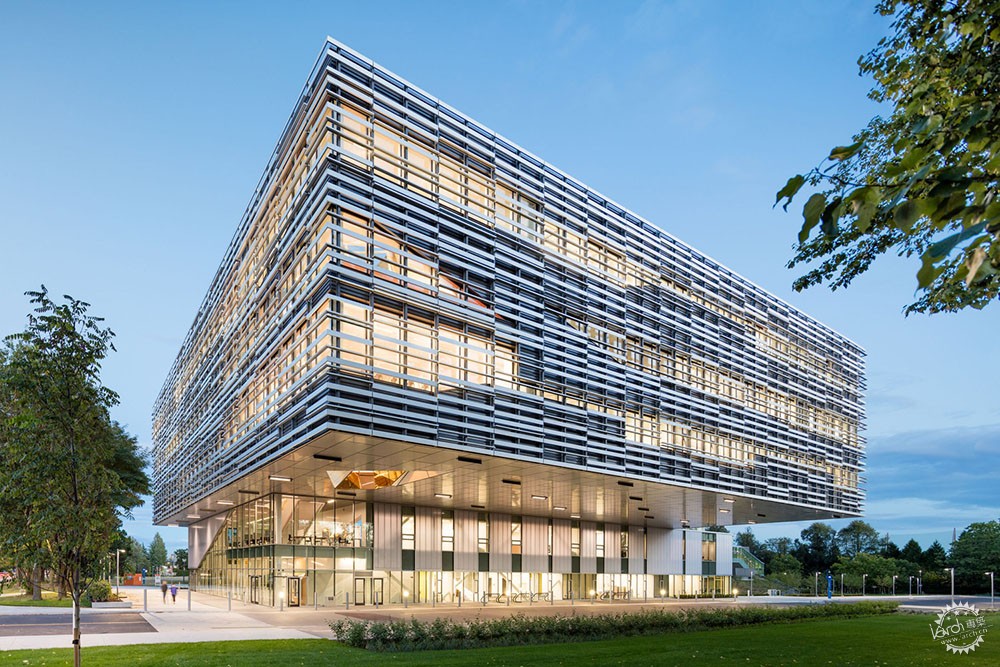

新建的大楼是一个五层的建筑，位于校园的主要入口处。建筑将成为校园的入口处标志性的建筑，通过大胆的悬臂梁出挑加强其标志性。
From the architect. This project is the third phase in the implementation of Langara College’s Master Plan (carried out by Teeple Architects).
As in the case of the first two phases (also carried out by our team), the creation of sustainable, vibrant indoor and outdoor environment is a key focus.
The new building is a five-storey structure situated at a key entrance to the campus. The building is intended to form an iconic gateway into the campus, emphasized by a bold cantilever.
© Andrew Latreille
这栋建筑包含了大学里最重要的一些部门，这是第一次将这些部门集中在一个独立的，可以相互合作的建筑设施里。
科学部门位于建筑的顶上三层，包括化学，生物，物理/天文学，护理和计算机科学，同时学生服务和食品服务统一被放置在底下两层。
The building contains some of the most significant Departments at the College, brought together into a single, collaborative facility for the first time.
The sciences, including chemistry, biology, physics / astronomy, nursing and computer Sciences, occupy the upper three levels, while consolidated students services and food service can be found on the lower two floors.
© Andrew Latreille
© Andrew Latreille
三个上层的实验室被设计成灵活的，并且能够适应于未来改变的空间。具有最高服务水平的实验室靠近建筑的顶部，最大程度地减少通风口的排气。
这为兰加拉大学创造了一个经济的，组织良好和有活力的实验室环境。
The three upper lab levels are designed to be flexible and adaptable for future change. Labs with the highest levels of service are situated near the top of the building, minimizing fume hood exhaust runs.
This results in the creation of an economic, well organized and dynamic lab environment for Langara College.
© Andrew Latreille

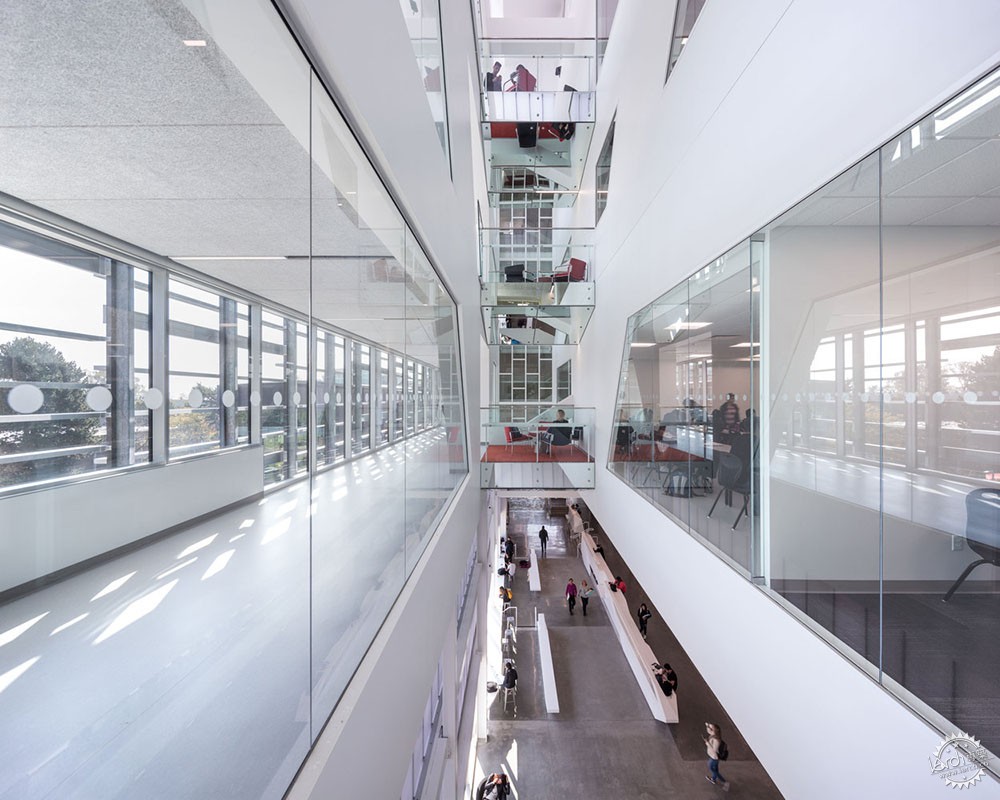

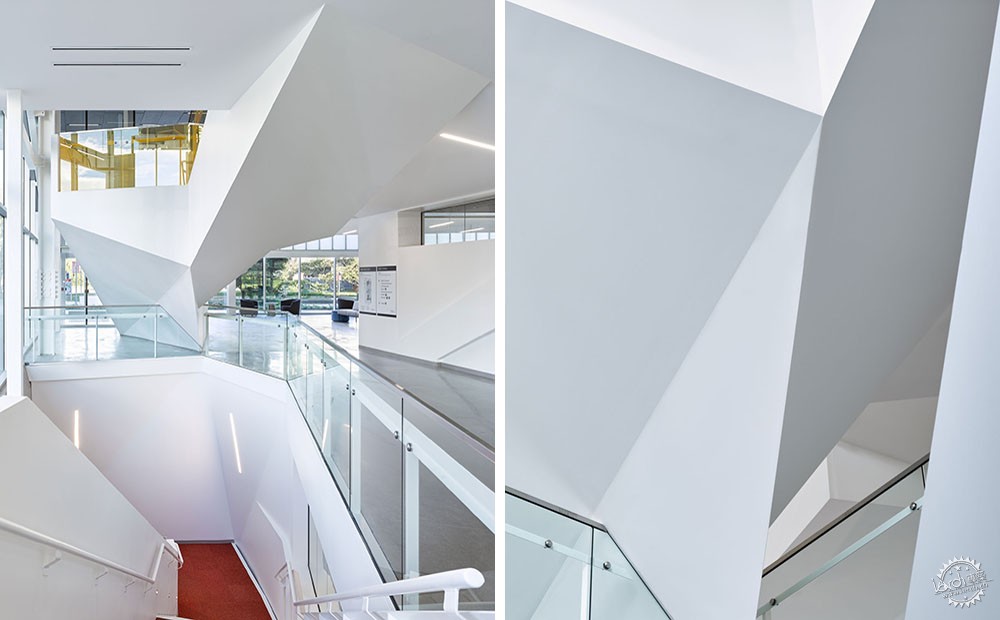

协作空间——包括富有戏剧性的“中心休息室”——通过不同的项目空间渗透到各个楼层以提供视线上的相互联系，并且尽可能最大程度地促进合作和创新以及促进学者关注各学科之间的教育。
Collaborative spaces – including the dramatic ‘Vortex Lounge’ – permeate all levels to provide visual interconnectivity through the different program zones and facilitate to the greatest degree possible collaboration, innovation and interdisciplinary learner-focused education.
© Andrew Latreille
这个项目通过创造一个可持续的，充满生气的室外环境以推动校园的可持续发展，这个项目也是LEED®金奖的候选项目。
这在很大程度上依赖于极具效率的建筑系统以及完整一体化的健康生活组件。
LEED®设计特点包括：建筑节能维护结构；低流量通风口并带可调节窗扇；节能机电系统；能量动态转移；反射和绿色屋面；使用当地 LEED®提供的材料；自然通风和太阳能集热板烧热水系统。
Advancing the College’s sustainability goals through the creation of a sustainable, vibrant, indoor and outdoor environment, the project is a LEED® Gold candidate.
This relies heavily on very efficient building systems as well as the full integration of healthy living components.
LEED® design features include: energy efficient building envelope; low flow fume hoods with adjustable sashes; energy efficient mechanical and electrical systems; dynamic energy transfer; reflective and green roofs; the use of local LEED® approved materials; natural ventilation and hot water generation via solar thermal panels.

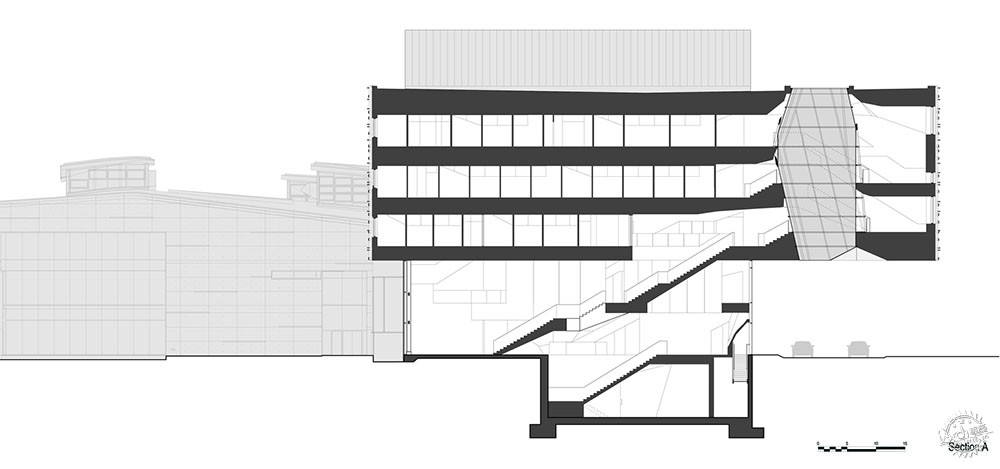

Section/剖面
该建筑合并了自主导航系统在最大程度上尽可能地通过导航站点，使人步行穿过建筑本身。
The building incorporates intuitive navigation systems to encourage to the greatest degree possible, moving through the building itself, as well as the site on foot.
© Andrew Latreille
产品描述：
建筑的上部三层是采用波纹金属保护层的雨幕，由保温的断面夹子支撑。这种在保温上有效率，并且节约成本的保护层系统被一道挤压铝百叶窗所遮盖。由Engineered Assemblies 公司提供的“雕塑墙”百叶窗系统在提供遮阳的同时在视觉上统一，更加突出上层悬挑楼层独特且标志性的体量。百叶窗的密度和方向与窗户放置的位置精确协调。铝百叶窗在垂直的高速钢片之间延伸，该高速钢片通过在每个楼板处的保温断面刀板连接固定。雕塑墙系统与建筑维护结构的无缝集成由 Marine Cladding & Sheet Metal LTD提供。
Product Description:
The upper three floors of the building are clad in a corrugated metal rain screen, supported by thermally broken facade clips. This thermally efficient and cost-effective cladding system is obscured by a shroud of extruded aluminum louvers. The ‘Sculpture Wall’ louver system, developed with Engineered Assemblies Inc. provides a degree of solar shading while serving to visually unify the dramatically cantilevered upper floors into singular iconic volume. Louver density and orientations were carefully coordinated with window placements. The aluminum louvers span between vertical HSS fins which are secured by thermally broken knife plate connections at each floor slab. Seamless integration of the Sculpture Wall system with the building envelope was provided by Marine Cladding & Sheet Metal LTD.
© Andrew Latreille
© Andrew Latreille
© Andrew Latreille
该建筑的第二层由CPI Quad墙覆盖，这是一个半透明绝缘聚碳酸酯墙板系统。
该墙板系统用于提供漫射采光的同时也能够满足建筑严格的热性能需求。
高度协作的辅助设计阶段产生了多种创新技术。
这些包括在聚碳酸酯和幕墙之间流线转换的细部设计，比如在双框架结构处避免连接楼板和使用斜接的角面板。
The second storey of the building is clad with CPI Quadwall, a Polycarbonate Wall Panel system filled with translucent insulation.
This system was used to provide diffuse daylighting while satisfying the building’s stringent thermal performance requirements.
A highly collaborative design-assist phase resulted in several innovations.
These include the streamlining of transition details between Polycarbonate and curtain wall, the avoidance of double-frame joints at floor slabs and the use of mitered corner panels.
© Andrew Latreille
© Andrew Latreille
© Andrew Latreille
© Andrew Latreille
© Andrew Latreille
© Andrew Latreille
© Andrew Latreille

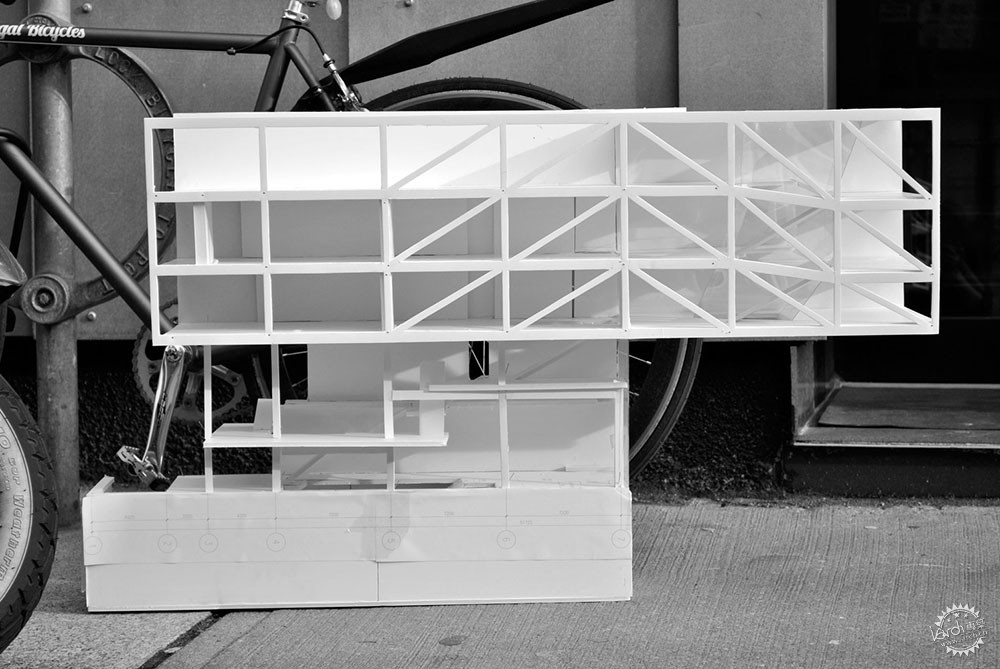

Model/模型

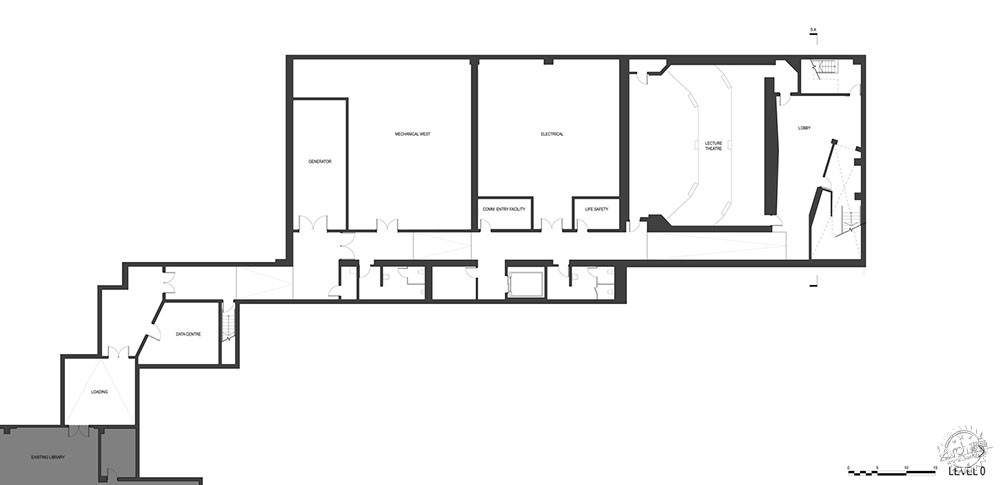

Level 0/平面图

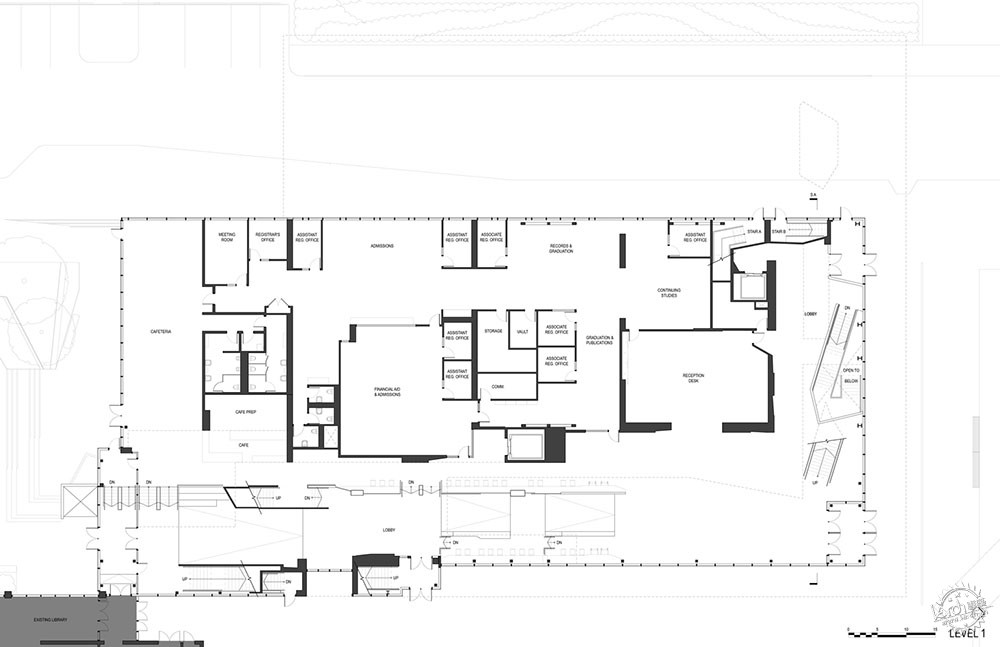

Level 1/平面图

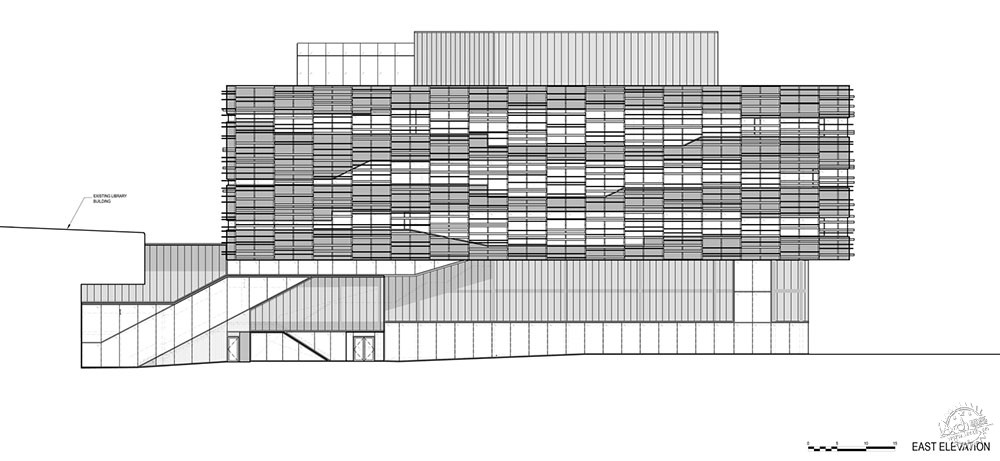

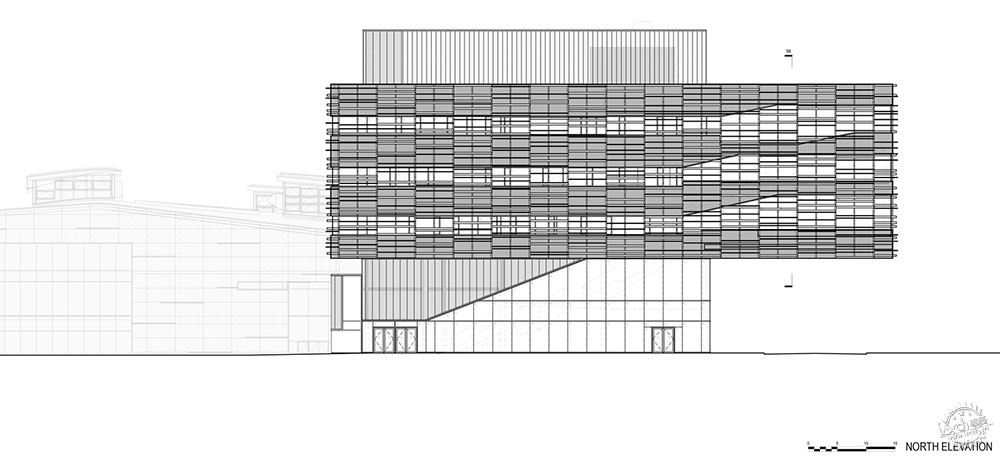

Elevation/立面图
Elevation/立面图
建筑事务所：Teeple Architects Inc. (建筑设计和建筑技术), Proscenium Architecture + Interiors (记录建筑师)
地址：加拿大，卑斯省，温哥华区
主创建筑师：Stephen Teeple, Kori Chan
面积：157000.0 ft2
项目年份：2016
摄影：Andrew Latreille
Architect: Teeple Architects Inc. (Design & Technical Architect), Proscenium Architecture + Interiors (Architect of Record)
Location: Vancouver, BC, Canada
Lead Architects: Stephen Teeple, Kori Chan
Area: 157000.0 ft2
Project Year: 2016
Photographs: Andrew Latreille
