查看相册 View Gallery
小场地大魔法:莫哈里办公室的几何奇妙探秘第1张图片

543办公室 / Charged Voids
Office 543 / Charged Voids

由专筑网Yinglin,小R编译

项目坐落于印度昌迪加尔。这座城市由勒·柯布西耶设计,距新德里250公里,是印度现代主义的象征。建筑位于莫哈里一个繁忙商业中心的主干道上。建筑师的任务是设计一间办公室,需体现其中的施工技能和设计理念。

The project is located in Mohali (Punjab) a satellite town of Chandigarh. Chandigarh a is a city designed by le Corbusier located 250km from New Delhi and is a symbol of modernism in India. The site is located on one of central sector road facing one of the busiest  commercial hubs of the Mohali. The brief was to design a working office for a builder who is closely associated with our practice. The office had to be a reflection of both the builder’s execution skills and the design philosophies behind our projects.

小场地大魔法:莫哈里办公室的几何奇妙探秘第2张图片

小场地大魔法:莫哈里办公室的几何奇妙探秘第3张图片

小场地大魔法:莫哈里办公室的几何奇妙探秘第4张图片

设计方案回应了场地的狭长形态,建筑师构建一个向天空开放的封闭盒子,庭院构成内外空间的缓冲区域,交错的线条和椭圆的几何形态应用其中,解决了复杂的设计需求,创造了必要的空间序列。建筑师通过基本元素来充分利用小场地,使每个元素都达到最大功效。

The concept was primarily a response to the narrow & small site located on one of busiest roads of Mohali (a satellite town of Chandigarh).  The central idea was to design a closed box opening mostly skywards but with careful gaps looking into the street and using the courtyard as a buffer between the exterior & the interior. The strong & clear geometry of intersecting lines & an ellipse resolve a complex brief and create the requisite spatial sequence. The idea was to utilize the small site by building the bare Essential number of elements with each element achieving its maximum efficacy.

小场地大魔法:莫哈里办公室的几何奇妙探秘第5张图片

小场地大魔法:莫哈里办公室的几何奇妙探秘第6张图片

小场地大魔法:莫哈里办公室的几何奇妙探秘第7张图片

小场地大魔法:莫哈里办公室的几何奇妙探秘第8张图片

客户的主要需求包括:一楼的小接待区、带附加会议室的大办公室,以及二楼的会计团队工作空间和另一个办公室。除此之外,客户还需要拥有通向露台的独立通道,这是为了满足未来变化的功能需求。

The primary requirements were a small reception, a large office with an attached meeting room on the ground level and a work-space for the accounts team along with a second office on the second level. A significant requirement was a separate access to the terrace to allow for future expansion with ever increasing floor area ratios in these commercial hubs.

小场地大魔法:莫哈里办公室的几何奇妙探秘第9张图片

小场地大魔法:莫哈里办公室的几何奇妙探秘第10张图片

建筑功能以中央体量为核心,两个相交的墙体形成“L”形,使入口朝向商业中心的主要区域,另一面墙提供通向三楼和主办公室洗手间的独立通道。底层的中央椭圆形是一个封闭的会议室,连接主办公室和中央空间,用于建筑商的现金交易。

All the requirements were met with a clear thought of spaces flowing into one another along with a large central volume. Two intersecting walls that form a sort of “L” allow reorienting the entrance towards the main centre of the commercial hub which is located just after a plot on the left of our site. The other wall allows us a separate access to the third level & also the washrooms for the main office. The central ellipse on the ground level is the closed meeting room (required for all cash transactions prevalent among builders) which is attached to the main office as well as the central space.

小场地大魔法:莫哈里办公室的几何奇妙探秘第11张图片

小场地大魔法:莫哈里办公室的几何奇妙探秘第12张图片

庭院和天窗的设计让使用者体验自然元素,如风、光和绿植,打破设计元素的强烈几何形态。外立面像一块空白画布,让光线通过树叶过滤展现魔力。该项目的材料种类也十分简洁,即白色大理石、斯瓦卡西金花岗岩,以及简单的白色涂漆。

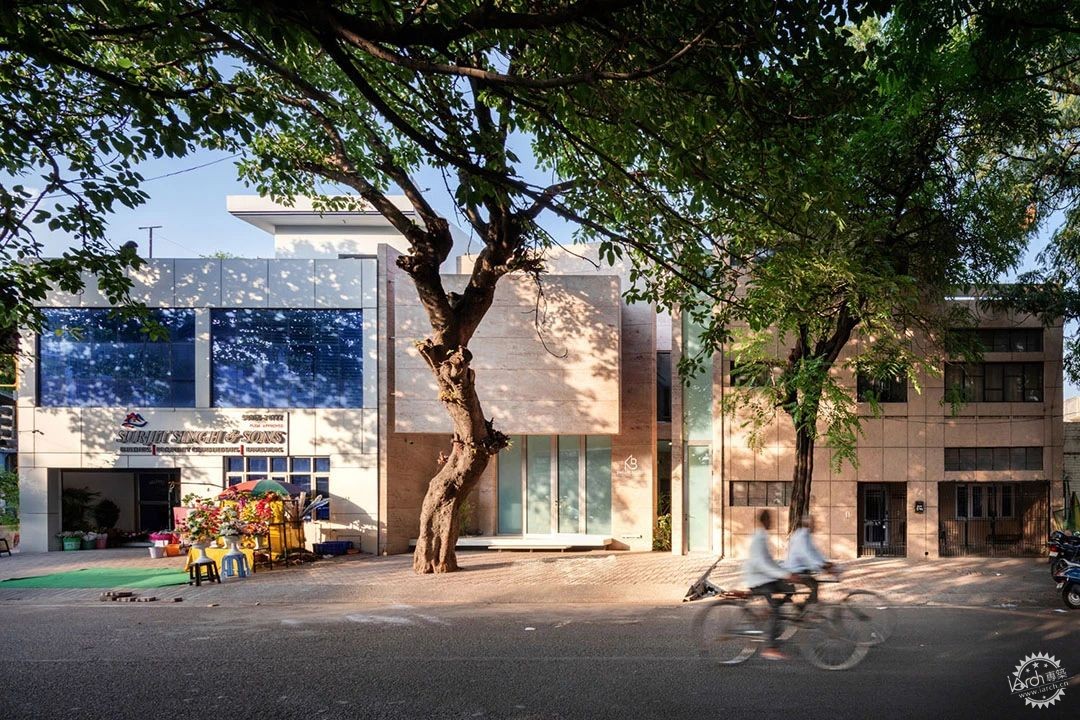

The interjection of courtyards & skylights is a strategy that allow us to experience the fragments of nature like the wind, light &greenery & break the powerful geometry of the elements of design.  The facade is like a blank canvas for the light to manifest its magic filtering through the foliage of the tree right in front of the site. The overall material palette is limited to only white marble & sivakasi gold granite along with simple white painted surfaces.

小场地大魔法:莫哈里办公室的几何奇妙探秘第13张图片

小场地大魔法:莫哈里办公室的几何奇妙探秘第14张图片

小场地大魔法:莫哈里办公室的几何奇妙探秘第15张图片

小场地大魔法:莫哈里办公室的几何奇妙探秘第16张图片

小场地大魔法:莫哈里办公室的几何奇妙探秘第17张图片

小场地大魔法:莫哈里办公室的几何奇妙探秘第18张图片

小场地大魔法:莫哈里办公室的几何奇妙探秘第19张图片

小场地大魔法:莫哈里办公室的几何奇妙探秘第20张图片

小场地大魔法:莫哈里办公室的几何奇妙探秘第21张图片

小场地大魔法:莫哈里办公室的几何奇妙探秘第22张图片

建筑事务所:Charged Voids
类型:办公
面积:190 m²
年份:2019
摄影师:Javier Callejas、Purnesh Dev Nikhanj、Nakul Jain、Niveditaa Gupta
制造商:Grohe、Cortizo、VitrA
建筑商:Khullar Builders
主创建筑师:Aman Aggarwal
设计团队:Swati Agarwal, Anshu Garg
结构顾问:Pankaj Chopra
3D视觉:Mandeep Kumar
城市:Sahibzada Ajit Singh Nagar
国家:印度

OFFICES•SAHIBZADA AJIT SINGH NAGAR, INDIA
Architects: Charged Voids
Area: 190 m²
Year: 2019
Photographs:Javier Callejas, Purnesh Dev Nikhanj, Nakul Jain, Niveditaa Gupta
Manufacturers:  Grohe, Cortizo, VitrA
Builder: Khullar Builders
Architect In Charge: Aman Aggarwal
Design Team: Swati Agarwal, Anshu Garg
Structural Consultant: Pankaj Chopra
3 D Visualizer: Mandeep Kumar
City: Sahibzada Ajit Singh Nagar
Country: India
