犀鸟屋 / Biome Environmenta第1张图片


Hornbill House

由专筑网朱王倩,Vigo,卢荣姝编译

来自建筑师的描述。犀鸟屋位于种植茶和咖啡的O'land 庄园。庄园是道路的端头,界定森林以及拥有壮观的景色。庄园有一间现存的小屋需要翻新,任务书还要求在这片135公顷的庄园里额外再建8间小屋,作为农家乐出租。这九座建筑之外,有三座已经翻新了。

From the architect. Hornbill house, is located at O'land estate, a tea and coffee plantation. The estate is an “end of the road property”, bordering forest lands and commanding spectacular views. The estate had an existing bungalow which needed renovation and the brief called for an additional 8 bungalows to be built on this 135 acre estate which would then be rented out as farm stays. Out of these nine buildings, three have been realized.

犀鸟屋 / Biome Environmenta第2张图片
© Vivek Muthuramalingam

在与客户随后的讨论中,我们建议这些小屋散置于广阔的庄园里而不是封闭紧凑的市区房。

In subsequent discussions with the client, we suggested that these bungalows be located over the expanse of the property rather than a close knit development.

犀鸟屋 / Biome Environmenta第3张图片
© Vivek Muthuramalingam

犀鸟屋 / Biome Environmenta第4张图片

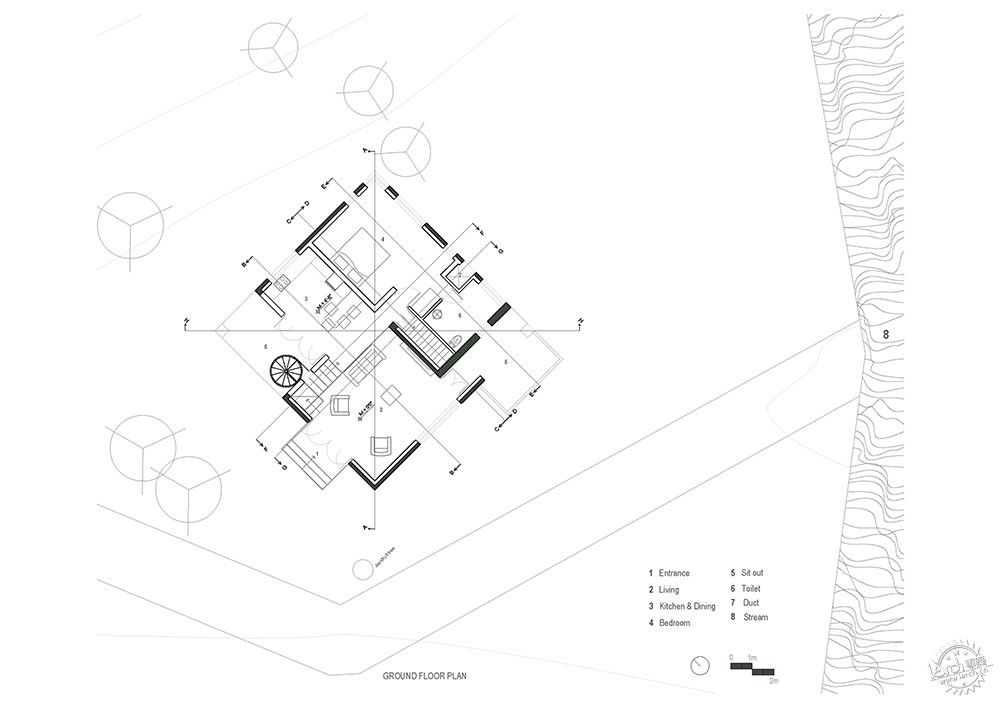

Ground Floor Plan/底层平面图

想法是给客人提供私密性,以及给重游的客人新奇、多样的体验。庄园已经有汽车可达的路面和可走的步行小路,因此可以舒心的到达不同地点。所以建筑选址基于风景、到达大道和小路的便捷性,以及地形。

The idea was to provide privacy to the guests and a new and varied experience to a returning guest. The estate already had motor-able roads and usable footpaths within and therefore these were used to reach the different locations with ease. Thus the building sites were chosen based on the views, easy access to a road or footpath, and terrain.

犀鸟屋 / Biome Environmenta第5张图片
© Vivek Muthuramalingam

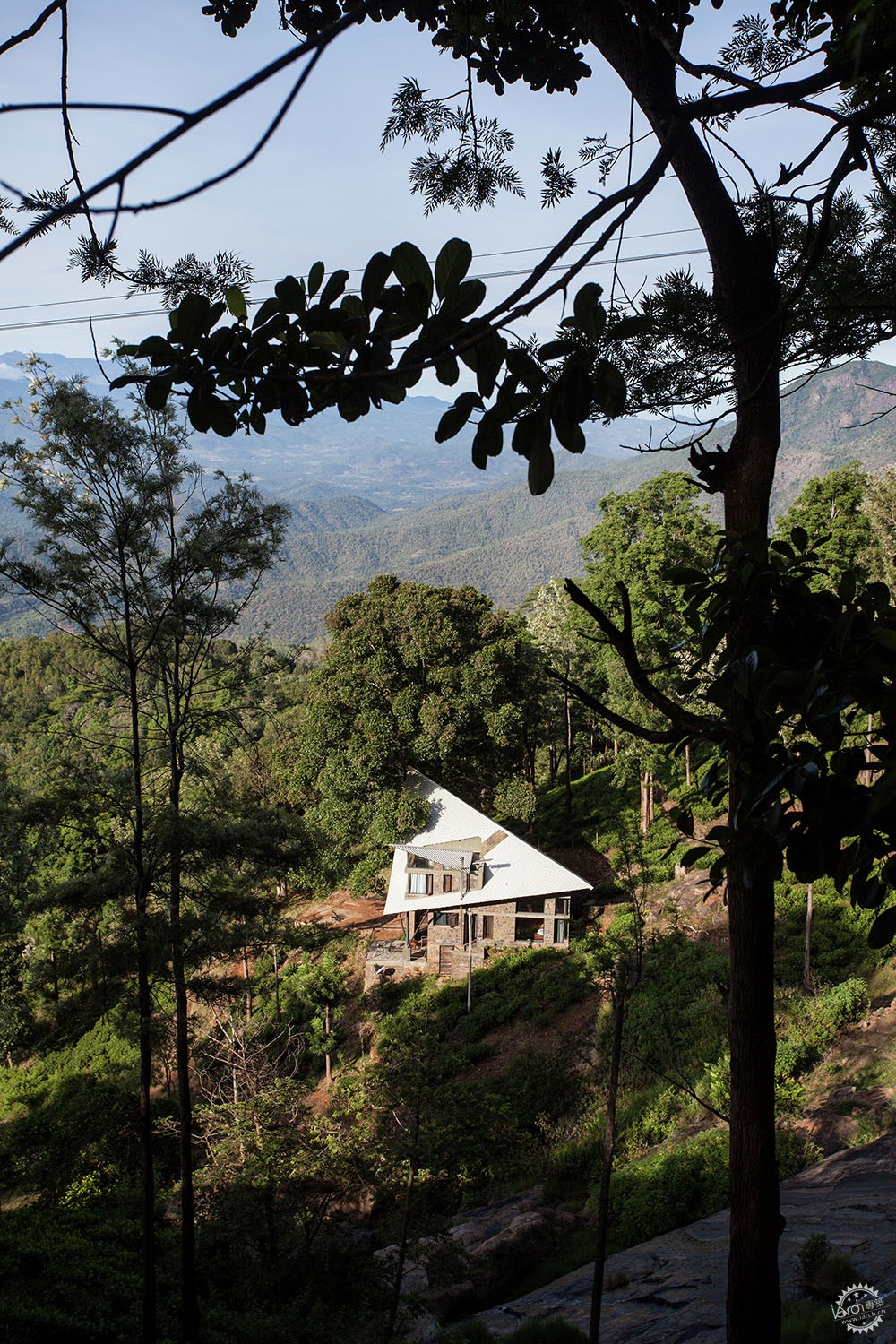

犀鸟屋在一个瀑布边缘的古老的庭院里。房子朝向瀑布,山谷衬着不同蓝色天空下富有层次的山峦,以及绿色的茶园,因此从屋子不同方向都可以看到融合在一起的美景。所有的房间都具有以上风光形态中的一种作为主导,而其他的则也可以瞥见。

The Hornbill house is located on an old drying yard sitting on the edge of a water fall. The house opens onto the views of this water fall, a valley with a backdrop of layers of mountains in different hues of blue of the sky, and green of the tea gardens, thereby integrating each of these views strategically from a different direction from within the house. All the rooms have predominant view of one of these features, while having a glimpse of the rest.

犀鸟屋 / Biome Environmenta第6张图片
© Vivek Muthuramalingam

犀鸟屋 / Biome Environmenta第7张图片
Section AA/剖面图AA

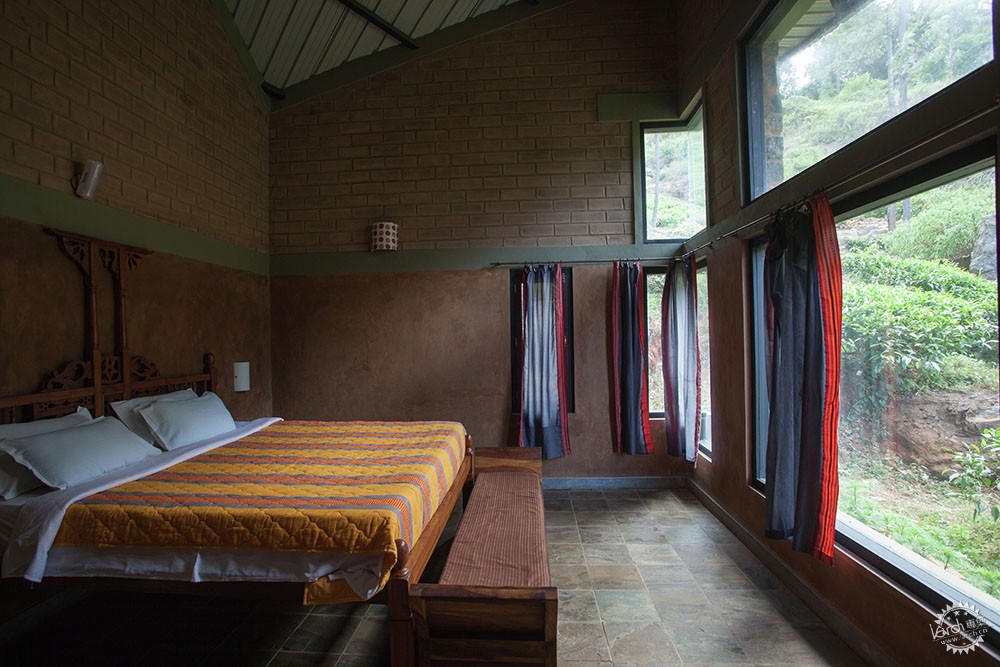

墙是复合材料,外侧是石头,里面是水泥砖。外部的石头墙混合着靠近建筑的石面,因此像是从环境中生长出来的;而里面的水泥墙则会给人温暖和庇护。当从房子里面凝视峡谷和山峦的景色,突出的房子屋顶引出一种光感。

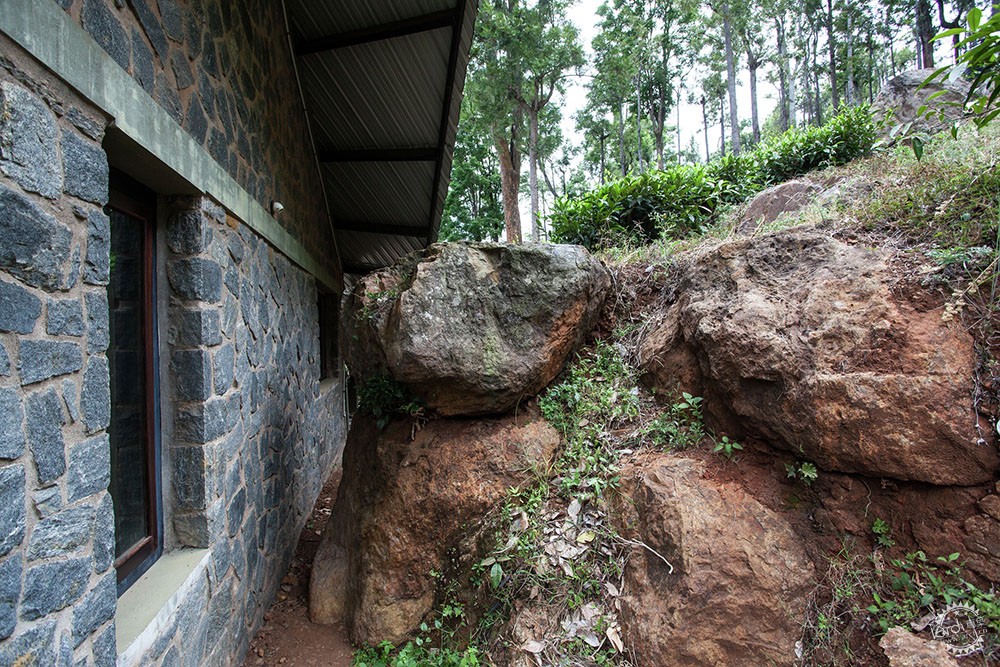

The walls are composite, of stone on the outside and mud bricks on the inside. The exterior stone walls blends with the rock face near to which the building is located and hence rooted to it's surroundings whereas the inner mud walls provide a feel of warmth and shelter. The striking roof of the villa invokes a sense of flight that one feels while gazing at the views of the valley and hills from within the building.

犀鸟屋 / Biome Environmenta第8张图片
© Vivek Muthuramalingam

犀鸟屋 / Biome Environmenta第9张图片
© Vivek Muthuramalingam

犀鸟屋 / Biome Environmenta第10张图片
© Vivek Muthuramalingam

犀鸟屋 / Biome Environmenta第11张图片
First Floor Plan/一层平面图

犀鸟屋 / Biome Environmenta第12张图片
North Elevation/北正面图

犀鸟屋 / Biome Environmenta第13张图片

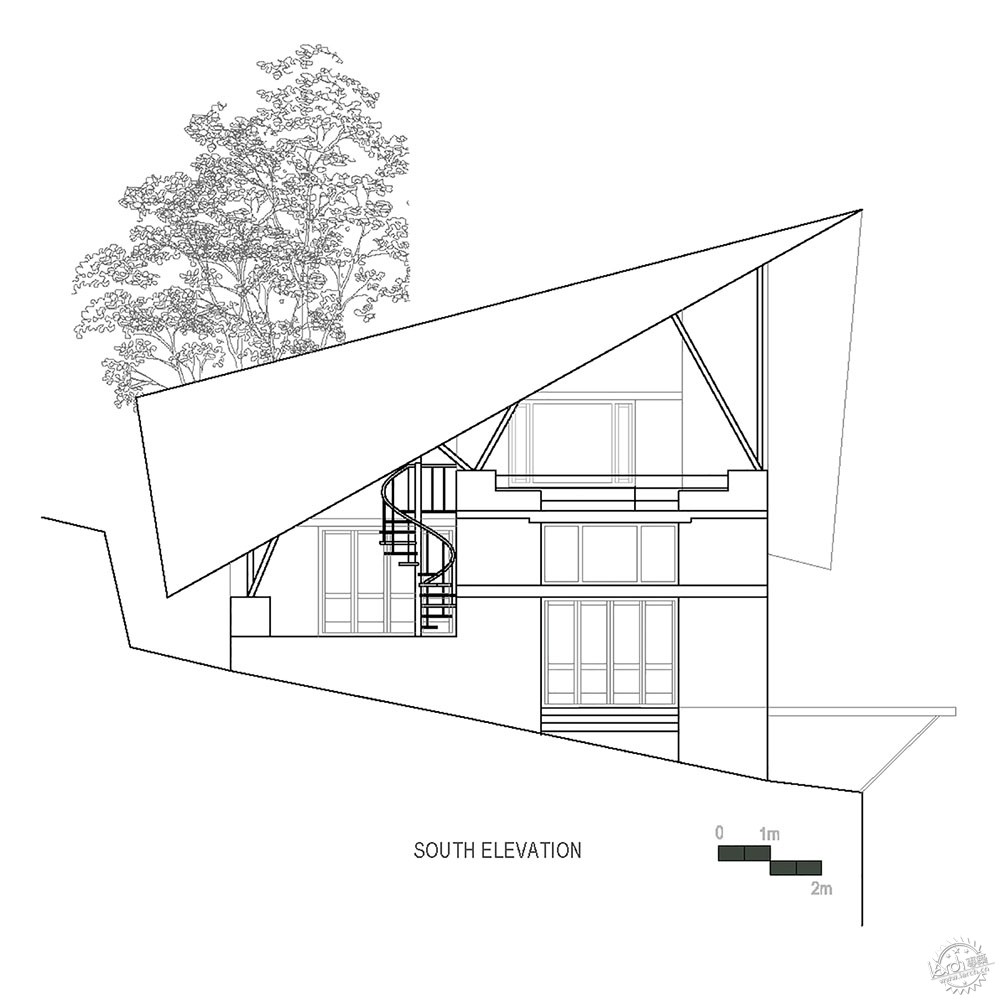

South Elevation/南正面图

犀鸟屋 / Biome Environmenta第14张图片
East Elevation/东正面图

犀鸟屋 / Biome Environmenta第15张图片

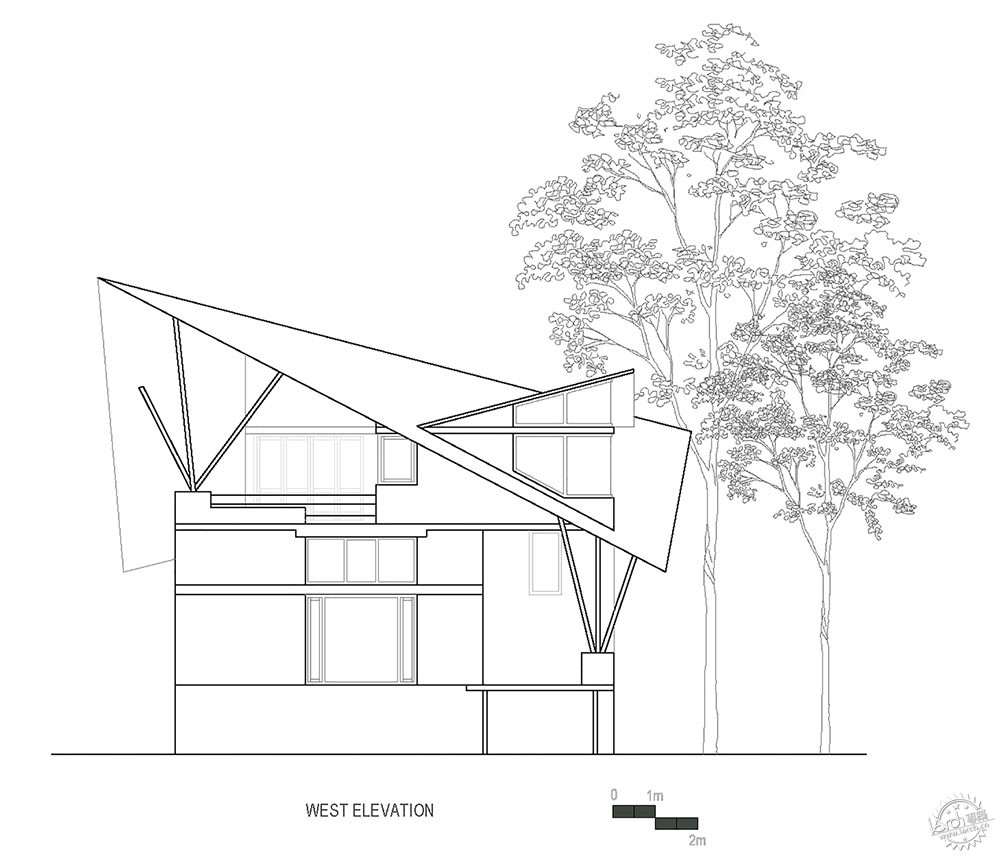

West Elevation/西正面图

犀鸟屋 / Biome Environmenta第16张图片

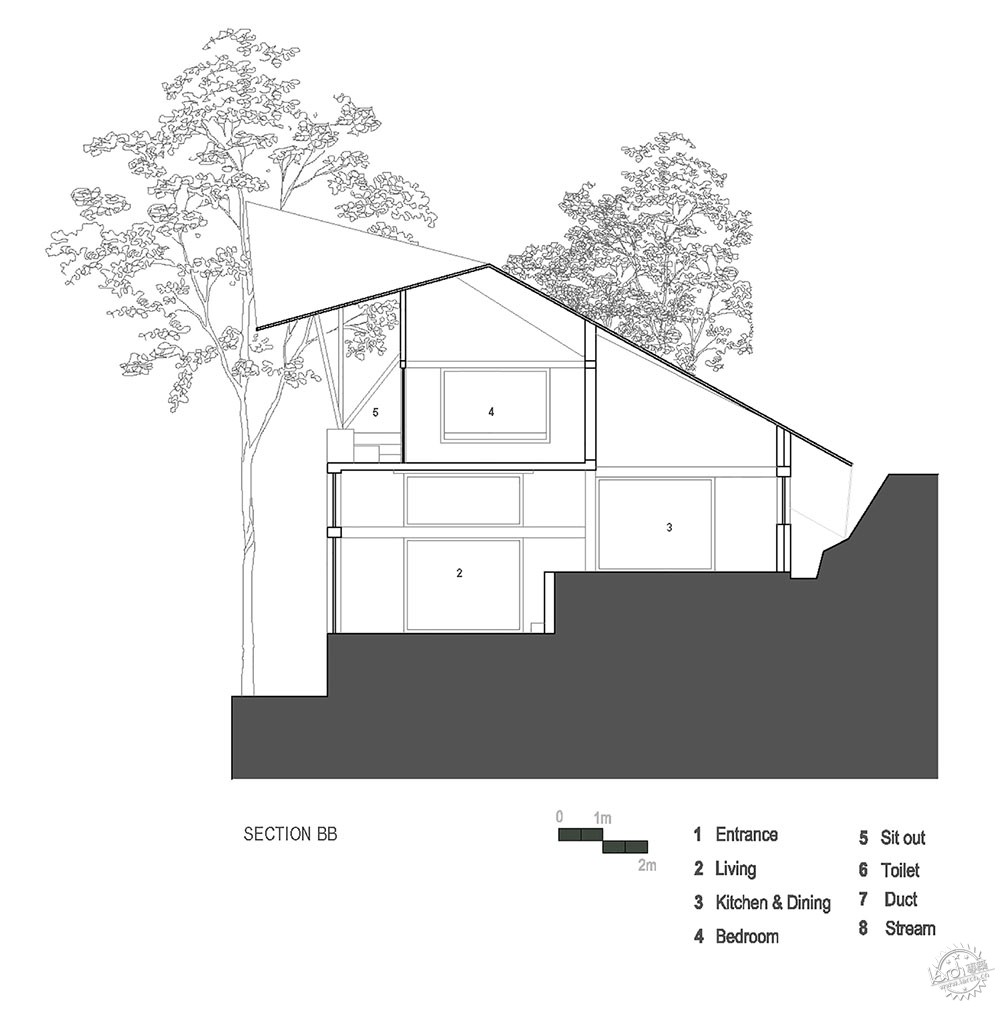

Section BB/剖面图BB

犀鸟屋 / Biome Environmenta第17张图片
Section CC/剖面图CC

犀鸟屋 / Biome Environmenta第18张图片

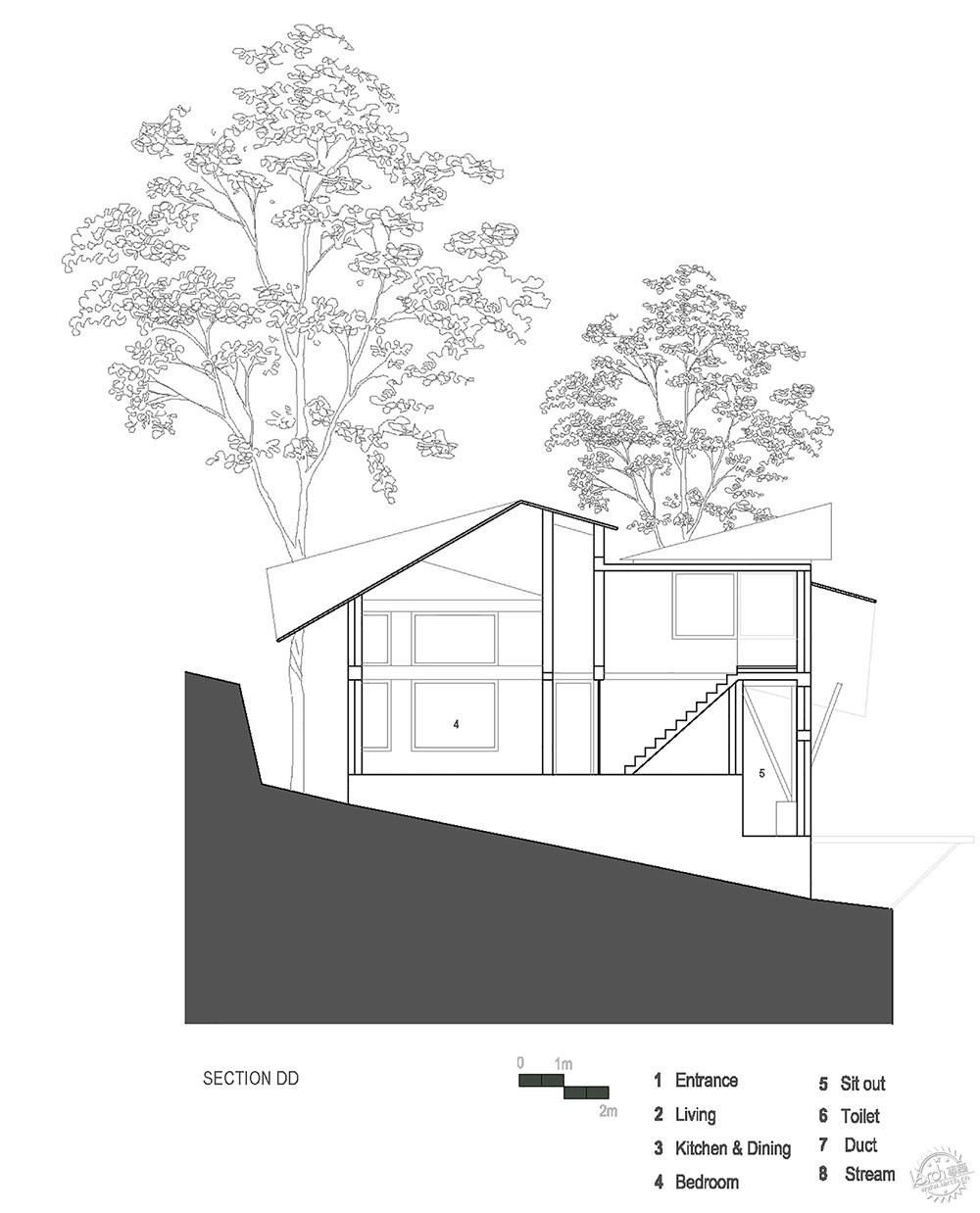

Section DD/剖面图 DD

犀鸟屋 / Biome Environmenta第19张图片

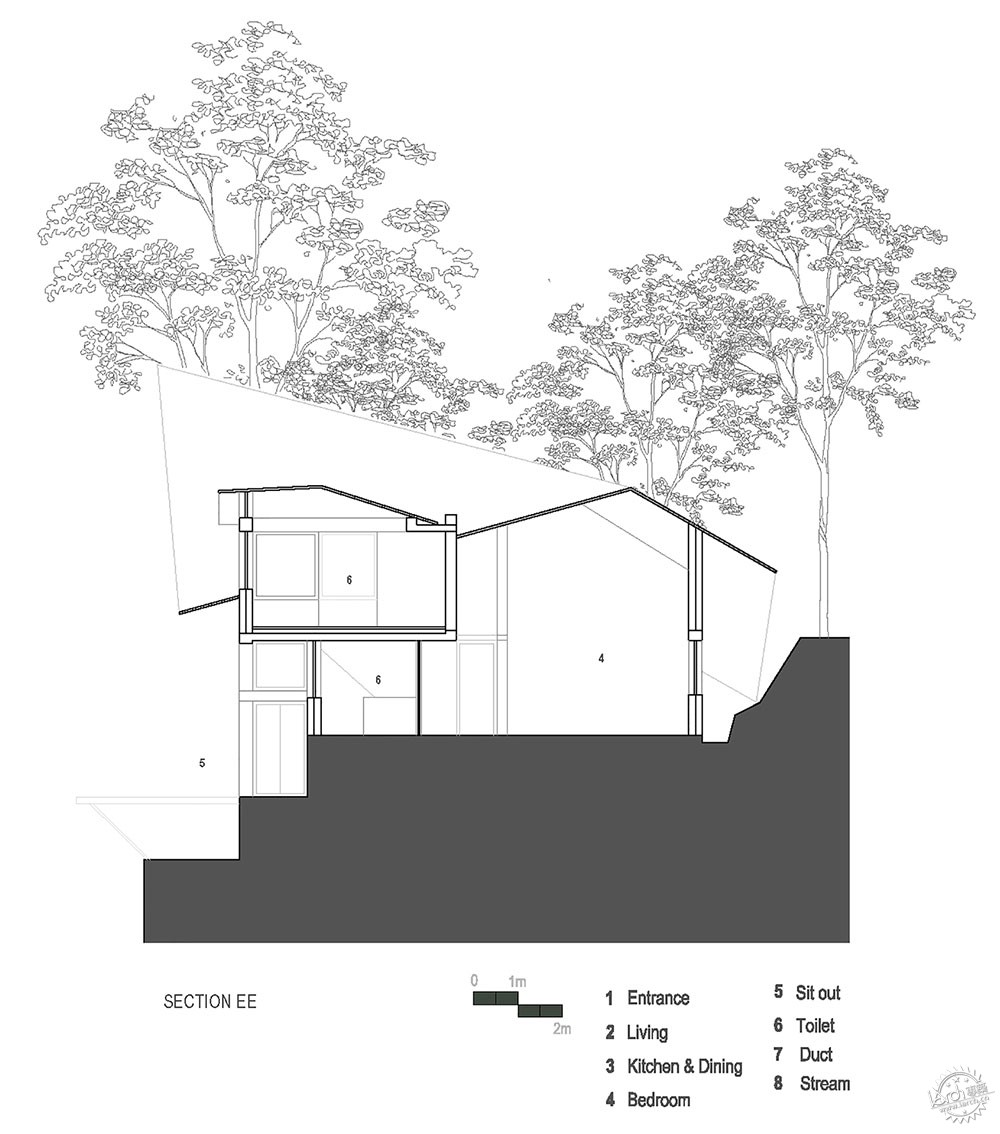

Section EE/剖面图EE

犀鸟屋 / Biome Environmenta第20张图片
Section FF/剖面图FF

犀鸟屋 / Biome Environmenta第21张图片

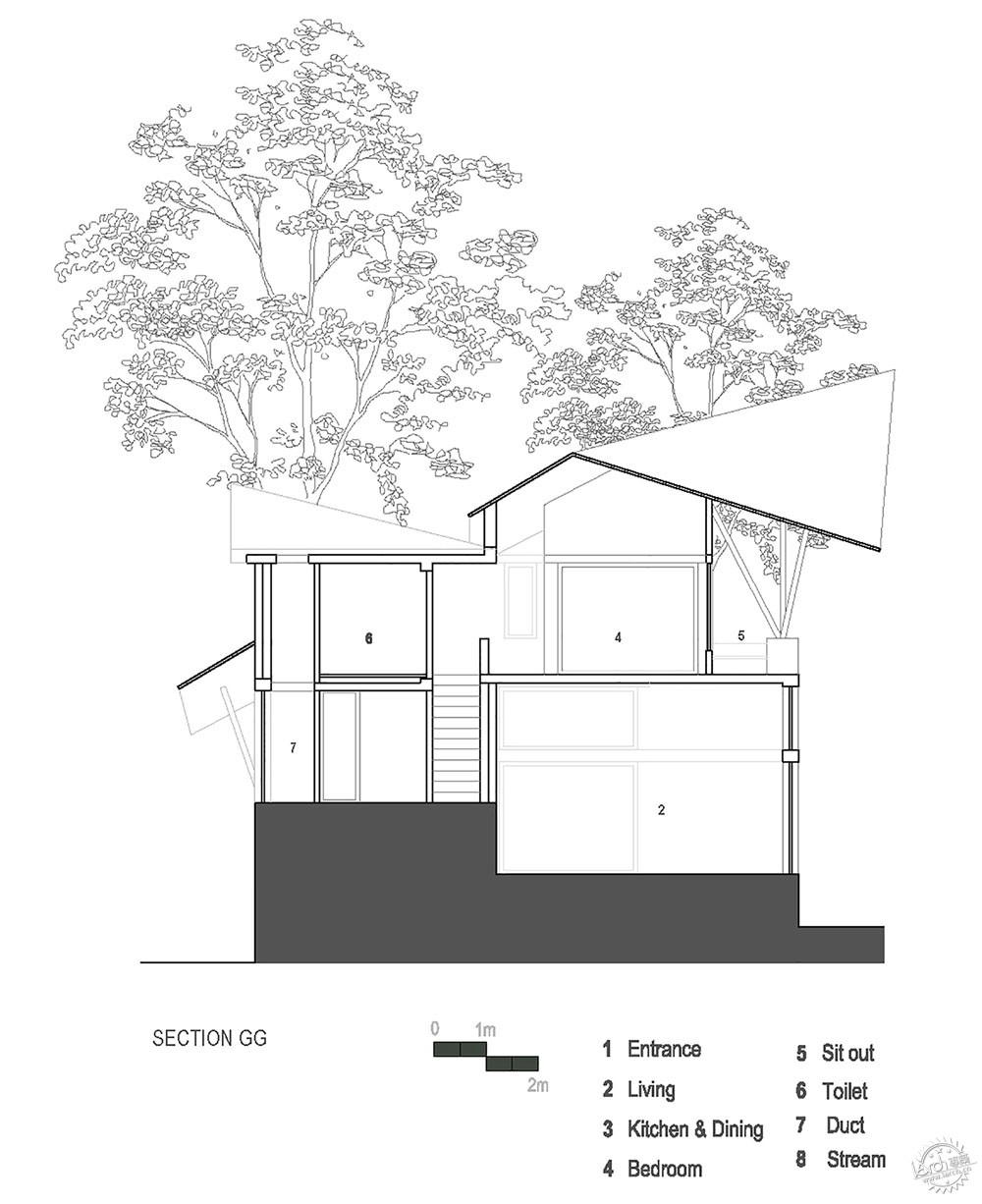

Section GG/剖面图GG

犀鸟屋 / Biome Environmenta第22张图片
Section HH/剖面图HH

建筑设计:生态群落区环境保护措施
地址:印度,泰米尔纳德邦
面积:150平米
时间:2012
建筑摄影: Vivek Muthuramalingam

Architects: Biome Environmental Solutions
Location: Tamil Nadu, India
Area: 150.0 sqm
Project Year: 2010
Photographs: Vivek Muthuramalingam
