康尼斯托加学院学生休闲娱乐中心
Conestoga College Student Recreation Centre / MJMA
由专筑网缕夕，李韧编译
来自建筑事务所的描述。该项目用于整治和扩建现有的老龄化设施，改善学生的校园生活，促进健康积极的生活方式。现有设施有一个健身房和一个未充分利用的舞台。校园调查显示，只有百分之一的学生需要溜冰，更多的学生则更加需要体操、健身和社交空间。建筑师重新设计更新了现有的健身房，重新使用一个三合一健身房和赛道，以及在二层大厅设有大型学生共享空间和教室。新加建部分设有一个宽敞的接待处、健康中心、治疗室、学生休息室、二层健身中心和多功能工作室。
From the architect. The project renovates and expands an existing aging facility to enhance student-life on campus and promote healthy, active living. The existing facility housed a gymnasium and an underutilized arena. A campus survey indicated only one-percent of students used the ice and a need for more gymnasia, fitness, and social space. The redesign updates the existing gym, adaptively reuses the arena with a new triple-gym and track, and a large student commons and classrooms at the second-level concourse. The new front addition contains a large welcoming reception, wellness centre, therapy rooms, and student rooms, and second-level fitness centre and multipurpose studios.
© Shai Gil
© Shai Gil
最初的设计方案要求拆除现有的舞台，建设一个新的预制建筑，从而容纳更多学生和健身空间。然而规划研究确定，现有的双抛物线屋顶可以以较少的成本重新利用建筑，让原先的舞台空间与加建的运动场更加融合。这个项目的定位是校园建筑，使用对象为学生，整个建筑也与校园的新学生广场相连接。新建筑保留了原有建筑复杂的标志性形式，而扩建部分则为校园带来新风貌。

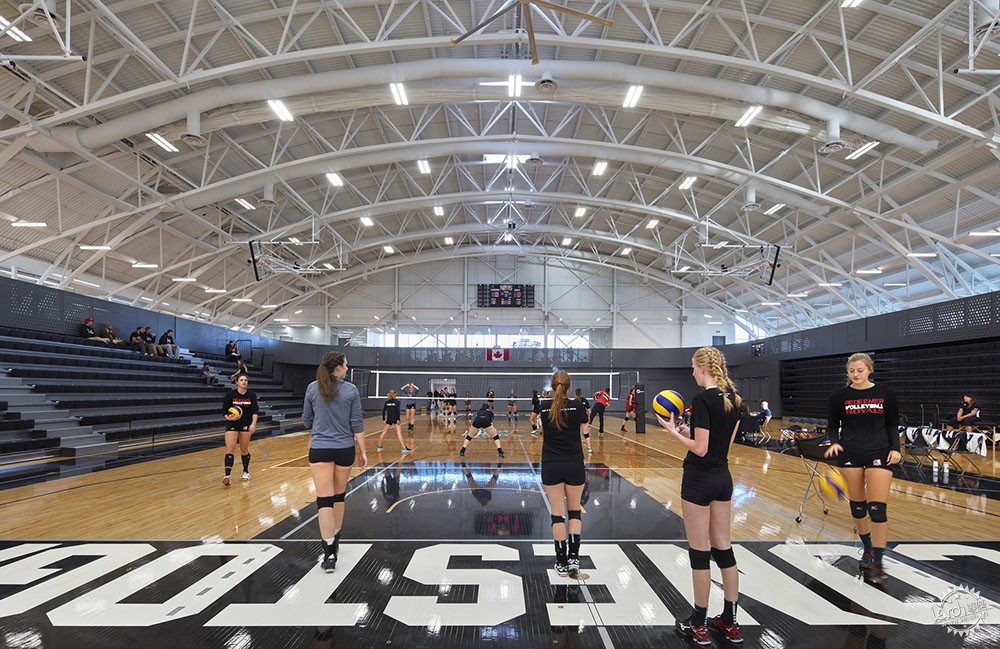

The original project brief called for demolition of the existing arena with a new pre-engineered building to house student and fitness space. Planning research determined the existing double parabola roof complex could be repurposed at less cost with the former arena space adaptively reused for additional gymnasia. The main entry is reoriented to the campus, fronted by the new lantern-like addition of fitness and student programming, and a new student plaza connecting the new building to its campus. The new configuration retains the iconic form of the original complex while the expansion presents a new lighter face to the campus.
© Shai Gil
建筑位于Kitchener的Doon校园，建筑师将建筑主入口面向校园，而不是像原有规划一样将主入口面向停车场，这样的设计手法为校园赋予了新的活力。健身区域和多功能工作室完全由玻璃覆盖，悬浮在学生广场上，为学生们提供室外活动灰空间。一个绿色屋顶覆盖着相邻的学术建筑，从而形成一个开放式人行道。新建筑将于地面层相连接，从而取代原有的上部连接体。

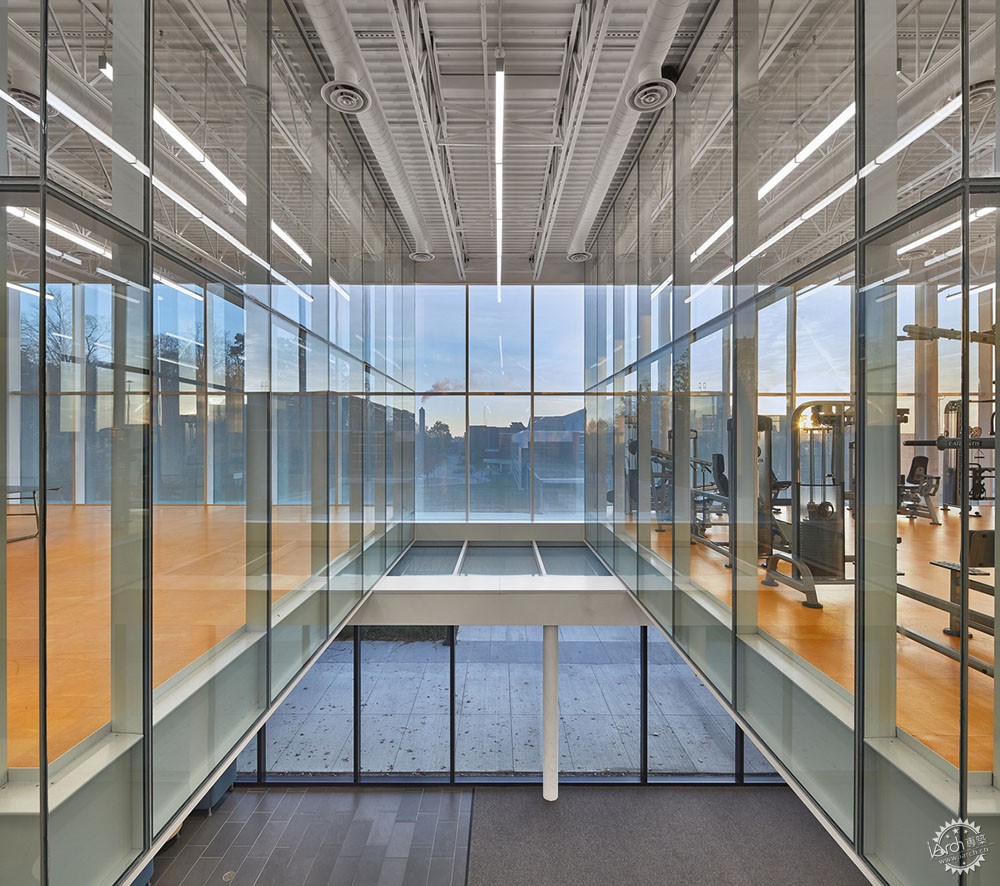

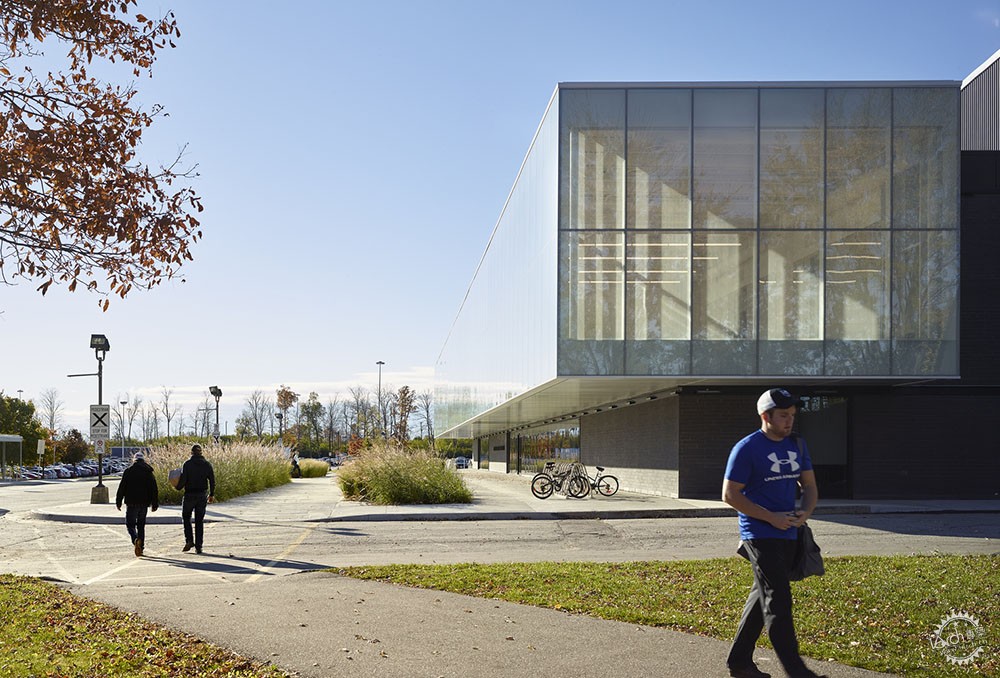

Located on Conestoga’s Doon Campus in Kitchener, the revitalized recreation centre reorganizes its’ position on campus by placing the main entrance at ground level towards the campus rather than to the parking lot as in the existing plan. The fully glazed addition of fitness and multipurpose studios is suspended over the student plaza providing a covered outdoor public space. A green roofed canopy connects the adjacent academic building and replaces a seldom-used open overhead walkway. The new design introduces a ground level campus plan and architecture to replace the existing upper level secondary connections.

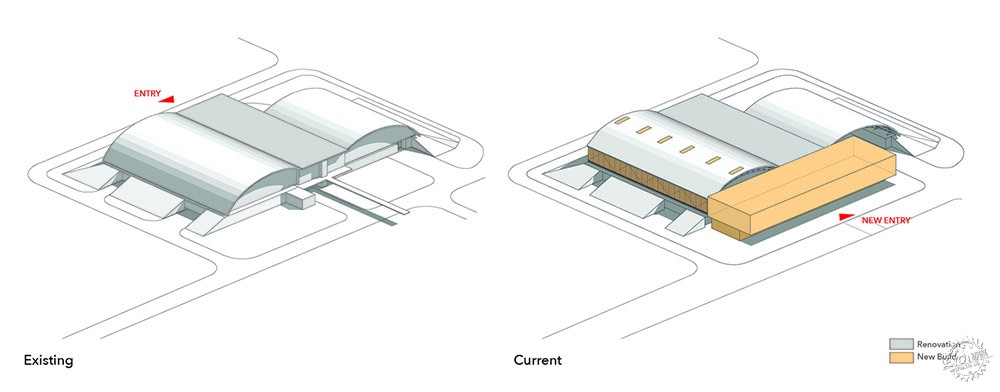

改造前/Before
等距/Isometric
建筑师将原有的建筑外壳保留并且进行翻新设计，从而相应可持续发展策略。这不仅节省了成本，还保留了一个美观的建筑外壳。现有的区域更新了屋顶和隔热功能，从而增强建筑热性能。改造后，在新体育馆和跑道上引入自然光，大大减少了照明负荷。玻璃采用熔块模式来满足太阳能效益需求，所有的照明系统都通过LED设计。新的广场设计有生物洼地种植系统，用于管理所有硬地表径水流，这样便不需要地下排水系统。

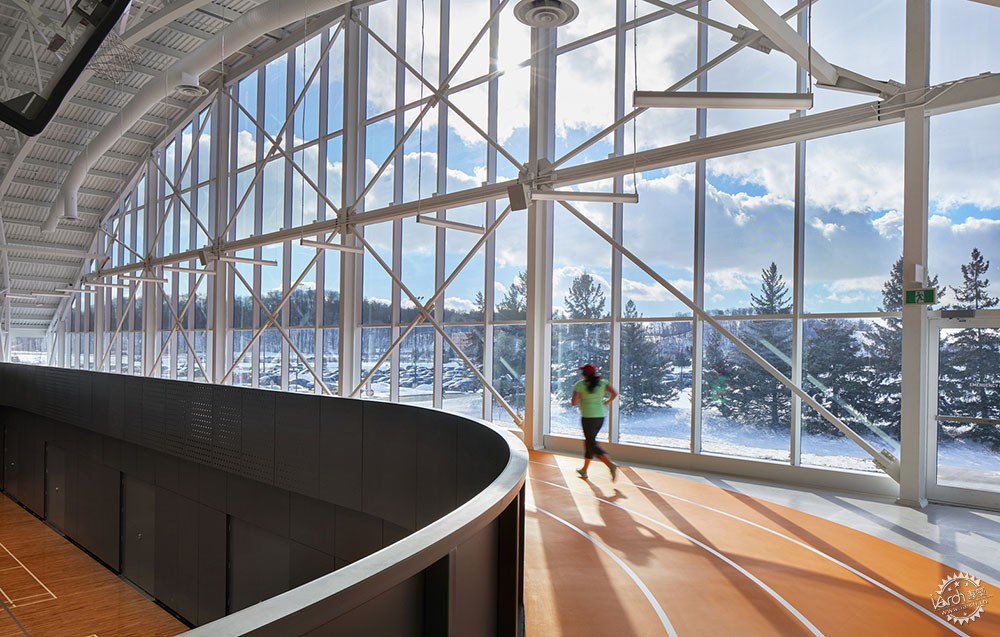

The primary sustainable initiative is retaining and renovating the existing arena shell. This not only saves on capital costs, it retains a very beautiful and useful shell that is successfully repurposed. The existing areas are re-roofed and insulated for increased thermal performance. The renovation introduces natural light throughout the new gymnasium and running track to greatly reduce electrical lighting load. All glazing utilizes frit patterns to manage solar gain and all lighting is replaced or designed with LED. The new plaza is designed with bio-swale planting beds to manage all hard surface runoff without the need for stormwater sewer connections.
© Shai Gil
平面图/Floor Plans
© Shai Gil
© Shai Gil
学生娱乐中心是翻新和扩建工程，主要用于更新老化的运动设施，并将其转变为充满活力的学生生活中心。该项目与学院和学生会密切合作，这里是校园生活的中心枢纽，除了健身运动，学生们可以聚会，进行健康的饮食，并接受咨询和治疗。扩建工程将建筑入口面向校园，吸引了更多的学生，从而增加了建筑与学校之间的联系。入口处的学生广场和人行步道增加了学生们的社会交流，从而建立更加人性化的校园风貌。
The Student Recreation Centre is a renovation and expansion that restores an aging athletic facility and transforms it into a dynamic hub for student life, activity, and wellness. Working closely with the College and Students Association, the facility is re-imagined as a central hub of campus life, where in addition to fitness, students can congregate, find healthy food options, and receive counseling and therapy. The new expansion flips the main entrance to engage the campus and increase connectivity. A student plaza and covered walkway at the entrance offer improved opportunity for social interaction, pedestrian movement, and help humanize the campus.
© Shai Gil
© Shai Gil
© Shai Gil
© Shai Gil
© Shai Gil
© Shai Gil
© Shai Gil
© Shai Gil
环境规划/Context Plan
建筑事务所：MJMA
项目位置：加拿大
项目年份：2016年
摄影师：Shai Gil
设备制造商：Roxul, Hydrotech, Columbia Lockers, Kalzip
设计团队：David Miller, Robert Allen, Andrew Filarski, Viktors Jaunkalns, Tyler Walker, Dan Kronby, Mitchell May, Olga Pushkar, Kristin Beites, Kenyon Jin, Darlene Montgomery, Tarisha Dolyniuk, Woosuk An, Katya Tunon-Marshall, Jason Wah, Timothy Belanger, Razmig Titizian
结构：Blackwell Engineering
电力：SNC-Lavalin
当地合作：C.F. Crozier & Associates
景观设计：MJMA
室内设计：MJMA
机械设备：SNC-Lavalin
现存建筑 (1980) ：Strassman Wagman Partnership (no Strasman
Architects: MJMA
Location: Kitchener, ON, Canada
Project Year: 2016
Photographs: Shai Gil
Manufacturers: Roxul, Hydrotech, Columbia Lockers, Kalzip
Project Team: David Miller, Robert Allen, Andrew Filarski, Viktors Jaunkalns, Tyler Walker, Dan Kronby, Mitchell May, Olga Pushkar, Kristin Beites, Kenyon Jin, Darlene Montgomery, Tarisha Dolyniuk, Woosuk An, Katya Tunon-Marshall, Jason Wah, Timothy Belanger, Razmig Titizian
Structural: Blackwell Engineering
Electrical: SNC-Lavalin
Civil: C.F. Crozier & Associates
Landscape: MJMA
Interiors: MJMA
Mechanical: SNC-Lavalin
Existing Building (1980) : Strassman Wagman Partnership (no Strasman
