La Merced住宅/ Emilio López Herrera第1张图片

La Merced House

由专筑网Brick,vigo编译

该项目是对原有房屋的扩建。建筑位于Ilalo火山山麓。这片土地尊享东部山脉、卡扬贝火山和科多帕希火山的风景。

The project consists of the extension of a house located in the foothills of Ilaló volcano. This land has a privileged view towards the oriental mountain chain, as well as to the Cayambe and Cotopaxi volcanos.

La Merced住宅/ Emilio López Herrera第2张图片
© Ramiro Salazar

客户需要一些扩建部分:三间新房间,一间舆洗室,一间洗衣房和一个社交区。

The client required several additions: three new rooms, one full bathroom, a laundry room, and a social area.

La Merced住宅/ Emilio López Herrera第3张图片
© Ramiro Salazar

该项目的主要目标之一是在已有建筑体系中实现连贯的整体。当前房屋的物理界限在哪里开始和结束?哪些元素会作为参考?我们如何使这些新元素和以前建筑及景观一致?

One of the main goals was to achieve a coherent integration within the preexistent architecture. Where do the physical limits of the current house begin and end? Which elements will be taken as reference? How do we reconcile these new elements to what was previously created and to the landscape?

La Merced住宅/ Emilio López Herrera第4张图片
© Ramiro Salazar

La Merced住宅/ Emilio López Herrera第5张图片

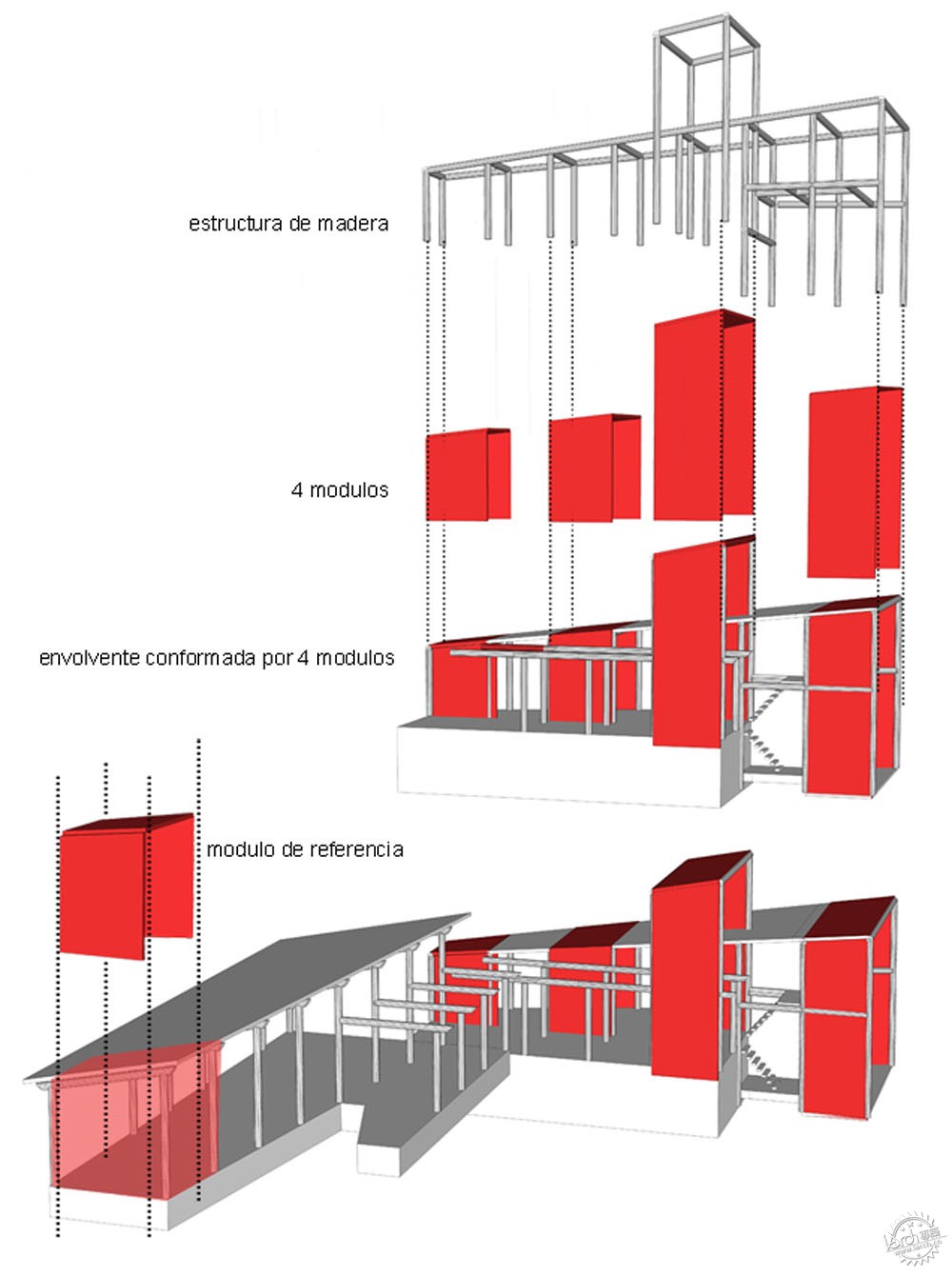

Diagram/图解

新房屋的外层(见图解)通过参考已有建筑的结构模块之一来概念化。这个外层结构成为现有房屋的保护层,同时确定以前房屋和当前房屋、内部和外部、公共和私人之间的新关系。

The new house envelope (see diagram) is conceptualized by referencing one of the structural modules from the pre-existing construction. This envelope is articulated as a projection/ spectrum of the existing house, while determining new relationships between the former and the current, the interior and the exterior, and the public and the private.

La Merced住宅/ Emilio López Herrera第6张图片
© Ramiro Salazar

房屋外层的四个模块通过使用以下参数建立:三个模块定义内部空间(洗衣间、卧室和浴室)。第四个模块定义半室外社交区,依次建立与已有房屋的联系。

The four modules of the house envelope were established by using the following parameters:
-Three modules define the interior spaces (laundry room, bedrooms and bathroom).
-A fourth module defines the semi exterior social area, and in turn establishes the connection with the pre-existing house.

La Merced住宅/ Emilio López Herrera第7张图片
© Ramiro Salazar

项目预算有限,因此设计只能精炼。在材料使用方面,用于结构的桉木来自房屋本身。室内装修构件旨在按阶段组装,因此让客户有经济自由。其它装修构件如平滑水泥地板和Seike木工在现场构建。

Working with a limited budget led to essential process based decisions. In terms of materials the eucalyptus wood used for the structure was obtained from the property itself. The interior finishing elements were designed to be assembled in stages, therefore allowing the client economic freedom. Other finishing elements such as the smoothed cement floor and the Seike wood carpentry were constructed in site.

La Merced住宅/ Emilio López Herrera第8张图片
© Ramiro Salazar

La Merced住宅/ Emilio López Herrera第9张图片
© Ramiro Salazar

La Merced住宅/ Emilio López Herrera第10张图片
© Ramiro Salazar

La Merced住宅/ Emilio López Herrera第11张图片
© Ramiro Salazar

La Merced住宅/ Emilio López Herrera第12张图片
Plan/平面图

La Merced住宅/ Emilio López Herrera第13张图片

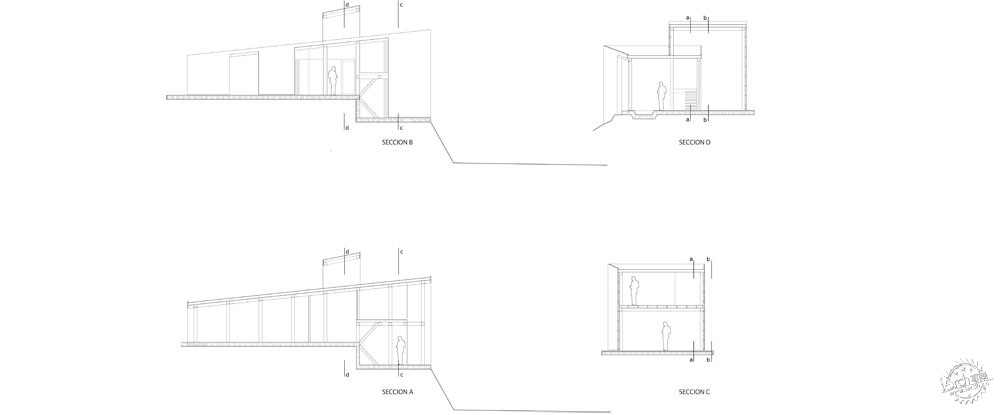

Section/剖面图

La Merced住宅/ Emilio López Herrera第14张图片
Elevation/立面图

La Merced住宅/ Emilio López Herrera第15张图片
Diagram/图解

La Merced住宅/ Emilio López Herrera第16张图片
Diagram/图解

La Merced住宅/ Emilio López Herrera第17张图片
Diagram/图解

La Merced住宅/ Emilio López Herrera第18张图片
© Ramiro Salazar

建筑设计:Emilio López Herrera
项目位置:厄瓜多尔,基多
项目面积:72.0平方米
项目时间:2011年
摄影:Ramiro Salazar
承建商:Emilio López Herrera
工程:Herberto Novillo

Architects: Emilio López Herrera
Location: La Merced, Quito EC170140, Ecuador
Area: 72.0 sqm
Project Year: 2011
Photographs: Ramiro Salazar
Constructor: Emilio López Herrera
Engineer: Herberto Novillo
