培训和就业大楼/ Daroca Arquitectos第1张图片

Training and Employment Building

由专筑网Brick,刘庆新编译

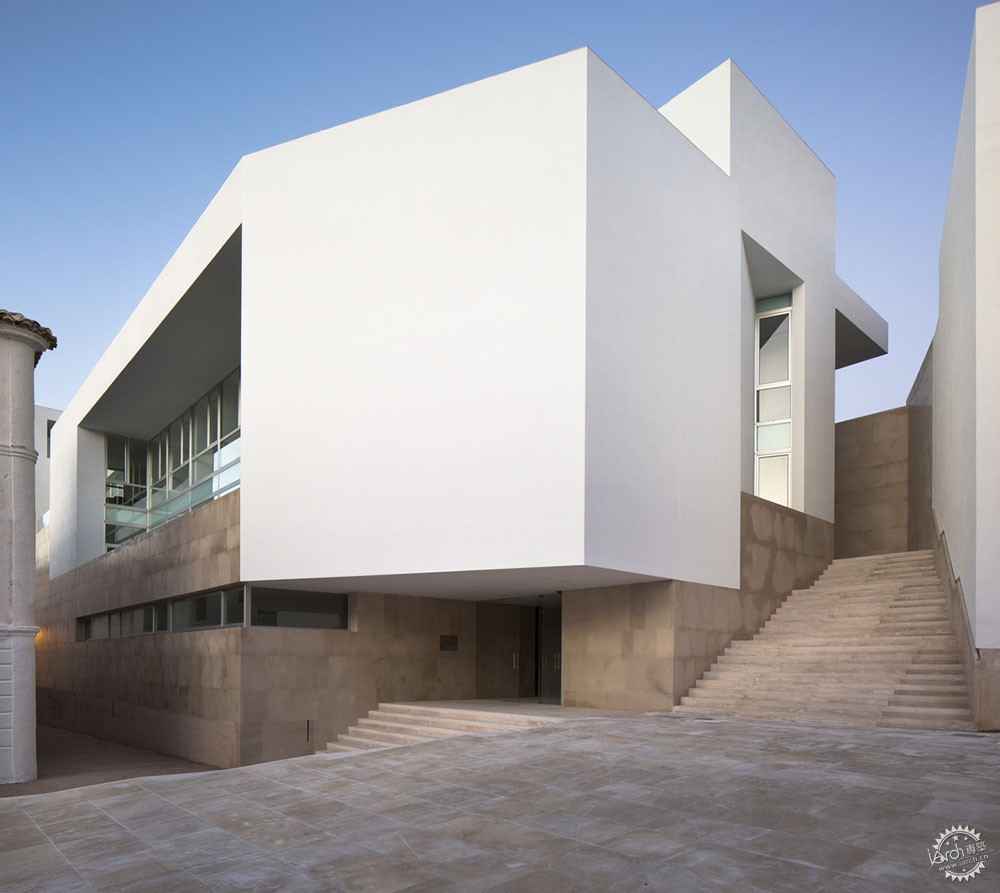

该建筑设法解决现有的城市空心化问题,同时通过规定一侧朝向连接楼层的伸出式楼梯,赋予阿尔卡萨瓦顶部空间和de la Cava Alta广场之间的连续公共关系。

The building, try to solve the existing urban void, while giving continuity public relationship between the headspace of the Alcazaba and Plaza de la Cava Alta, by the provision of a side to the projected building staircase linking these levels.

培训和就业大楼/ Daroca Arquitectos第2张图片
© Fernando Alda

培训和就业大楼/ Daroca Arquitectos第3张图片
© Fernando Alda

三层建筑的主入口起始于de la Cava Alta广场,同时在顶层另一端有个通道,标识了与其无关的阿尔卡萨瓦的高平面。

The main entrance of the three-storey building is from the Plaza de la Cava Alta, while on the top floor has an access on the opposite end of the plant, which provides a record tangentially on the high plane of the Alcazaba.

培训和就业大楼/ Daroca Arquitectos第4张图片
© Fernando Alda

培训和就业大楼/ Daroca Arquitectos第5张图片
Plan/平面图

培训和就业大楼/ Daroca Arquitectos第6张图片
© Fernando Alda

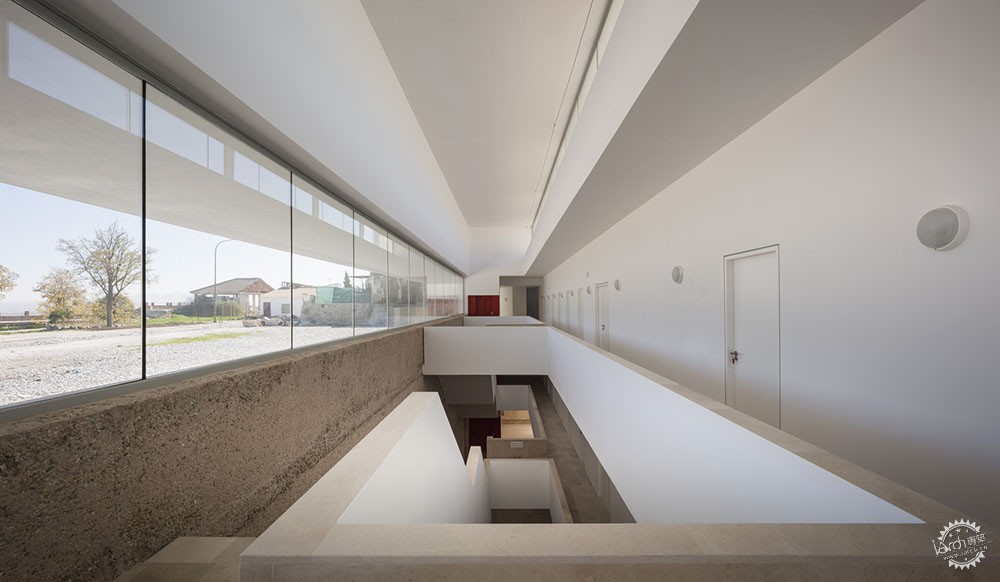

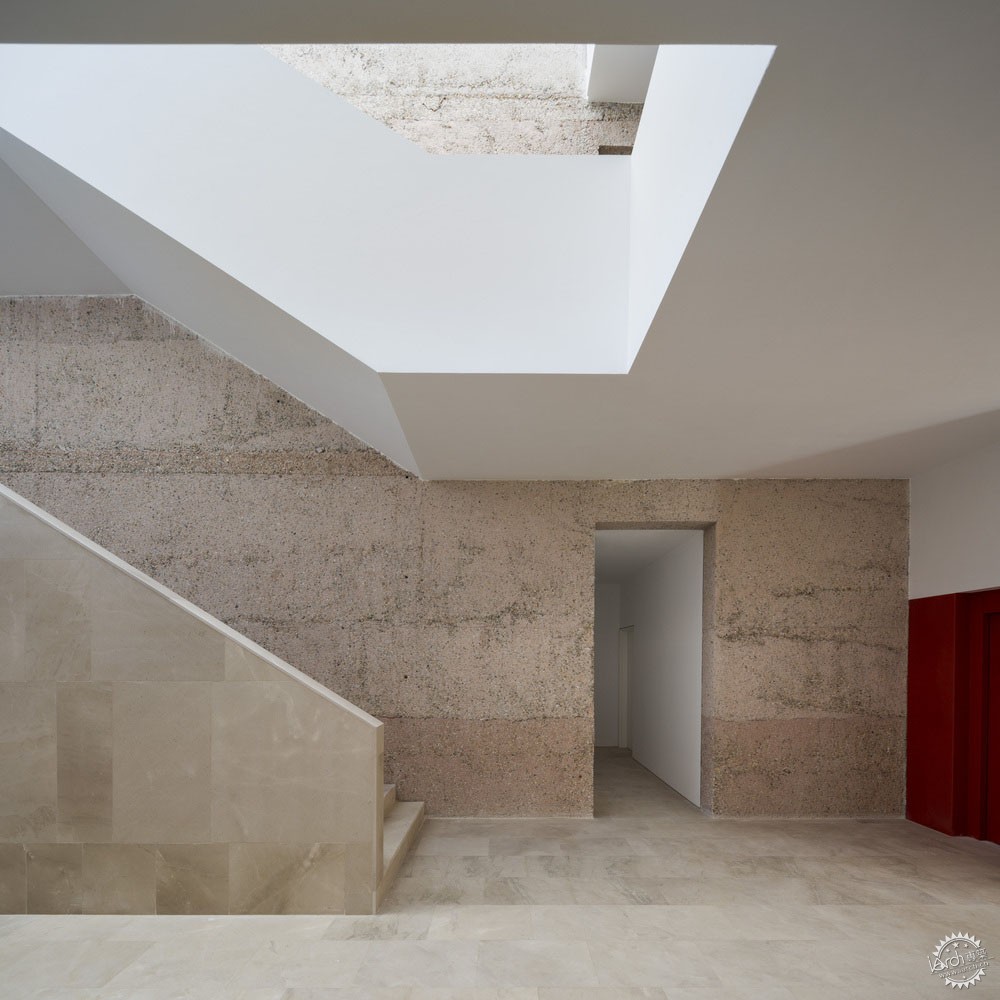

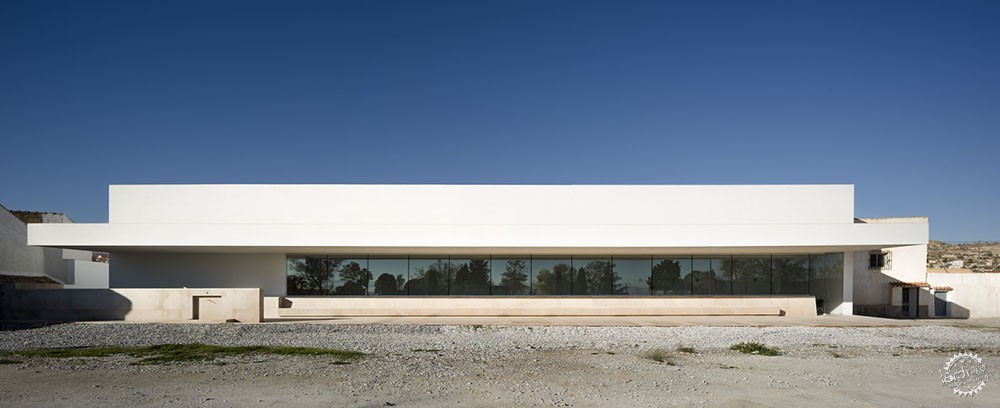

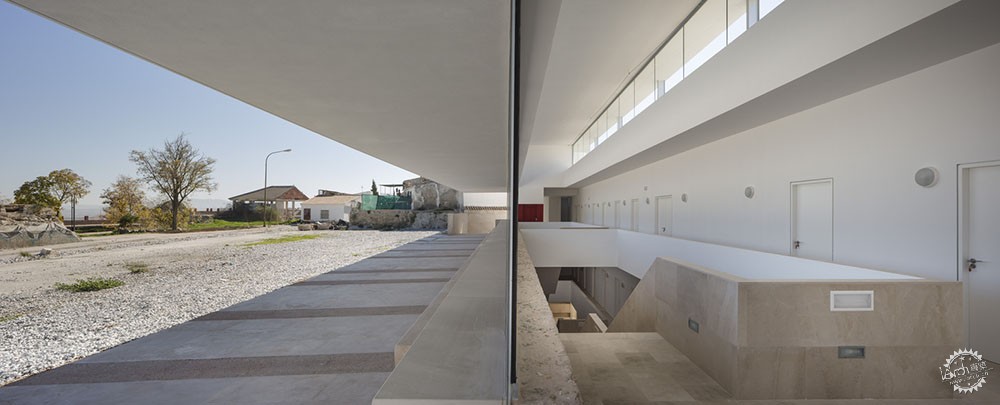

建筑纵向突出,将其交通空间集中于人工挖掘的底部。楼梯和电梯由挡墙支撑,明确指示出平台天窗上的纵向条状布局,自然光从这里照进三层楼的所有空间和每个交通区。靠近阿尔卡萨瓦的立面呈现为飞檐,保护内部玻璃和下降的公共楼梯。预计将来这里可能与相邻建筑的其余介入结构保持连续性。

The projected building of longitudinal plant, is concentrating its circulation in the bottom dug into the ground, so that stairs and elevator, supported by the retaining wall that indicate clearly marked longitudinal stripes layout skylight on their decks, from the natural light to invade all the space on the three floors and circulations each. The facade of a plant on the Alcazaba, presents an overhang that protects the inner glass and the decline in public stairway. It is expected in the future that this lodge may have continuity with the rest of the interventions on the adjacent buildings.

培训和就业大楼/ Daroca Arquitectos第7张图片
© Fernando Alda

Trasgrisolias街周围有两个阶梯状的开口,解决了进入办公室的自然光受遮挡问题。

About Trasgrisolías Street, two large holes terraced resolve the entry of natural light to the number of defendants in the program offices.

培训和就业大楼/ Daroca Arquitectos第8张图片
© Fernando Alda

培训和就业大楼/ Daroca Arquitectos第9张图片
© Fernando Alda

培训和就业大楼/ Daroca Arquitectos第10张图片
© Fernando Alda

培训和就业大楼/ Daroca Arquitectos第11张图片
© Fernando Alda

培训和就业大楼/ Daroca Arquitectos第12张图片
© Fernando Alda

培训和就业大楼/ Daroca Arquitectos第13张图片

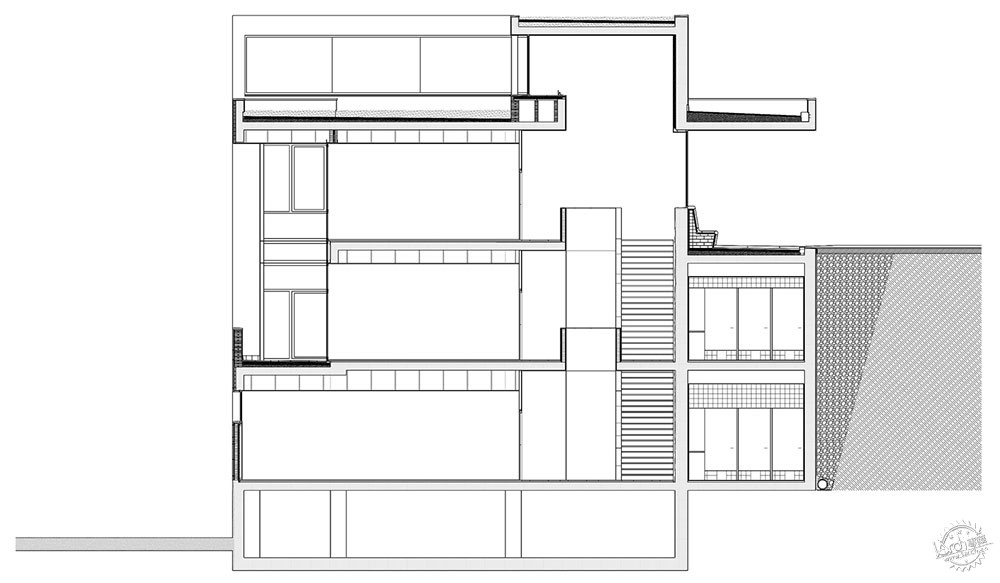

Section/剖面图

建筑设计:Daroca Arquitectos
项目位置:西班牙,格拉纳达,巴萨
总建筑师:José Luís Daroca Bruño, Stanislao Fierro
项目面积:1564.0平方米
项目时间:2015年
摄影:Fernando Alda
发起人:Ayuntamiento de Baza
装配:Jesús Serrano, Roberto Ales Mendez
工程师:Manuel Ponce Fernandez
技术建筑师:Jesus Serrano
建筑公司:UTE VIDECA-NILA
预算:1.286.000 euros
单位成本:818欧元/平方米

Architects: Daroca Arquitectos
Location: 18800 Baza, Granada, Spain
Architect in Charge: José Luís Daroca Bruño, Stanislao Fierro
Area: 1564.0 sqm
Project Year: 2015
Photographs: Fernando Alda
Promoter: Ayuntamiento de Baza
Rigger: Jesús Serrano, Roberto Ales Mendez
Engineer: Manuel Ponce Fernandez
Technical architect: Jesus Serrano
Construction company: UTE VIDECA-NILA
Budget: 1.286.000 euros
Cost /m2: 818 euros/ m2
