Sun Rain Room / Tonkin Liu Architects
由专筑网李韧,韩平编译
来自建筑事务所的描述:晴雨房是一个格鲁吉亚联排住宅的扩建与修复项目,建筑层高两层。扩建部分提取了原有建筑的特征,从而在建筑后部构成一个新空间。该项目由Tonkin Liu建筑事务所与当地工匠合作完成,建筑的使用者是一个设计工作室,而合伙人及其家庭也居住于此。后院的围墙上方设置着胶合板屋面,其形态弯曲独特,从而让庭院内部具有充足的自然采光。
Text description provided by the architects. The Sun Rain Rooms is a two-storey extension and restoration of a Grade-II Listed Georgian townhouse. The extension re-frames the rear of the building by amplifying the characteristics found within its fabric. Designed and constructed by Tonkin Liu in collaboration with local craftspeople, it serves as both a studio for the practice and a home for the partners’ family. The perimeter walls of the rear courtyard support a plywood roof, curved in plan and section to allow maximum light into a patio garden.
© Edmund Sumner & Greg Storrar
© Edmund Sumner
平面图/Floor Plans
© Edmund Sumner

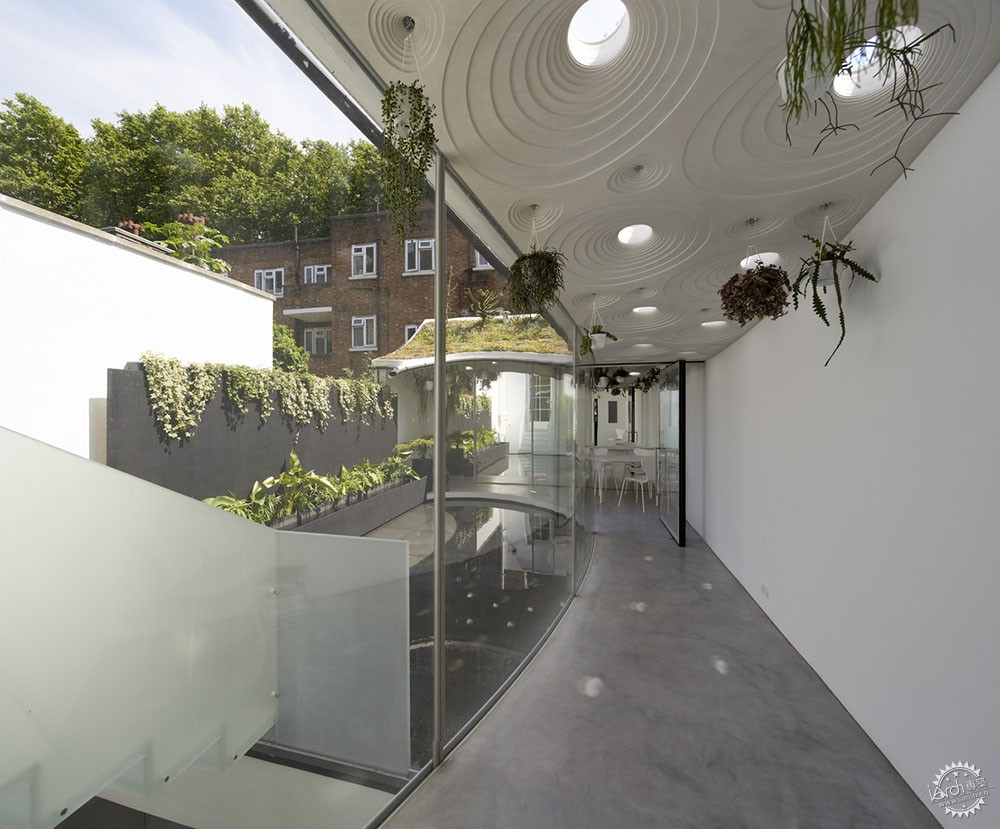

雨水通过建筑顶部的管道收集,沿着屋顶弯曲形态的前缘回落到集水槽,最终通过集水槽落入庭院内部的水池。屋面的厚度为110毫米,其外部运用了绝缘表皮,上方开有圆形天窗,这表达了雨滴滴落内部的水池的意向,在下雨天时,这里不失为一个工作与生活的绝佳场所。扩建部分同时包含了家庭生活与工作区域的两种不同的功能空间。在屋顶下方,建筑师设置 一个花园房间,既可以用作家庭起居室,也可以用作工作会议室。

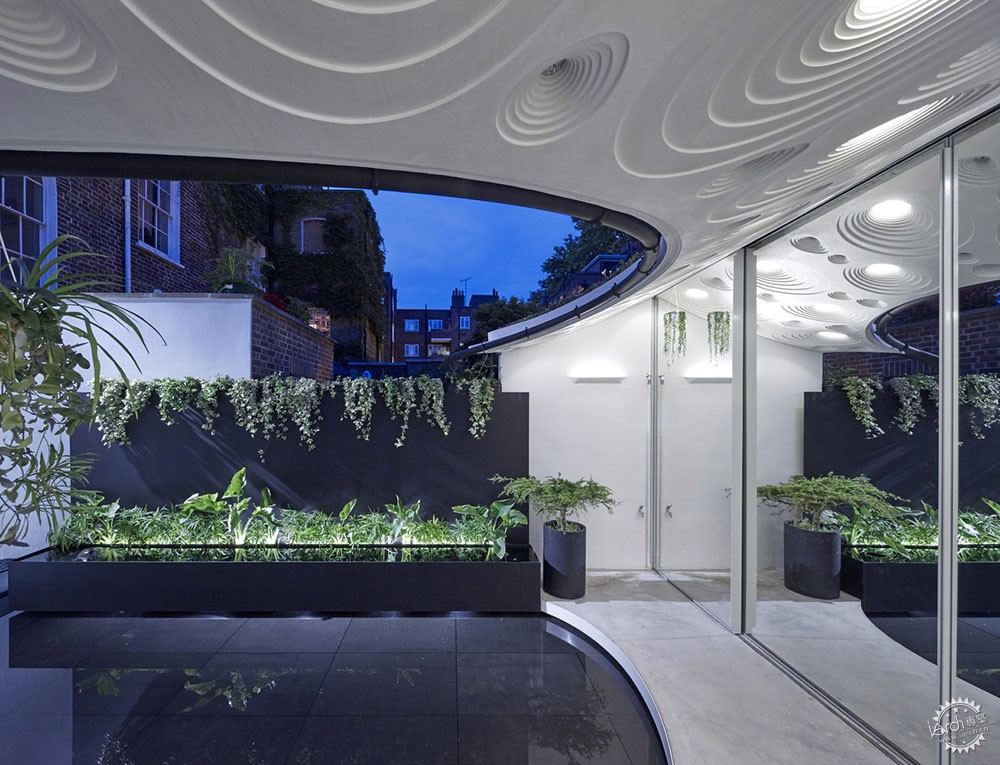

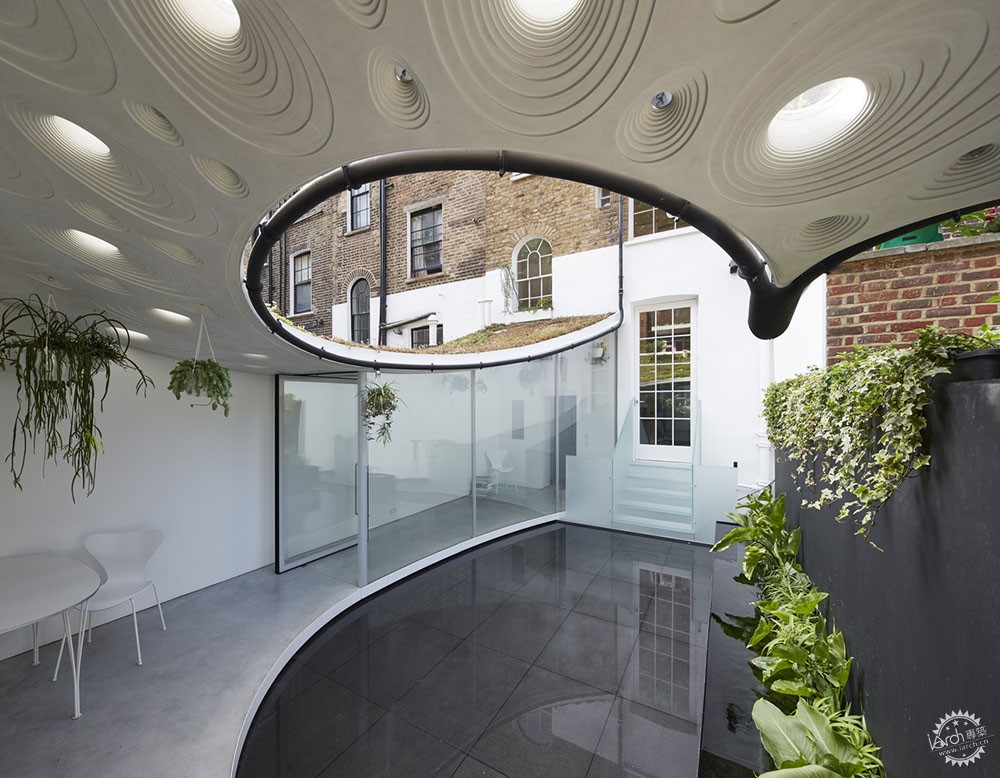

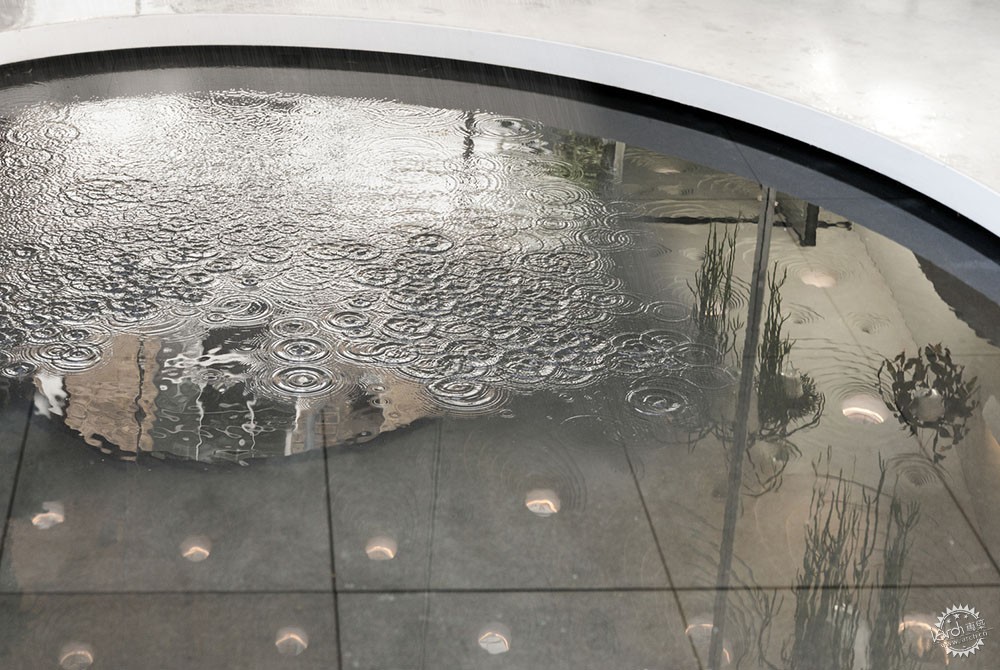

Rainwater gathered at the top of the townhouse falls through a pipe, following the roof’s curving leading edge to a spout over a long rainwater harvesting tank. The tank floods the patio at the push of a button, transforming it into a reflecting pool. The roof’s thin 110mm structural shell is an insulated stressed-skin, joined by round coffered skylights that echo the wave pattern of raindrops landing in the pool. It is a good place to be on a bad day. The extension accommodates both prosaic and poetic aspects of domestic and studio rituals. Under the roof, a garden room offers a living space for the home and a meeting space for the studio.
© Edmund Sumner
剖面图/Section 2
© Edmund Sumner
© Edmund Sumner

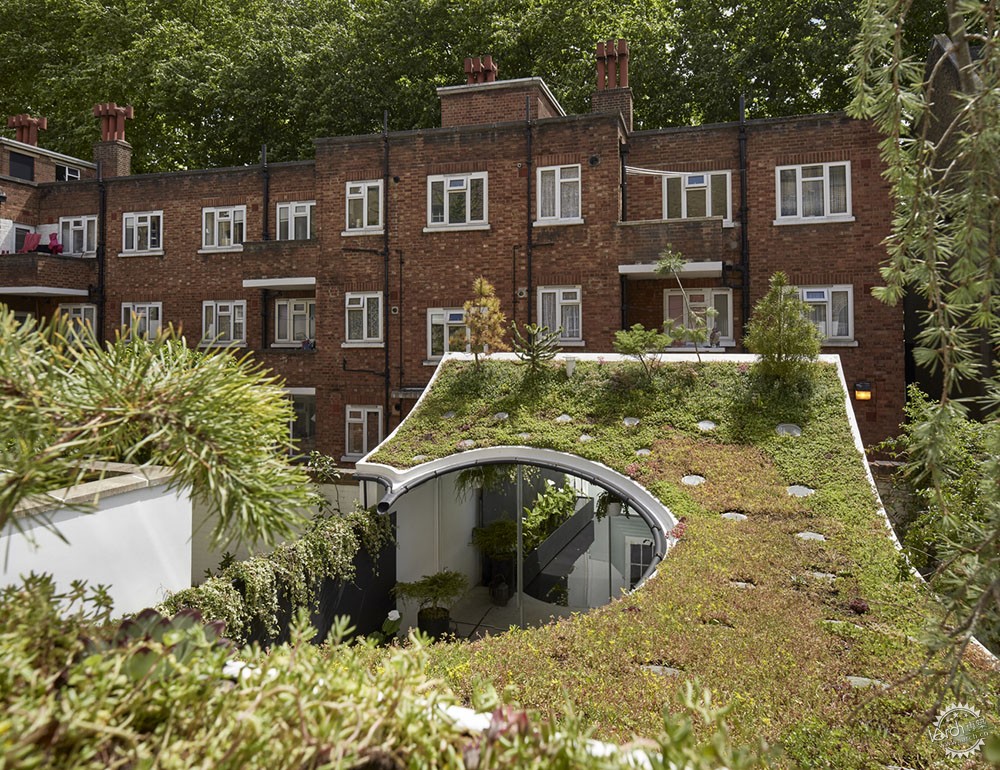

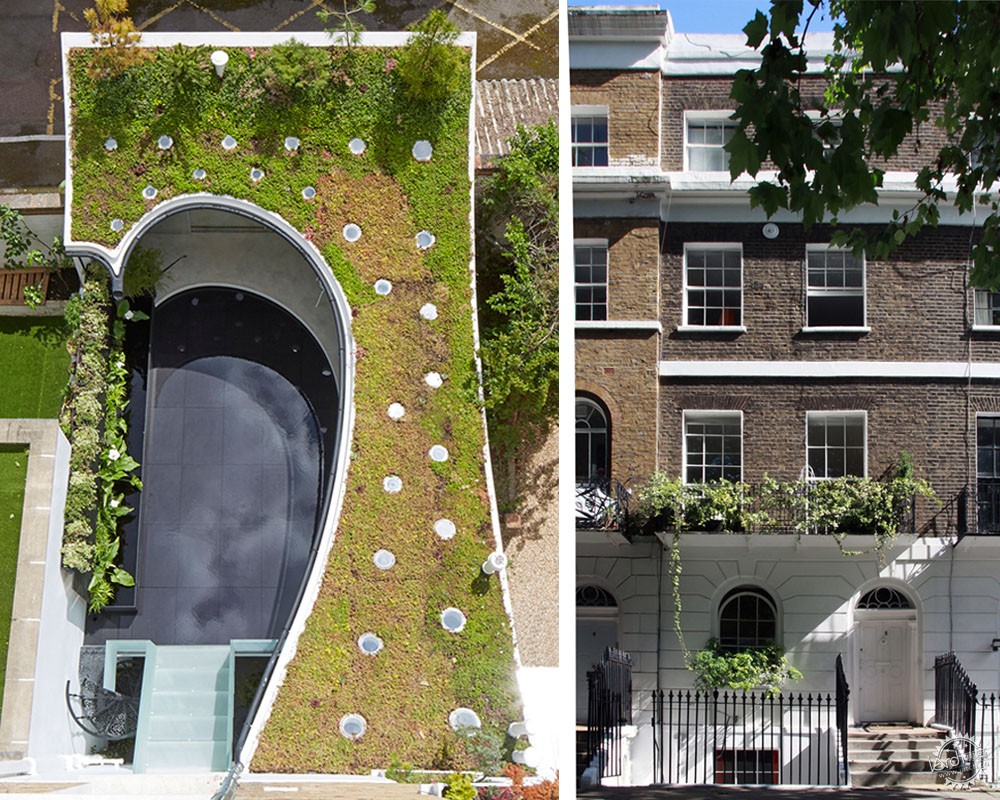

在屋顶下方,一堵镜面墙体的后方设置有工作室、厨房、绿植大棚、仓库,在屋顶的上方则种植有绿色植物。在庭院内部,原有的地下空间则通过扩建形成一间卧室、两间浴室,以及一个绿植采光井。在阳光与雨水的滋润下,整个庭院区域如同花园般郁郁葱葱。绿植屋面、花园空间、反射水池和采光井共同构成了这个多层次的城市花园,同时大大拉近了人与自然之间的距离。
A mirrored wall in the covered outdoor area beyond conceals a workshop, cooking area, potting shed, store, and deep planter for the small trees in the green roof above. Below the patio, the existing basement has been extended to create a bedroom, two bathrooms and an enlarged plant-filled light-well. Animated by the sun and the rain, the extension a landscape that harbours a family of carefully selected specimen plants. The green roof, garden room, reflecting pool and sunken light-well form a multi-layered urban garden, both celebrating and bringing people closer to nature.
© Greg Storrar
© Edmund Sumner
© Edmund Sumner
© Edmund Sumner
© Greg Storrar
© Edmund Sumner
© Edmund Sumner
© Edmund Sumner
© Greg Storrar
© Edmund Sumner
© Edmund Sumner
© Edmund Sumner

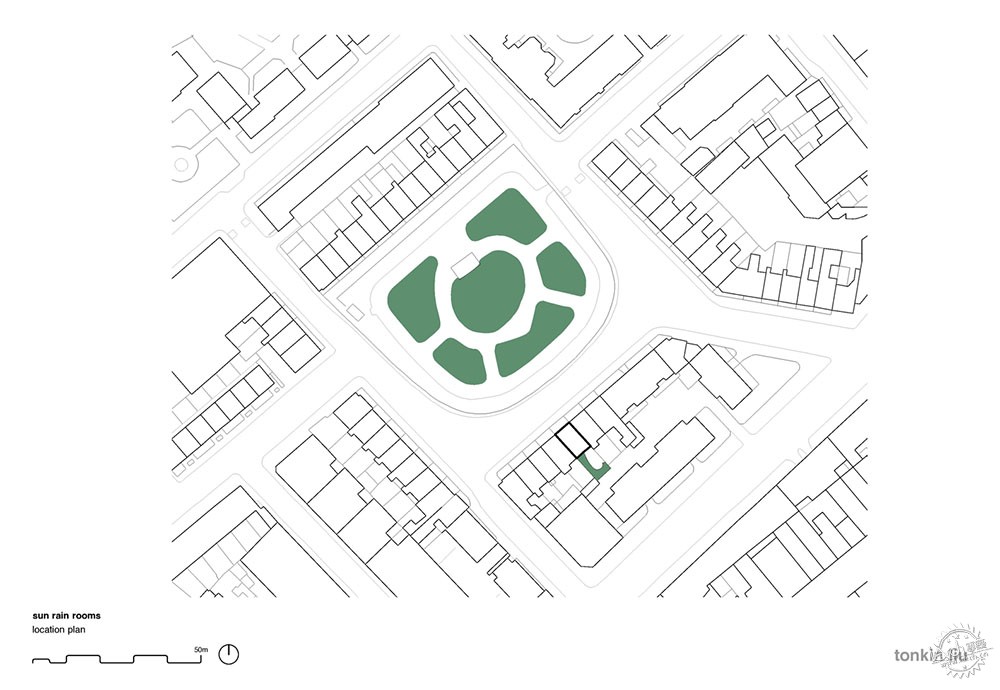

位置图/Location Plan
概念图解/Concept Diagram
现有平面图/Existing Floor Plans

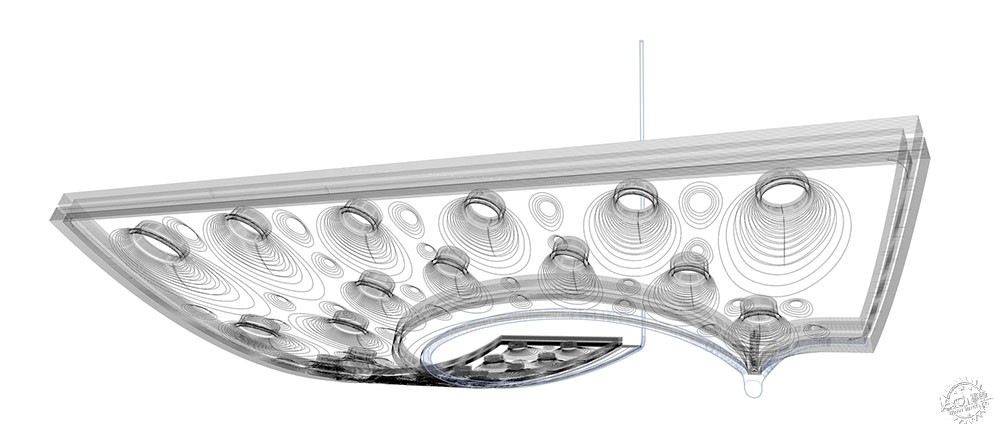

屋顶草图/Roof Sketch

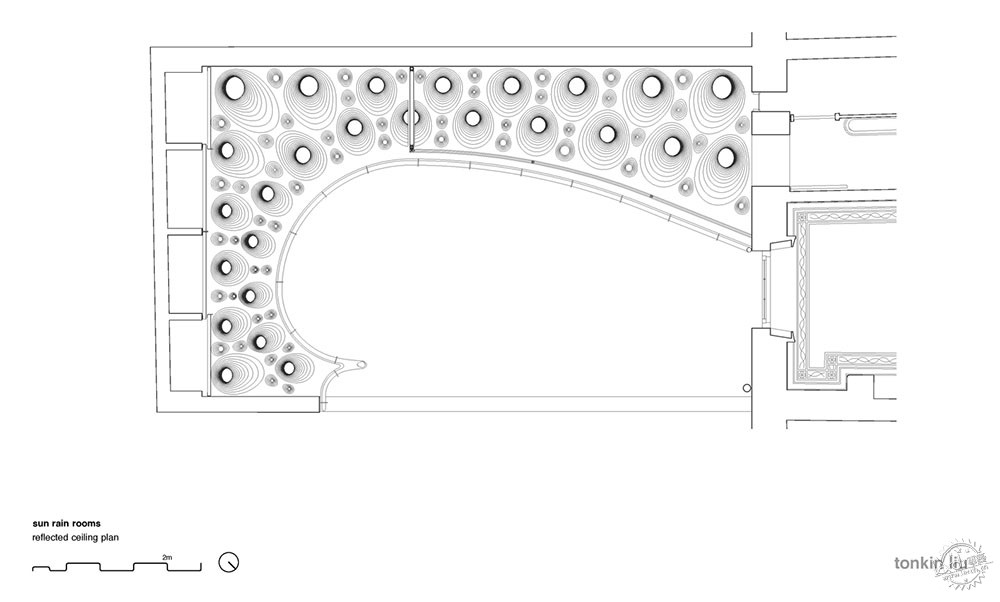

天花板平面图/Reflected Ceiling Plan

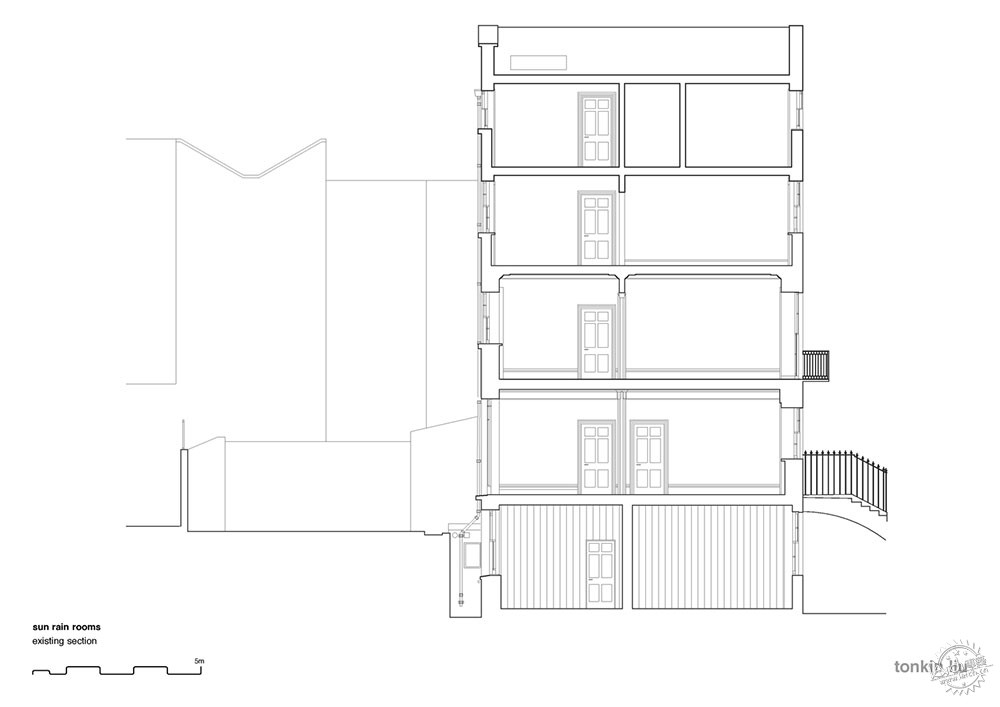

现有剖面图/Existing Section

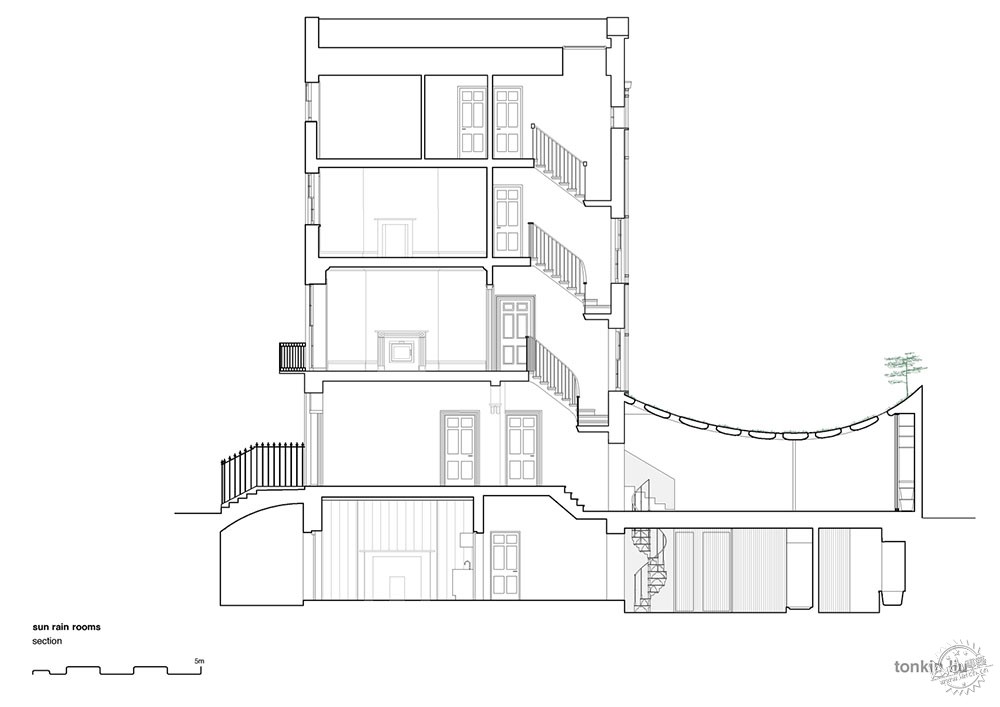

剖面图/Section 1
剖面图-后立面/Section - Rear Elevation

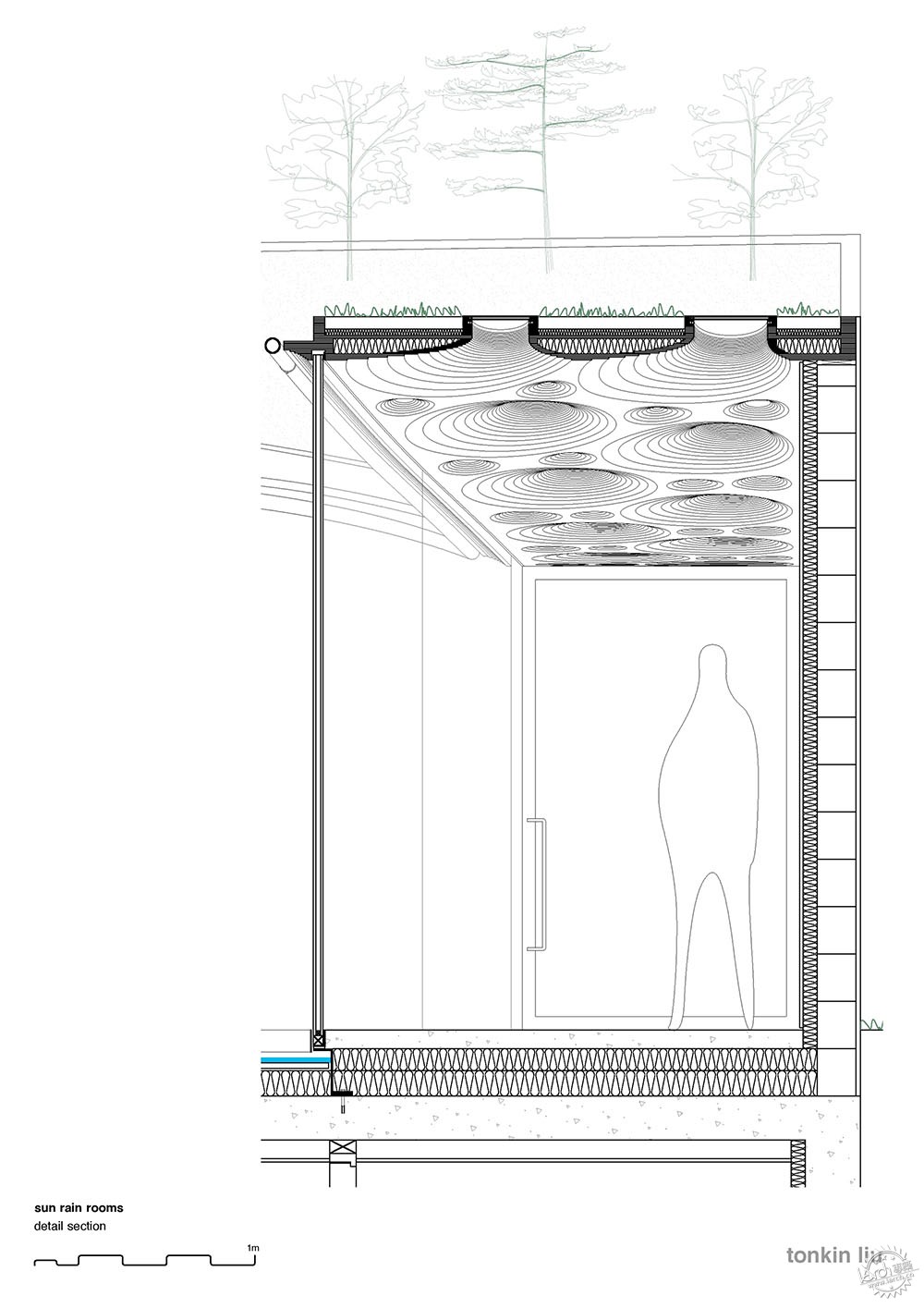

剖面细节/Detail Section
