布鲁克林大桥Pierhouse & 1酒店
Pierhouse & 1 Hotel Brooklyn Bridge / Marvel Architects

由专筑网小R，王雪纯编译

来自建筑事务所的描述：Pierhouse位于Furman街与东河之间，地处布鲁克林大桥公园的核心地段，该项目包含有106个公寓单元、容纳300个停车位的地下车库、17000平方英尺（约1579平方米）的活动空间、一座共有195间客房的酒店，这些功能都集合在一栋面积为620000平方英尺（约57600平方米）的多功能建筑之中，分别位于4至10层。

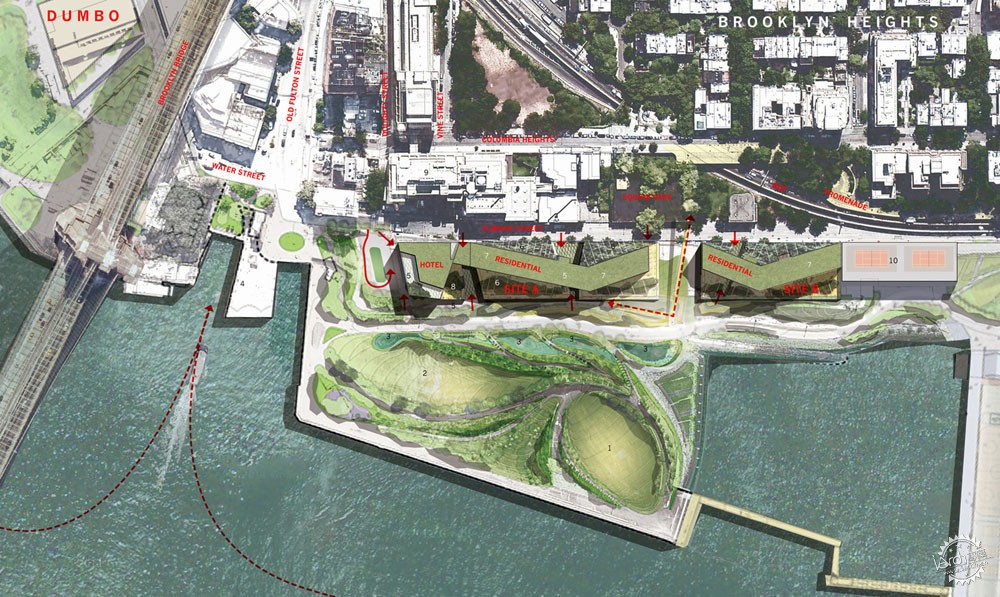

Text description provided by the architects. Pierhouse, located in the heart of Brooklyn Bridge Park between Furman Street and the East River, comprises a 106-unit condominium, 300-car below-grade parking garage, 17,000 SF event space, and 195-key hotel within a 620,000 SF complex of connected buildings ranging from four to ten stories.







项目场地962英尺（约293米）的长度这个项目的挑战之一，建筑师需要将城市和滨海公园连接在一起。为了达到这个目标，建筑师们将Pierhouse项目设计为布鲁克林大桥公园的延伸部分，让其成为项目的绿色基底，让人联想起殖民时期的布鲁克林高地沙滩。

The 962-foot length of the site creates the primary design challenge of Pierhouse and 1 Hotel - to create a private development which connects the city and waterfront park. To achieve this, Marvel Architects designed Pierhouse to perform as an extension of Brooklyn Bridge Park - a verdant backdrop recalling the high, sandy bank of pre-colonial Brooklyn Heights.



这座建筑有着绿色的屋面和丰富的道路流线。西侧的石灰石立微微向一侧倾斜，东侧的金属面板立面则从Furman街向上延伸，与狭窄街道和高速道路的城市肌理相互呼应。

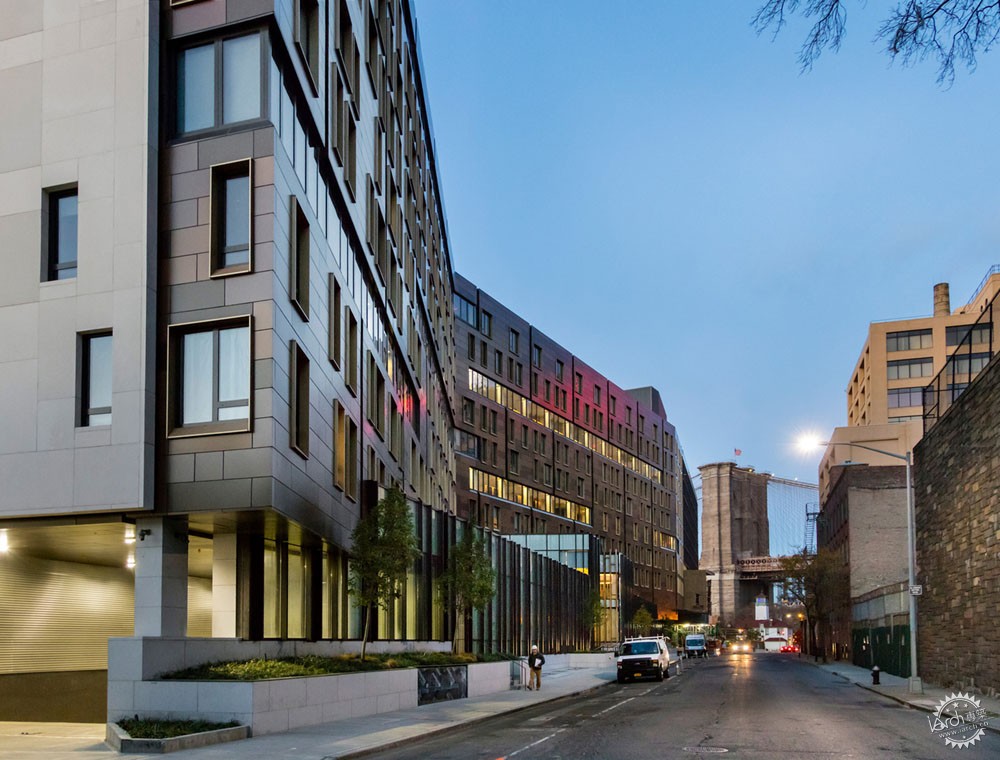

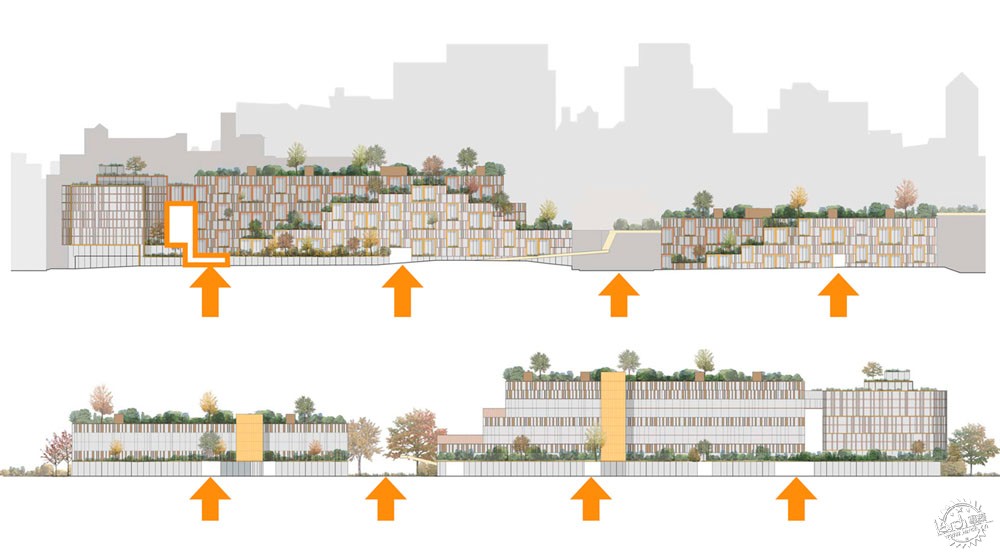

The complex features green roofs and a variety of pathways to access the park. The limestone west elevation cascades towards it, while the metal paneled east elevation rises steeply from Furman Street, responding to the urban fabric of narrow streets and the nearby expressway.





建筑的两侧构成了不同的立面形态，并且还有创新的住宅楼层平面布局。住宅建筑将16英尺的模块不断地重复，从而构成多种多样的复式单元，每个单元还有面向公园景观的露台。所有的单元通过东西向的布局形式来保持自然通风，这种设计策略贯穿于建筑之中，比如连接起Furman街与公园的公共步道。建筑的大堂里装饰有花岗岩桌，这些材料都来源于Halloran采石场，曾经建造布鲁克林大桥所用的石材也来源于此。

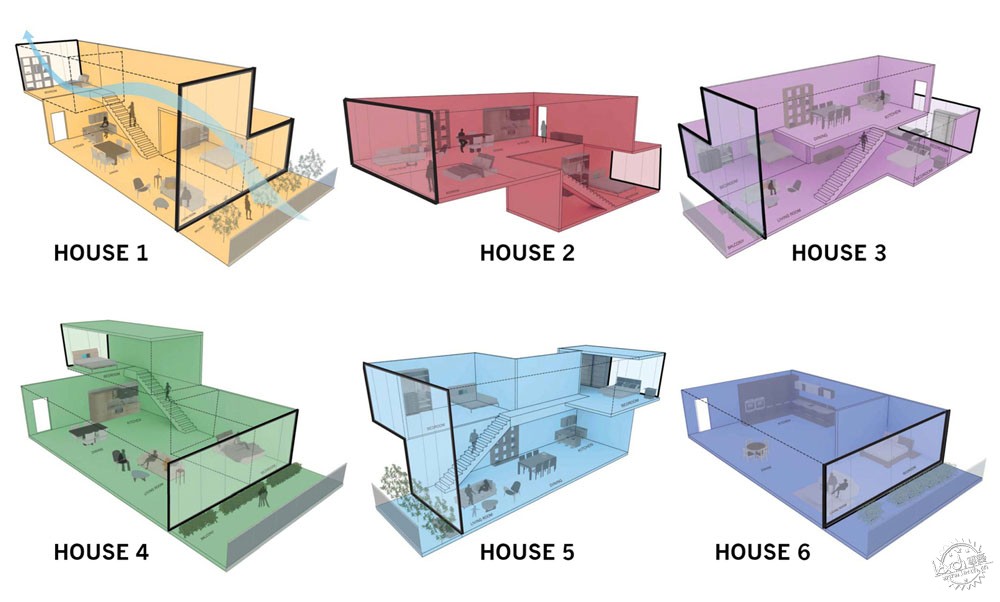

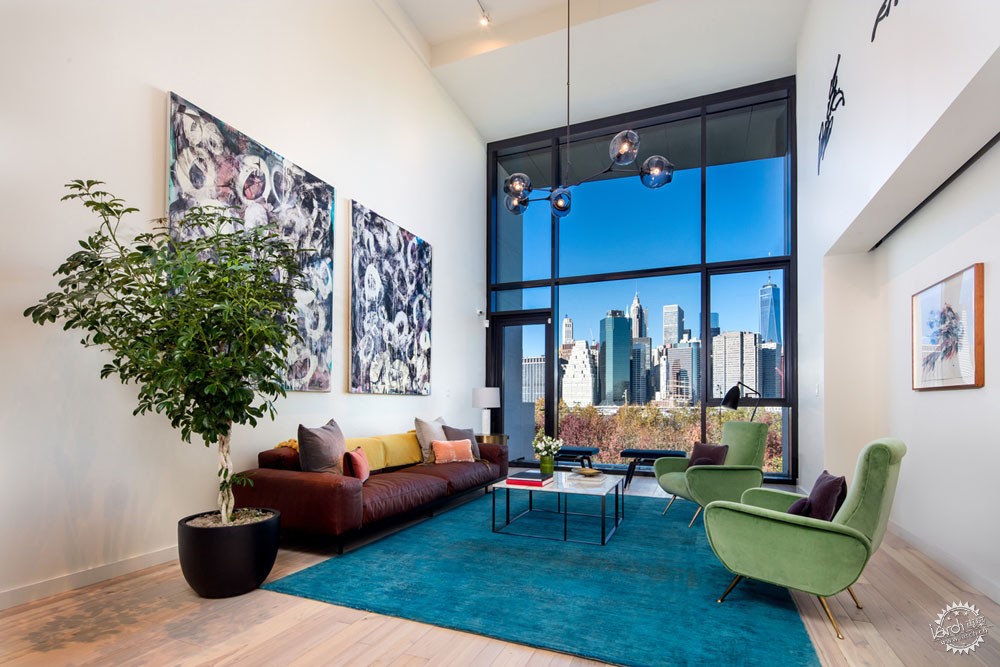

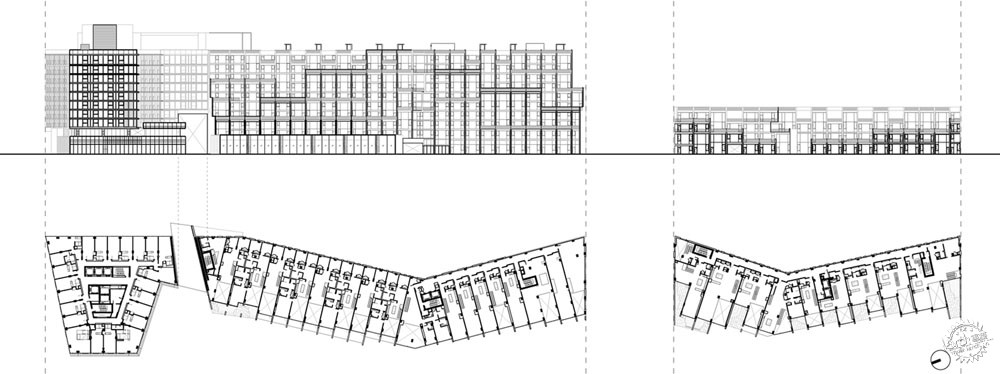

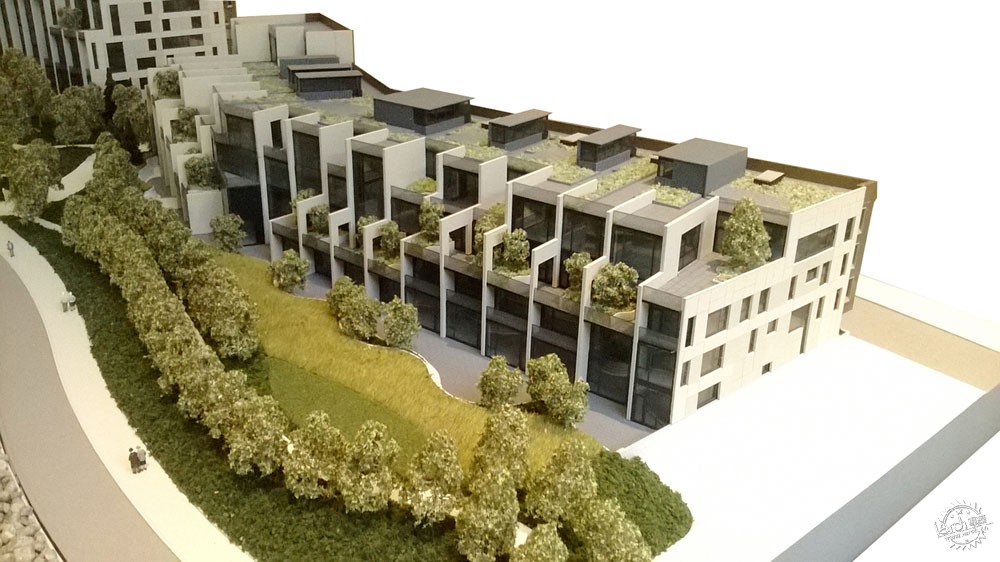

This parkside city side condition informs two distinct façades, innovative residential floor plans, and skip-stop circulation.The residential buildings employ a repeating sixteen-foot module of distinct duplex houses with terraces on the park and harbor views. All units are floor-through with east and west exposures, providing natural ventilation that filters harbor breezes through the building from park to the street. This porosity continues at grade, where public walkways through the building connect Furman Street and the park. The lobby is being graced with granite desks sculpture from the same quarry in Halloran, Maine that was used to build The Brooklyn Bridge.







设计要点：
· 公园里的酒店；
· 通过三层高的拱门面向使用者呈现了欢迎姿态。酒店入口位于一侧，而活动空间则位于另一侧；
· 公共起居空间位于Furman街一侧；
· 通过入口、餐厅、咖啡厅、水疗等活动区域来全方位吸引大众；
· 每个房间都拥有Juliet露台；
· 金属框能够很好地保护玻璃，同时构成Dumbo工业美学特征；

Design Bullet Points:
- Hotel anchors the building in the park

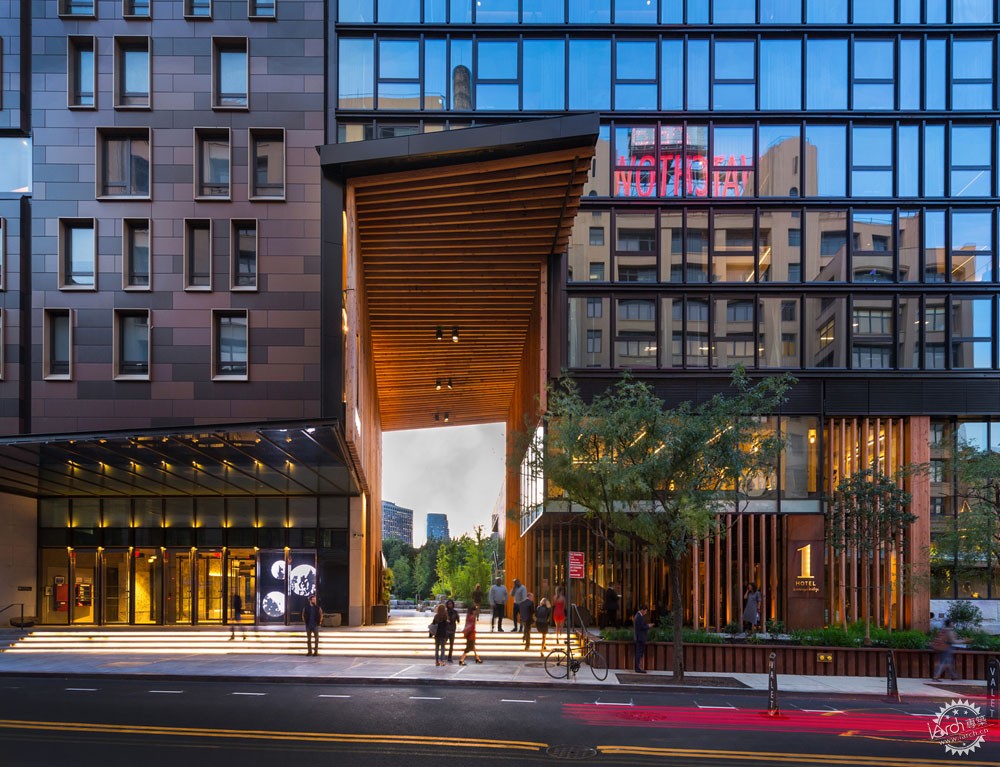

- Embraces the site by inviting the public to the park through 3 story archway. Hotel entry on one side event space on the other.
- Public living room on Furman
- Engages the public on all sides: Entry, restaurant, café, spa and event

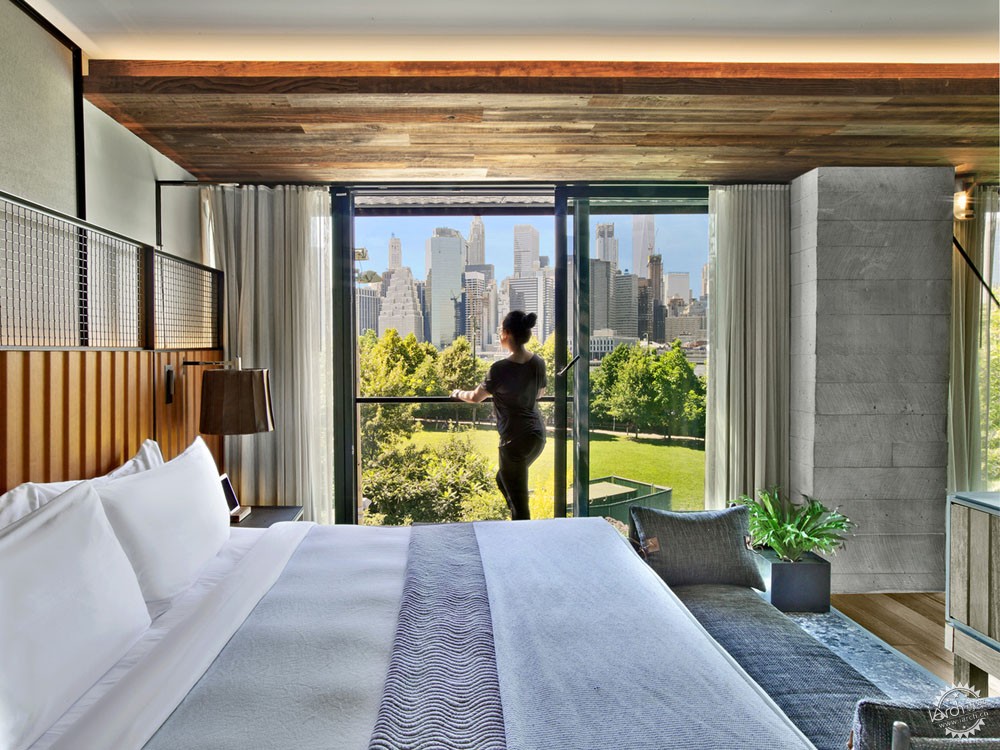

- Each room has a Juliet balcony on the park
- Expanded metal shades protect the glass and connect to rugged Dumbo factory aesthetic.







· 屋顶露台是公园泳池的延伸，为人们提供欣赏城市美景的视野；
· 酒店一共10层，建筑面积242000平方英尺（约22482平方米），其中包括服务用房以及活动用房，这座酒店位于Pierhouse项目的北侧，布鲁克林大桥的南侧。其中包含有195间客房、3间餐厅、一个17500平方英尺（约1626平方米）的活动空间、一个5000平方英尺（约465平方米）的水疗区域、一个屋顶花园和酒吧、300车的停车场，以及两个零售空间。

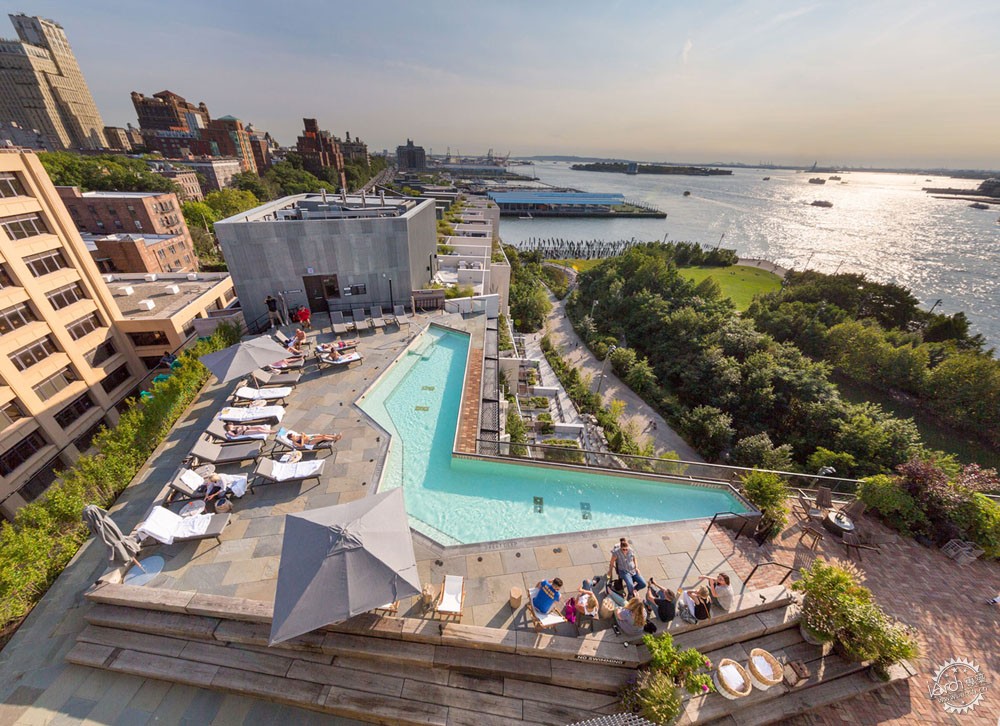

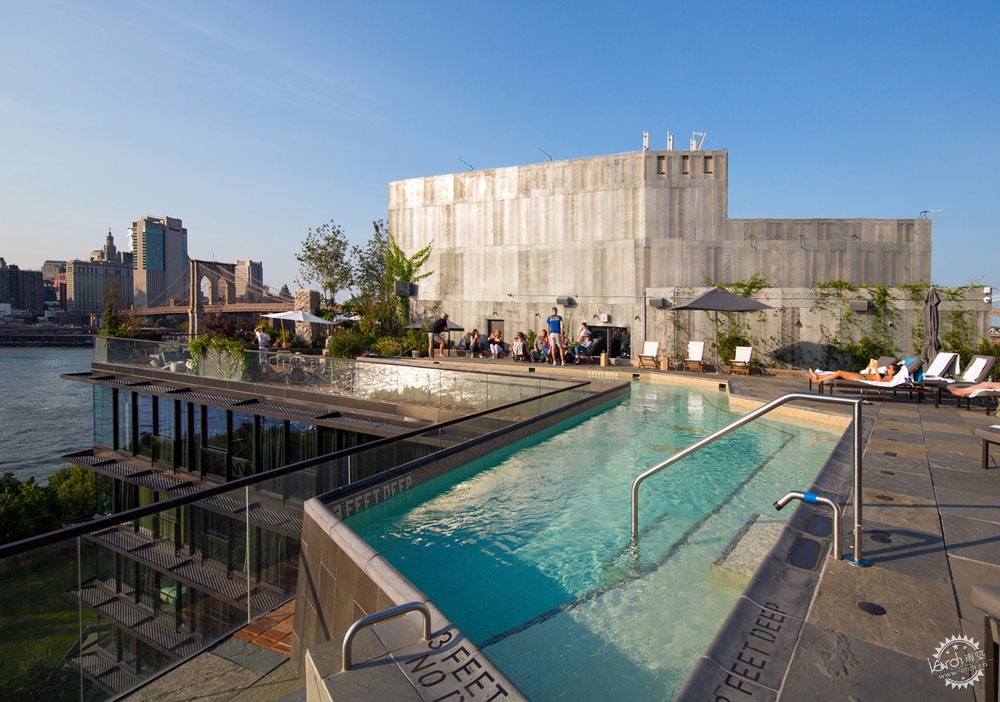

- Rooftop terrace- -extension of the park pool and views across the city.
- Adjoining at ten stories and 242,000 SF, including back-of-house and events, 1 Hotel defines the northern extent of the Pierhouse development, just south of the Brooklyn Bridge. The program includes 195 hotel rooms, three dining venues, a 17,500 SF event space, a 5,000 SF spa, a rooftop pool and bar, a 300-car parking garage, and two retail spaces.

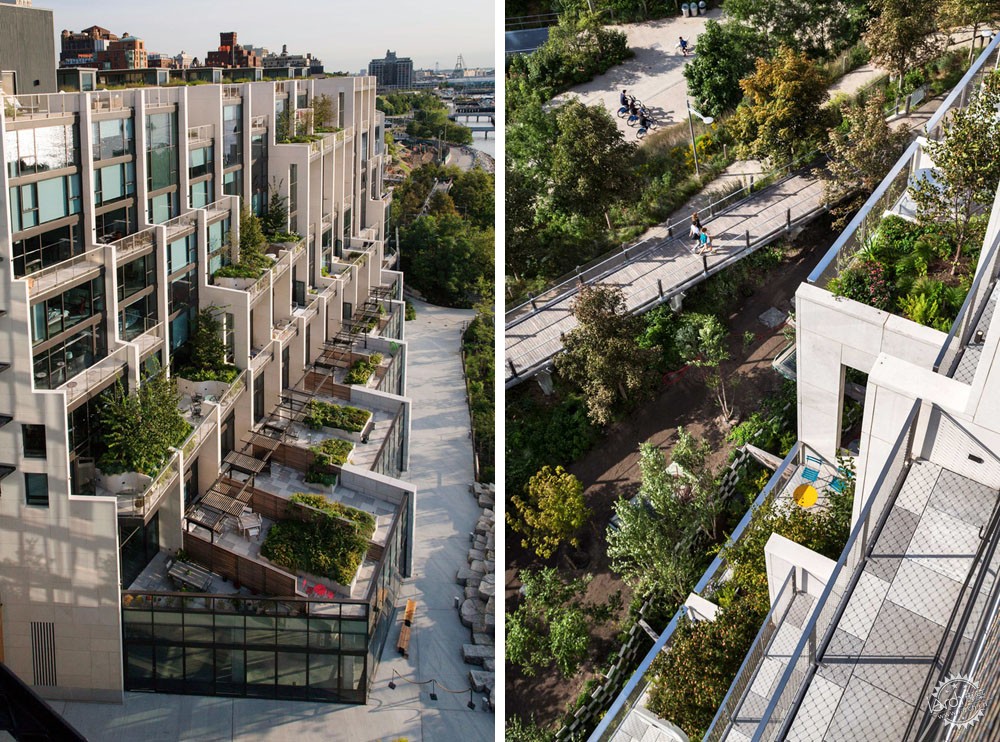

· 场地与屋顶露台中植物的种植也是该项目的重要组成部分。景观中点缀着树木和花岗岩树池，给休闲的人们带来一片荫凉，同时也用绿植将公园与酒店融合起来。公园的特征在二层与三层露台中不断地重复，而桥体的材质在呼应于下部与内部空间。透明的窗户反射了天空、公园、河流、大桥，完美地将酒店与公园融合在一起，构成和谐共生的姿态。

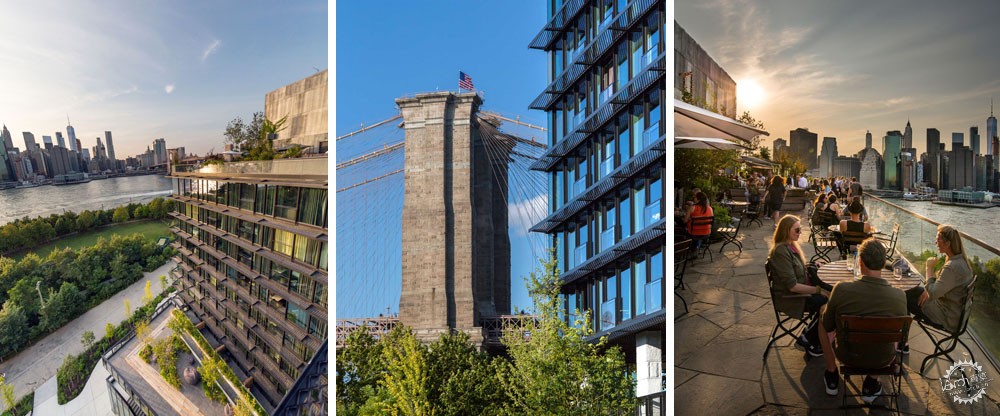

- The reestablishment of native plantings and mature trees on the site and roof terraces is a major component of the project. Landscaping at grade is dotted with trees and blocks of granite to provide shaded seating and extend the park experience up to and into the hotel. Park topography is repeated at second and third-floor terraces, while the materiality of the bridge is picked up in the granite facing of the base and interiors. The sheer window walls reflect and meld sky, park, river, bridge, and bustling Brooklyn neighborhood. Extending the park into the hotel takes the hotel experience out to the park and beyond, resulting in an altogether symbiotic relationship.































建筑设计：Marvel Architects
地点：美国，纽约
类别：多功能建筑
设计团队：Guido Hartray, Dennis Vermeulen, Andrew Torres, Sean Gaffney, JS Yong
面积：621138.0 平方英尺（约57705平方米）
项目时间：2017年
摄影：David Sundberg | Esto, Eric Laignel, Marvel Architects, Eva Joseph
制造商：ABET Laminati, Concrete Collaborative, Delta Faucet, Elkay, Formica, Kohler, Maharam, McNichols, Nemo Tile, Sherwin Williams, Stone Source, Tandus Centiva, The Hudson Company, Toto, Zurn, Amkel, Robin Reigi Tac Board, Pedini, Pavigym, Waterworks + 3
客户：Toll Brothers City Living
MEP工程：Dagher Engineering
结构工程：DeSimone
声学：AKRF
食品商：Clevenger Frabel LaVallee
立面设计：Gilsanz Murray Steficek
土木工程：Langan
室内设计：Marvel Architects
景观设计：Michael van Valkenburgh
合作方：New York State Economic Development Council, Brooklyn Bridge Park Conservancy
酒店：160,451.0 平方英尺 （约14906平方米）
Furman街90号公寓：287,746.0 平方英尺（约26732平方米）
Furman街130号公寓：172,941.0 平方英尺 （约16067平方米）

Architects: Marvel Architects
Location: Brooklyn, New York, United States
Category: Mixed Use Architecture
Design Team: Guido Hartray, Dennis Vermeulen, Andrew Torres, Sean Gaffney, JS Yong
Area: 621138.0 ft2
Project Year: 2017
Photographs: David Sundberg | Esto, Eric Laignel, Marvel Architects, Eva Joseph
Manufacturers: ABET Laminati, Concrete Collaborative, Delta Faucet, Elkay, Formica, Kohler, Maharam, McNichols, Nemo Tile, Sherwin Williams, Stone Source, Tandus Centiva, The Hudson Company, Toto, Zurn, Amkel, Robin Reigi Tac Board, Pedini, Pavigym, Waterworks + 3
Clients: Toll Brothers City Living
MEP: Dagher Engineering
Structural Engineers: DeSimone
Acoustical: AKRF
Food Service: Clevenger Frabel LaVallee
Facade: Gilsanz Murray Steficek
Civil: Langan
Residential Interior Design: Marvel Architects
Landscape: Michael van Valkenburgh
Collaborators: New York State Economic Development Council, Brooklyn Bridge Park Conservancy
Hotel: 160,451.0 ft2
90 Furman Street Condo: 287,746.0 ft2
130 Furman Street Condo: 172,941.0 ft2
