Zebetin住宅/ JRA第1张图片


Family House Zebetin

由专筑网Brick,Vigo编译

来自事务所的描述。该住宅位于景色美丽的斜坡上,可以远眺Zebetin中心,看到教堂和周围的乡村。住宅在临街地块的上部。房屋的体块延续到街道下面一排房屋。

From the architect. Situated on a sloping plot in a beautiful location overlooking the centre of Zebetin with views of the church and surrounding countryside. The house is situated on the upper part of the plot facing the street. The mass of the house continues onto the row of houses in the lower part of the street.

Zebetin住宅/ JRA第2张图片
© Filip Slapal

设计的主要理念是“巧妙地”建立房屋体,将住宅布置在斜坡地形上,并且延续到花园和街道。设计尊重原来的地形,尽可能少地“侵犯”它。房屋的形状由场地边界确定,略带梯形。这是种原生形状,简单的体块加上人字屋顶。

The main motto of the design is the „clever“ establishment of the mass and dispositions of the house onto the sloping terrain and its continuity into the garden and the street. The design respects the original terrain and „violates“ it as little as possible.The shape of the house is defined by the boundary of the plot and is slightly trapezoidal. It is an archetypal shape, a simple mass with a gabled roof.

Zebetin住宅/ JRA第3张图片
© Filip Slapal

Zebetin住宅/ JRA第4张图片

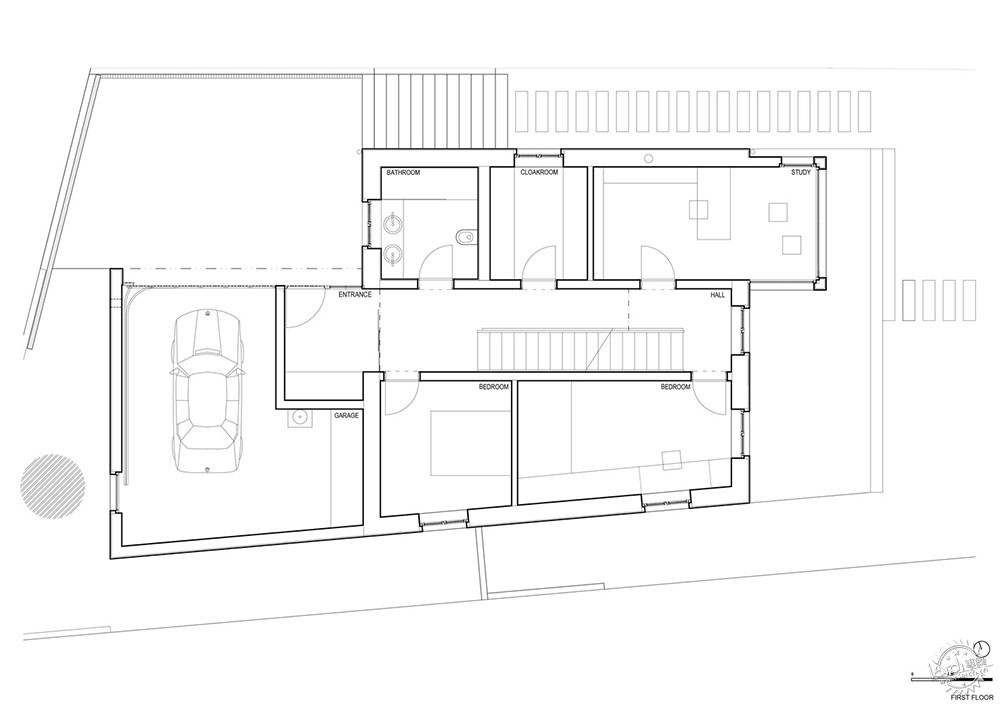

Floor Plan/楼层平面图

车库位于房屋临街部分的前面,院子里有铺着砖的入口和小车道,穿透墙由钢筋混凝土制成,还有一扇松木门。从院子能走下预制水泥台阶,台阶在房屋周围,进入花园,上到大型庭院露台。

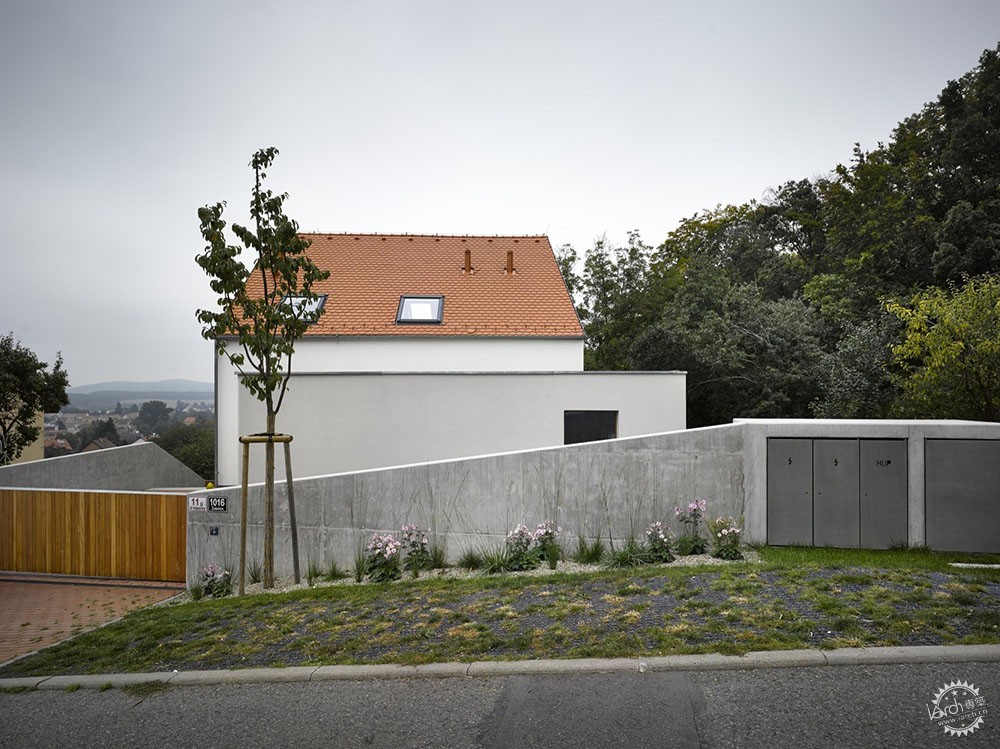

A garage mass is situated in front of of the house in the street facing part, with entrance neck and a small drive in court -yard paved with bricks and with defining seethrough walls made from reinforced concrete and a larch wood drive-in gate. From the yard one can go down the precast concrete steps, around the house and into the garden and onto a large patio terrace.

Zebetin住宅/ JRA第5张图片
© Filip Slapal

屋体和立面朝向花园,和大型玻璃区创建的传统窗户形成对照,玻璃区用简单的盒形木釉凸窗补充。

The mass and facade towards the garden contrast the traditional windows created by large glassed areas complemented by a simple box shaped wooden glazed bay window.

Zebetin住宅/ JRA第6张图片
© Filip Slapal

通过通向车库的前厅进入房屋。走廊贯穿整个房屋,单臂开敞楼梯上到建筑的顶部。三个房间、一间化妆室和一间浴室位于入口楼层。带凸窗的房间可以欣赏美丽变换的景色,框起教堂的图画。

The house is entered through the vestibule which leads onto the garage. The hallway runs through the entire house with a single-arm open staircase rising to the top of the building. Three rooms, a dressing room and a bathroom are situated on the entrance „rooms“ floor. The room with the bay window allows beautiful changing views – picture framed views of the church.

Zebetin住宅/ JRA第7张图片
© Filip Slapal

Zebetin住宅/ JRA第8张图片
Section/剖面图

从大厅能走下楼梯,进入带有厨房和餐厅的生活区。半透明橡木楼梯将生活部分和厨房餐厅分开。主要区域通过大型滑动窗连接到花园和露台。壁炉位于生活区。在房屋后部有卫生间、洗衣房和技术室。

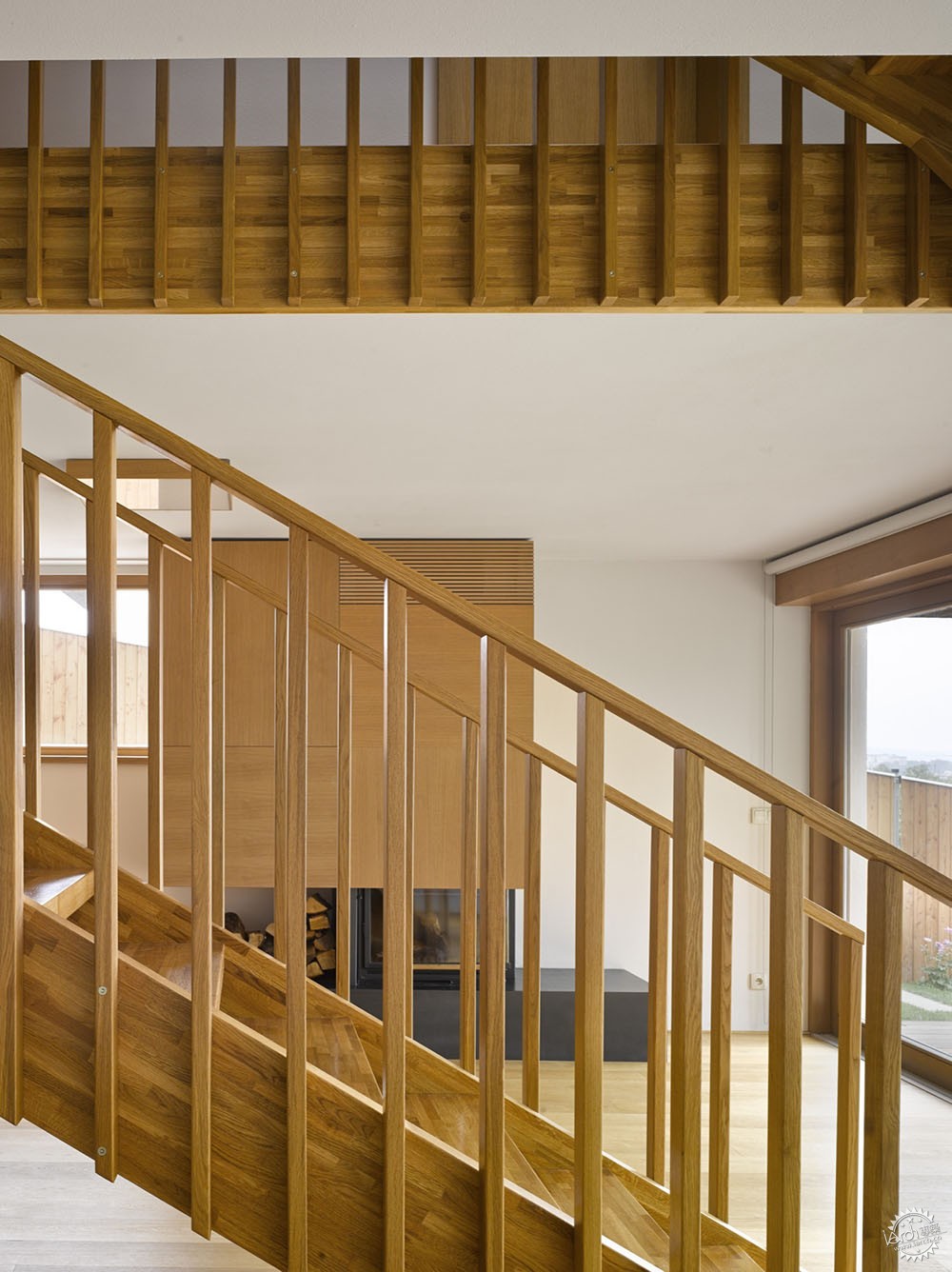

From the hall one can walk down the staircase into the living area with a kitchen and a dining room. This semi-transparent oak staircase separates the living part from the kitchen and the dining room. The main area is connected to the garden and terrace by a large sliding window. A fireplace is located in the living area. In the rear part of the disposition there is a WC, a laundry room and a technical room.

Zebetin住宅/ JRA第9张图片
© Filip Slapal

通过从门厅到露天走廊的楼梯进入阁楼。在这层有两间儿童房和一间浴室。

Access to the attic is gained via the staircase from the entrance hall onto the open gallery. On this floor there are two childrens‘ rooms and a bathroom.

Zebetin住宅/ JRA第10张图片
© Filip Slapal

花园是整个设计的重要部分。钢筋混凝土垫脚石经过花园,延续到室内楼梯上。松木露台穿越房屋的整个宽度,平衡了花园的水平面,从花园能走下台阶进入花园的实用部分。

The garden is an important part of the whole design. An axis of reinforced concrete stepping stones runs through the garden and continues up to the internal staircase. The larch terrace which runs across the entire width of the property balances the level of the garden, from which one can walk down the riding steps into the utilitarian part of the garden.

Zebetin住宅/ JRA第11张图片
© Filip Slapal

Zebetin住宅/ JRA第12张图片
© Filip Slapal

Zebetin住宅/ JRA第13张图片
© Filip Slapal

Zebetin住宅/ JRA第14张图片
© Filip Slapal

Zebetin住宅/ JRA第15张图片
© Filip Slapal

Zebetin住宅/ JRA第16张图片
© Filip Slapal

Zebetin住宅/ JRA第17张图片
© Filip Slapal

Zebetin住宅/ JRA第18张图片
© Filip Slapal

Zebetin住宅/ JRA第19张图片
© Filip Slapal

Zebetin住宅/ JRA第20张图片
© Filip Slapal

Zebetin住宅/ JRA第21张图片
Site Plan/总平面图

Zebetin住宅/ JRA第22张图片
Floor Plan/楼层平面图

Zebetin住宅/ JRA第23张图片
Floor Plan/楼层平面图

Zebetin住宅/ JRA第24张图片
Elevation/立面图

Zebetin住宅/ JRA第25张图片
Elevation/立面图

Zebetin住宅/ JRA第26张图片
Elevation/立面图

Zebetin住宅/ JRA第27张图片
Elevation/立面图

建筑设计: JRA
项目位置: 捷克
项目团队: Magdalena Rochová, RadekJarousek
项目面积: 210.0平方米
项目时间: 2015年
摄影: Filip Slapal
结构工程: RadekBrandejs
园艺设计: Martina Forejtová A05

Architects: JRA
Location: Brno-Žebětín, Czech Republic
Architect Team: Magdalena Rochová, RadekJarousek
Area: 210.0 sqm
Project Year: 2015
Photographs: Filip Slapal
Structural engineer: RadekBrandejs
Garden design: Martina Forejtová A05
