当建筑披上了沙漠的外衣,连能耗都能减少第1张图片


亚利桑那州立大学生物设计研究院
Arizona State University, Biodesign Institute C / ZGF Architects

由专筑网李韧,邢子编译

来自建筑事务所的描述:该项目面积为188447平方英尺(约17507平方米),具有校园的标志性特征,使用者希望能够建造一座可持续的实验建筑。建筑地上五层,地下一层,容纳有各个学科的实验与工作室,这使得建筑兼具多重功能,例如高海湾空间、高罩密度实验室,另外还有三个级别的科学实验室。整体的定制设计方案强调了地下层,其中设置有世界上第一个紧密型X光自由电子激光器。

Text description provided by the architects. The 188,447 SF research facility was intended to establish an identity as a striking campus gateway, while also delivering on the client’s need for a sustainable “workhorse” laboratory building. The building’s five above-grade levels and basement will house various scientific disciplines that will utilize the building’s mixture of laboratories, which includes high bay space, high hood-density laboratories, and three levels of generic life sciences laboratories. The custom-designed, heavily reinforced basement level will house the world’s first compact X-ray free-electron laser.

当建筑披上了沙漠的外衣,连能耗都能减少第2张图片


当建筑披上了沙漠的外衣,连能耗都能减少第3张图片


这座建筑的主要形式通过三个研究“社区”空间来表达,其中包含有各个楼层平面图。在以James Turrell装置为中心的北侧边缘是研究场所,三个建筑空间则位于装置周围,以遮挡视线。建筑独特的铜色外部形态表达了亚利桑那州的历史,即“Five Cs”,这推动了当地早期的经济发展,另外,特殊的红色也结合了校园的建筑特征。

The building’s primary form is an expression of the three research “neighborhoods” that comprise each floor plan. Forming the northern edge of a research quadrangle centered on a James Turrell installation, the three building segments have been strategically positioned to protect the view from within the installation. The distinctive copper exterior is a nod to Arizona’s roots (copper being one of Arizona’s historic “Five Cs” that drove the state’s early economy) and a unique expression of the reddish hue that permeates the campus architecture.

当建筑披上了沙漠的外衣,连能耗都能减少第4张图片


当建筑披上了沙漠的外衣,连能耗都能减少第5张图片


生物设计研究院获得了LEED白金认证,并且相比起现有的校园实验室,这座建筑能够节省44%的能耗,同时其目的也是成为校园内最具节能特色的实验场所。这座建筑有着平衡性能、美学基础,独特的外部铜丝网格系统构成了建筑的主要表皮,从而形成了高性能的双层立面,该体系由成千上万的铜制面板组成,并且有着8个不同程度的穿孔。建筑师根据场地的微气候特征和立面特定条件来进行穿孔定位,从而减小太阳热量的扩散,优化采光与视觉舒适度,并且扩大了景观视野。

Designed to achieve LEED Platinum®, with an energy savings goal of 44% compared to existing campus laboratories, Biodesign C is intended to be the most energy efficient lab on campus. Balancing performance, aesthetics, and budget, the distinctive outer copper screen wraps around a primary skin of insulated metal panels to create a high-performance dual façade. Comprised of thousands of copper panels, the screen features eight different levels of perforation. Intensive studies of the site’s micro-climate and façade-specific conditions informed their calibration and positioning to minimize solar heat gain, optimize daylighting and visual comfort, and provide unobstructed views out.

当建筑披上了沙漠的外衣,连能耗都能减少第6张图片


立面体系也有遮阳的功能,在夏天,该体系能够使建筑表面的温度下降许多,同时还能显著降低空间周边的温度。

As a shading device, the screen reduces the surface temperature of the inner façade by roughly 65 degrees on hot summer days, significantly reducing the cooling load on perimeter spaces.



当建筑披上了沙漠的外衣,连能耗都能减少第7张图片


当建筑披上了沙漠的外衣,连能耗都能减少第8张图片


建筑的广场结合了形式和功能,这也成为了建筑的基础部分,并且形成了休息区和交往场所。由于三层的实验室位于这样的空间之上,因此需要厚重的混凝土剪力墙。但是,建筑师通过设计的方式,结合结构特征,采用了一系列倾斜或垂直的支柱,构成了空间的支撑体系,因为虽然设计方法优雅且创新,但是有的柱子具有角度,有的又垂直放置,甚至有的还有三层楼的高度,所以这其中也充满了独特的挑战。同时多次大规模的模拟实验也大大促进了项目的具体实施。

Further combining form and function, a plaza has been carved out of the building’s base, which allows for al fresco breaks and meetings, despite the desert heat. Three levels of labs located directly above such a space would typically require heavy concrete shear walls. However, melding design excellence and structural integrity, a series of sloped and vertical columns was devised to provide lateral bracing. While an elegant and innovative design solution, it posed a unique challenge—some columns are angled, some upright, and one is three stories tall. Multiple large-scale mockups helped perfect the mix and formwork for each condition.

当建筑披上了沙漠的外衣,连能耗都能减少第9张图片


当建筑披上了沙漠的外衣,连能耗都能减少第10张图片

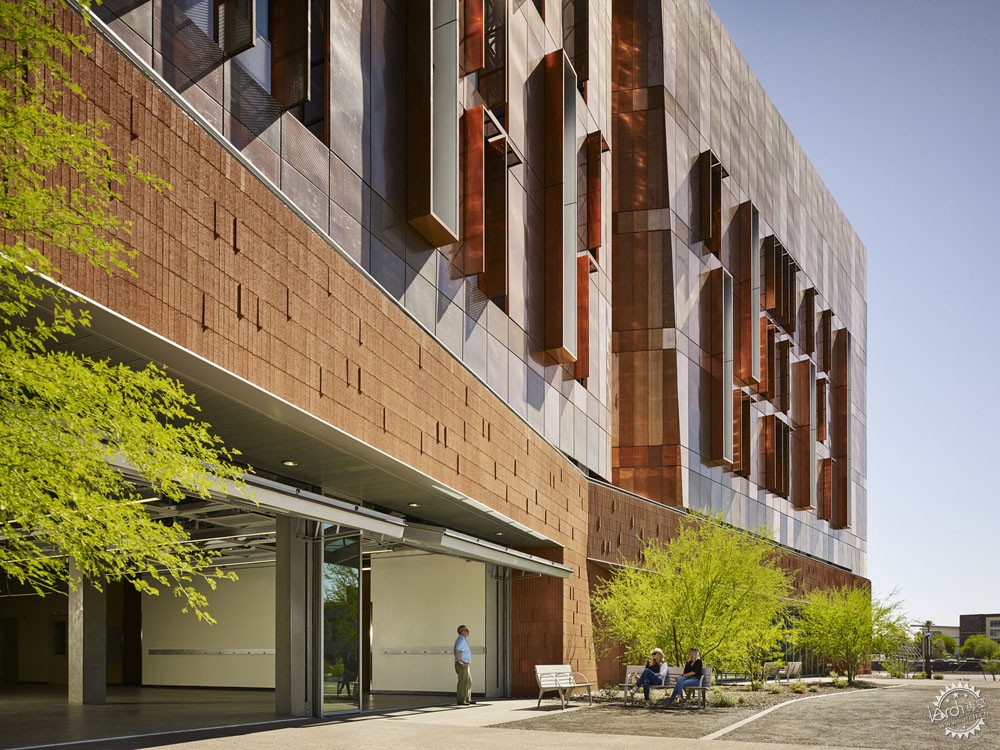

建筑生态设计元素的目的是构成积极且高效的室内环境,同时保持自然与建筑的联系。建筑的窗墙比为35%,确保了室内有着充足的日光照明。窗户和玻璃大厅使得使用者能够直接欣赏到校园景观。玻璃大门也将地面层和室外空间无缝地连接起来。未经处理的铜制立面具有渐变的色彩,这模仿了沙漠中不规则且不断变换的肌理特征。

The building’s biophilic design elements are intended to foster a positive, productive indoor environment, while maintaining connection with nature and community. A 35% window-to-wall ratio and transparent layering of spaces ensures daylight floods above-grade interiors. Abundant windows and the glass-enclosed lobby overlook active campus thoroughfares and a grove of vibrant palo verdes. Glass hangar doors seamlessly connect ground-floor maker spaces with the grove. The untreated copper façade will patina gradually, emulating the irregular, ever-evolving colors and textures of the desert.

当建筑披上了沙漠的外衣,连能耗都能减少第11张图片


当建筑披上了沙漠的外衣,连能耗都能减少第12张图片


当建筑披上了沙漠的外衣,连能耗都能减少第13张图片


当建筑披上了沙漠的外衣,连能耗都能减少第14张图片


当建筑披上了沙漠的外衣,连能耗都能减少第15张图片


当建筑披上了沙漠的外衣,连能耗都能减少第16张图片


建筑设计:ZGF Architects
地点:美国,亚利桑那州
主创建筑师:ZGF
面积:188447.0 平方英尺(约17507平方米)
项目时间:2018年
摄影:Nick Merrick © Hall+Merrick
制造商:Kingspan, Renlita USA
联合建筑设计:BWS Architects
总承包商:McCarthy Building Companies
结构工程:KPFF
土木工程:Dibble & Associates
MEP:AEI
景观设计:TrueForm
实验室规划:Jacobs Consultancy
造价估算:Capital Projects Group
声学顾问:Colin Gordon Associates
EMI 顾问:VitaTech Electromagnetics
联合结构工程设计:Advanced Structural Engineering
客户:Arizona State University

Architects: ZGF Architects
Location: Tempe, Arizona, United States
Lead Architects: ZGF
Area: 188447.0 ft2
Project Year: 2018
Photographs: Nick Merrick © Hall+Merrick
Manufacturers: Kingspan, Renlita USA
Associate Architect: BWS Architects
General Contractor: McCarthy Building Companies
Structural Engineer: KPFF
Civil Engineer: Dibble & Associates
MEP: AEI
Landscape Architect: TrueForm
Laboratory Planning: Jacobs Consultancy
Cost Estimating: Capital Projects Group
Acoustical Consultant: Colin Gordon Associates
EMI Consultant: VitaTech Electromagnetics
Associate Structural Engineer: Advanced Structural Engineering
Client: Arizona State University
